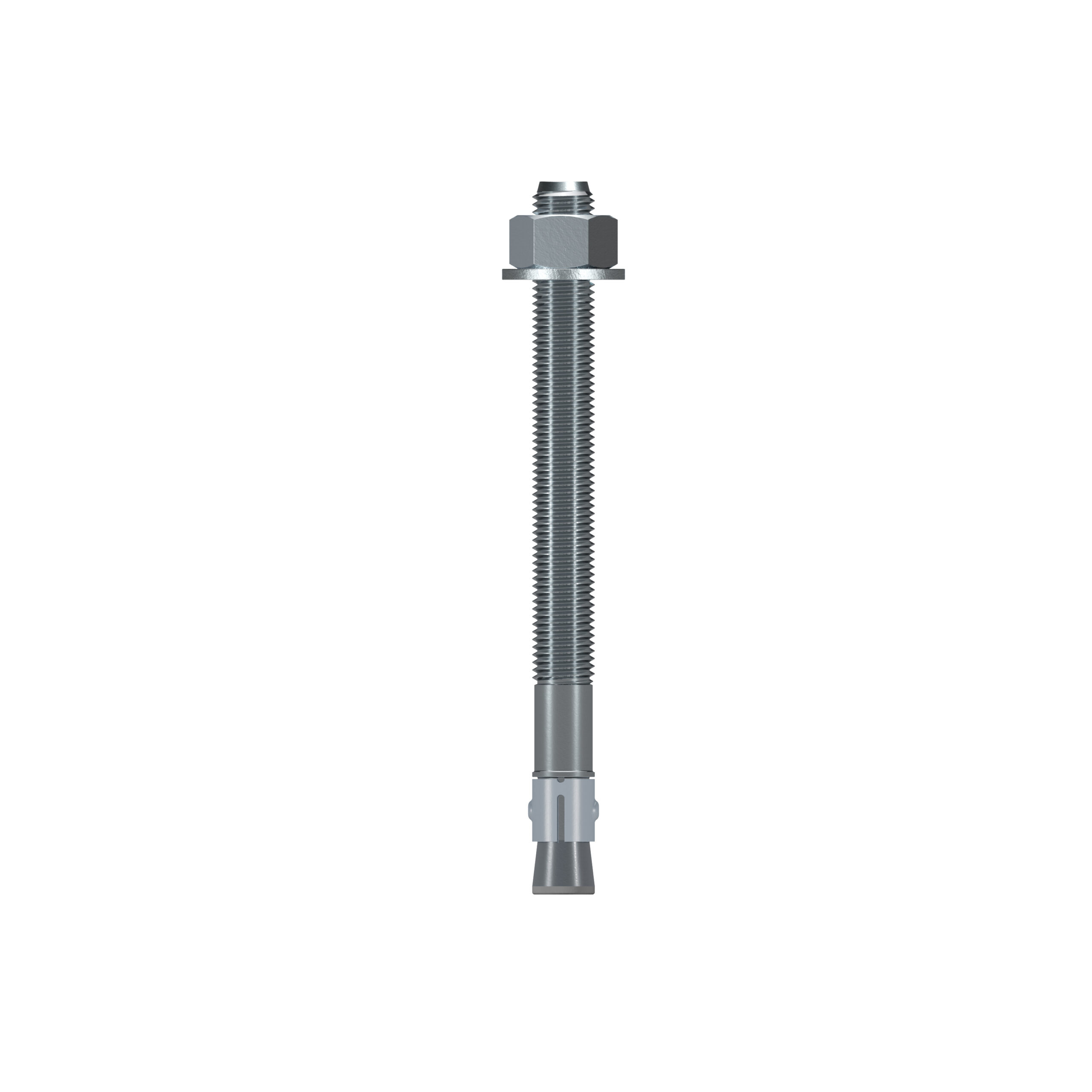

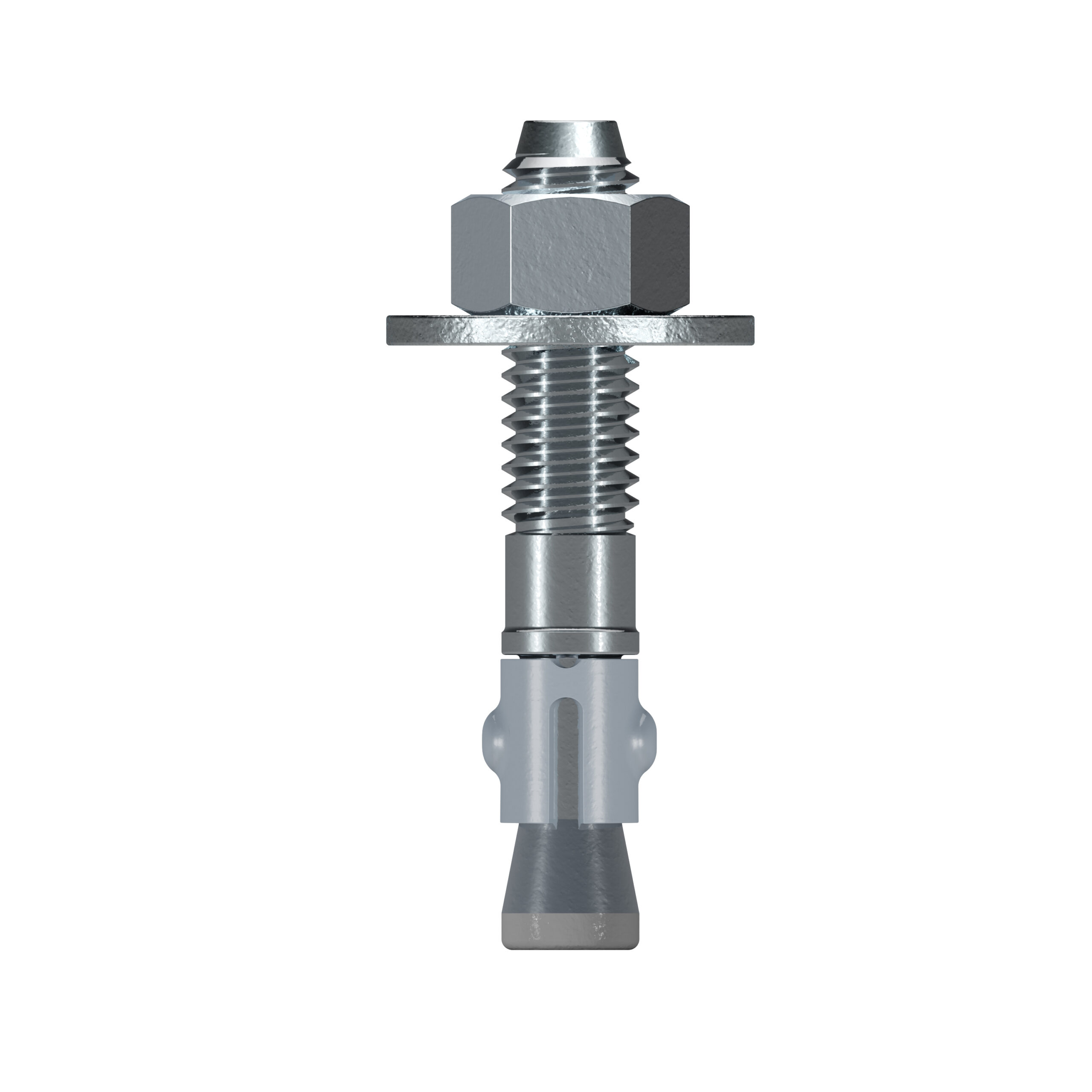

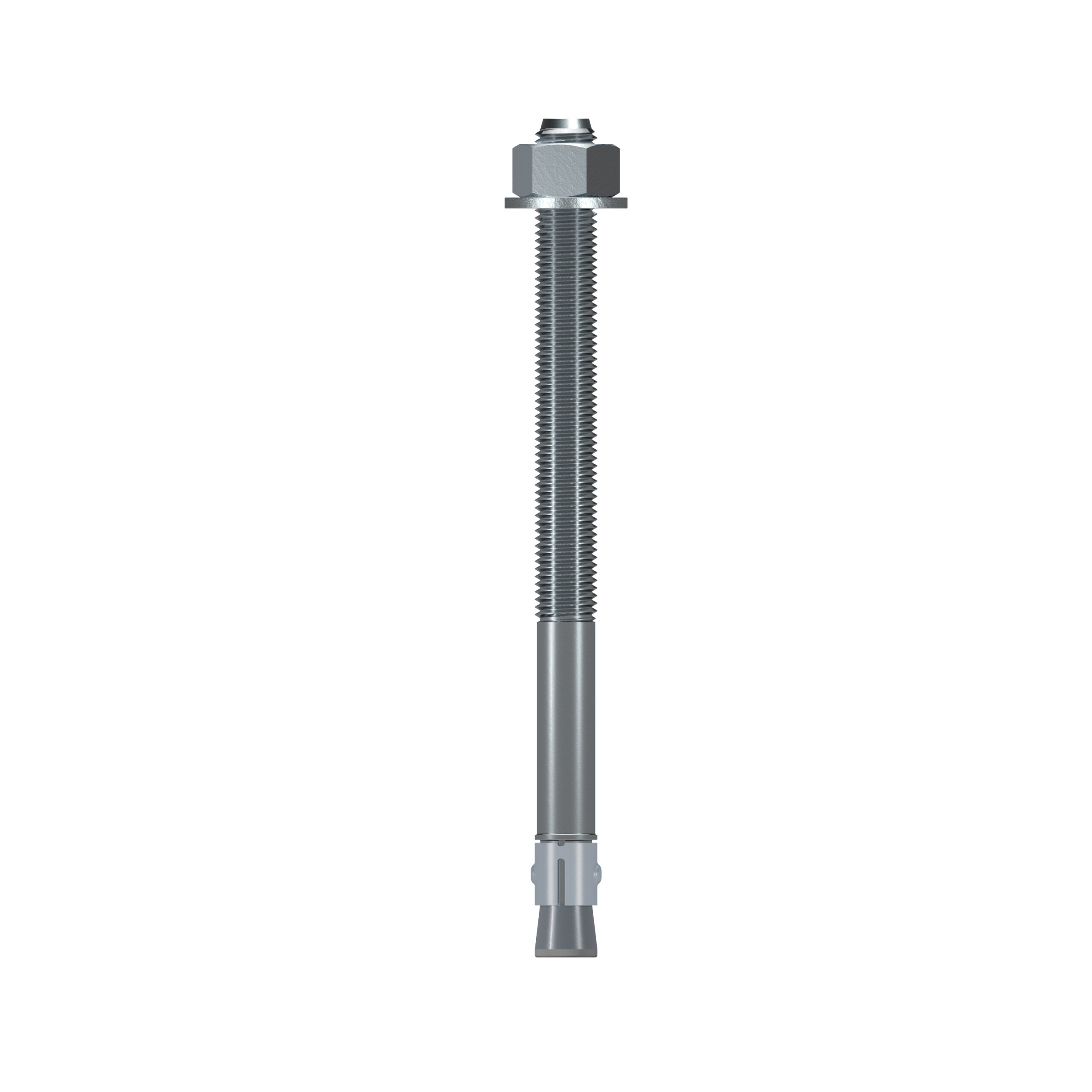

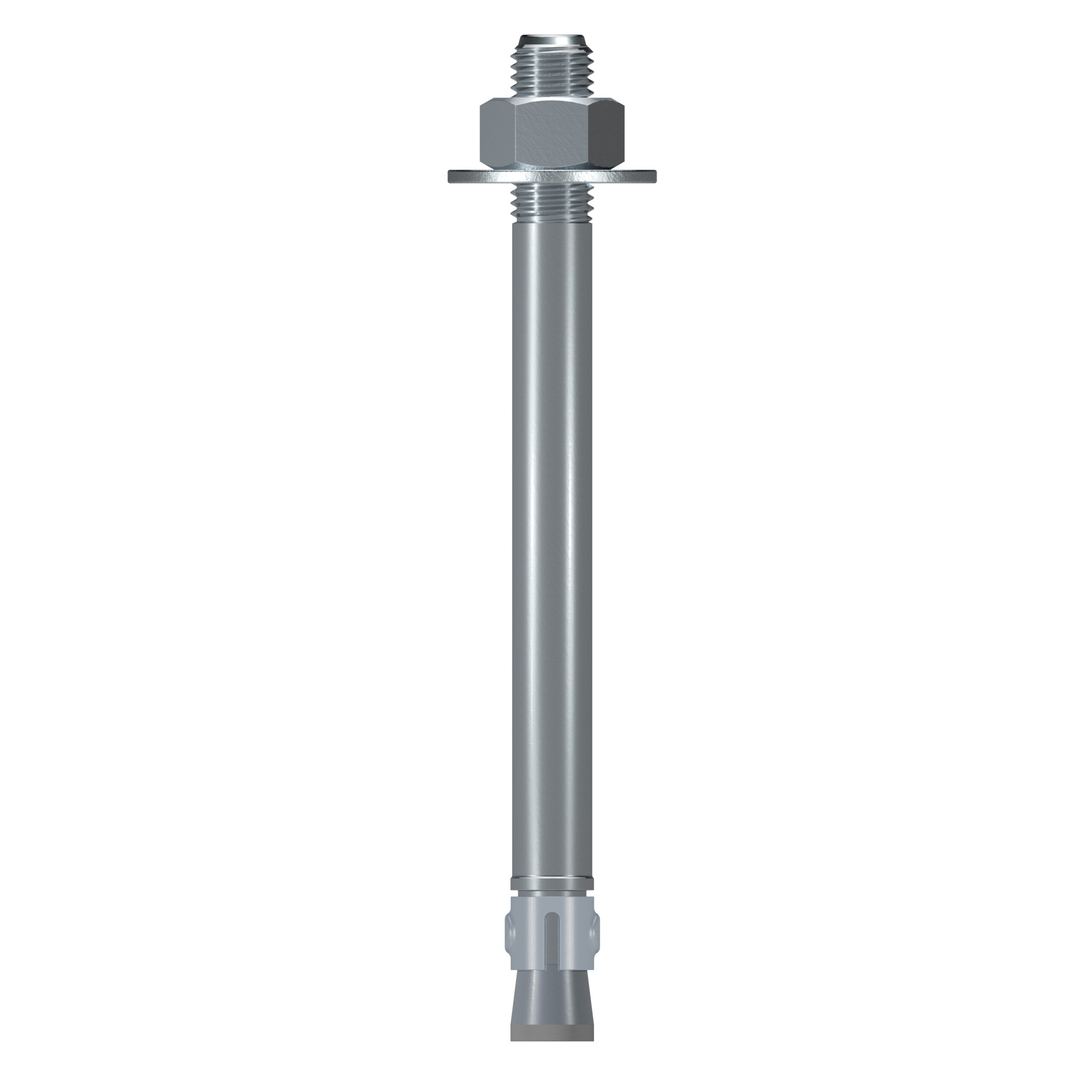

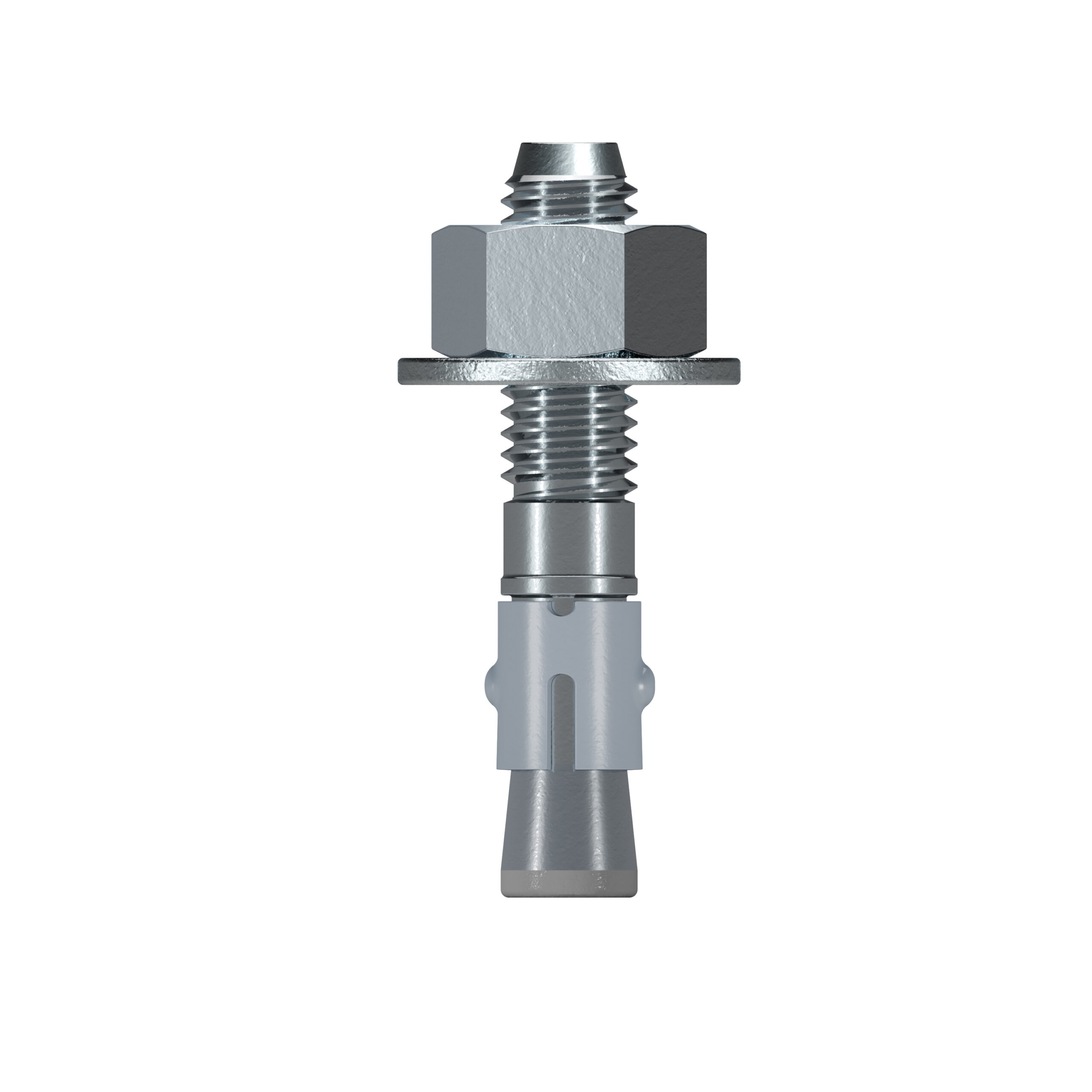

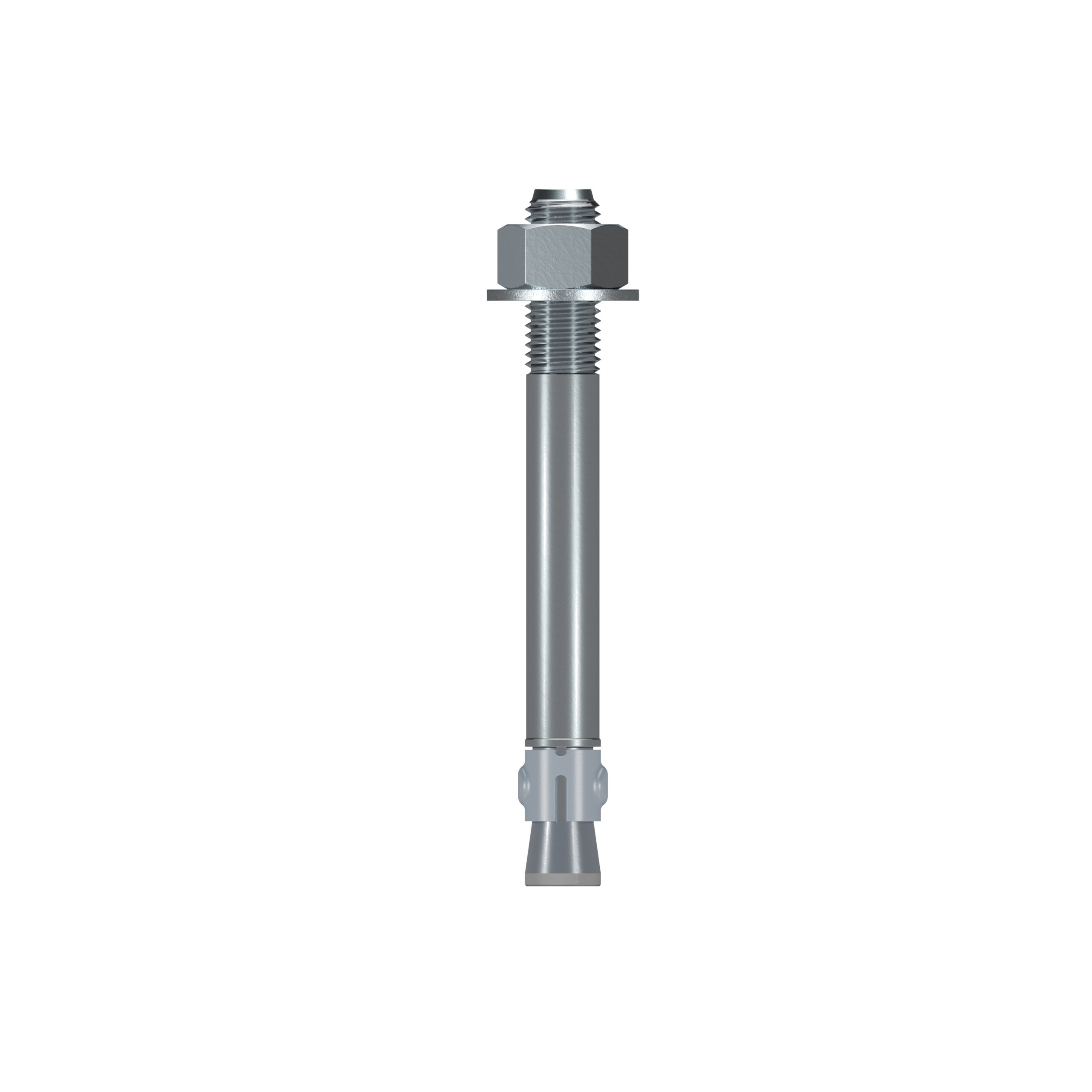

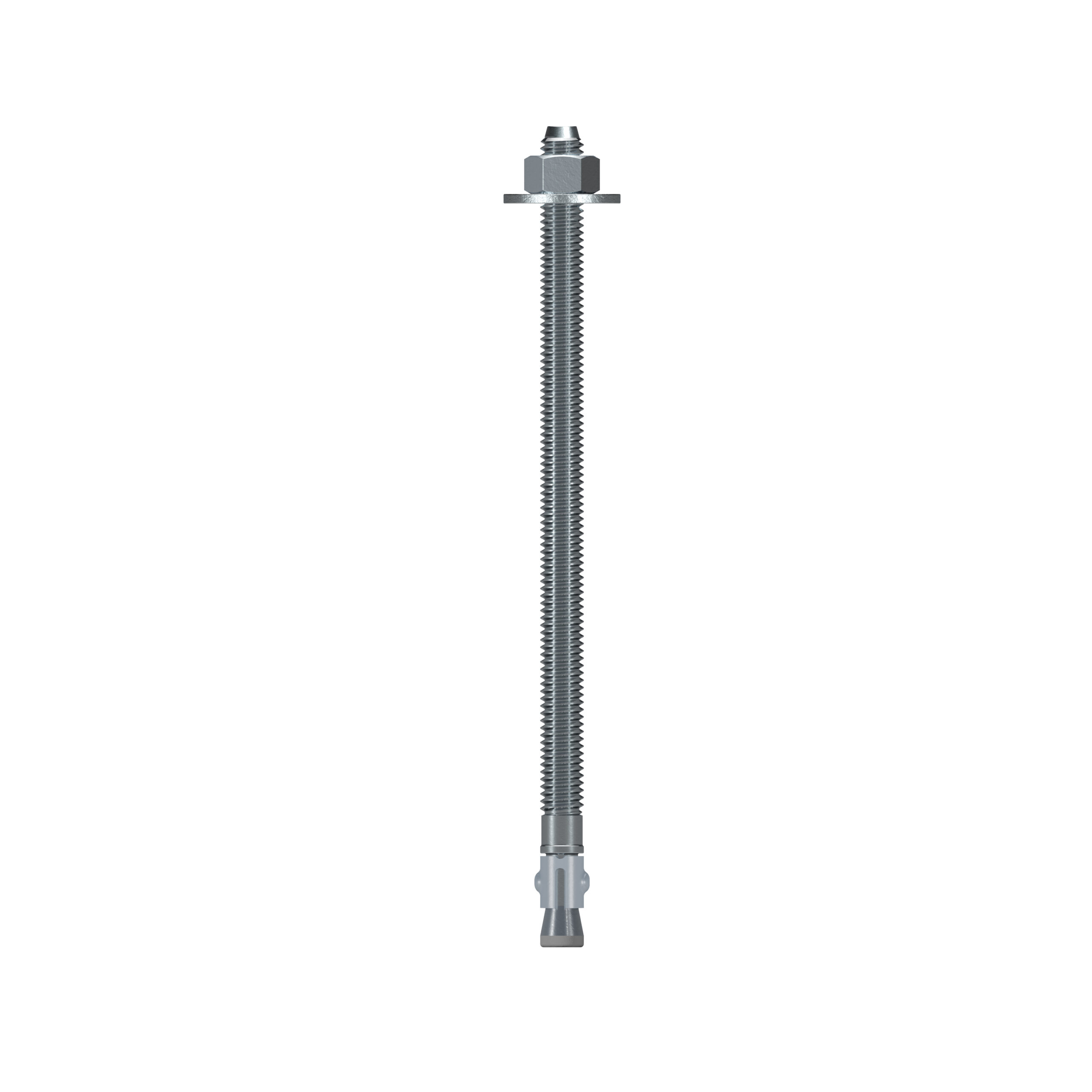

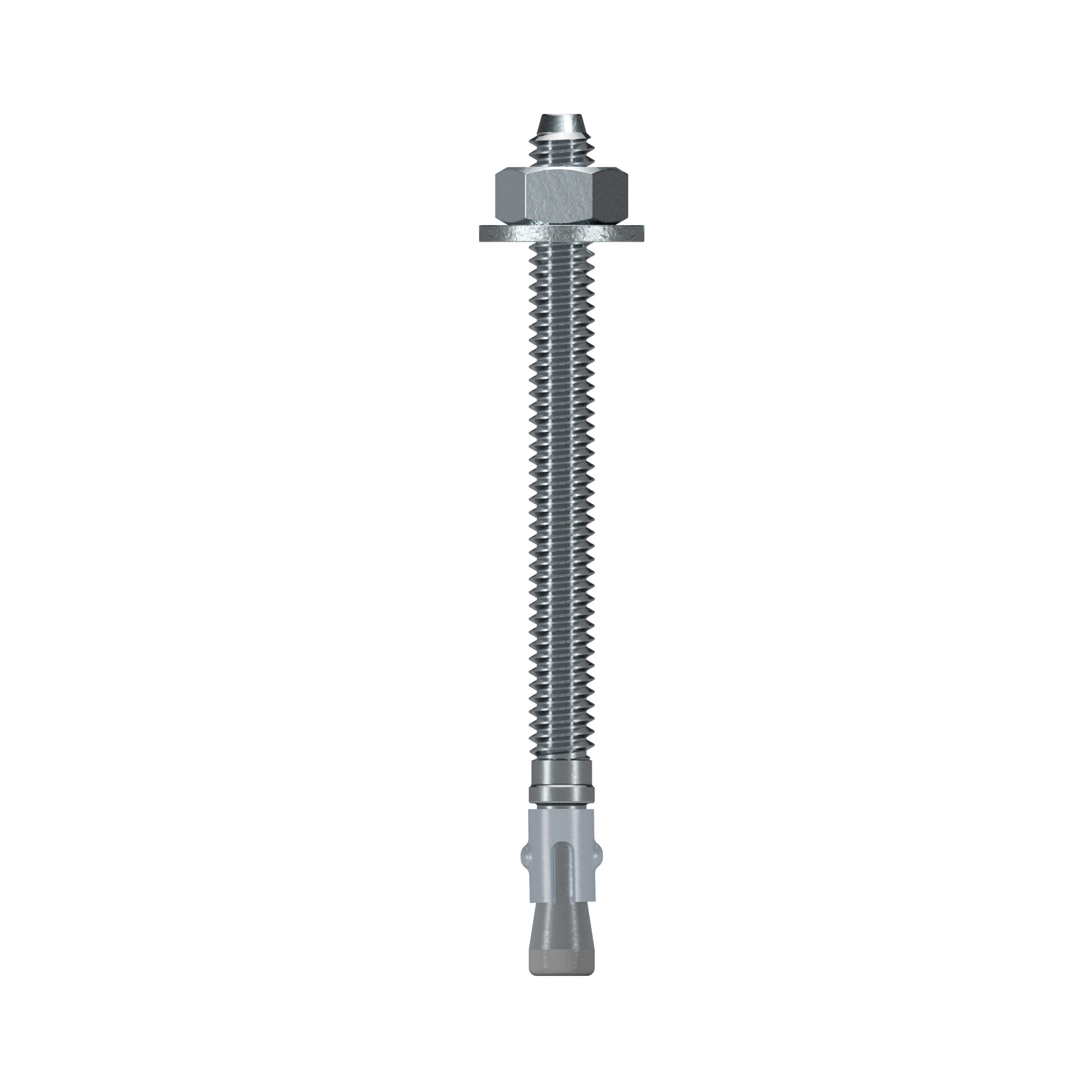

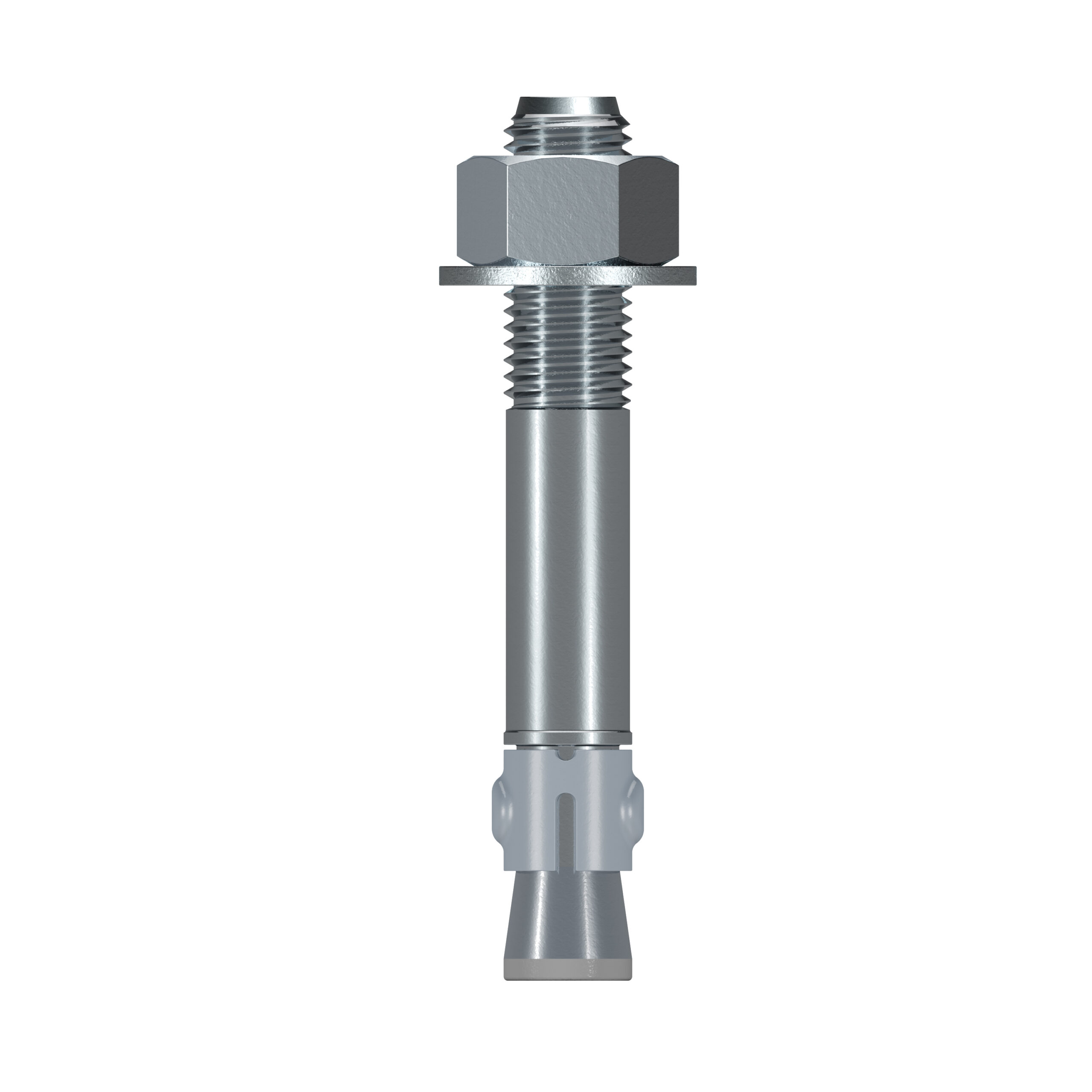

Simpson Strong-Tie WA75614 Wedge-All 3/4 in. x 6-1/4 in. Expansion Anchor

The Wedge-All wedge-style expansion anchor is intended for use in solid concrete or grout-filled masonry. This anchor is best suited in installations where a building code approval for seismic and cracked/uncracked concrete is not required. Threaded studs are set by tightening the nut to the specified torque.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	1.469
Assembled Height (in)	6.313
Assembled Depth (in)	1.469
Package Quantity	1
Coating	Zinc Plated
Material	Carbon Steel
Color	None
Length (in)	6 1/4
Thread Length	4 3/8
Diameter (in)	4-Mar
Drill Bit Diameter (in)	4-Mar
Anchor Body Component Material	Material meets minimum 70,000 psi tensile strength
Clip Component Material	Carbon Steel
Nut Component Material	Carbon Steel ASTM A 563, Grade A
Washer Component Material	Carbon Steel
Minimum Fixture Hole Diameter (in)	8-Jul
Wrench Size (in)	1 1/8
ICC-ES Reports	ESR-1396 (Masonry)
State Of Florida Approvals	FL15730
FM Approval	FMExpanShield|FMExpanShield
UL Approval	VFXT.EX3605|VFXT.EX3605
Hazmat	NO
UPC Per Each	44315259005
Package Quantity	10
Carton Quantity	40
Carton UPC	20044300000000
Pallet Quantity	3600
Pallet UPC	50044300000000
