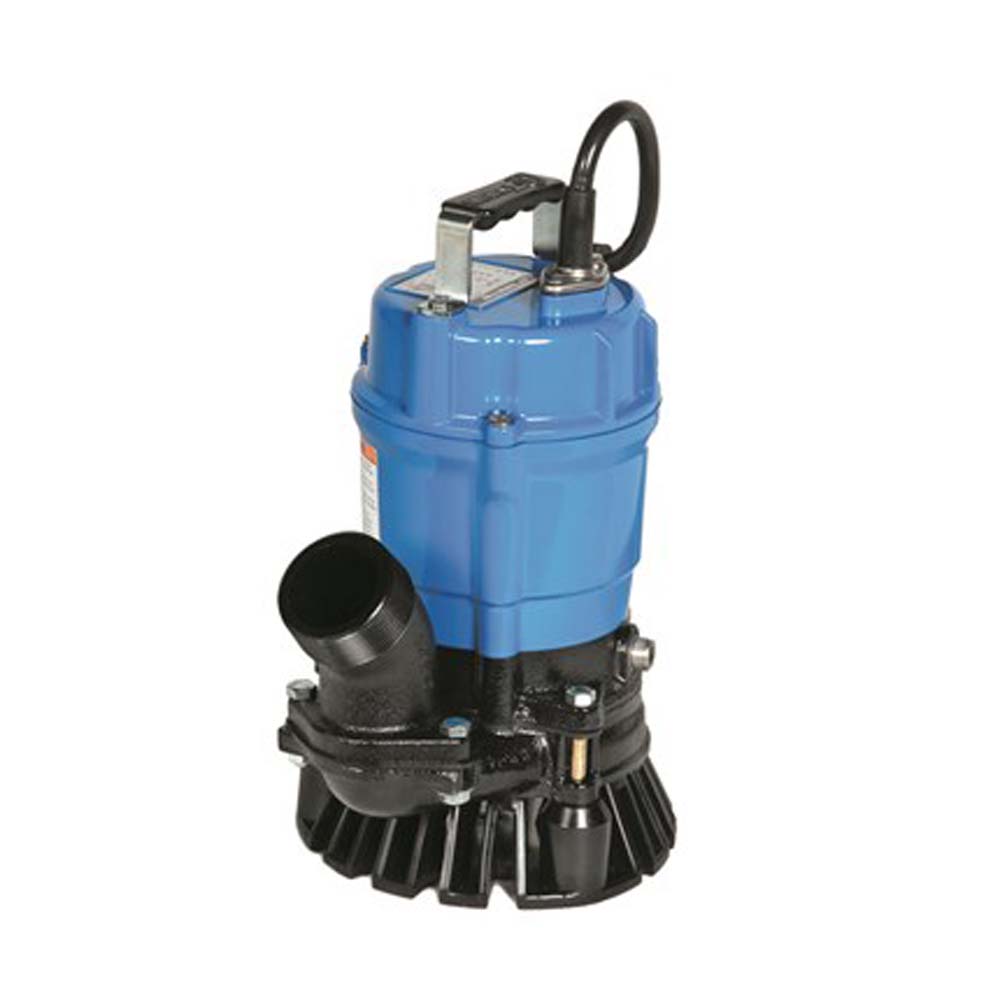

Tsurumi HS2.4S Manual Electric Submersible Pump

Tsurumi

$333.00

Free Shipping

Features

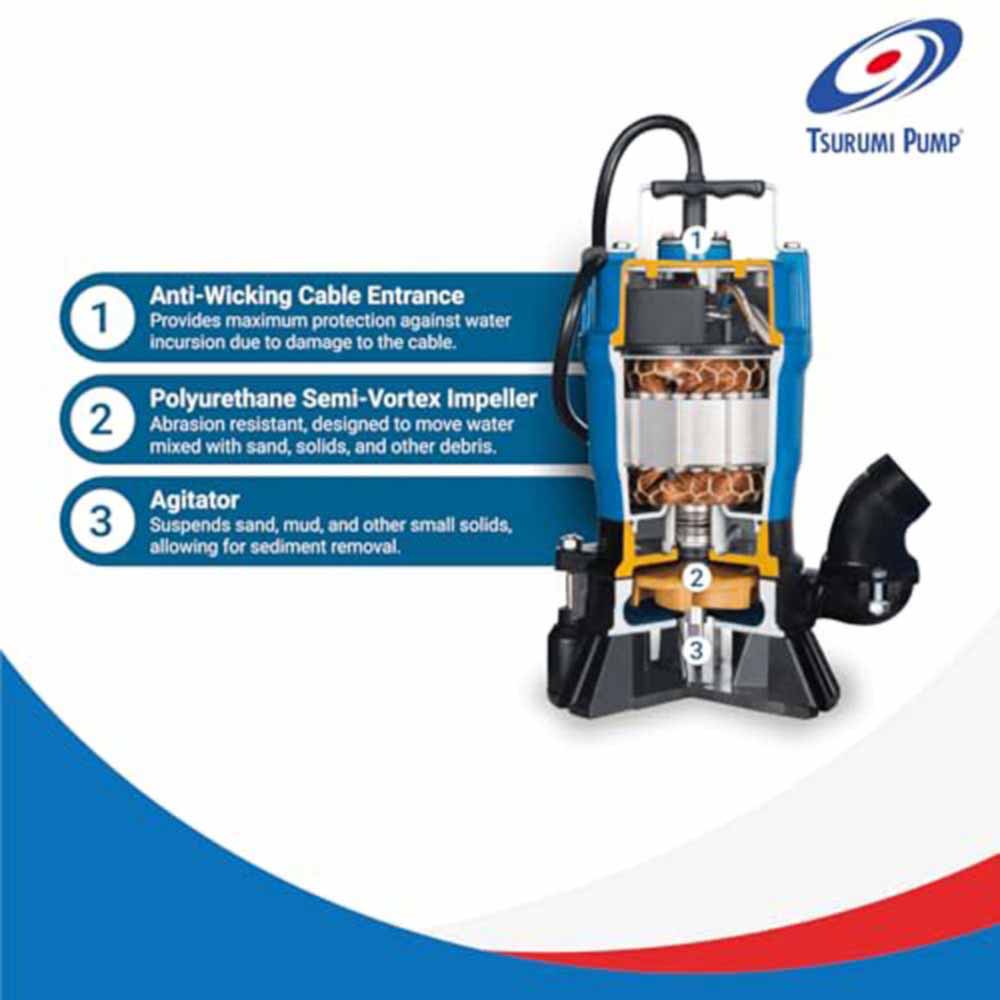

  • HS2.4S has a built-in shaft mounted agitator suspends solids.
  • Urethane Semi Vortex Impeller for maximum durability and pump performance.
  • Dual inside mechanical seal with SiC faces for longer life.

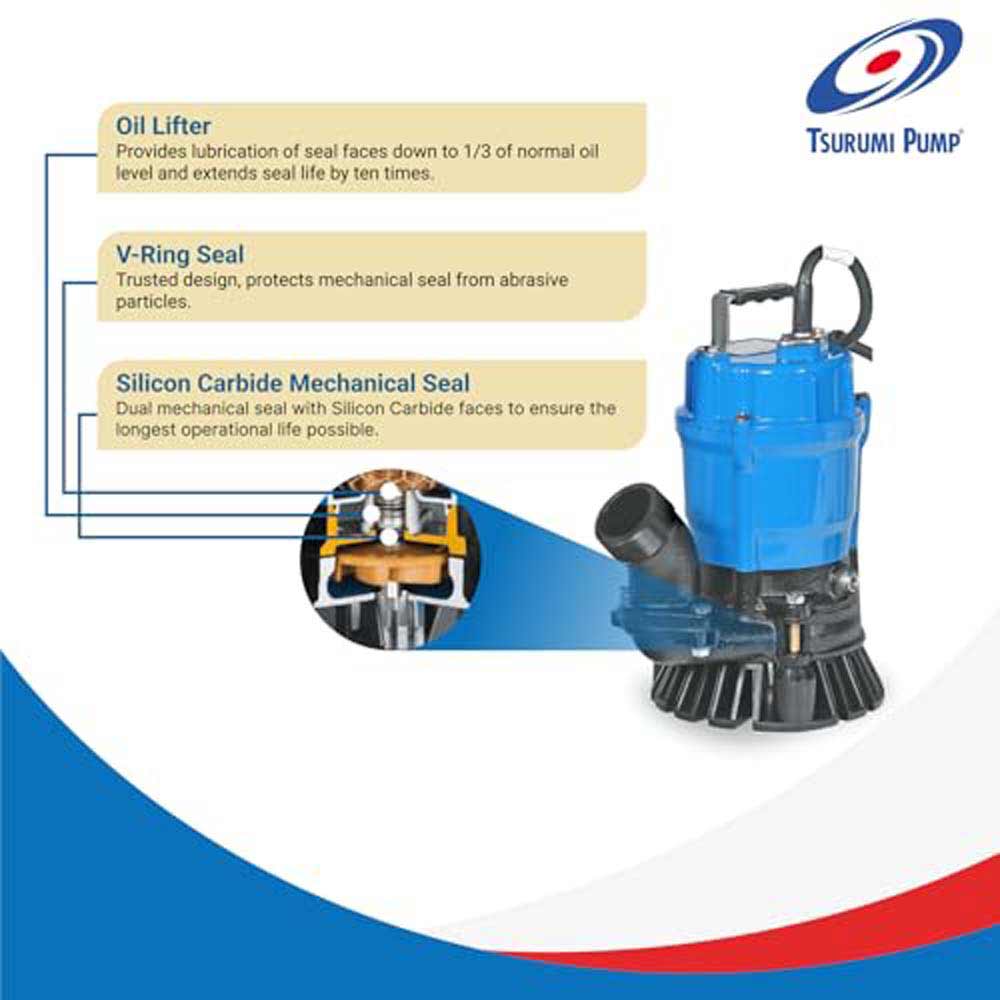

  • Oil Lifter provides lubrication of the seal faces. (Patented)
  • V-Ring Seal design protects mechanical seal from abrasive particles.

HS2.4S-62 Tech Sheet

Stock Available

Building Relationships, Delivering Results

  • Check Mark Fast Shipping
  • Check Mark No Hassle Returns
  • Check Mark Secure Payments
  • Check Mark Family Owned and Operated
  • Check Mark Personal Bilingue
SAFE & SECURE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay

    Tsurumi HS2.4S Manual Electric Submersible Pump

    The Tsurumi HS2.4S is a high-performance, compact submersible pump engineered for tough and demanding applications, and this model features a 115V configuration ideal for continuous-duty operation. Designed for handling a range of challenging tasks, the pump excels in site drainage, and more. With its robust construction and reliable performance, this model is perfectly suited for both residential and industrial use. This submersible pump is built with corrosion-resistant materials, including a durable casing made of cast iron and ductile cast iron (HSD) for enhanced strength. The semi-vortex urethane rubber impeller, which is designed with an agitator, ensures exceptional solids handling, allowing the pump to easily move sand and stringy materials without clogging. The impeller is made of high-chrome cast iron (HSD) for added durability, while the shaft is crafted from 403 stainless steel to resist wear and corrosion. The highly efficient, continuous-duty copper-wound motor operates at 3600 RPM and 60Hz, with Class E insulation to reduce energy consumption and minimize operating costs. A built-in thermal protector prevents motor failure due to overloading, accidental run-dry, or single-phasing in three-phase units, ensuring reliability and long-term performance. The motor frame is made of aluminum alloy, and all fasteners are constructed from 304 stainless steel for corrosion resistance and longevity. The pump’s double inside mechanical seals, with silicon carbide faces running in an oil-filled chamber, provide some of the most durable seal protection available, minimizing wear and extending the operational life of the pump. Additionally, the double-shielded, permanently lubricated C3 ball bearings are rated for an impressive B-10 life of 60,000 hours, further enhancing the pump’s longevity and performance. With a discharge size range of 2″ to 3″ NPT (50 to 80mm), this pump offers a performance range from 13.2 to 61.0 GPM (0.05 to 0.23 m³/min) and a head range from 13.1 to 62.0 feet (4.0 to 18.9 meters). It is designed to handle maximum water temperatures of up to 104°F (40°C) and has a solids handling capacity between 0.276″ to 0.393″ (7.0 to 10.0mm). The Tsurumi 50TMA2.4S is ideal for a wide variety of applications, including residential, commercial, and industrial wastewater and site drainage, as well as decorative waterfalls and fountains. It is also well-suited for raw water supply from lakes or rivers, as well as sediment removal from small sumps or basins. Backed by Tsurumi’s legacy of innovation and quality, this pump delivers exceptional reliability and efficiency across demanding conditions. Whether you’re managing construction sites, dealing with industrial wastewater, or looking for a dependable solution for saltwater aquaculture, the Tsurumi HS2.4S ensures outstanding performance and durability. With its 115V power configuration and a range of additional features, the HS2.4S offers everything needed to keep your operations running smoothly, backed by a professional team ready to assist with your specific needs.

    ***Not Suitable for Saltwater Applications***

    Weight 30 lbs
    Dimensions 16 × 14 × 16 in
    Brand

    Tsurumi

    MPN

    Product Type

    Applications

    Horsepower (HP)

    Voltage

    Amps (A)

    Cord Length (ft)

    20

    UPC Code
