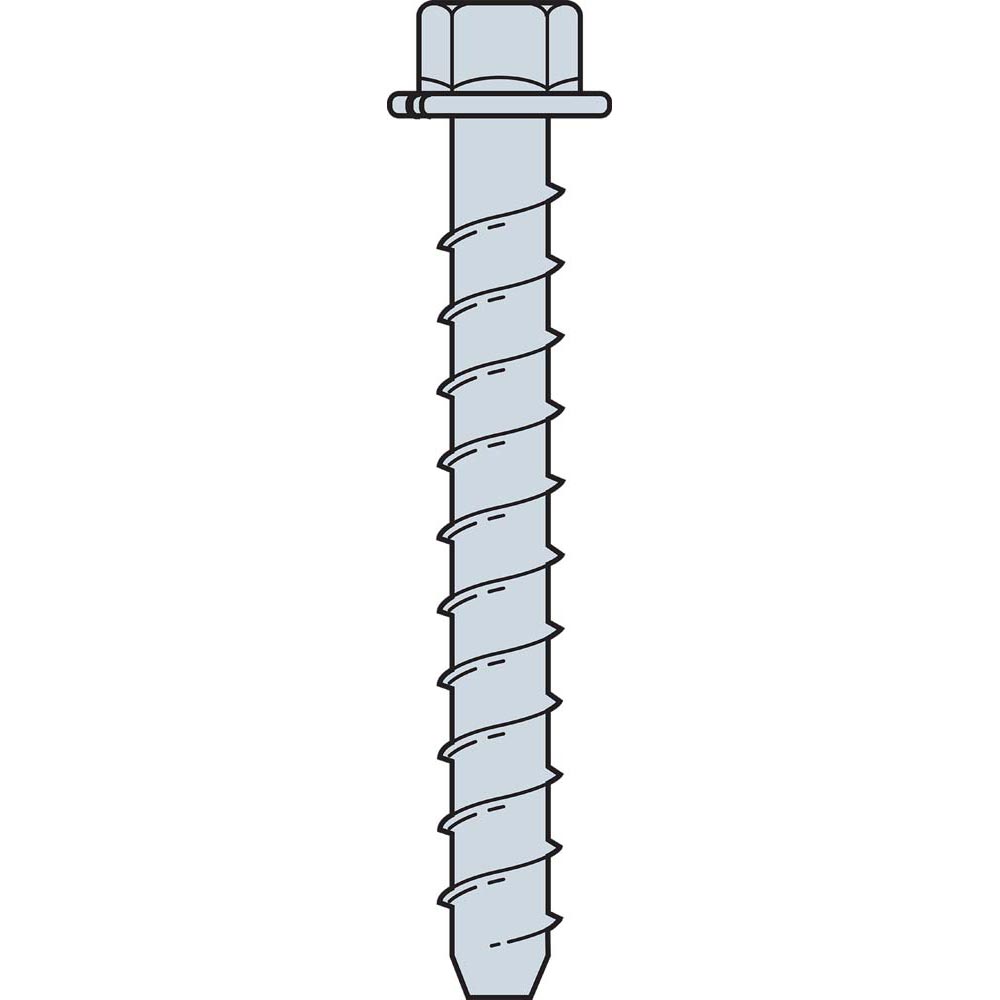

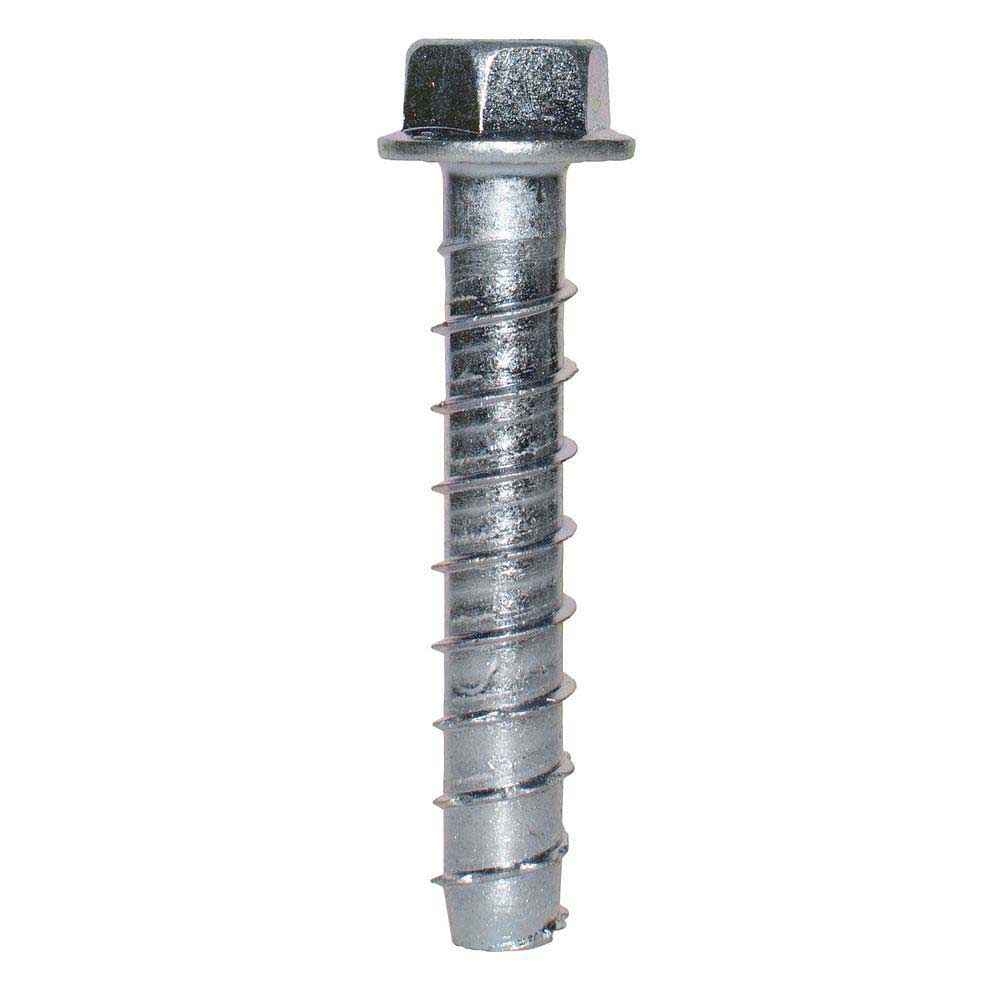

Simpson Strong-Tie THDB62400H Titen HD 5/8 in. x 4 in. Heavy-Duty Screw Anchor
$4.20
Standard Shipping
Features:
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
- Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors

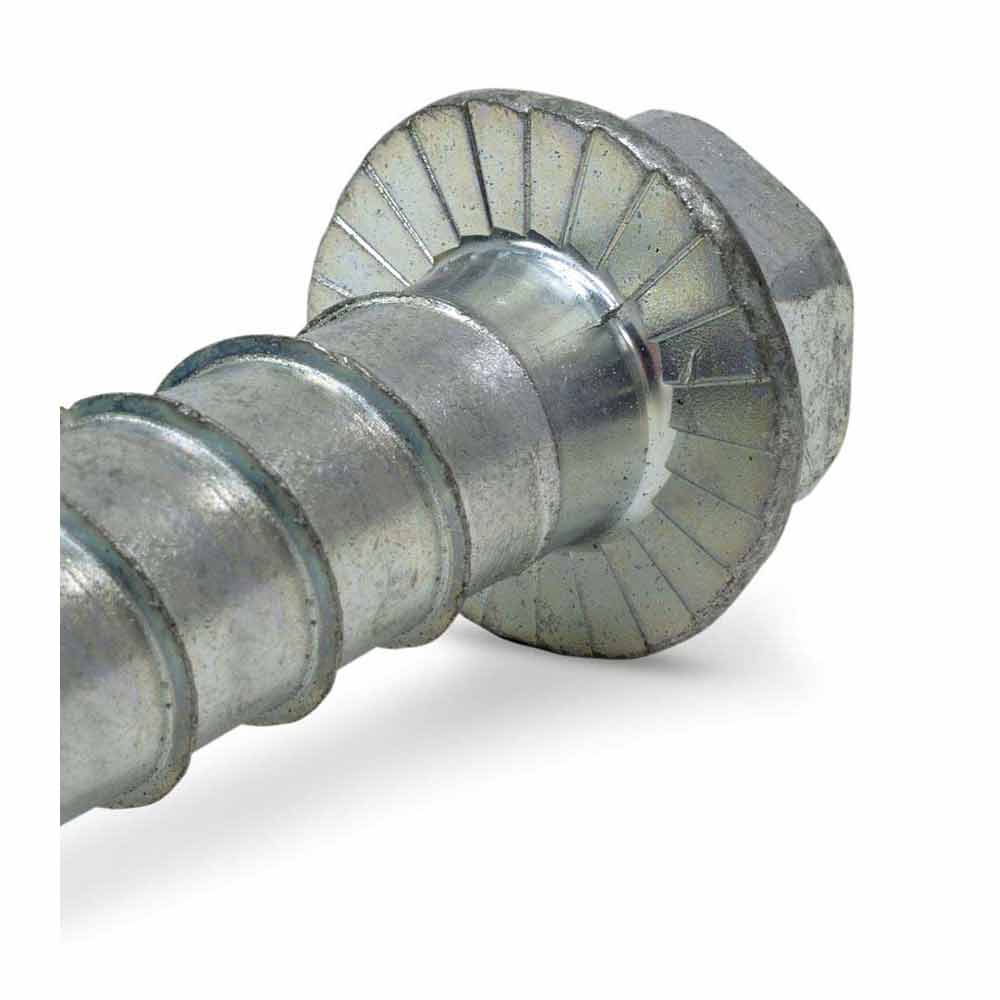

- Hex-washer head requires no separate washer and provides a clean installed appearance
Building Relationships, Delivering Results
- Fast Shipping
- No Hassle Returns
- Secure Payments
- Family Owned and Operated
- Personal Bilingue

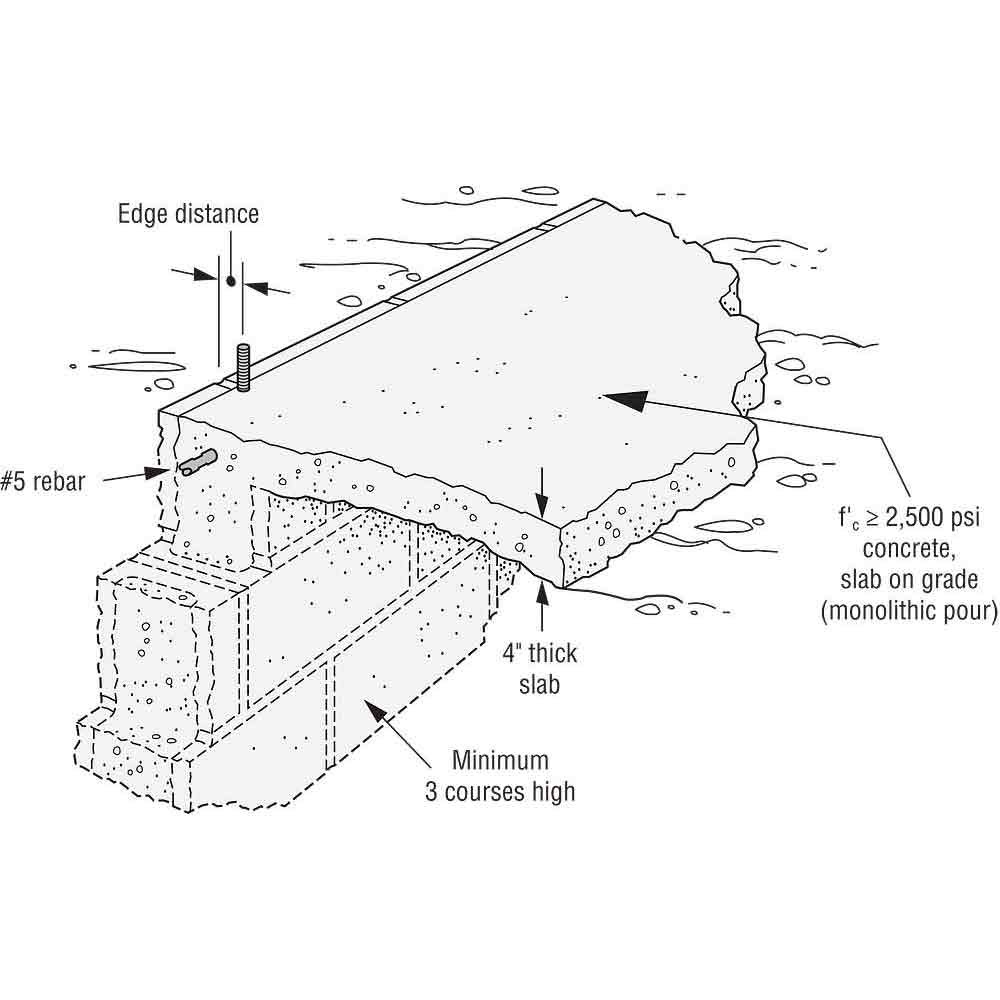

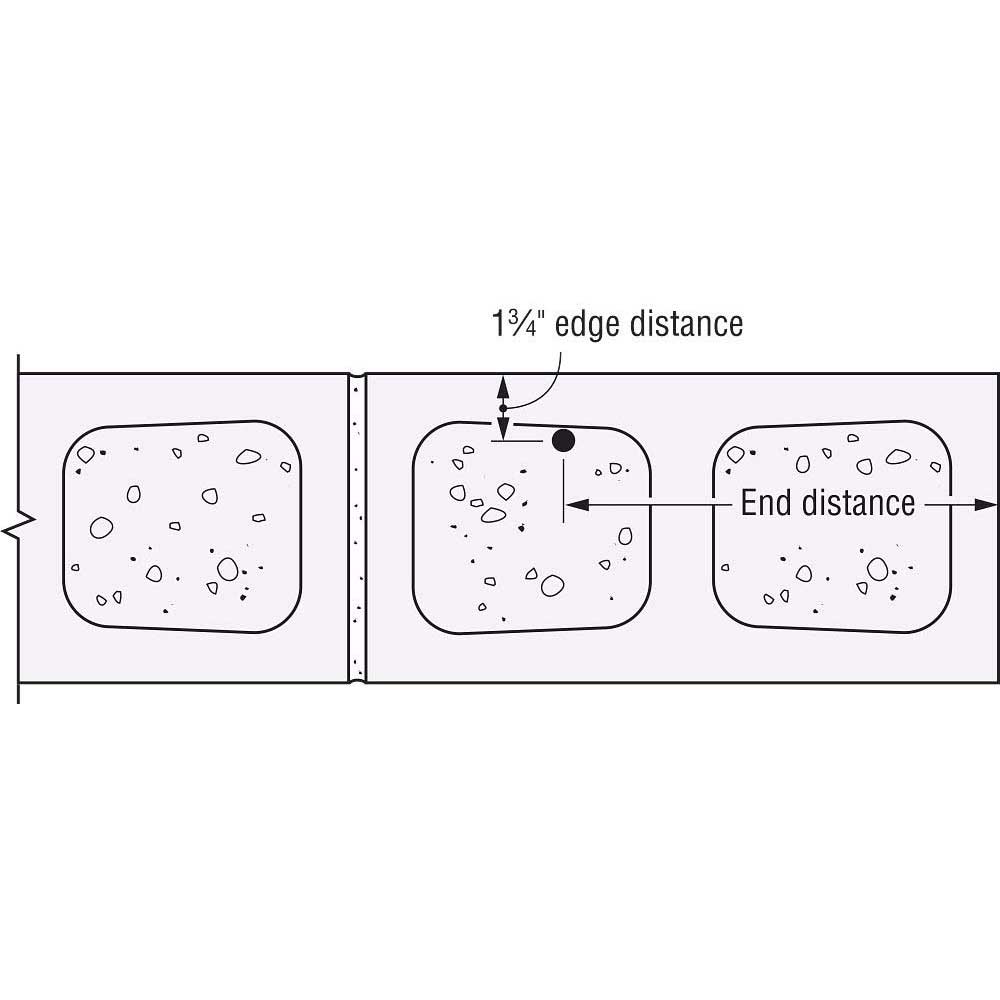

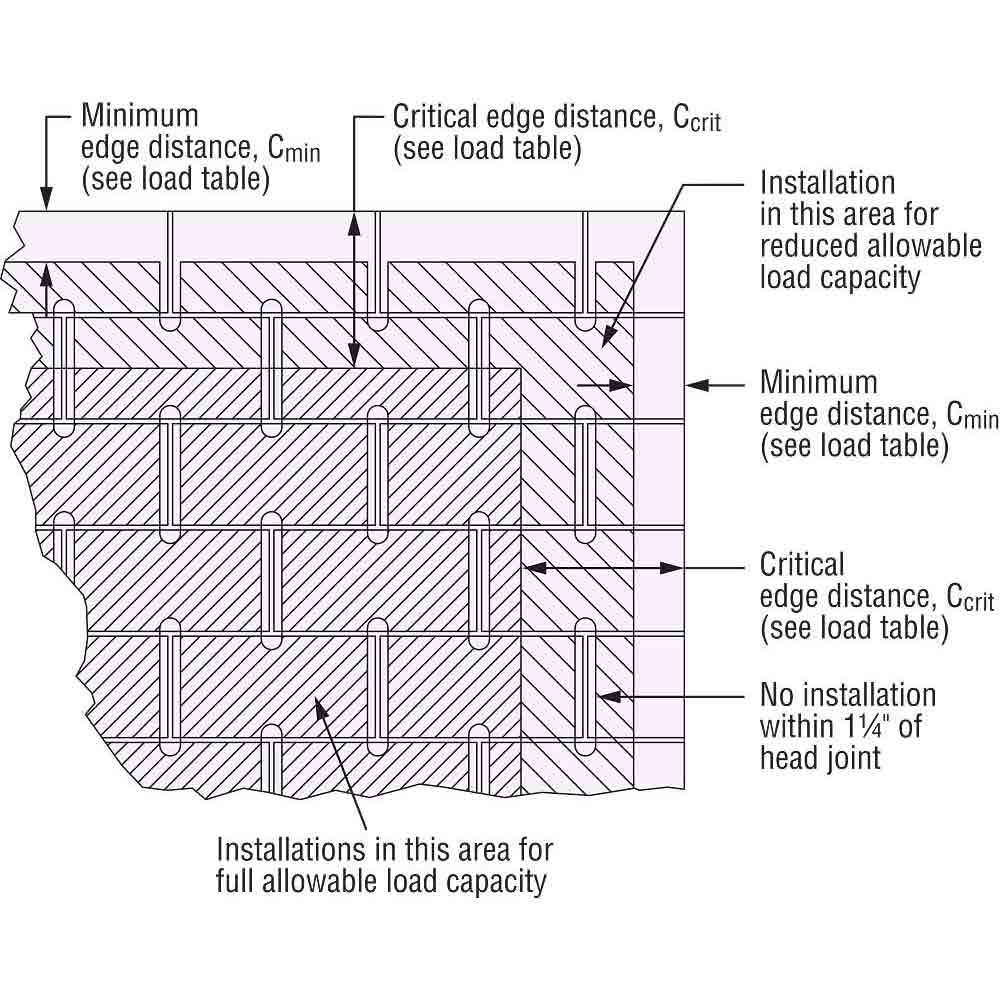

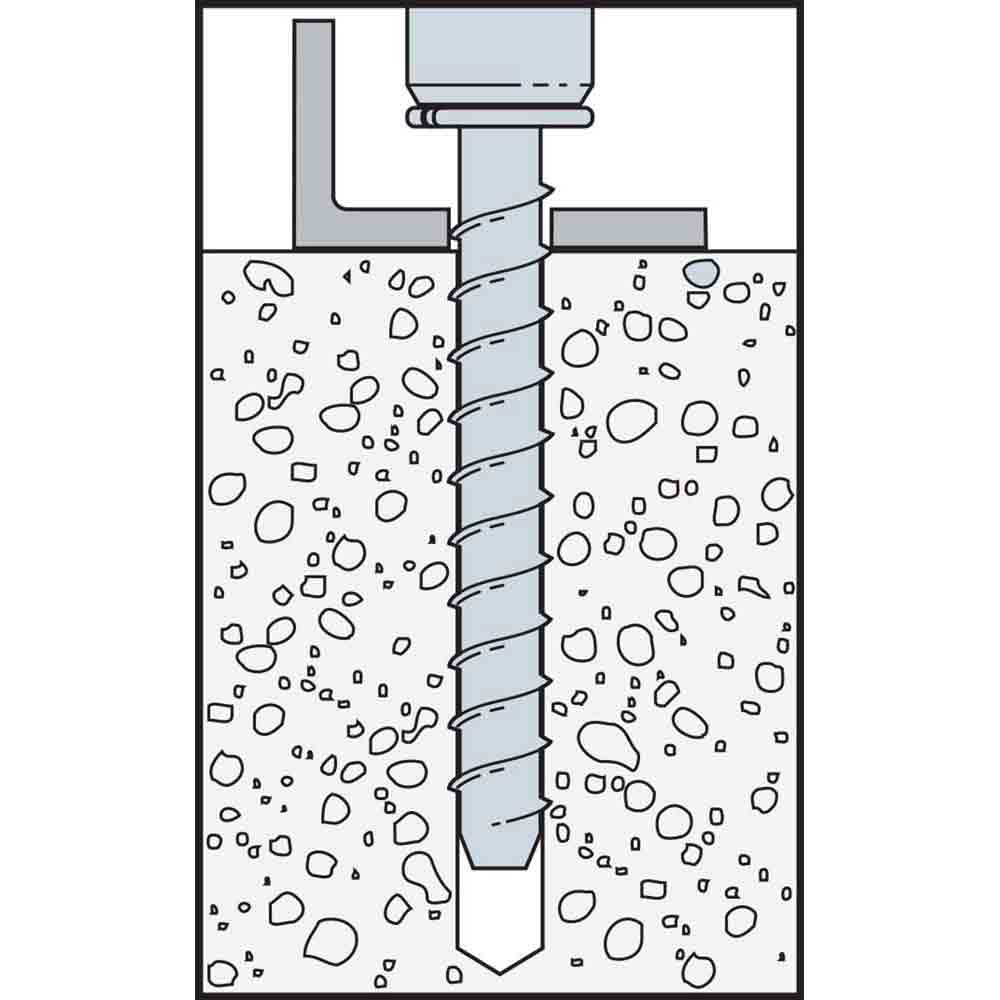

The Titen HD anchor is a high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete. The high-strength, easy-to-install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.
- Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
- Zinc-plated carbon steel anchor can be used for temporary exterior applications
- Size: 5/8 in. x 4 in.
- Caution: Use a Titen HD screw anchor one time only installing the anchor multiple times may result in excessive thread wear and reduce load capacity
Warranty
Limited warranty, available at www.strongtie.com/limited-warranties.
| Specifications | |
|---|---|
| Package Quantity | 1 |
| Coating | Zinc Plated |
| Material | Carbon Steel |
| Color | None |
| Length (in) | 4 |
| Diameter (in) | 8-May |
| Drill Bit Diameter (in) | 8-May |
| Recommended Fixture Hole Size (in) | 3/4 to 13/16 |
| Wrench Size (in) | 15/16 |
| State Of Florida Approvals | FL15730 |
| Hazmat | NO |
| UPC Per Each | 707393000000 |
| Package Quantity | 10 |
| Carton Quantity | 40 |
| Carton UPC | 20707400000000 |
| Pallet Quantity | 3600 |
| Pallet UPC | 50707400000000 |
| Weight | .52 lbs |
|---|---|
| Dimensions | 1.6 × 1.6 × 4.8025 in |
| Brand | Simpson Strong-Tie |
| Product Type | |
| MPN | |
| UPC Code | |
| Length (in) | |
| Diameter (in) |
