Concrete Connectors and Anchors

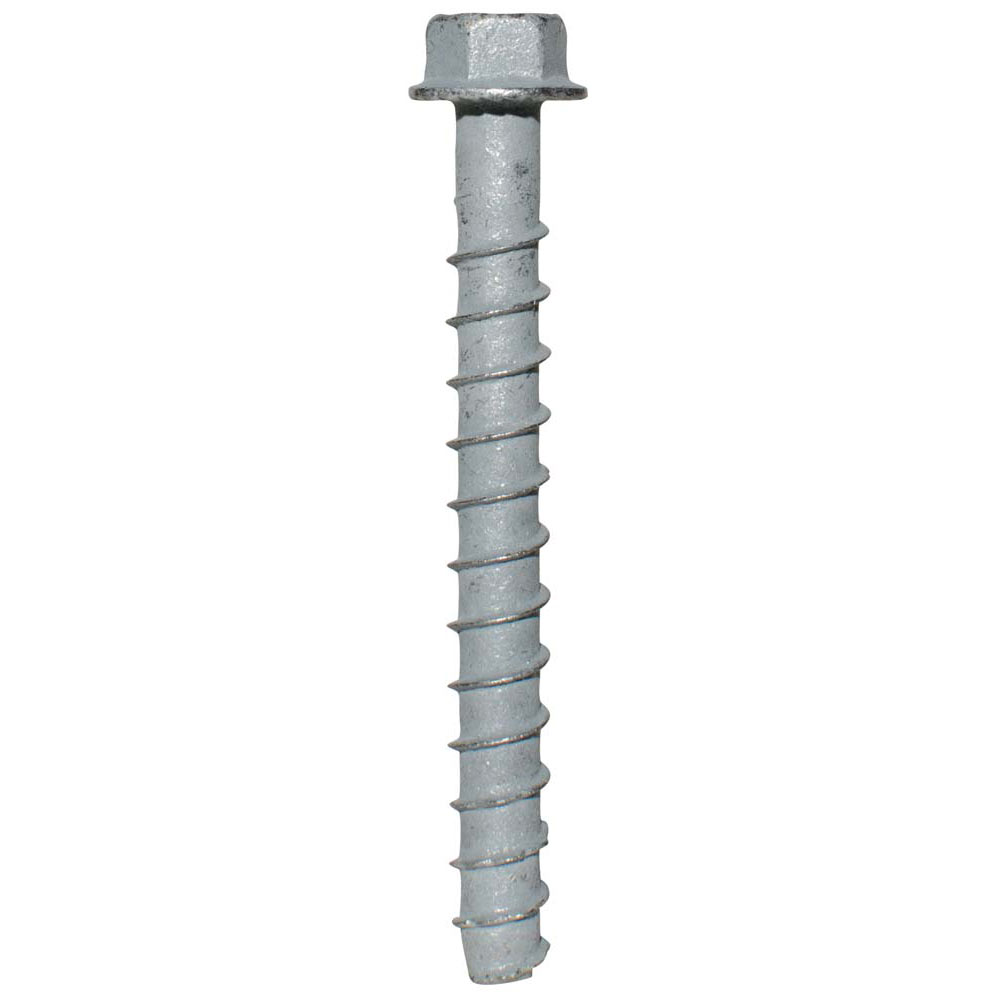

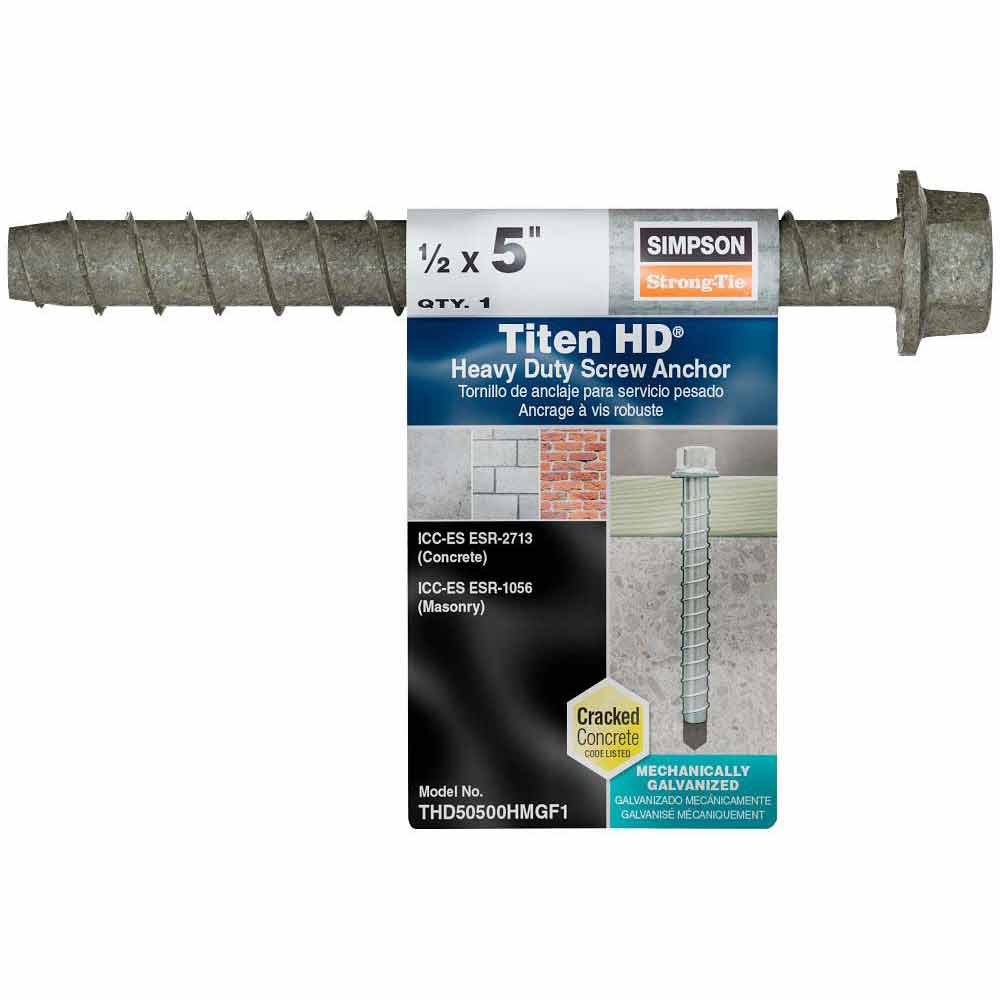

Simpson Strong-Tie THD50500HMG Titen HD 1/2 in. x 5 in. Mechanically Galvanized Heavy-Duty Screw Anchor

Simpson Strong-Tie

$5.31

Standard Shipping

Features:

  • Qualified for static and seismic loading conditions

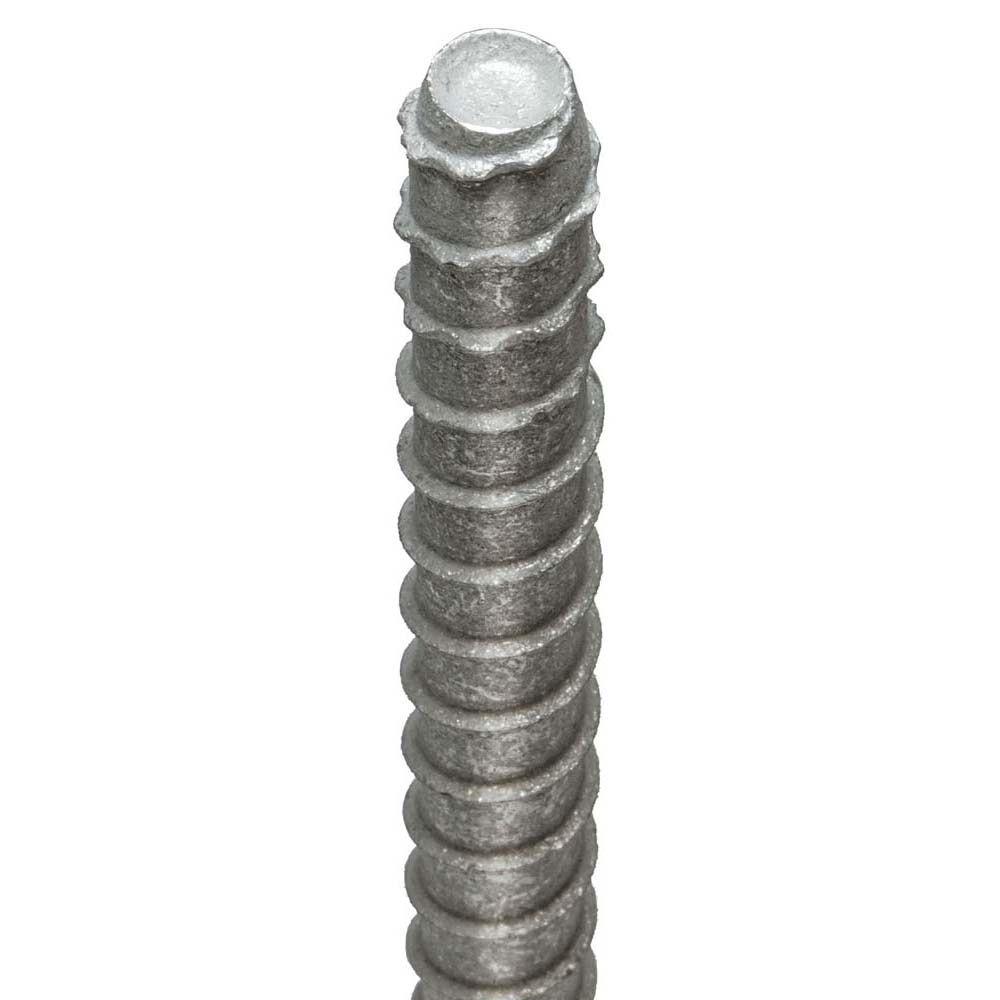

  • Thread design undercuts to efficiently transfer the load to the base material
  • No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
  • Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors

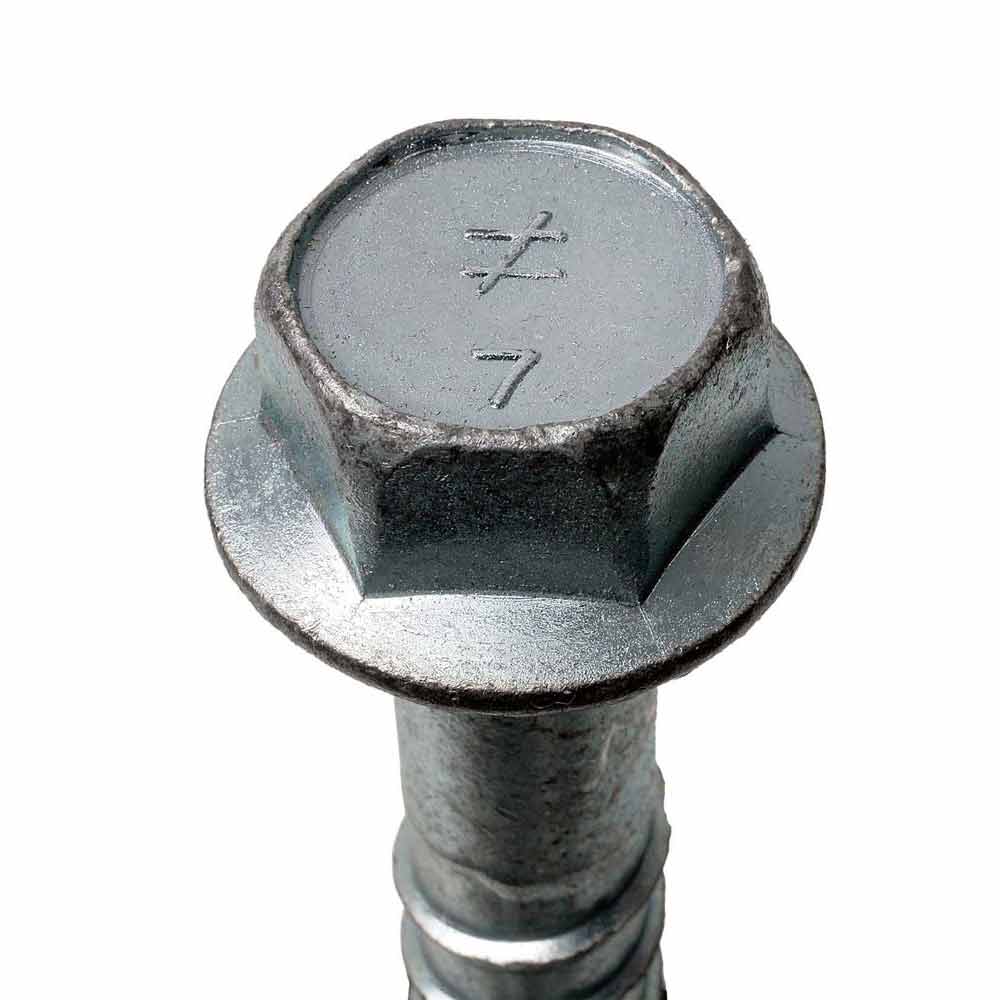

  • Hex-washer head requires no separate washer and provides a clean installed appearance
Simpson Strong-tie THD50500HMG Product Page

Building Relationships, Delivering Results

  • Check Mark Fast Shipping
  • Check Mark No Hassle Returns
  • Check Mark Secure Payments
  • Check Mark Family Owned and Operated
  • Check Mark Personal Bilingue
SAFE & SECURE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
SKU: THD50500HMG Categories: , , Tags: , , , , , , , , , , , , , , ,

    The Titen HD anchor is a high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete. The high-strength, easy-to-install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.

    • Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
    • Mechanical galvanizing meets ASTM B695, Class 65, Type 1, intended for some pressure-treated wood sill plate applications; not for use in other corrosive or outdoor environments
    • Size: 1/2 in. x 5 in.
    • Caution: Use a Titen HD screw anchor one time only installing the anchor multiple times may result in excessive thread wear and reduce load capacity

    Warranty

    Limited warranty, available at www.strongtie.com/limited-warranties.

    Specifications
    Assembled Width (in) 1.07
    Assembled Height (in) 5.5825
    Assembled Depth (in) 1.07
    Package Quantity 1
    Coating Mechanically Galvanized
    Material Carbon Steel
    Color None
    Length (in) 5
    Diameter (in) 2-Jan
    Drill Bit Diameter (in) 2-Jan
    Recommended Fixture Hole Size (in) 5/8 to 11/16
    Wrench Size (in) 4-Mar
    ICC-ES Reports ESR-1056 (Masonry)|ESR-2713 (Concrete)
    State Of Florida Approvals FL15730
    FM Approval FMScrews|FMScrews
    Hazmat NO
    UPC Per Each 707392000000
    Package Quantity 20
    Carton Quantity 80
    Carton UPC 10707400000000
    Pallet Quantity 4800
    Pallet UPC 50707400000000
    Weight .382 lbs
    Dimensions 1.07 × 1.07 × 5.5825 in
    Brand

    Simpson Strong-Tie
    Product Type

    MPN

    UPC Code

    Length (in)

    Diameter (in)
