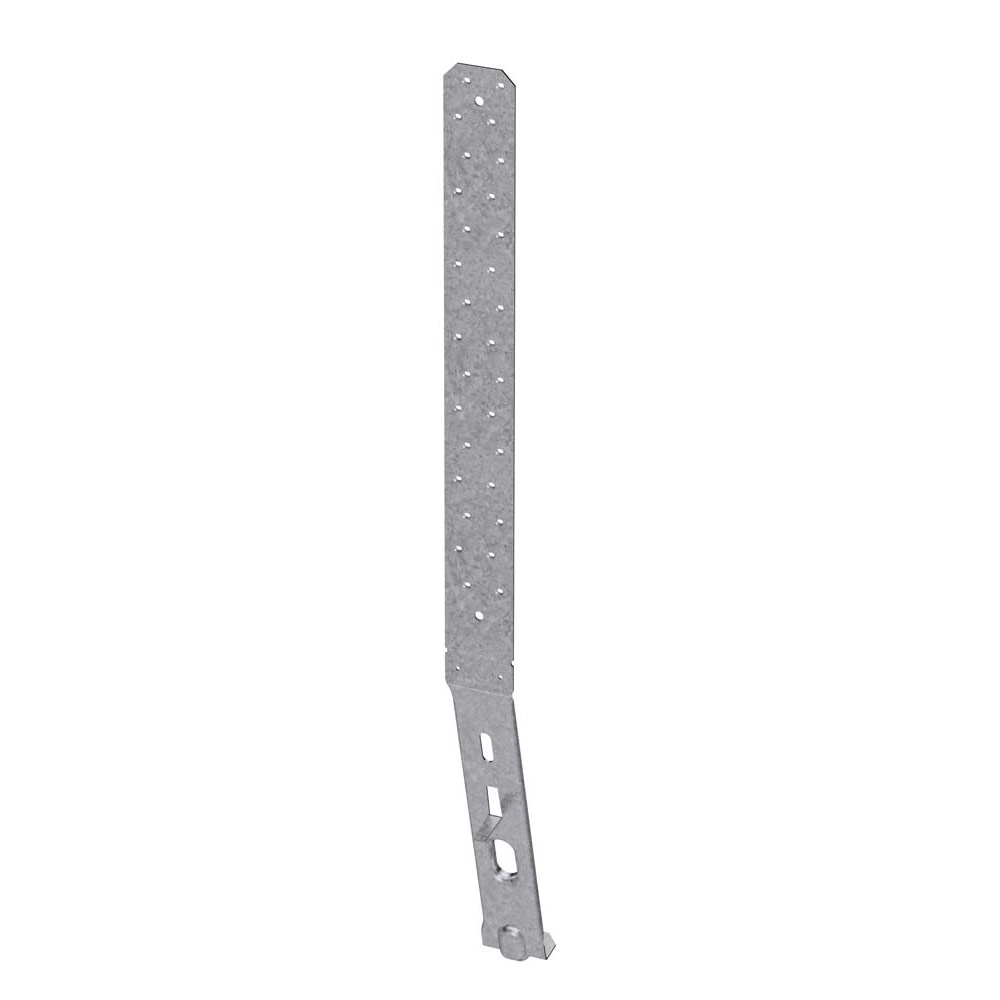

Simpson Strong-Tie STHD14 STHD 26-1/8 in. 12-Gauge Galvanized Strap-Tie Holdown

Simpson Strong-Tie STHD14 STHD 26-1/8 in. 12-Gauge Galvanized Strap-Tie Holdown

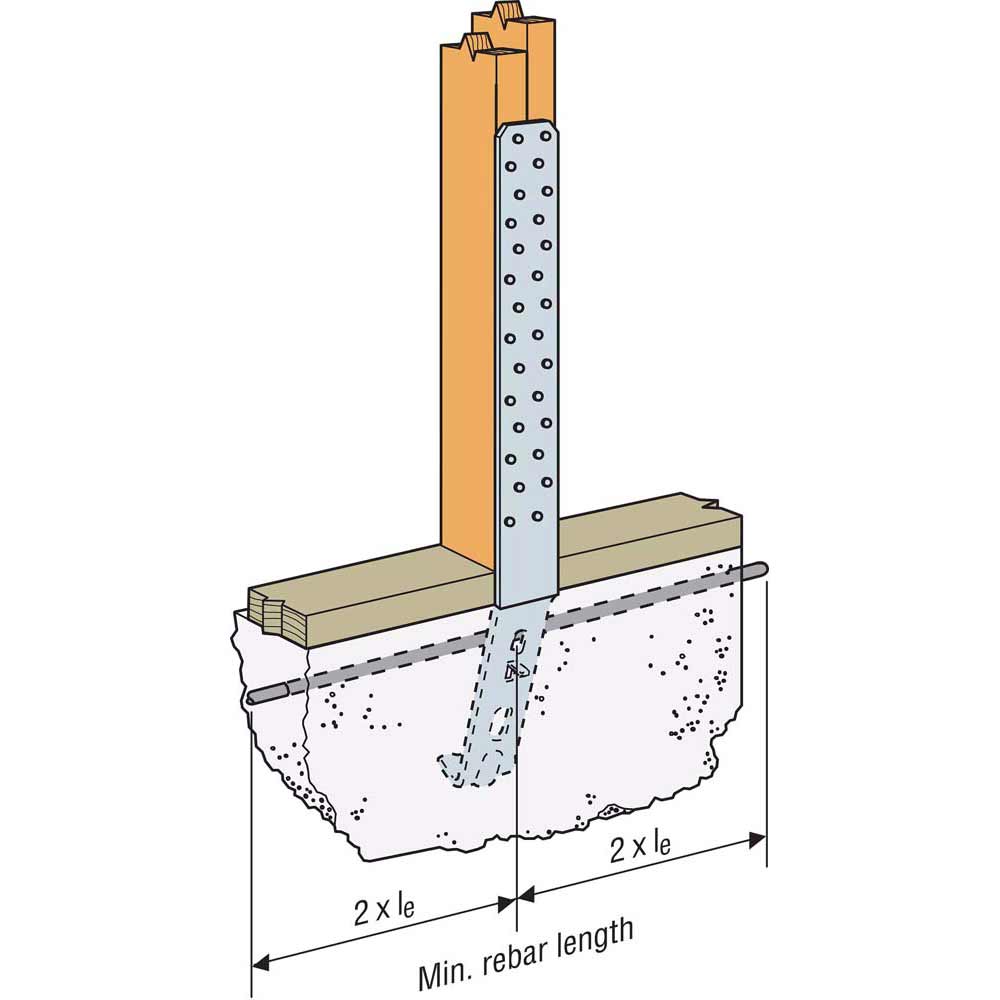

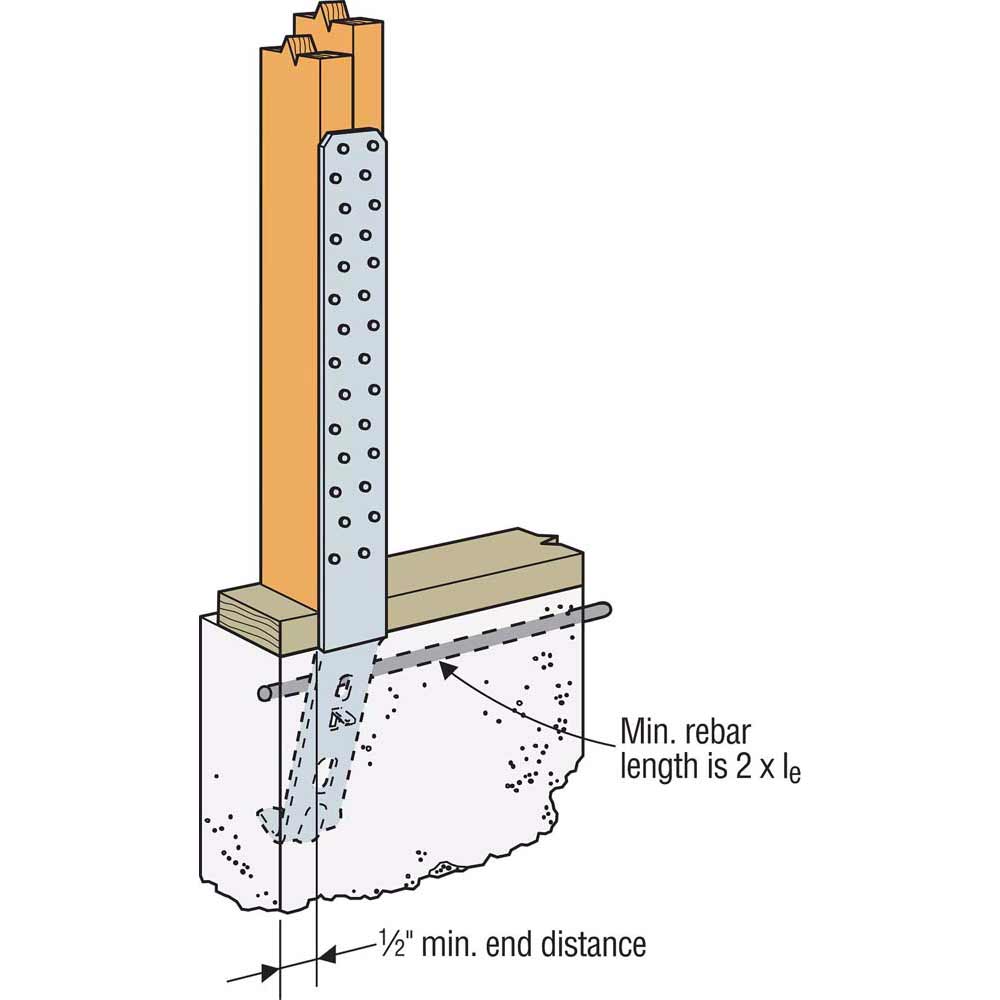

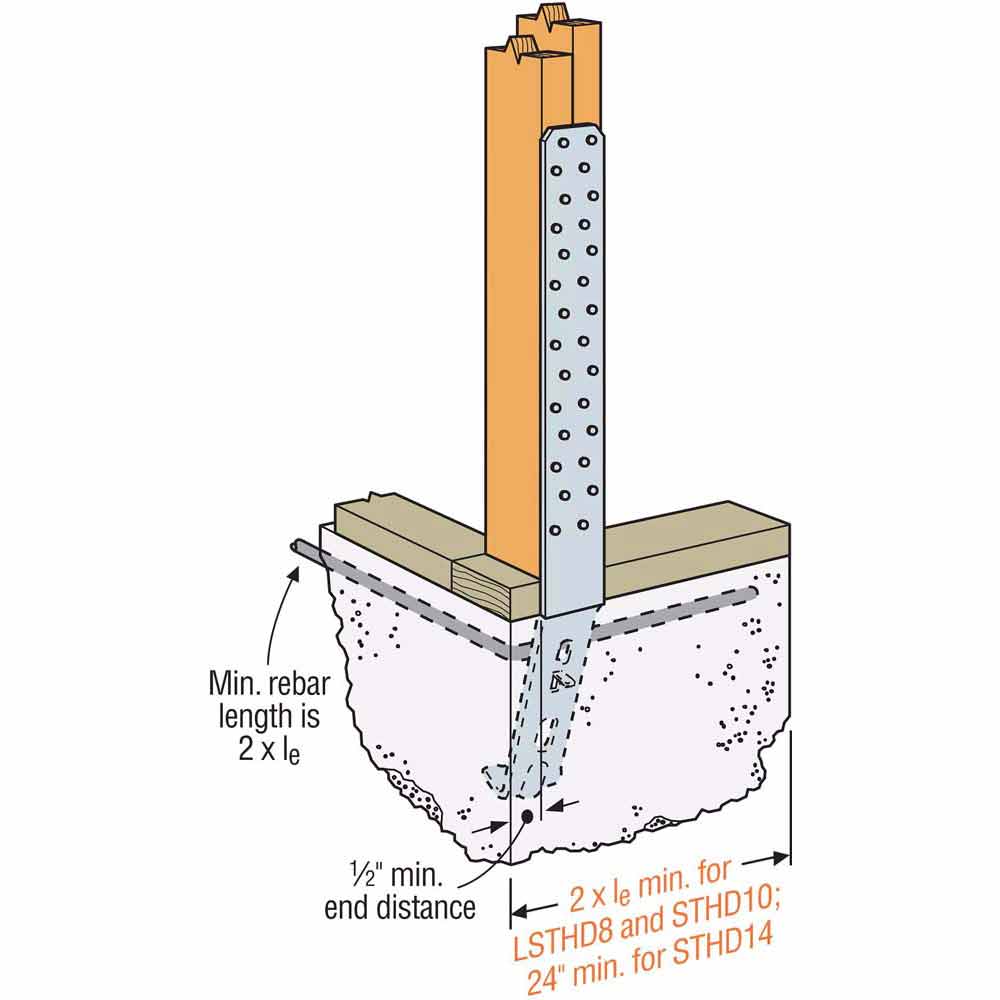

The Simpson Strong-Tie STHD14 is a heavy-duty, embedded strap-tie holdown engineered to deliver high load capacity in both wood and cold-formed steel construction. With a design that optimizes performance and minimizes concrete spalling, the STHD14 is ideal for seismic and wind-load applications where reliable anchorage is essential. When paired with the StrapMate strap holder, this holdown offers increased pre-pour stability, reducing unwanted movement during concrete placement. Its staggered nail pattern helps prevent wood splitting, while the countersunk nail slots allow for a flush finish. Slots below the embedment line provide greater concrete bonding and reduce the likelihood of spalling, ensuring a strong and secure connection.

Key Features

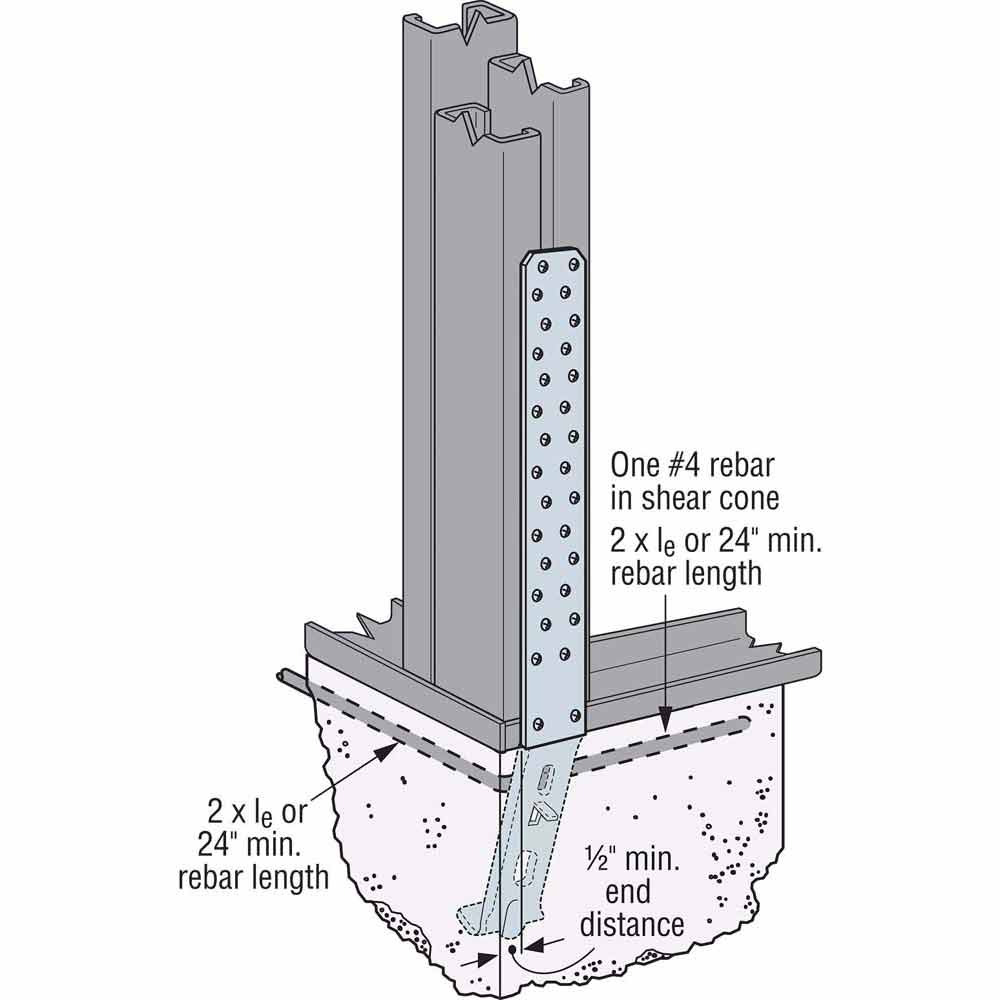

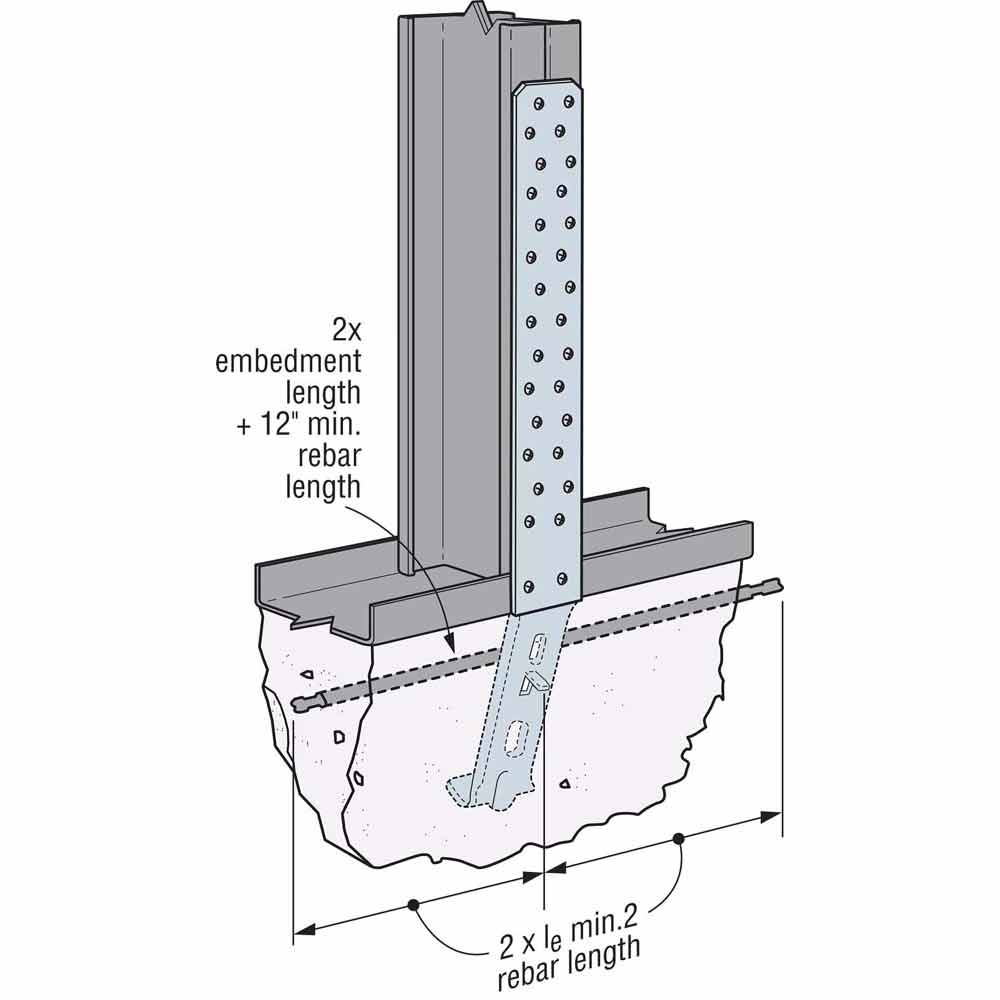

• High-load performance for embedded applications in wood or cold-formed steel.

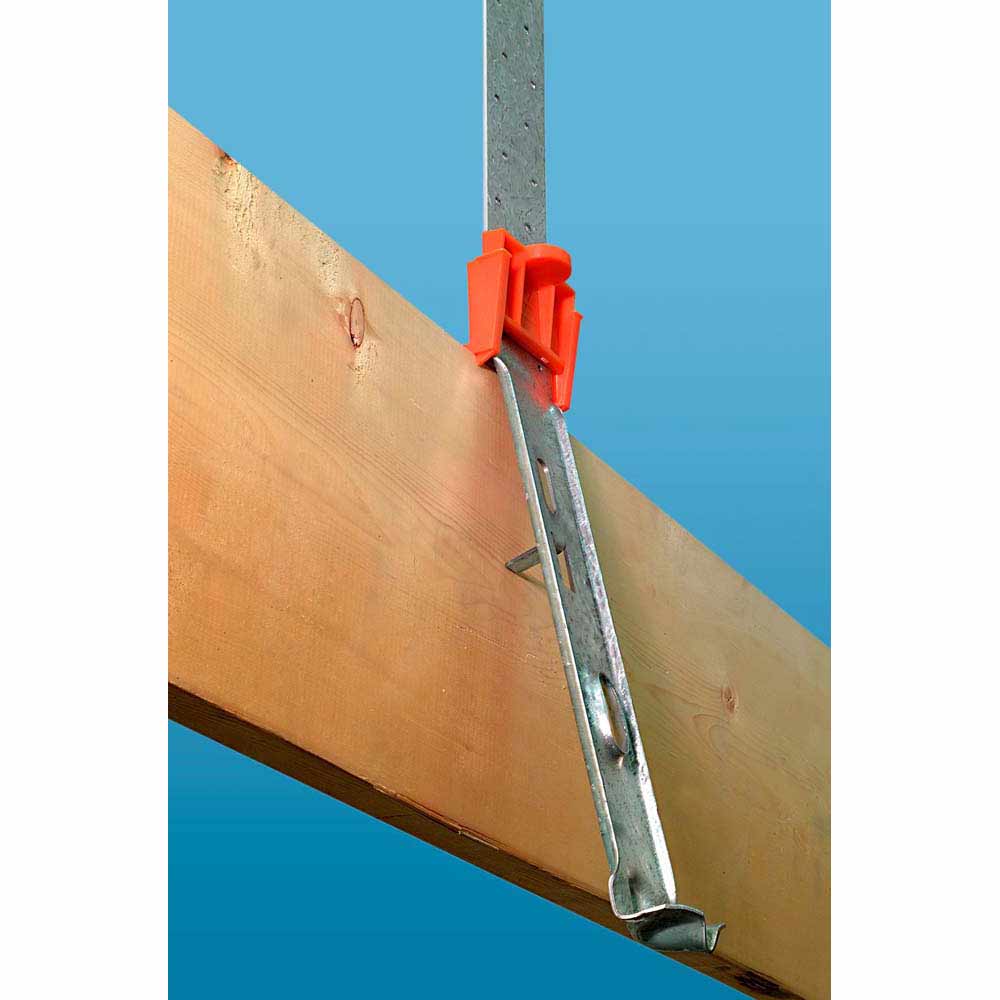

• Compatible with StrapMate for improved stability before and during concrete pour.

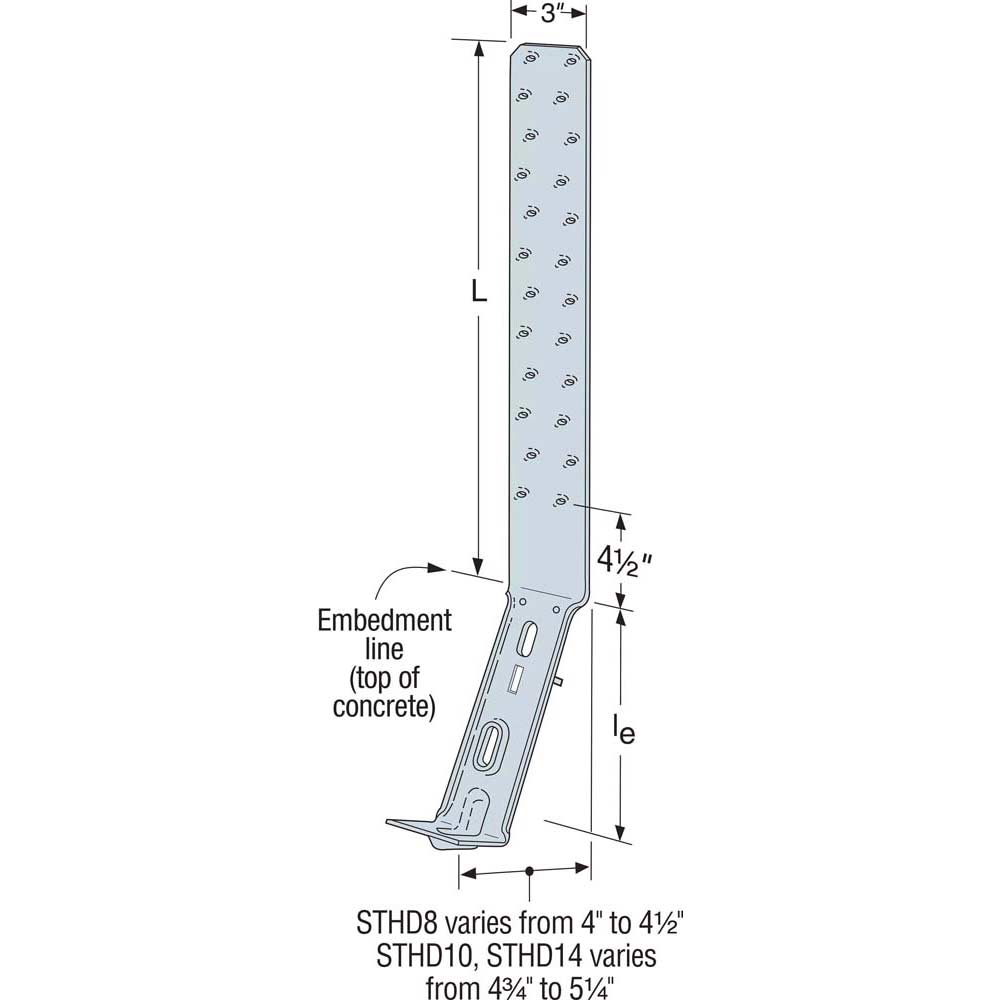

• Staggered nailing pattern reduce splitting and allows fastening near edges.
• Countersunk nail slots create a low-profile finish with special fasteners.
• Concrete bond slots below embedment line increase grip and minimize spalling.
• Galvanized (G90) for extra corrosion resistance.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	3
Assembled Height (in)	40.4725
Assembled Depth (in)	4.98583
Package Quantity	1
Coating	Zinc Galvanized, G90
Color	None
Gauge	12
ICC-ES Reports	ESR-2920|ESR-2523 (Index)
State Of Florida Approvals	FL10441
Hazmat	NO
UPC Per Each	44315576003
Pallet Quantity	300
Pallet UPC	60044300000000
