Simpson Strong-Tie STHD10 STHD 24-5/8 in. 12-Gauge Galvanized Strap-Tie Holdown

Simpson Strong-Tie STHD10 STHD 24-5/8 in. 12-Gauge Galvanized Strap-Tie Holdown

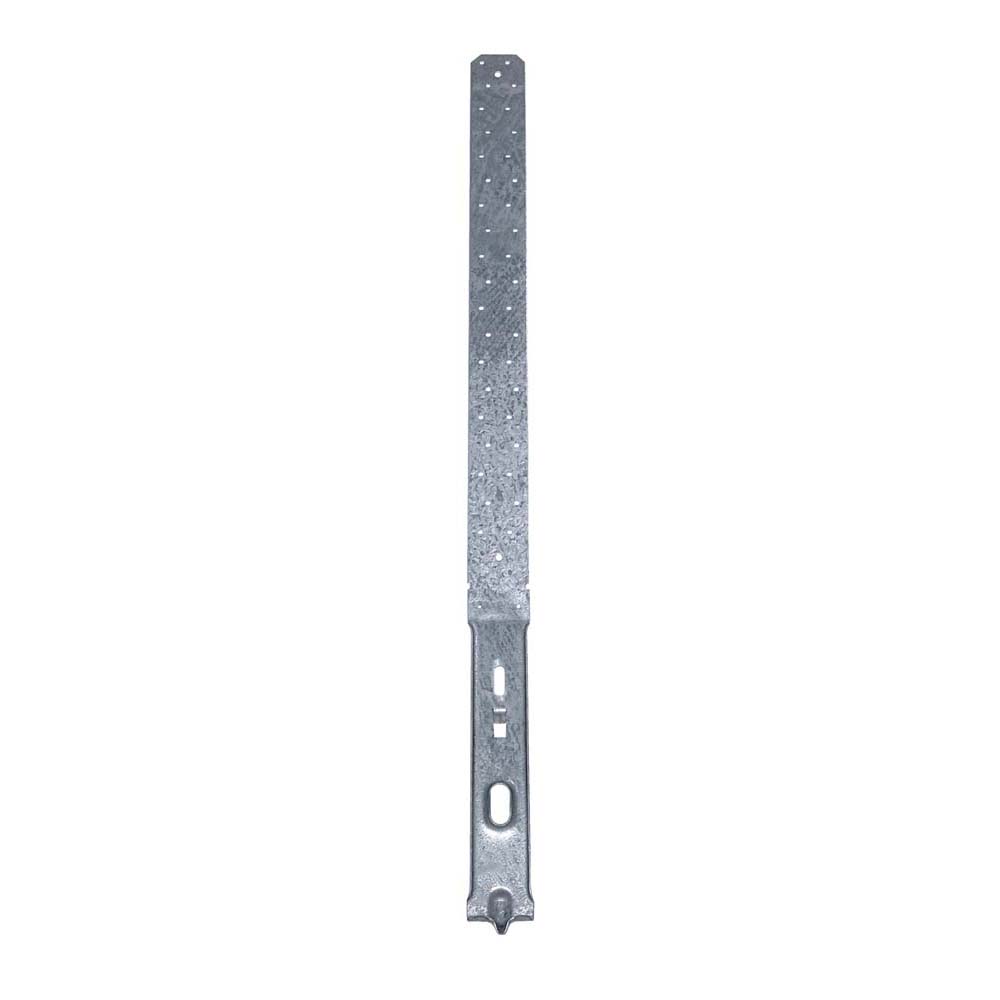

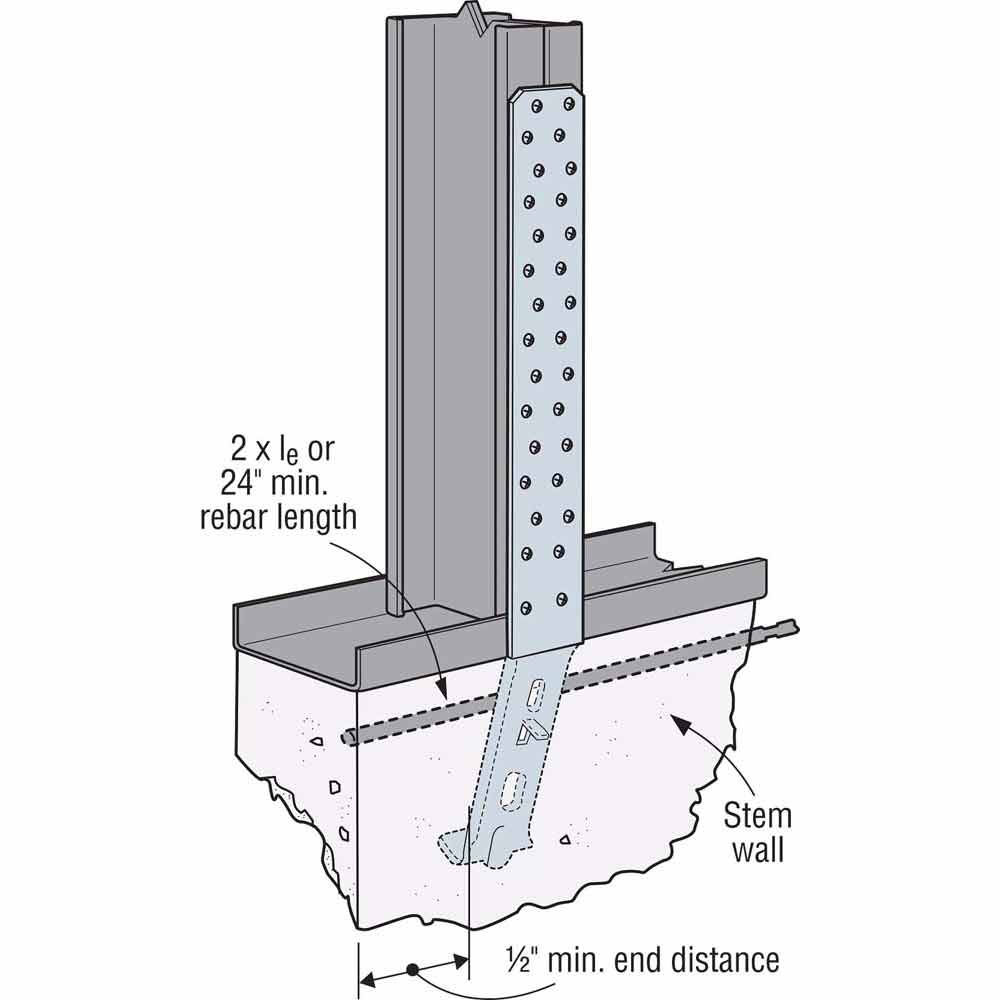

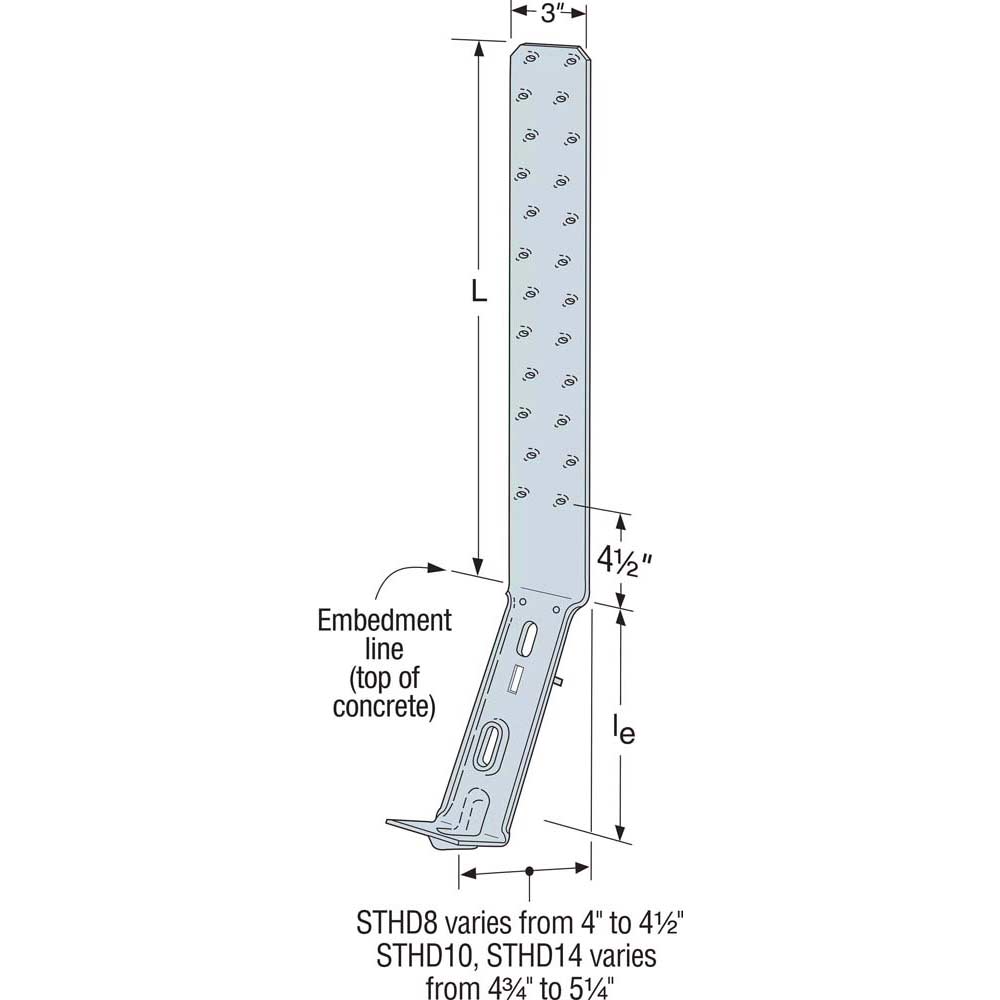

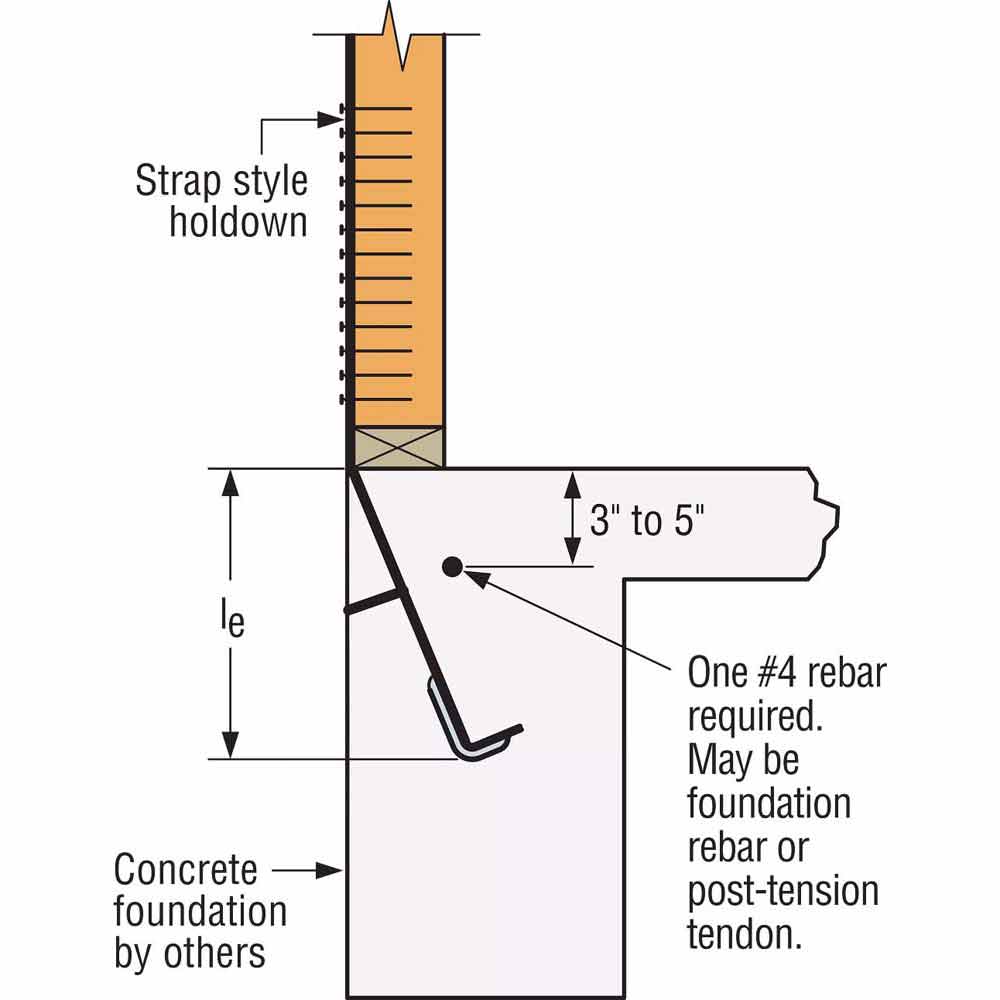

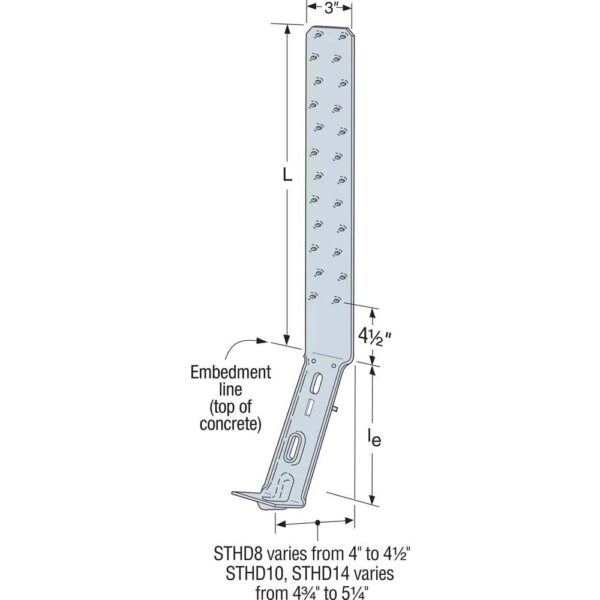

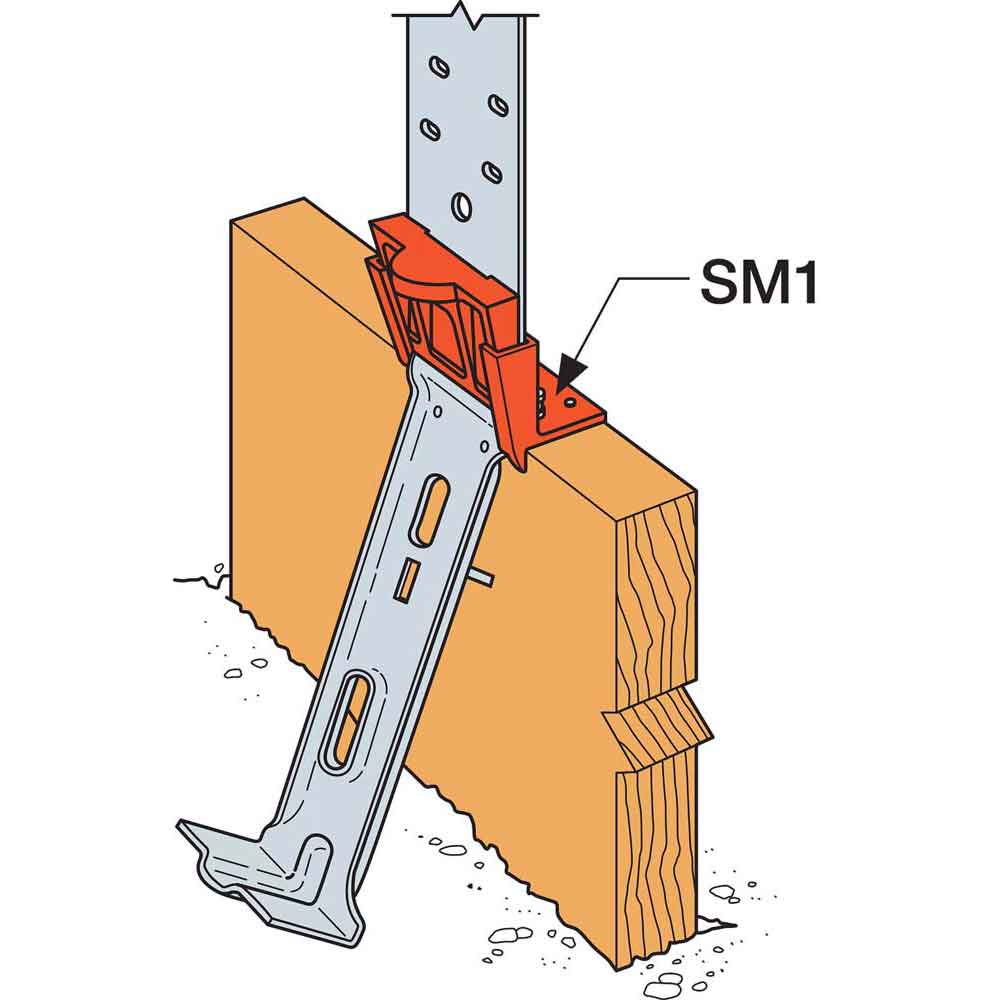

The Simpson Strong-Tie STHD10 is a high-strength, embedded strap-tie holdown designed to provide exceptional load resistance in both wood and cold-formed steel construction. This 12-gauge galvanized holdown is ideal for applications requiring high loads, offering superior stability during concrete pours and ensuring the precise positioning of the strap. The unique design, when used with the StrapMate® strap holder, helps prevent both parallel and perpendicular movement, reducing the risk of concrete spalling and ensuring accurate alignment. The STHD10 features staggered nailing patterns that minimize wood splitting while allowing for nailing to the edges of double 2x members. The countersunk nail slots help maintain a low-profile nail head, ensuring a smoother finish. Additionally, the strategically placed slots below the embedment line increase the concrete bond strength for a secure, long-lasting connection.

Key Features

• Engineered for superior strength in both wood and cold-formed steel framing.

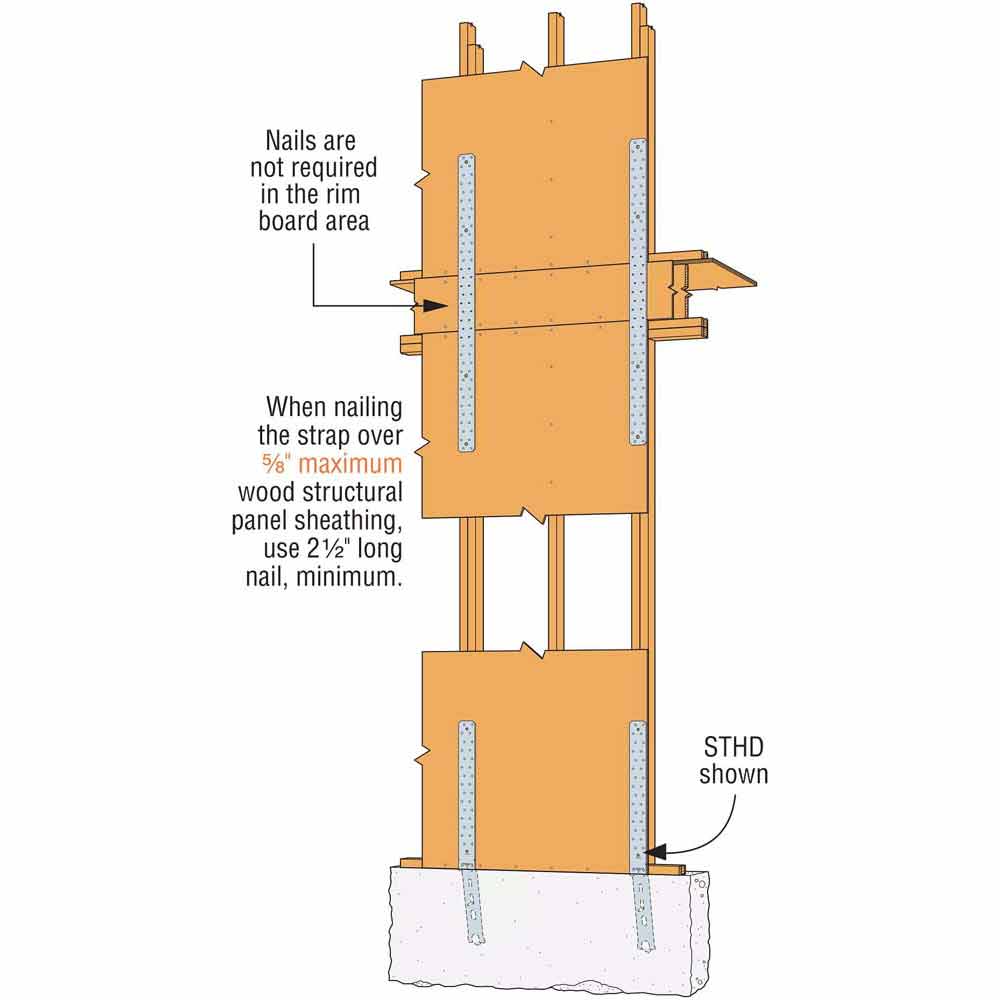

• Minimizes wood splitting and allows for secure nailing on double 2x members.

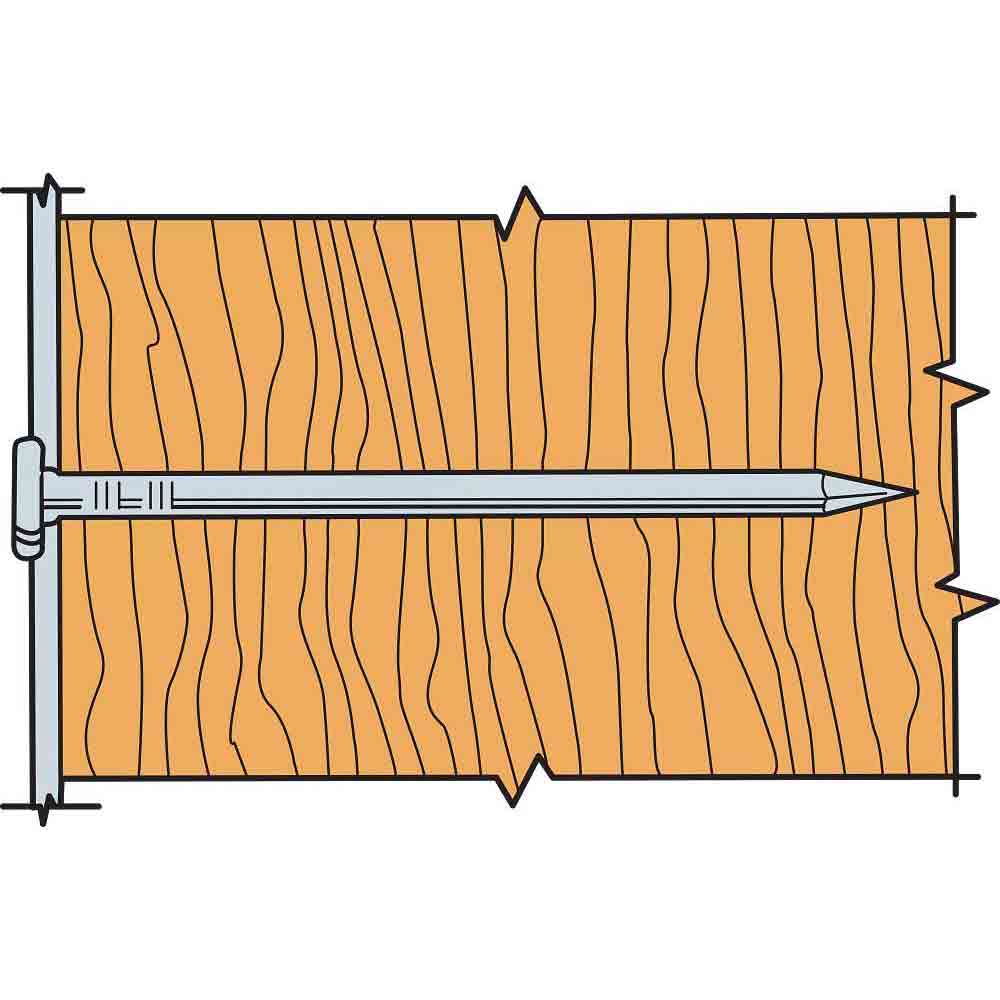

• Provides a lower profile for specified fasteners, ensuring a cleaner installation.

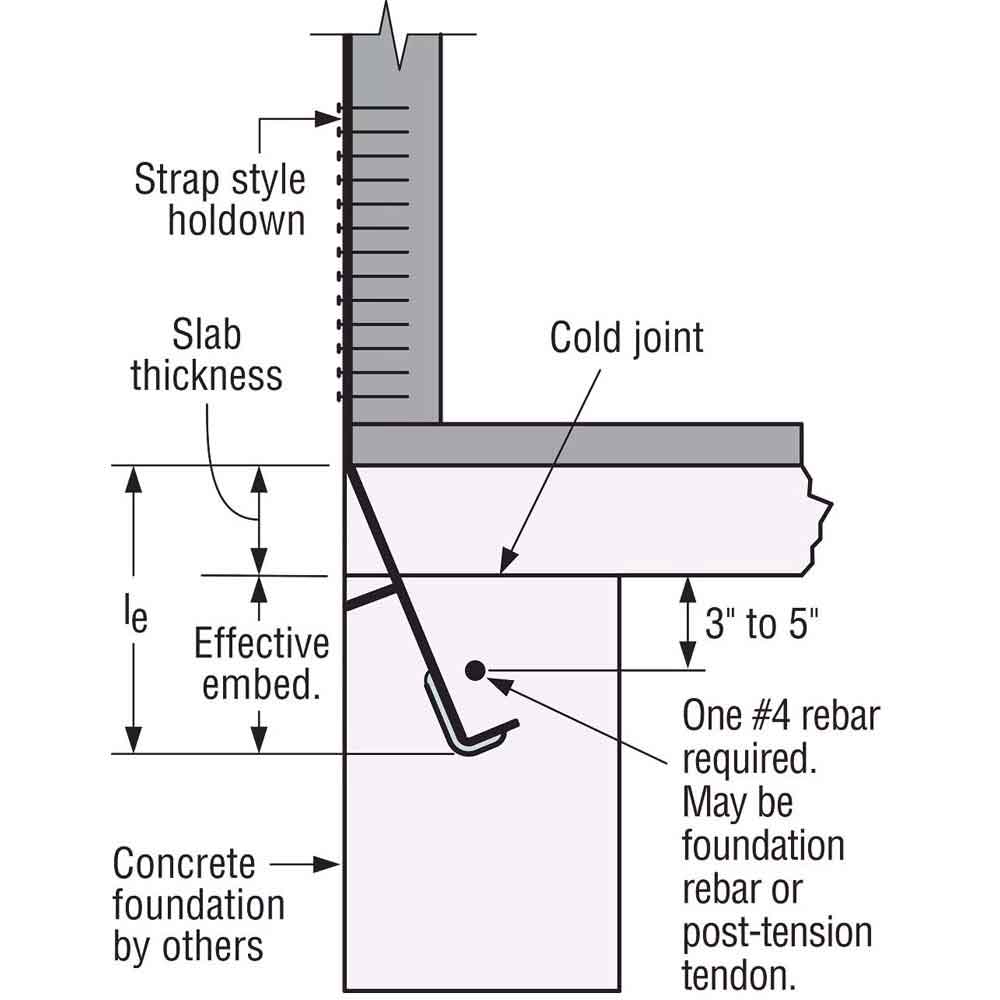

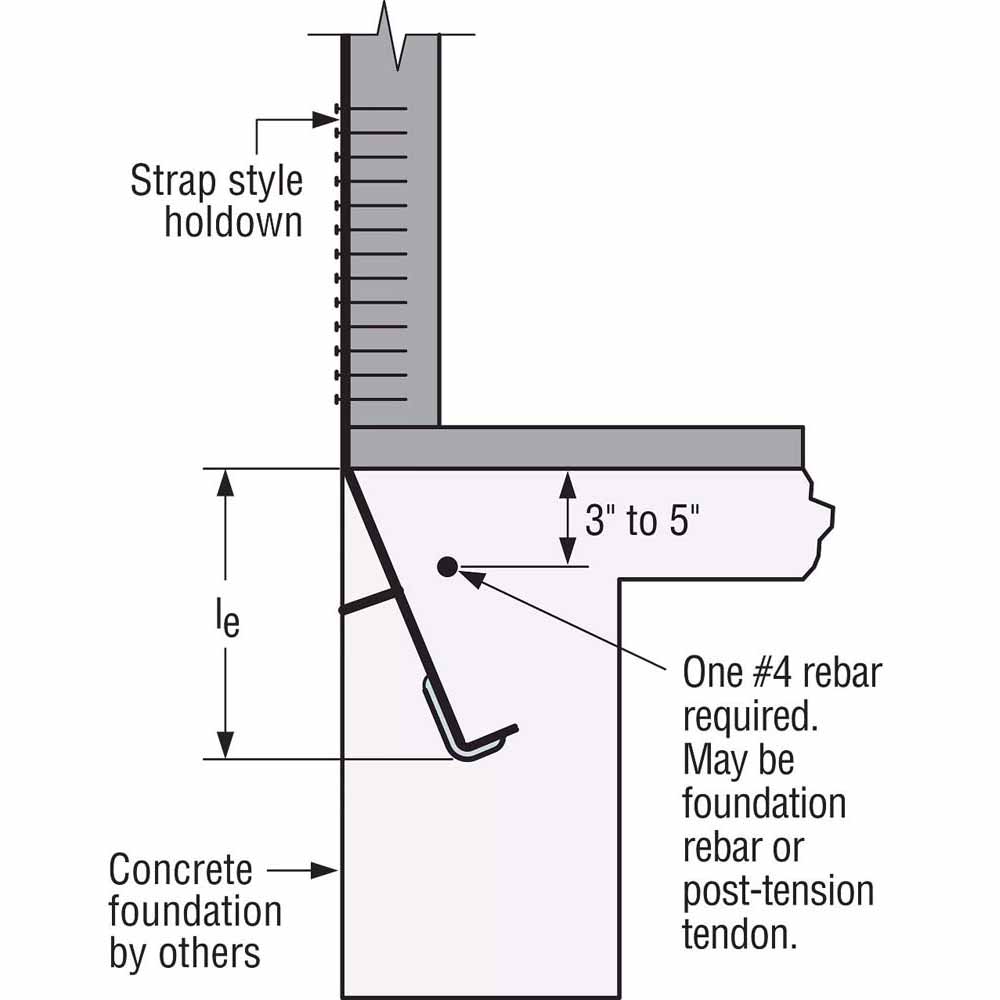

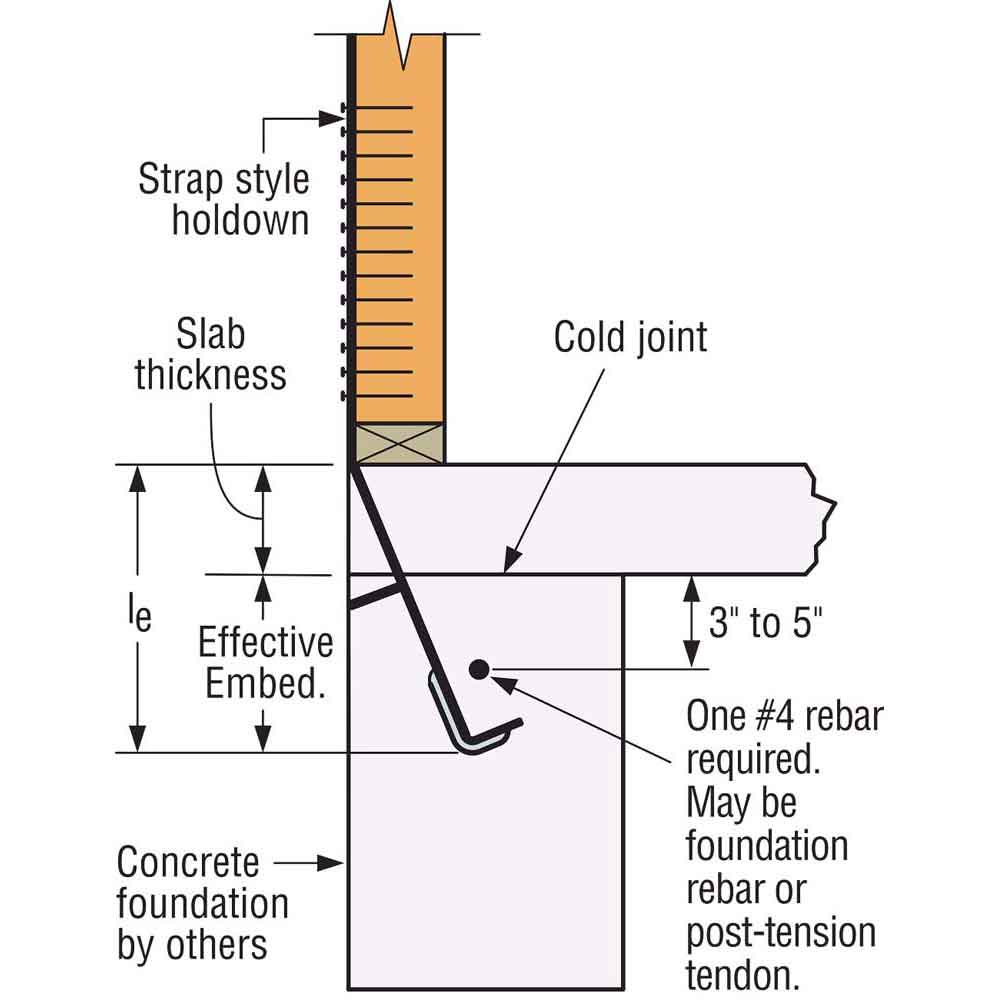

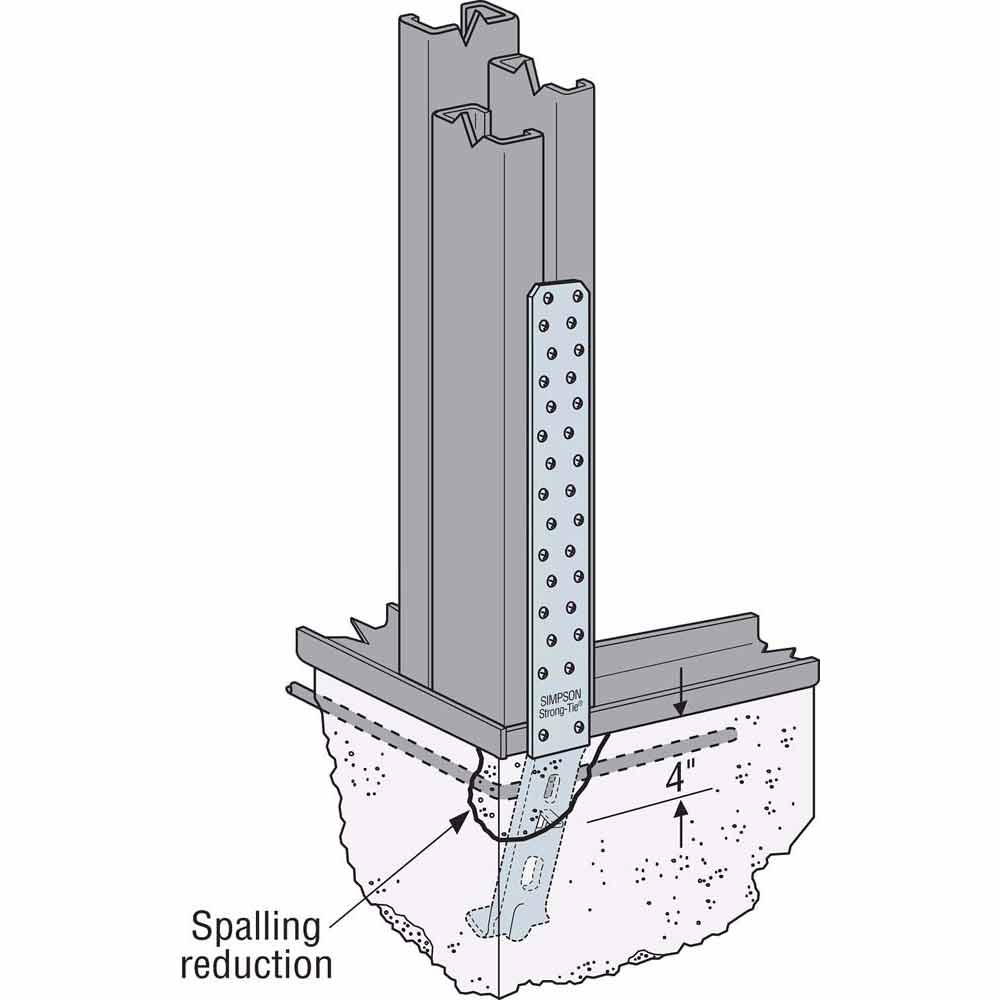

• Slots below the embedment line increase concrete adhesion and reduce spalling.

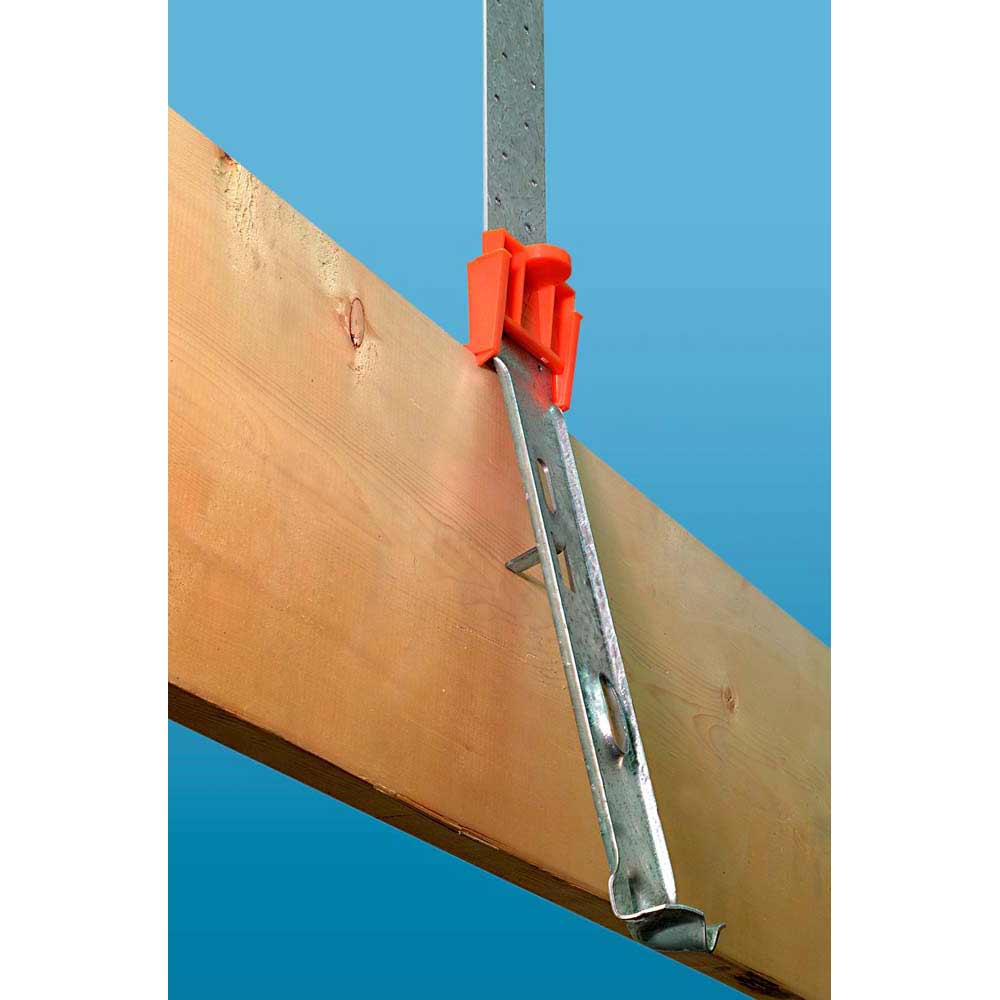

• Works seamlessly with StrapMate strap holders for easier, more accurate installation.
• Galvanized (G90) for extra corrosion resistance.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	3
Assembled Height (in)	34.6739
Assembled Depth (in)	4.98962
Package Quantity	1
Coating	Zinc Galvanized, G90
Color	None
Gauge	12
ICC-ES Reports	ESR-2920|ESR-2523 (Index)
State Of Florida Approvals	FL10441
Hazmat	NO
UPC Per Each	44315912504
Carton Quantity	10
Carton UPC	20044300000000
Pallet Quantity	500
Pallet UPC	50044300000000
