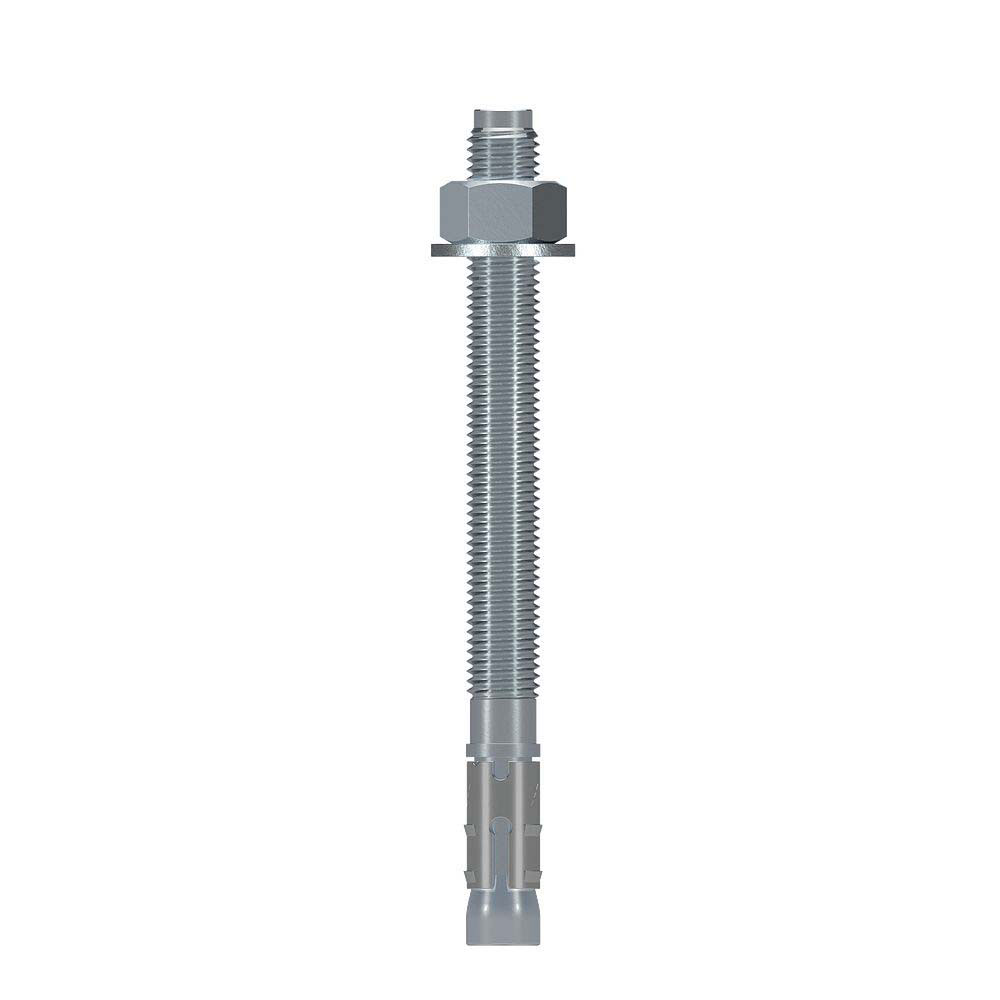

Simpson Strong-Tie STB2-75812 Strong-Bolt 2 3/4 in. x 8-1/2 in. Wedge Anchor

Simpson Strong-Tie STB2-75812 Strong-Bolt 2 3/4 in. x 8-1/2 in. Wedge Anchor

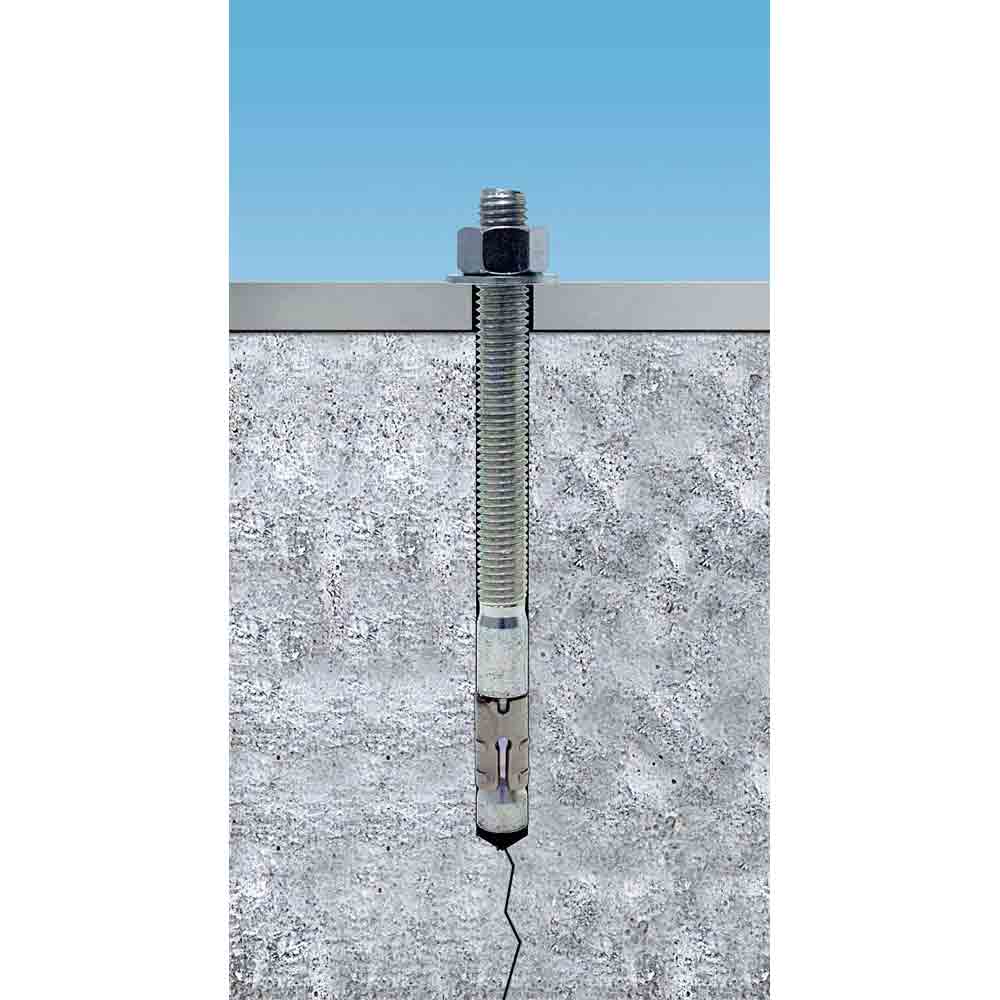

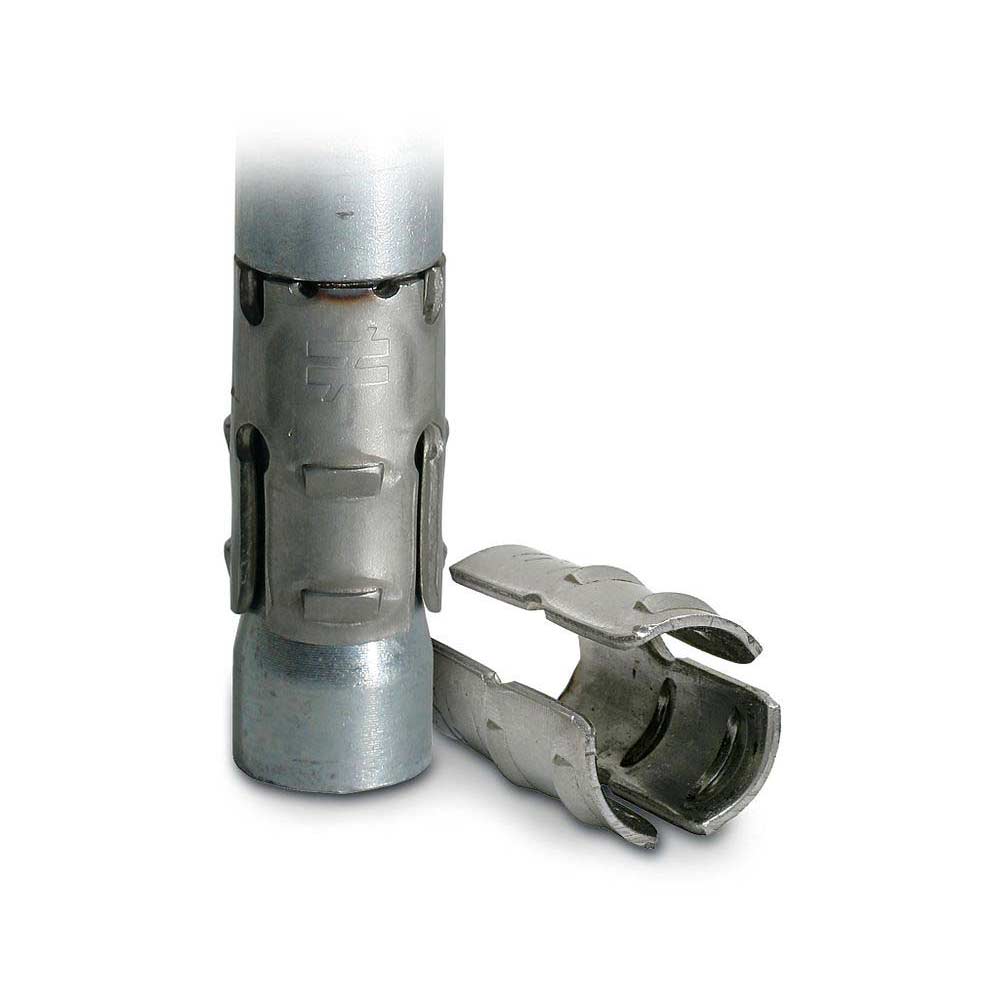

The Simpson Strong-Tie STB2-75812 Strong-Bolt 2 is a high-performance, code-listed wedge-type expansion anchor engineered for strength and reliability in both cracked and uncracked concrete, as well as masonry applications. Designed to perform under seismic, high-wind, and static loading conditions, the STB2-75812 3/4 in. x 8-1/2 in. anchor is your go-to solution for demanding structural jobs. The dual undercutting embossments on each clip segment allow for secondary expansion if cracking occurs, ensuring the anchor maintains load capacity even in compromised substrates. Its chamfered top prevents mushrooming during installation, promoting ease of use and a cleaner finish.

Key Features

• Provides enhanced holding power in cracked concrete.

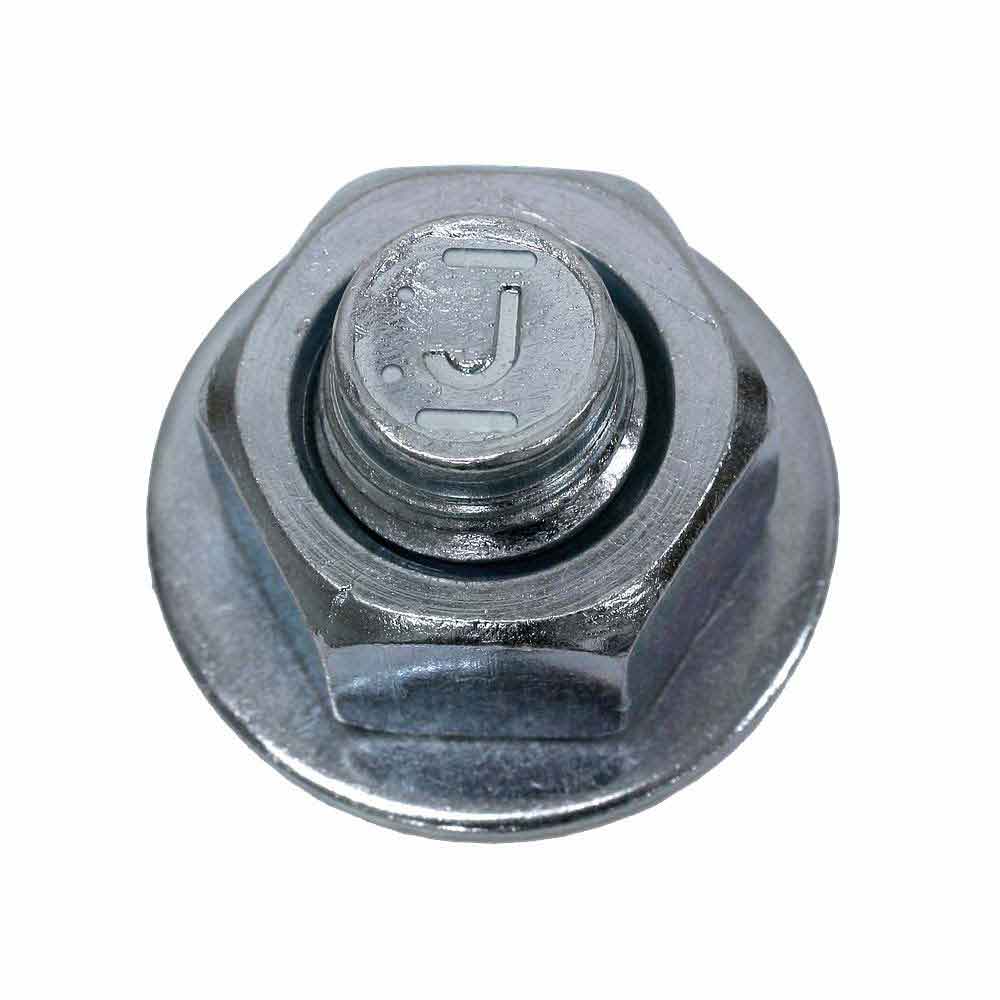

• Reduces mushrooming for a smoother installation process.
• Qualified for seismic design categories A through F.
• Installs easily in vertical, horizontal, and overhead orientations.

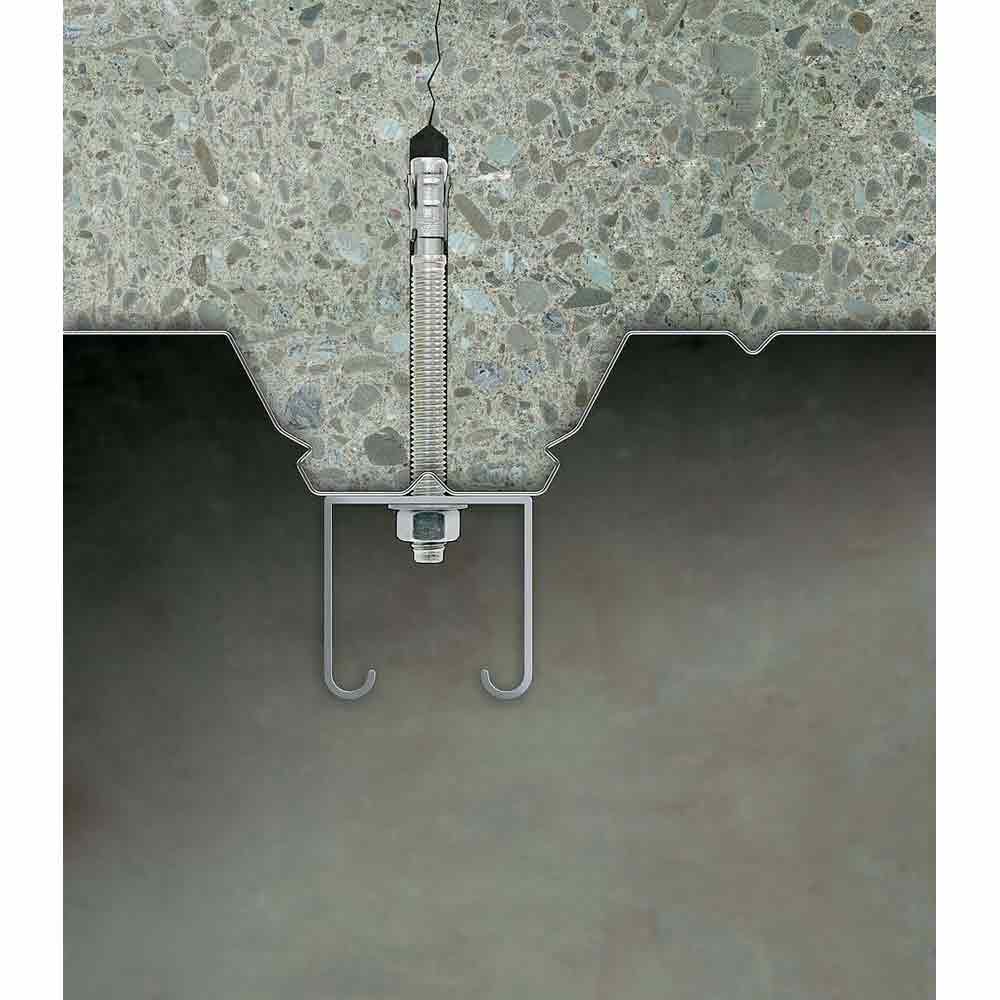

• Approved for minimum 3-1/4″ thick concrete and lightweight concrete-over-steel decks (2-1/2″ and 3-1/4″).
• Made from zinc-plated carbon steel.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	1.469
Assembled Height (in)	8.56
Assembled Depth (in)	1.469
Package Quantity	1
Coating	Zinc Plated
Material	Carbon Steel
Color	None
Length (in)	8 1/2
Thread Length	6
Diameter (in)	4-Mar
Drill Bit Diameter (in)	4-Mar
Anchor Body Component Material	Carbon Steel
Clip Component Material	Carbon Steel ASTM A 568
Nut Component Material	Carbon Steel ASTM A 563, Grade A
Washer Component Material	Carbon Steel ASTM F844
IAPMO UES Reports	ER-240 (Masonry)
ICC-ES Reports	ESR-3037 (Concrete)|ESR-3037 (Concrete) – Spanish
State Of Florida Approvals	FL15730|FL16230
FM Approval	FMExpanShield|FMExpanShield
UL Approval	VFXT.EX3605|VFXT.EX3605
Hazmat	NO
UPC Per Each	707392000000
Package Quantity	10
Carton Quantity	20
Carton UPC	20707400000000
Pallet Quantity	2520
Pallet UPC	50707400000000
