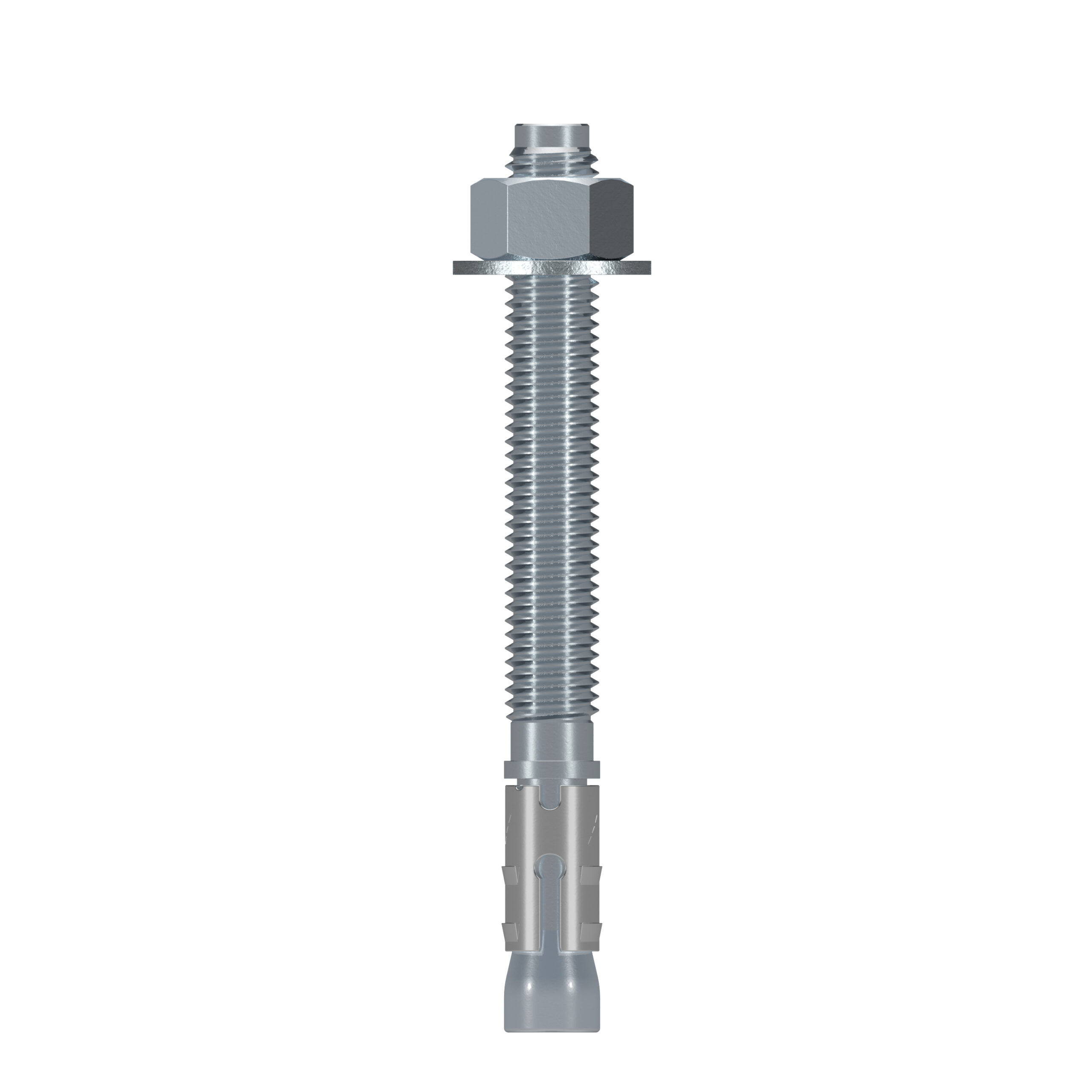

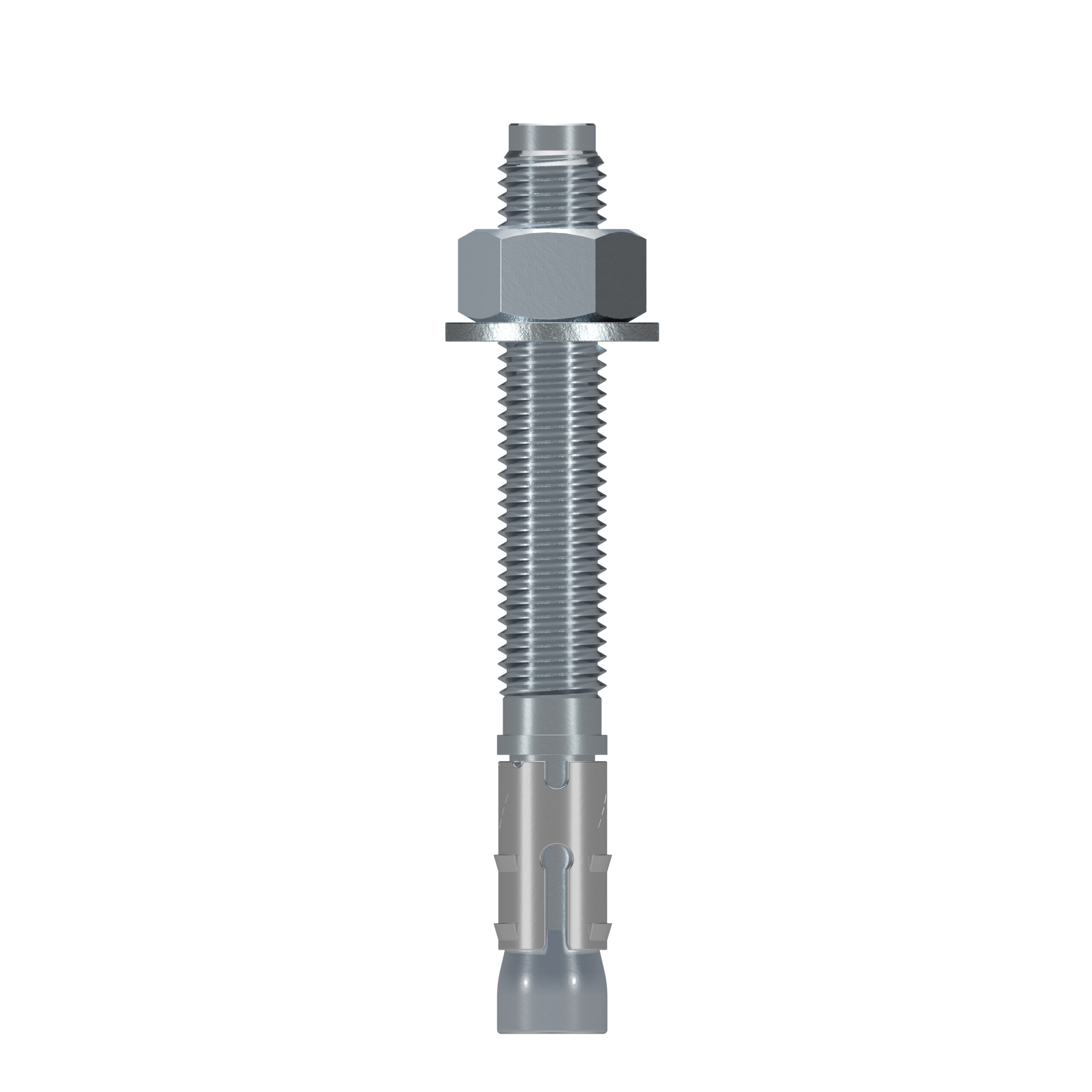

Simpson Strong-Tie STB2-62600 Strong-Bolt 2 5/8 in. x 6 in. Wedge Anchor

Code listed for cracked and uncracked concrete, and masonry applications, the Simpson Strong-Tie Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands. The Strong-Bolt 2 is available in carbon steel, Type 304 and Type 316 stainless steel.

• Size: 5/8 in. x 6 in.
• Made from zinc-plated carbon steel
• Size: 5/8 in. x 6 in.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	1.312
Assembled Height (in)	6.06
Assembled Depth (in)	1.312
Package Quantity	1
Coating	Zinc Plated
Material	Carbon Steel
Color	None
Length (in)	6
Thread Length	3 15/16
Diameter (in)	8-May
Drill Bit Diameter (in)	8-May
Anchor Body Component Material	Carbon Steel
Clip Component Material	Carbon Steel ASTM A 568
Nut Component Material	Carbon Steel ASTM A 563, Grade A
Washer Component Material	Carbon Steel ASTM F844
IAPMO UES Reports	ER-240 (Masonry)
ICC-ES Reports	ESR-3037 (Concrete)|ESR-3037 (Concrete) – Spanish
State Of Florida Approvals	FL15730|FL16230
FM Approval	FMExpanShield|FMExpanShield
UL Approval	VFXT.EX3605|VFXT.EX3605
Hazmat	NO
UPC Per Each	707393000000
Package Quantity	20
Carton Quantity	80
Carton UPC	20707400000000
Pallet Quantity	4800
Pallet UPC	50707400000000

Related

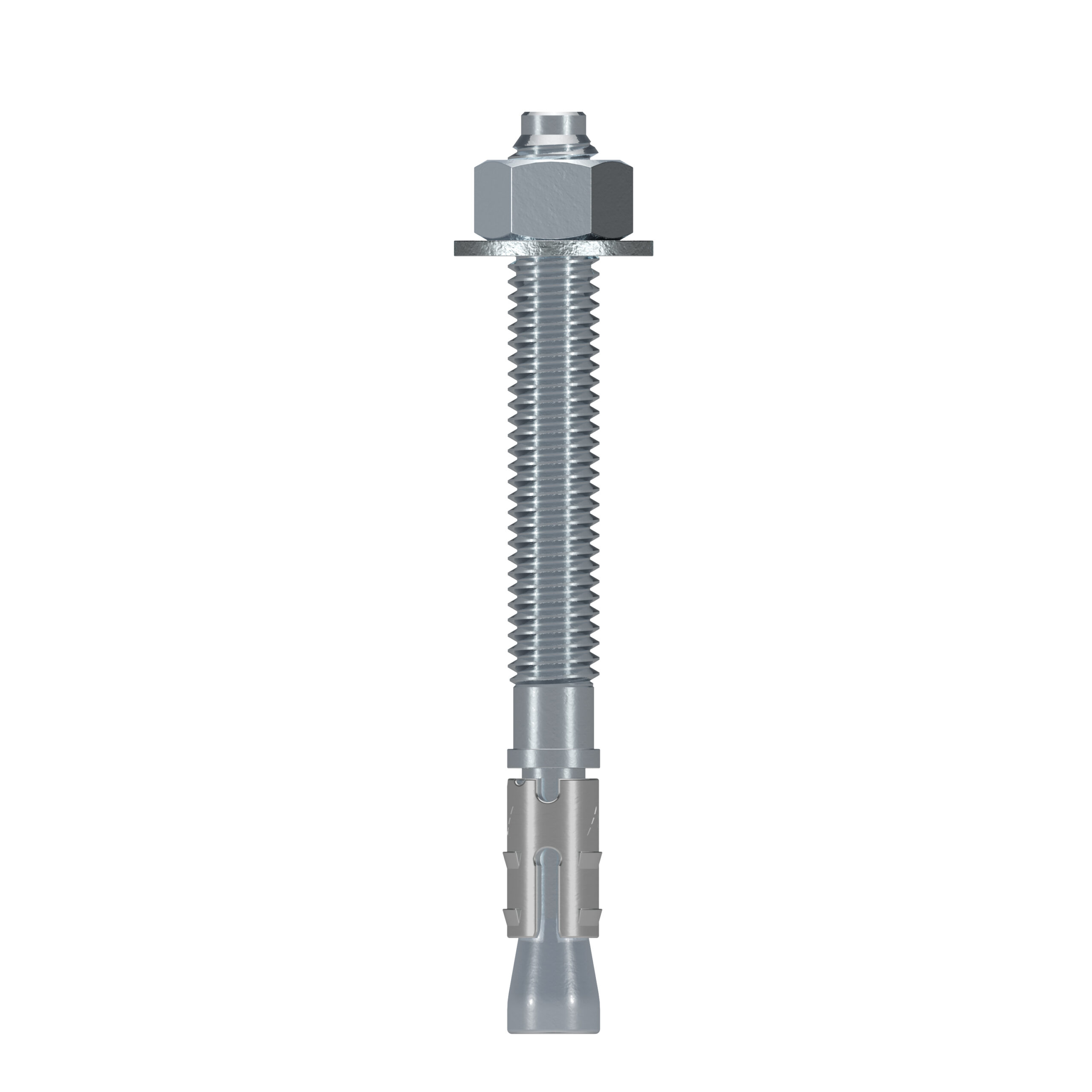

[50 Pack] Simpson Strong-Tie STB2-37334 Strong-Bolt 2 — 3/8 in. x 3-3/4 in. Wedge Anchor

Features STB2-37334 has a chamfered top designed to prevent mushrooming during installation Qualified for static and seismic loading conditions (seismic design categories A through F) Suitable for horizontal, vertical and overhead applications Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck thickness of 2 1/2" and 3…

Simpson Strong-Tie STB2-758124SS Strong-Bolt 2 3/4 in. x 8-1/2 in. Type 304 Stainless-Steel Wedge Anchor

Features:Chamfered top designed to prevent mushrooming during installationQualified for static and seismic loading conditions (seismic design categories A through F)Suitable for horizontal, vertical and overhead applicationsQualified for minimum concrete thickness of 3-1/4 in., and lightweight concrete-over-steel deck thickness of 2-1/2 in. and 3-1/4 in.Tested per ACI355.2 and AC193

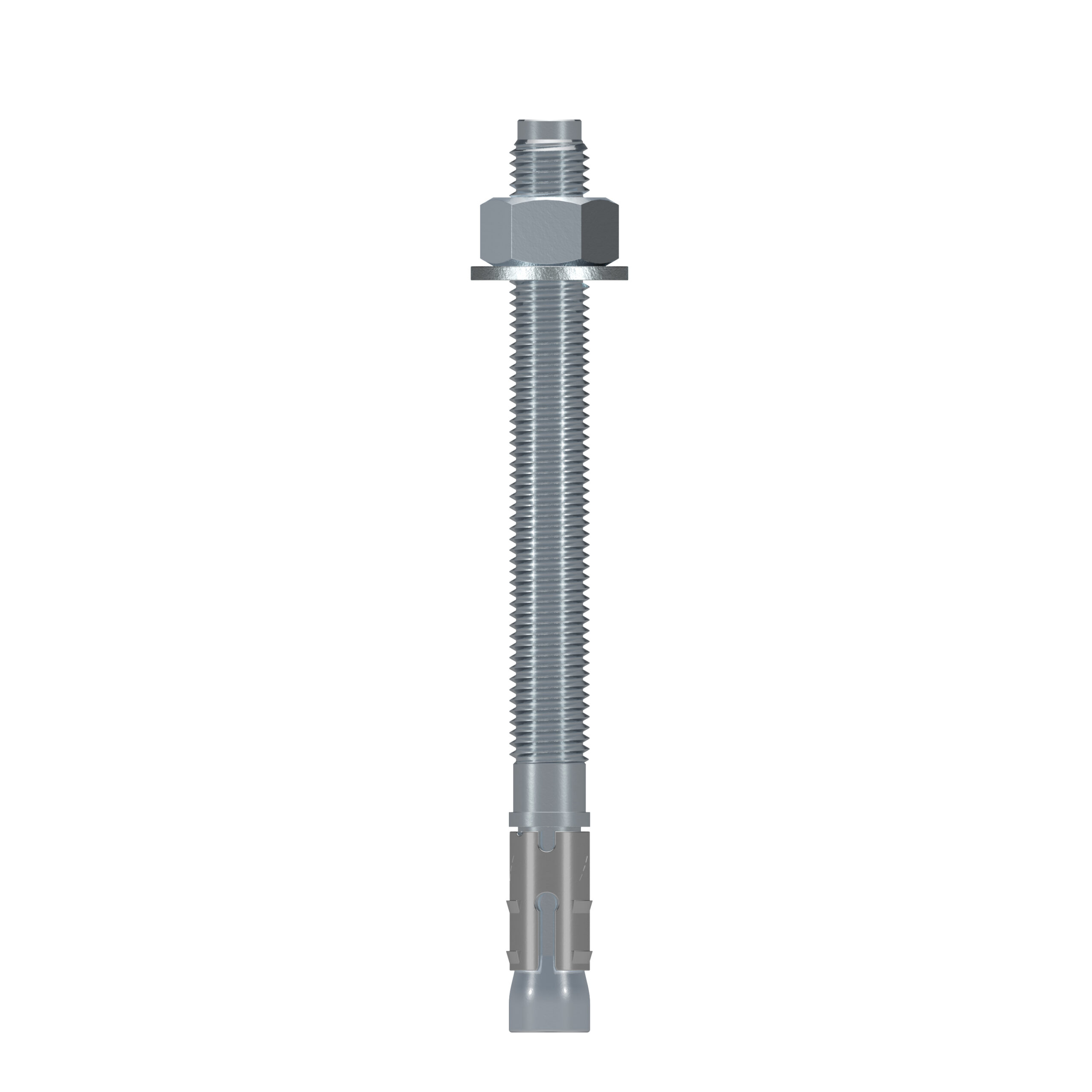

Simpson Strong-Tie STB2-75812 Strong-Bolt 2 3/4 in. x 8-1/2 in. Wedge Anchor
