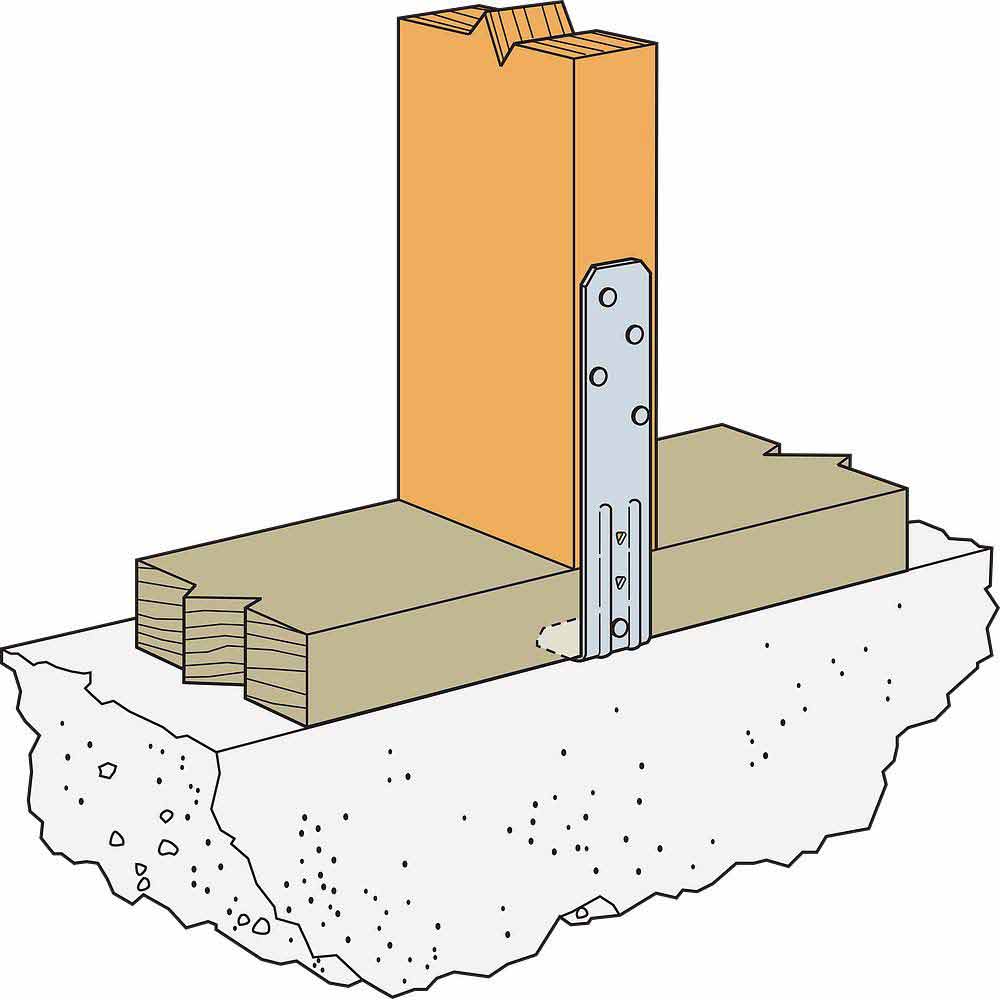

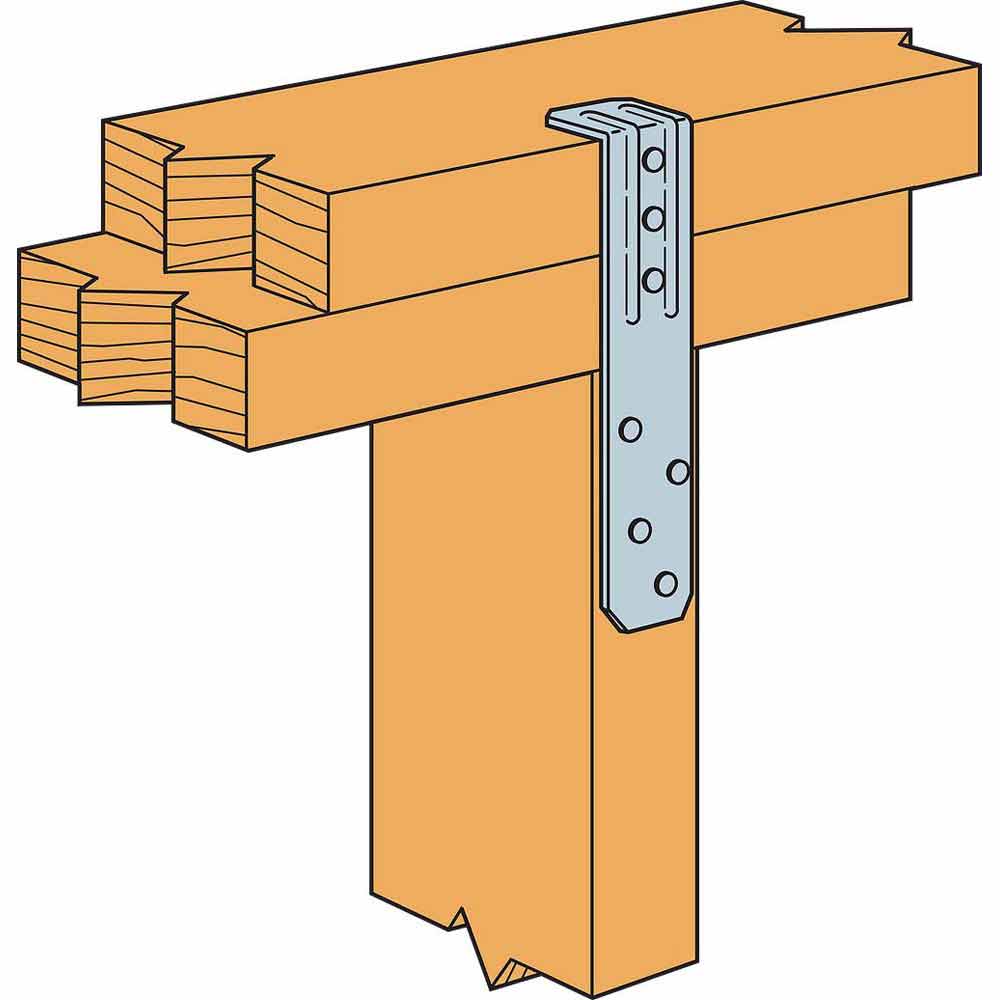

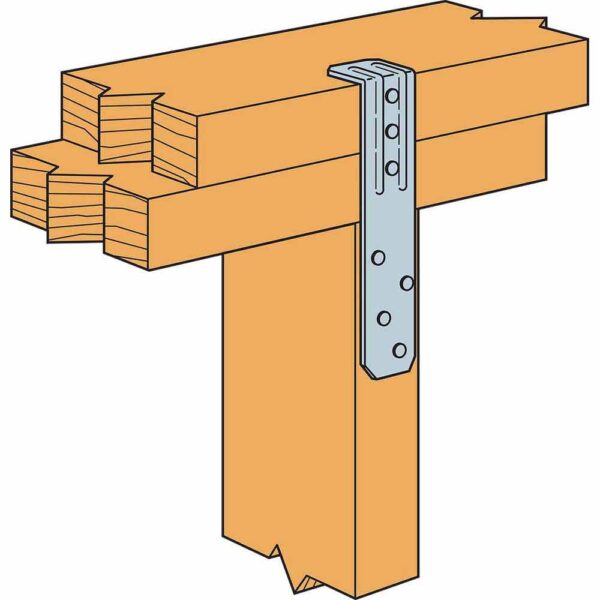

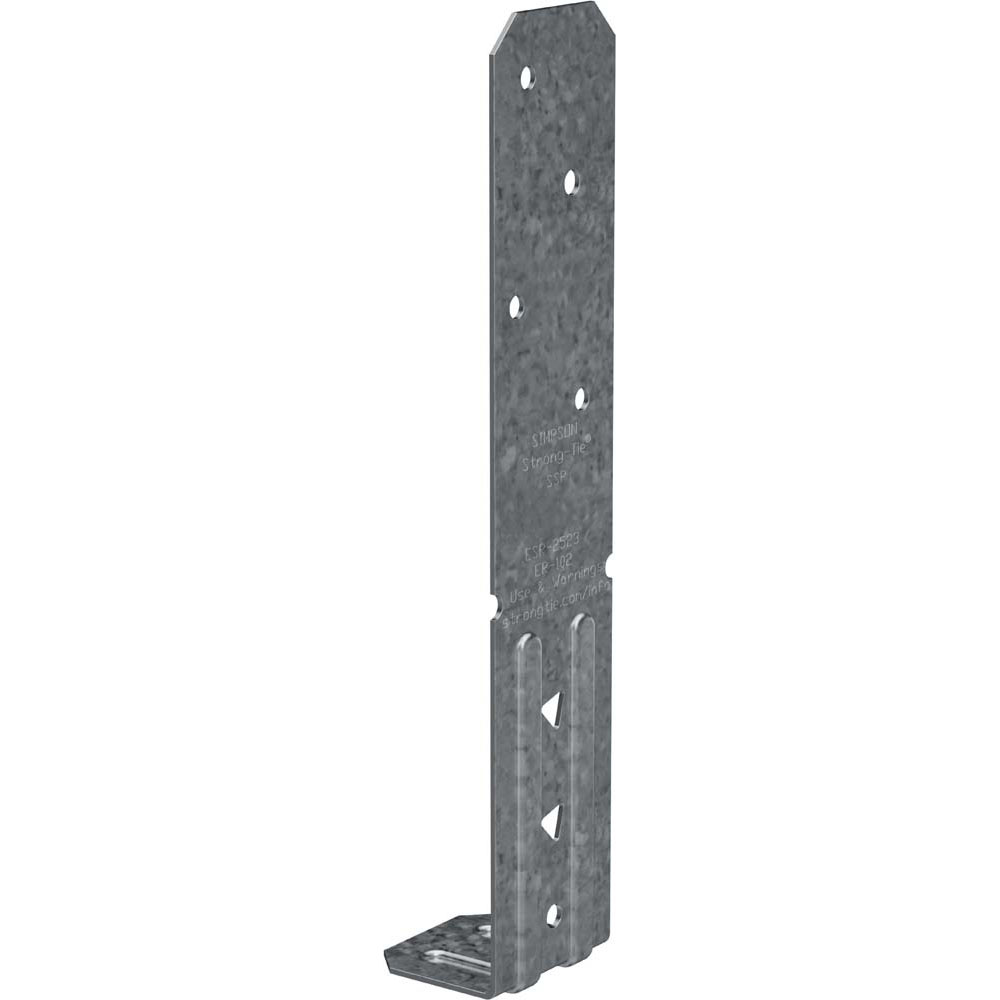

The Simpson Strong-Tie SSP is a versatile, prebent stud plate connector engineered to securely connect single studs to either the top or bottom plates of a wall. Designed to contribute to a continuous load path, the SSP enhances structural integrity by offering dependable uplift resistance in wood-framed construction. Made from 18-gauge galvanized steel, the SSP features a top flange that enables strong, precise connections to sill plates or top plates. Its integrated embossments provide added strength at the bend, ensuring durability and reliable performance in demanding environments.

Key Features

• Prebent design connects single studs to top or bottom plates with ease.
• Creates a continuous load path for improved uplift resistance.
• Embossed bend line enhances strength and stability.

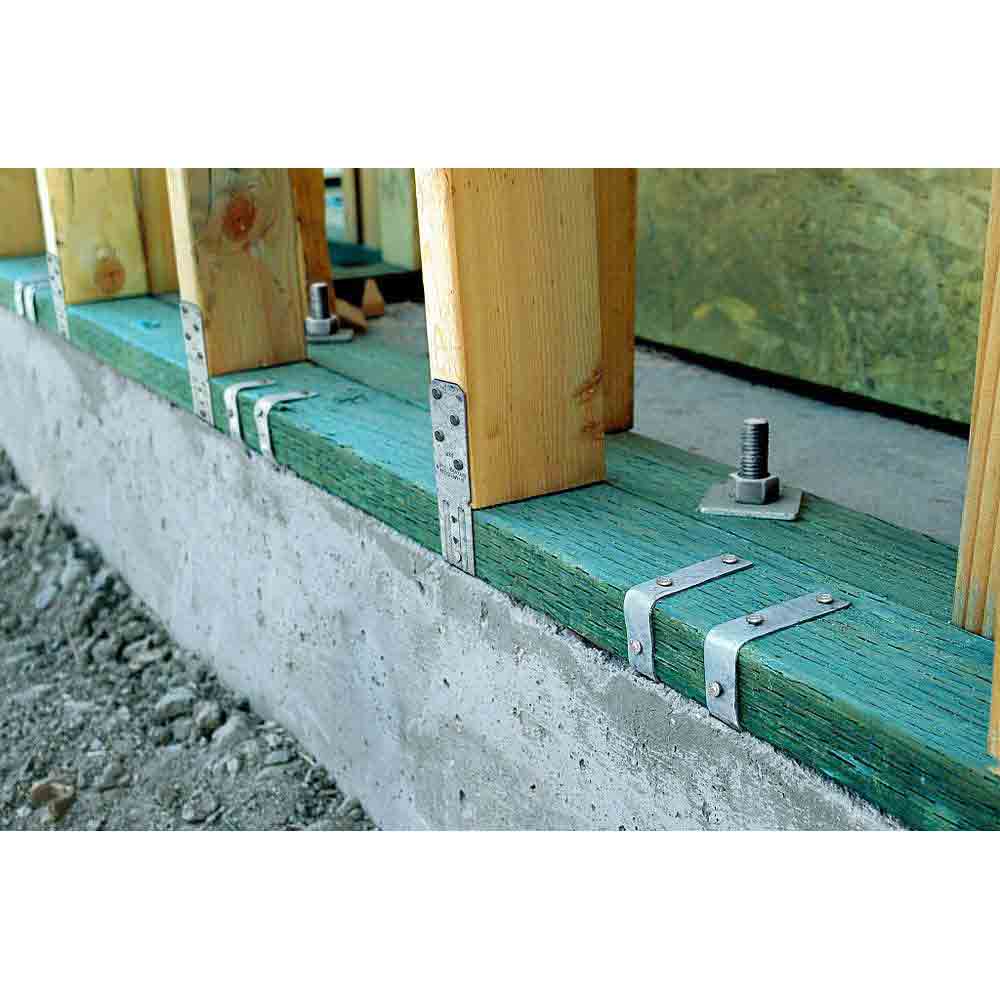

• Can be installed before or after wall placement.
• Compatible with sill plates and top plates.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications

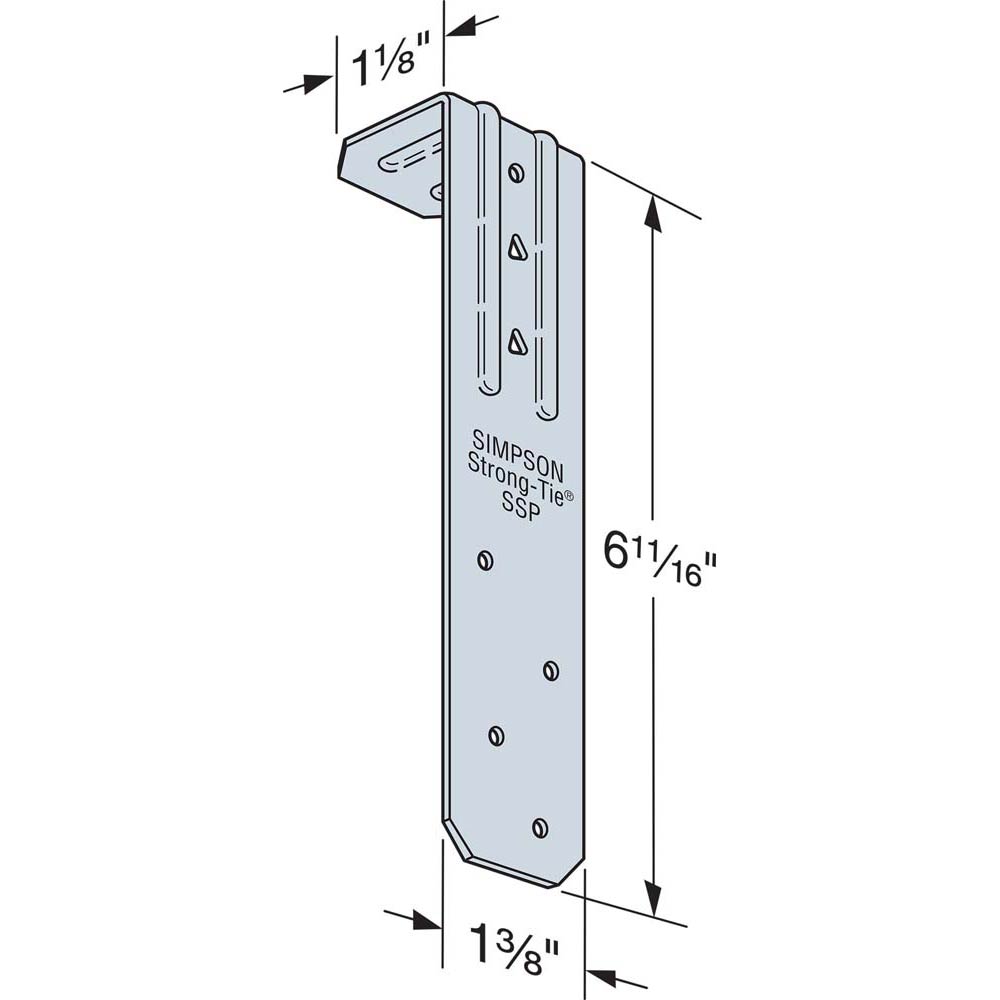

Assembled Width (in)	6.75
Assembled Height (in)	1.21875
Assembled Depth (in)	1.375
Package Quantity	1
Coating	Zinc Galvanized, G90
Color	None
Gauge	18
IAPMO UES Reports	ER-124 (CFS)
ICC-ES Reports	ESR-2613|ESR-2523 (Index)
State Of Florida Approvals	FL13872|FL10456
Hazmat	NO
UPC Per Each	707392000000
Carton Quantity	100
Carton UPC	10707400000000
Pallet Quantity	5400
Pallet UPC	50707400000000
