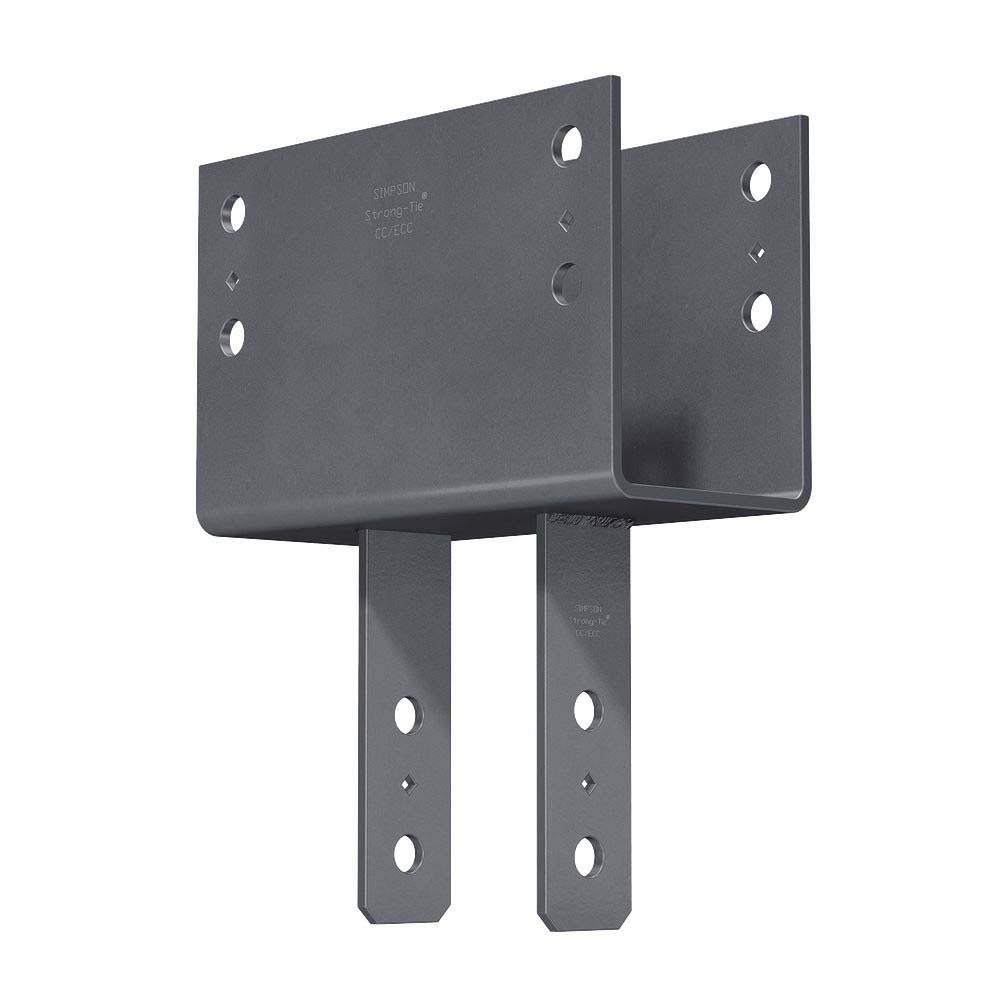

Simpson Strong-Tie CC5 1/4-6 CC Column Cap for 5-1/8 in. Beam, 6x Post

Simpson Strong-Tie CC5 1/4-6 CC Column Cap for 5-1/8 in. Beam, 6x Post

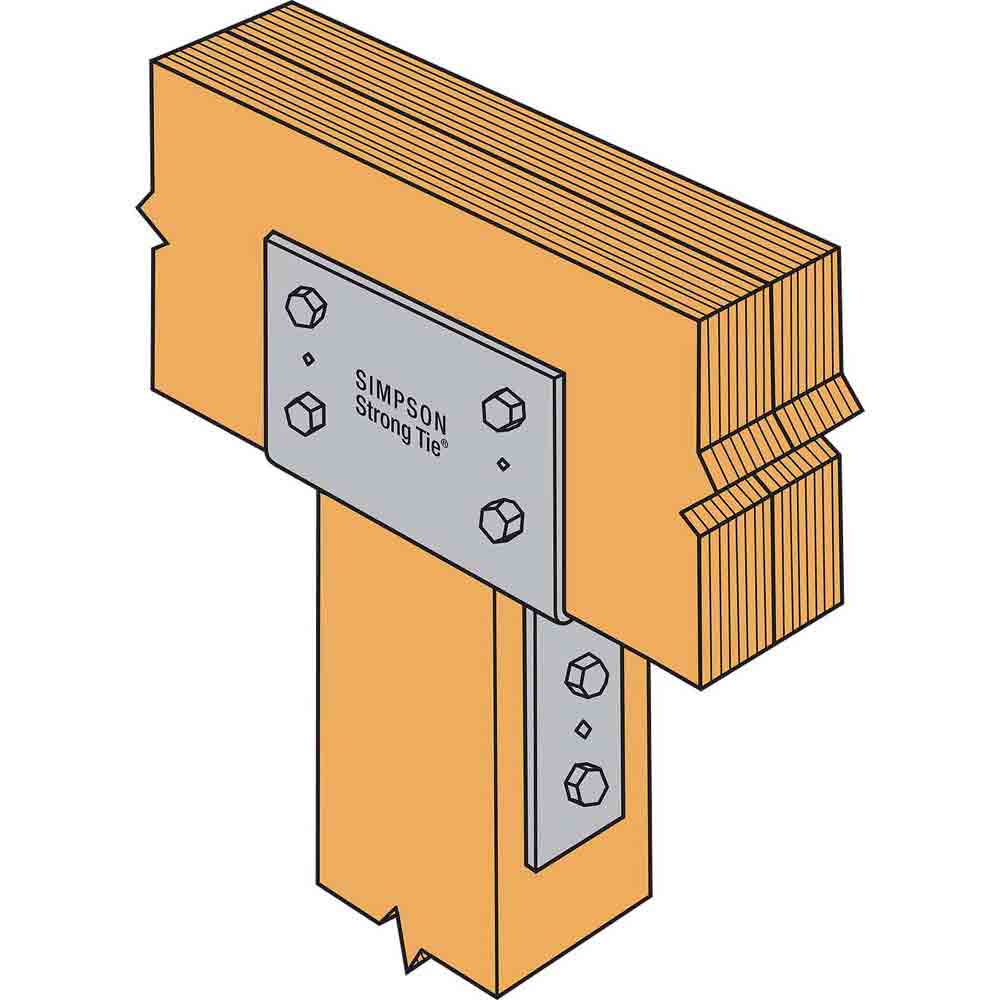

The Simpson Strong-Tie CC5 1/4-6 CC Column Cap is designed for strong, reliable column-to-beam connections in wood construction. Engineered for optimal load distribution, the cap extends beyond the column to provide enhanced bearing support. Its certified welds and code-compliant bolt spacing ensure structural integrity, making it an excellent choice for earthquake and wind-resistant construction.

Key Features

• Ensures durability and load capacity.
• Increased uplift loafs for earthquake and wind resistance.
• Bolt spacing meets NDS requirements for optimal performance.

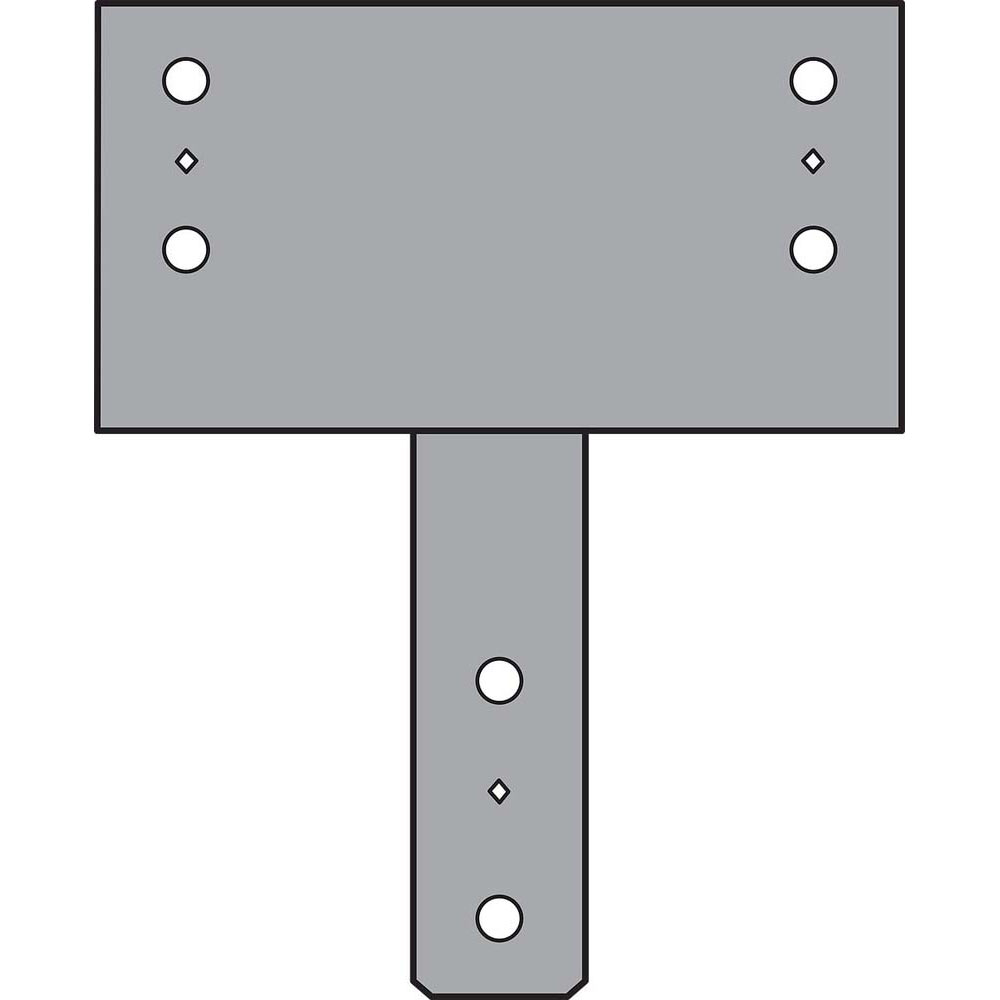

• Diamond holes allow for preliminary attachment.

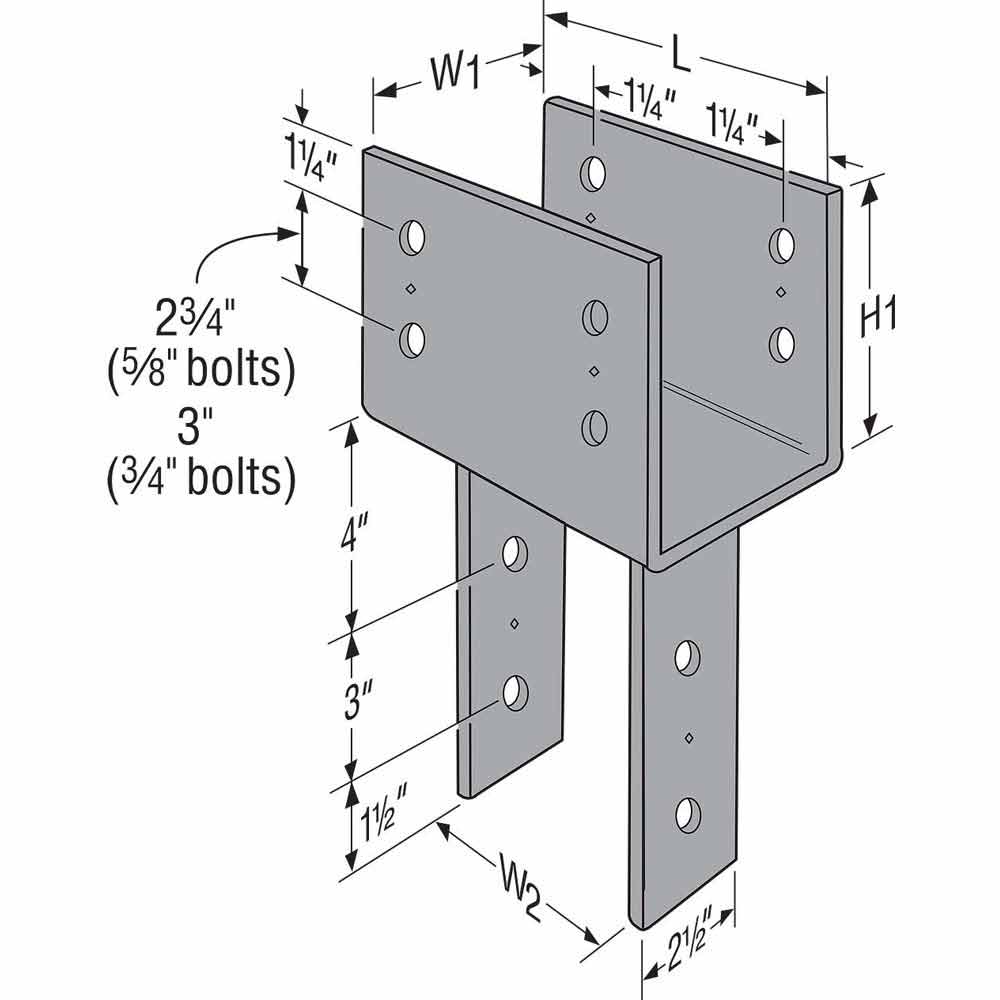

• Straps can be rotated 90° when W1 ≥ W2 for flexible installation.
