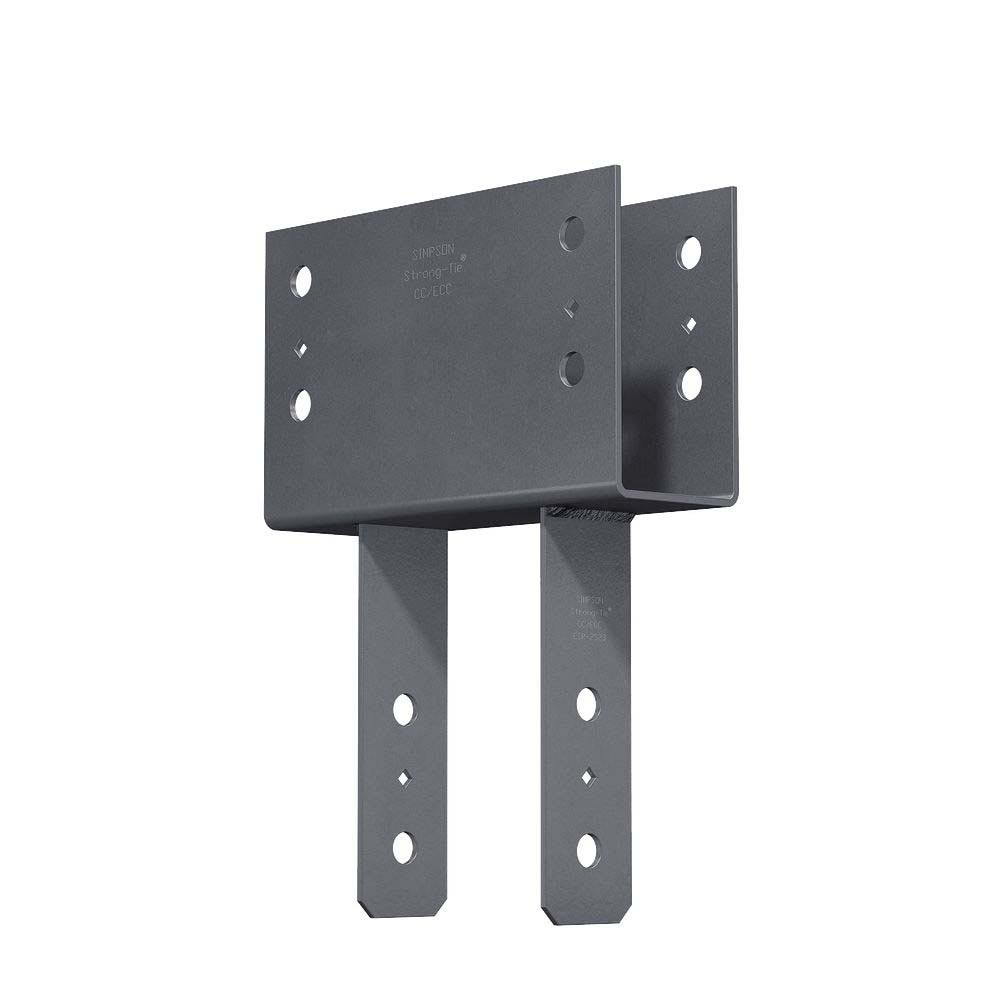

Simpson Strong-Tie CC3 1/4-6 CC Column Cap for 3-1/8 in. Beam, 6x Post

Simpson Strong-Tie CC3 1/4-6 CC Column Cap for 3-1/8 in. Beam, 6x Post

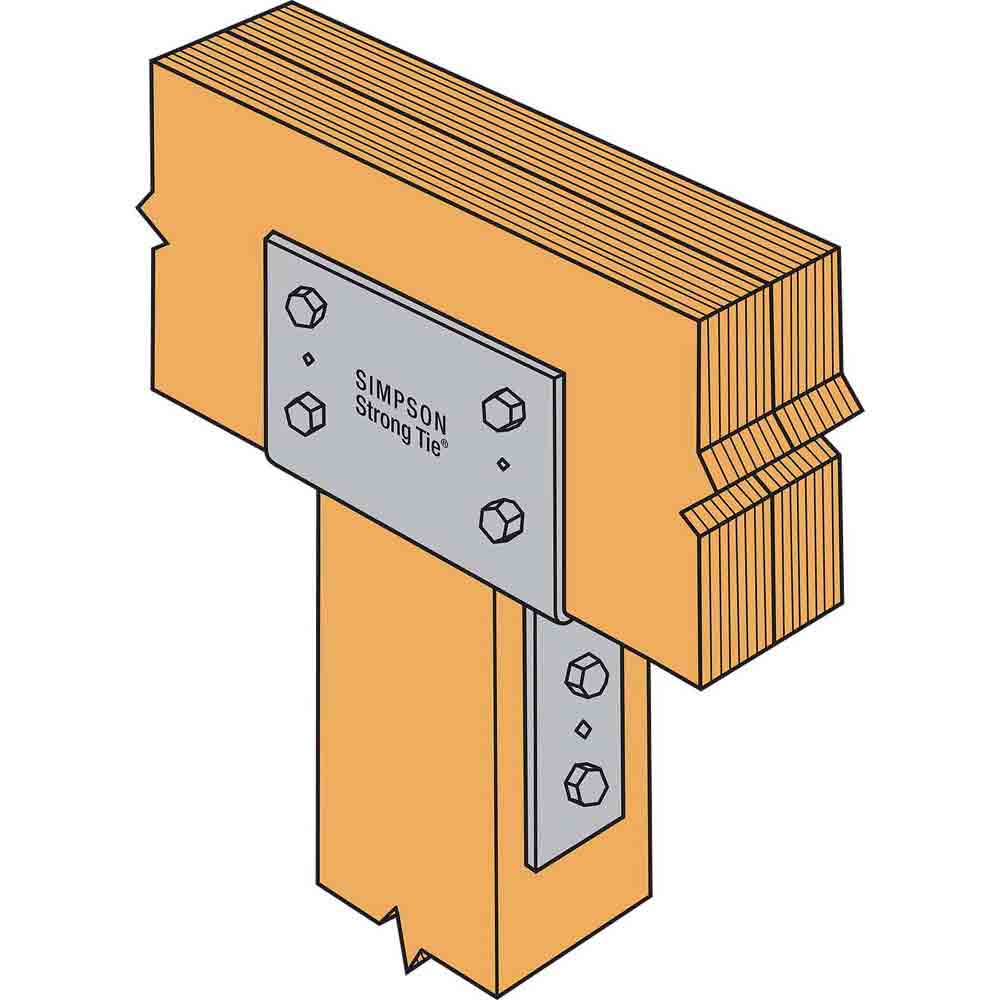

The Simpson Strong-Tie CC3 1/4-6 CC Column Cap is engineered to deliver robust and reliable column-to-beam connections in wood construction. Designed specifically to fit a 3-1/8 in. beam and 6x post, this column cap features a high-strength seat that extends beyond the sides of the column to distribute load efficiently and enhance overall connection stability. Whether you’re constructing decks, pergolas, or heavy timber framing, this column cap ensures a secure, code-compliant connection that stands up to both gravity and lateral forces, making it an ideal choice for earthquake or wind-prone areas.

Key Features

• Extended bearing seat provides greater surface area to distribute beam loads evenly.
• Designed to meet NDS requirements for maximum structural performance.
• Uplift loads are increased to support earthquake and wind-resistant designs.
• Factory-welded joints ensure confidence in strength and load capacity.
• Pre-punched diamond-shaped holes allow for temporary fastening during installation.
