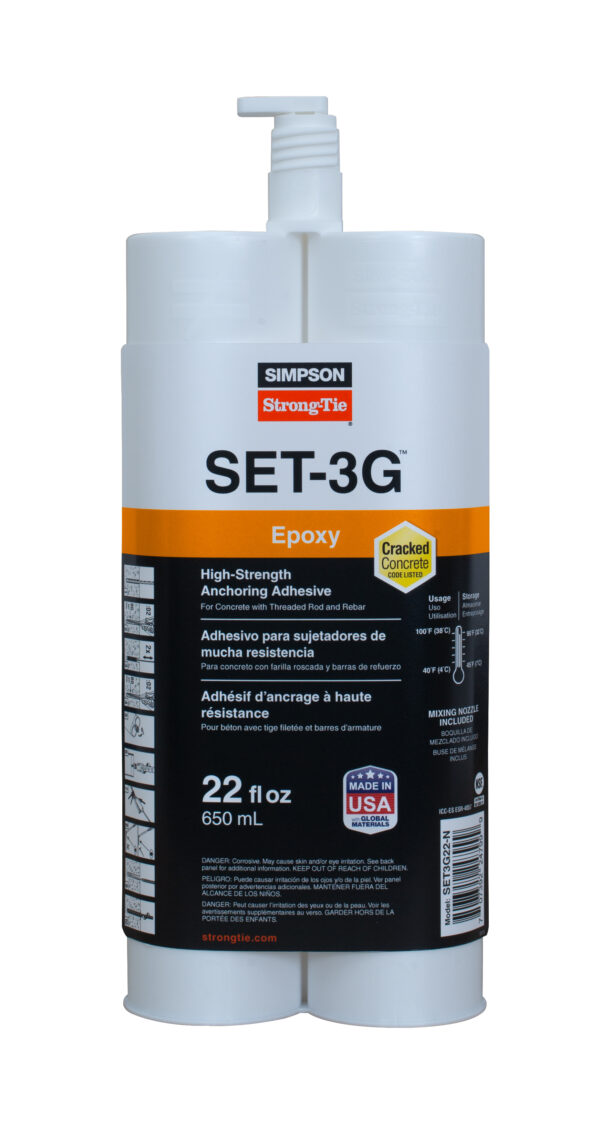

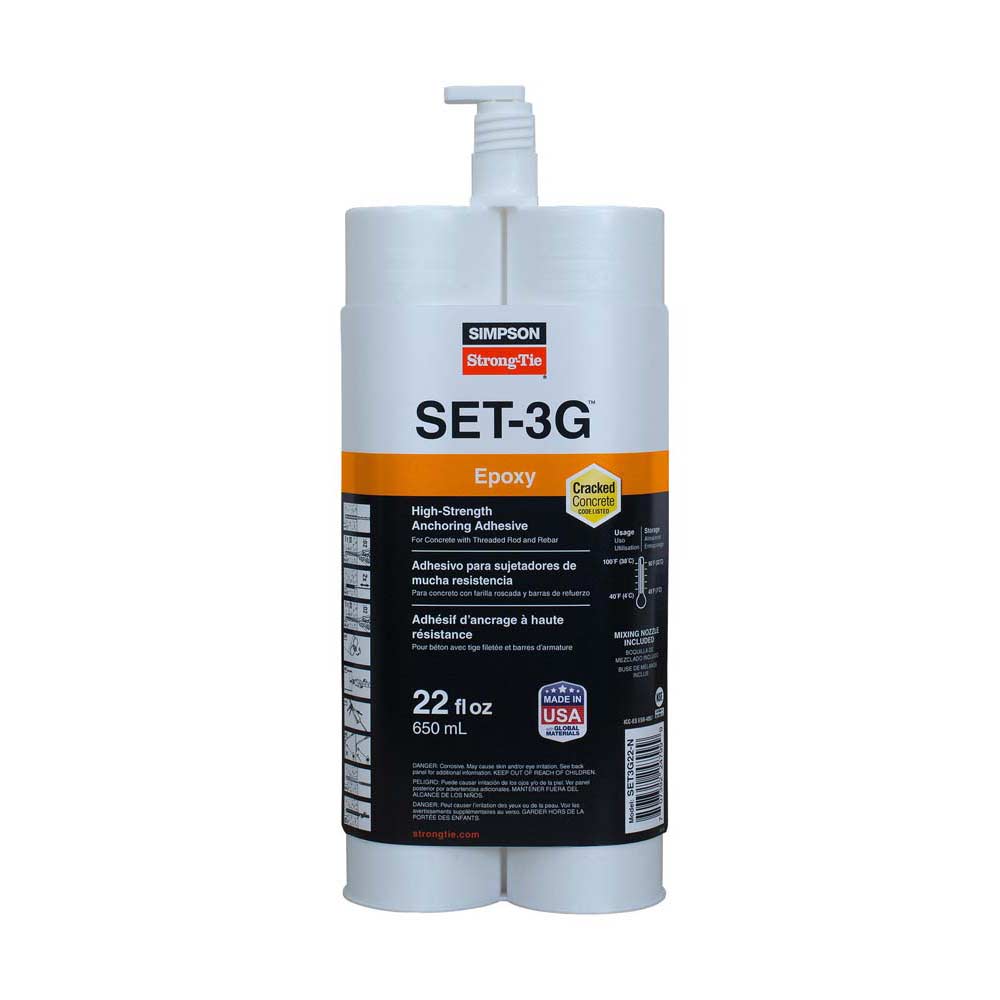

Simpson Strong-Tie SET3G22-N 22-oz. High-Strength Epoxy Adhesive w/ Nozzle and Extension
$52.79
Features
- SET3G22-N is ICC-ES ESR-4057 approved for post-installed anchoring and rebar splice design
- Includes mixing nozzle and extension for simplified installation
- Low-odor formula, approved for potable water applications
- Compatible with wire brush cleaning or vacuum-drill systems without extra hole cleaning
Building Relationships, Delivering Results
- Fast Shipping
- No Hassle Returns
- Secure Payments
- Family Owned and Operated
- Personal Bilingue
Simpson Strong-Tie SET3G22-N 22-oz. High-Strength Epoxy Adhesive w/ Nozzle and Extension
Simpson Strong-Tie SET-3G22-N is a high-strength, two-component epoxy adhesive formulated for structural anchoring in cracked and uncracked concrete. Packaged with a nozzle and extension for easy application, this 22 oz. epoxy cartridge delivers exceptional performance, even in extreme environments and temperature variations. Ideal for threaded rod and rebar dowel installations, SET-3G offers enhanced design flexibility, superior sustained load performance, and is recognized per ICC-ES AC308 for post-installed rebar development. Whether you’re working in horizontal, vertical, or overhead orientations, SET3G22-N is your go-to solution for both new construction and retrofit projects.
Key Features
- Delivers superior bond strength in high seismic zones for ductile design.
- Performs in water-saturated concrete, water-filled holes, and submerged conditions.
- Effective in service temps from -40°F to 176°F.
- Enhanced sustained load performance at elevated temperatures.
SET3G22-N Includes:
One EMN22i mixing nozzle and one extension are supplied with each cartridge
Warranty
Limited warranty, available at www.strongtie.com/limited-warranties.
| Assembled Width (in) | 4.0625 |
|---|---|
| Assembled Height (in) | 23.0625 |
| Assembled Depth (in) | 2.0625 |
| Package Width (in) | 4.0625 |
| Package Height (in) | 10 |
| Package Depth (in) | 2.5 |
| Package Quantity | 1 |
| Compatible Simpson Tools | EDT22S, EDTA22P, EDTA22CKT dispensing tools / EMN22i mixing nozzle (included) |
| Capacity | 22 |
| Cartridge Type | Side-by-Side |
| Storage Conditions | Store between 45 degreeF (7 degreeC) and 90 degreeF (32 degreeC) |
| Usage Temperature | Base-material temperatures must be 40 degreeF (4 degreeC) or above at the time of installation. For best results, adhesive should be conditioned to a temperature between 70 degreeF (21 degreeC) and 80 degreeF (37 degreeC) at the time of installation. To warm cold adhesive, store cartridges in a warm, uniformly heated area or storage container. Mixed material can harden in the dispensing nozzle within 30 minutes at 70 degreeF (21 degreeC). |
| VOC | 1.9 grams/liter |
| ICC-ES Reports | ESR-4057 (Concrete) |
| State Of Florida Approvals | FL15730 |
| UL Approval | CDPH Standard Method v1.2 |
| Hazmat | YES |
| UPC Per Each | 707392247999 |
| Carton Quantity | 10 |
| Carton UPC | 10707392247996 |
| Pallet Quantity | 540 |
| Pallet UPC | 50707392247994 |
| Weight | 2.6 lbs |
|---|---|
| Dimensions | 2.50 × 4.0625 × 10.00 in |
| Brand | Simpson Strong-Tie |
| Product Type | |
| UPC Code | |
| MPN |
