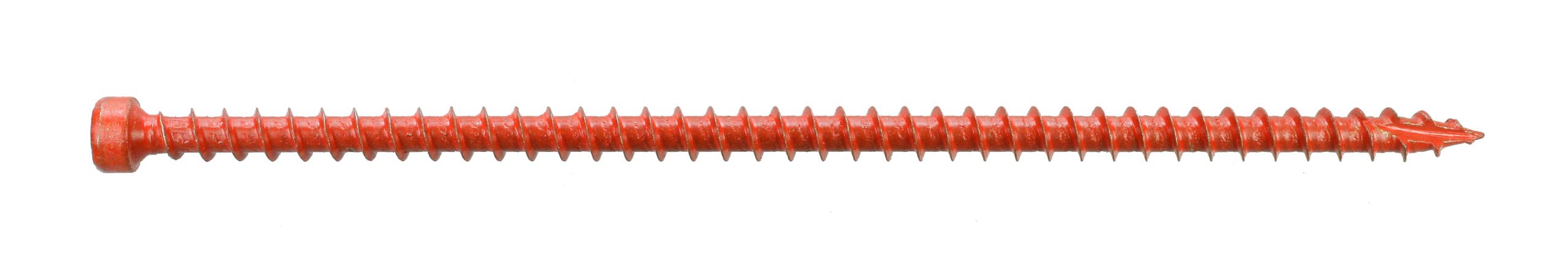

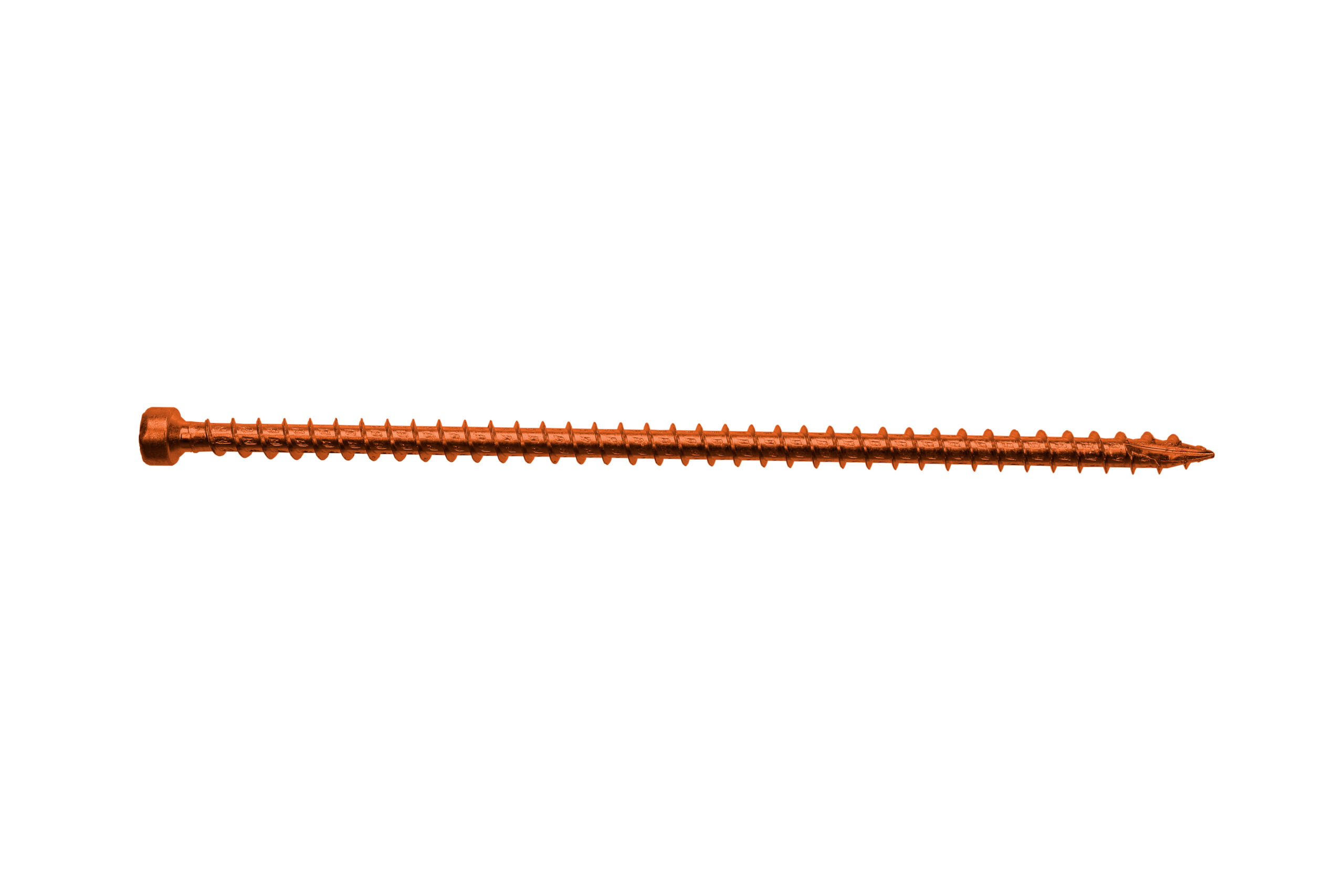

Simpson Strong-Tie SDWC15600B-KT Strong-Drive SDWC TRUSS Screw .152 in. x 6 in. T30 Clear-Zinc Coat Orange 500-Qty

The Strong-Drive SDWC provides a time-saving and reliable option to fastening trusses and rafters to wall top plates. This high-strength structural wood screw is designed with a shorter thread length to fasten multi-ply members such as plated trusses, engineered-lumber products and solid-sawn lumber. The fully-threaded shank engages the entire length of the fastener, providing a secure connection between the roof and wall framing members.

• Length: 6 in.
• Orange color for easy inspection
• Quantity: 500
• Matched-tolerance driver bit (included) engages fastener head securely to allow one-handed driving (replacement bit part no. BIT30-R1)

SDWC15600B-KTIncludes:

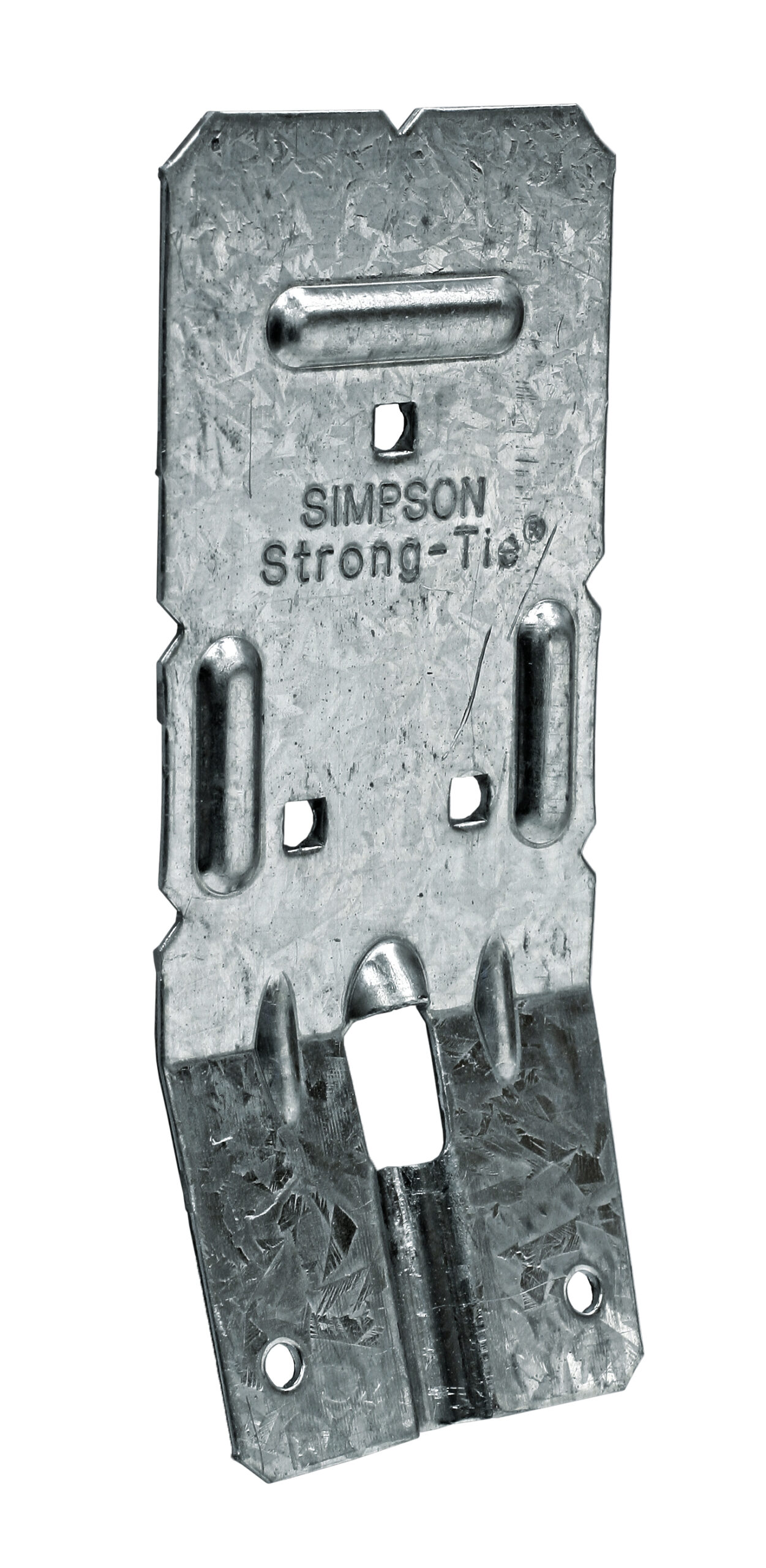

500 Strong-Drive SDWC screws, 2 matched-tolerance driver bits (part no. BIT30T-2-RC3; also sold separately), 2 metal installation guide tools SDWC-GUIDE (also sold separately)

Applications For SDWC15600B-KT

Truss/rafter-to-plate and stud-to-plate connections

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	0.335
Assembled Height (in)	6
Assembled Depth (in)	0.335
Package Quantity	500
Coating	Clear Zinc Coating
Color	Orange
Drive Type	T30 6-Lobe
Head Type	Cap Head
Length (in)	6
Point Type	Type-17 Point
Shank Diameter (in)	0.152
Thread Length	5 3/4
IAPMO UES Reports	ER-262
State Of Florida Approvals	FL13975
Hazmat	NO
UPC Per Each	707393000000
Pallet Quantity	64
Pallet UPC	50707400000000
