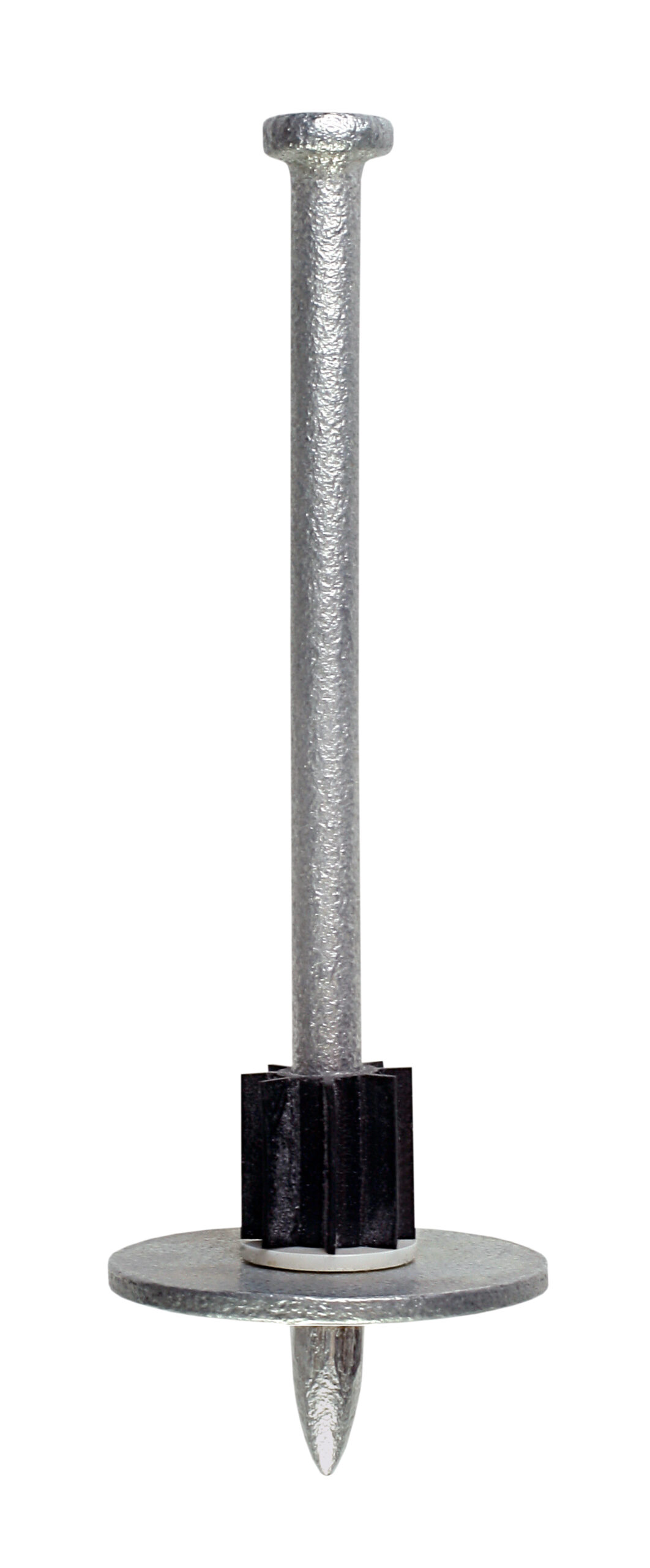

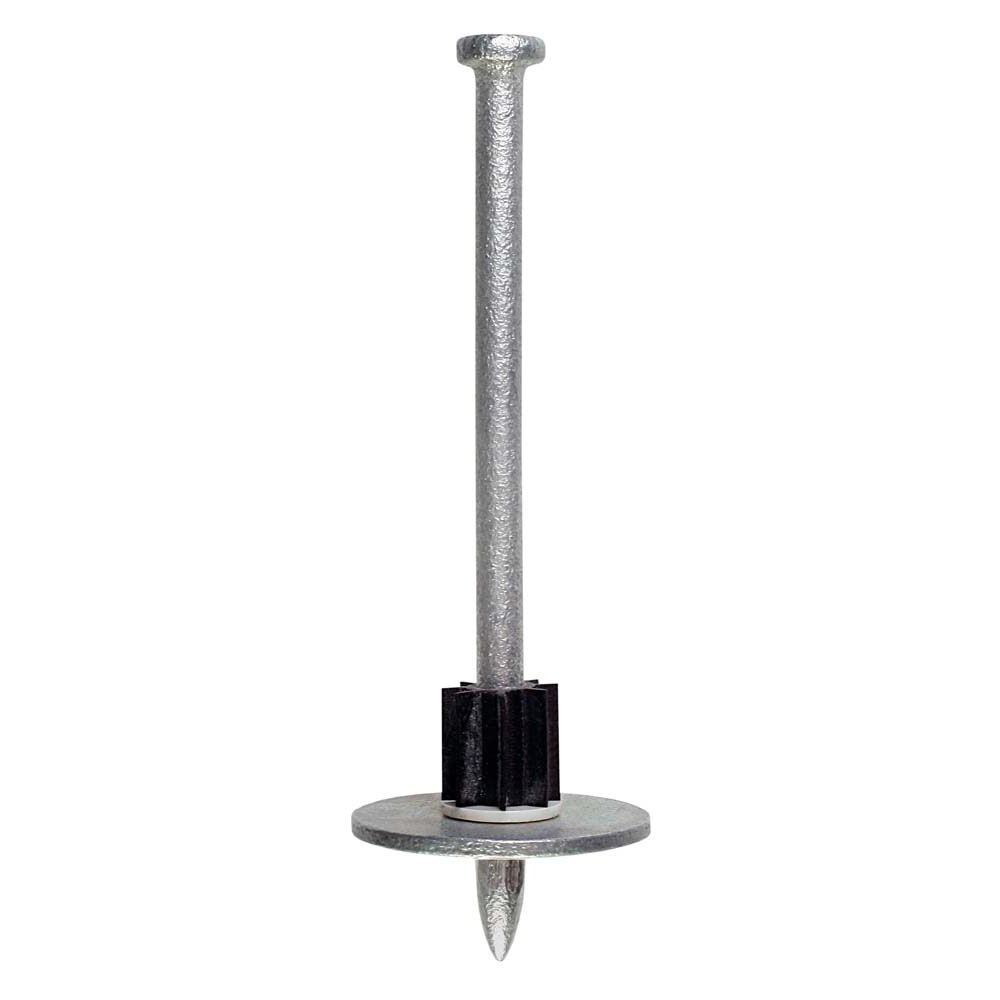

Simpson Strong-Tie PDPAWL-250 .157 in. x 2-1/2 in. Powder-Actuated Pin w/ 1 in. Washer

Simpson Strong-Tie PDPAWL-250 .157 in. x 2-1/2 in. Powder-Actuated Pin w/ 1 in. Washer

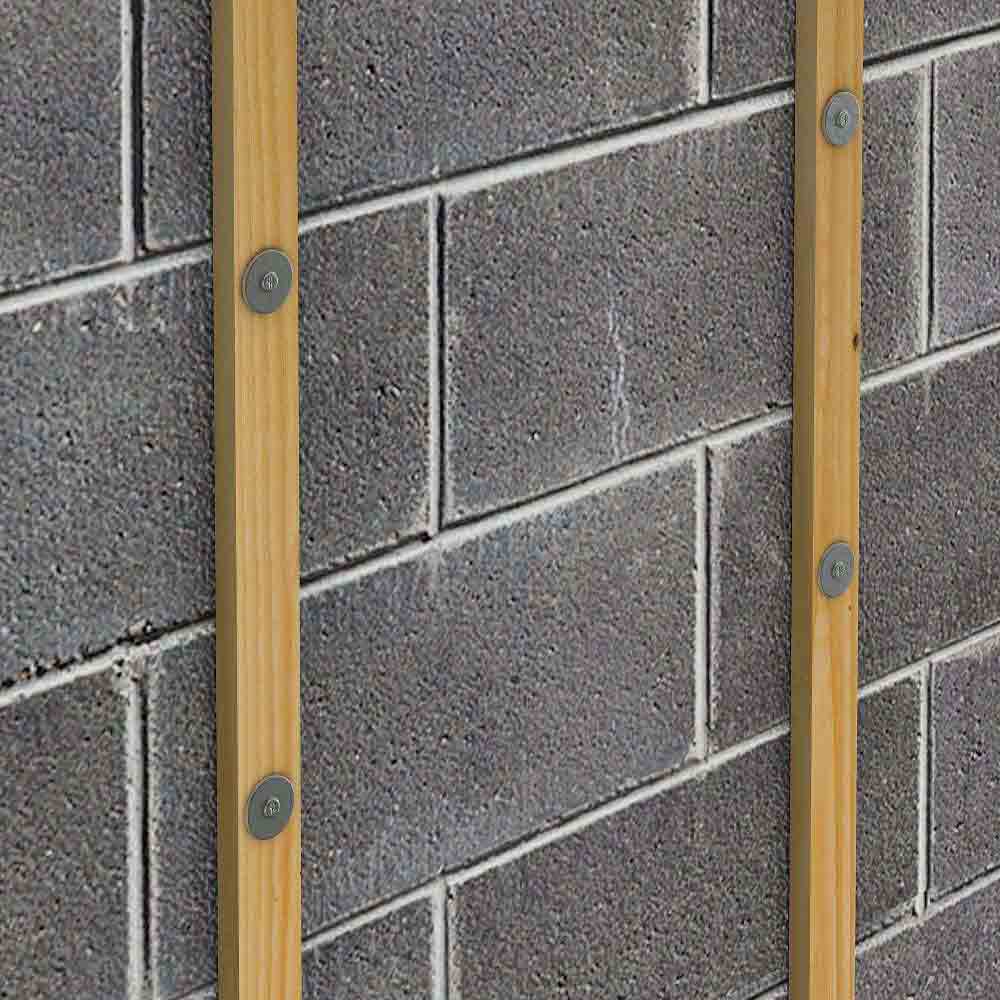

The Simpson Strong-Tie PDPAWL-250 is a high-performance powder-actuated washered pin designed for fastening building components to concrete, steel, and CMU (concrete masonry units). This pin combines the hardened steel PDPA pin with a 1-inch washer, providing an enhanced bearing surface to increase uplift resistance for reliable, long-lasting connections. The preassembled pin and washer system is engineered to streamline installation, ensuring efficient fastening with Simpson Strong-Tie powder-actuated tool systems and other commonly used tools. Ideal for demanding construction environments, the PDPAWL is code-listed for compliance with industry standards, including ICC-ES ESR-2138, Florida FL15730, and LA RR25469, ensuring quality and performance.

Key Features

• 1″ washer for improved uplift resistance.
• Provides superior strength and durability for demanding applications.
• Washered pin system for easy installation.
• Compliant with ICC-ES ESR-2138, Florida FL15730, and LA RR25469.
• Designed for Simpson Strong-Tie powder-actuated tool systems and other common tools.
• For A36 and A572 Grade 50 structural steel.
• Length: 2-1/2 in.

Applications For PDPAWL-250

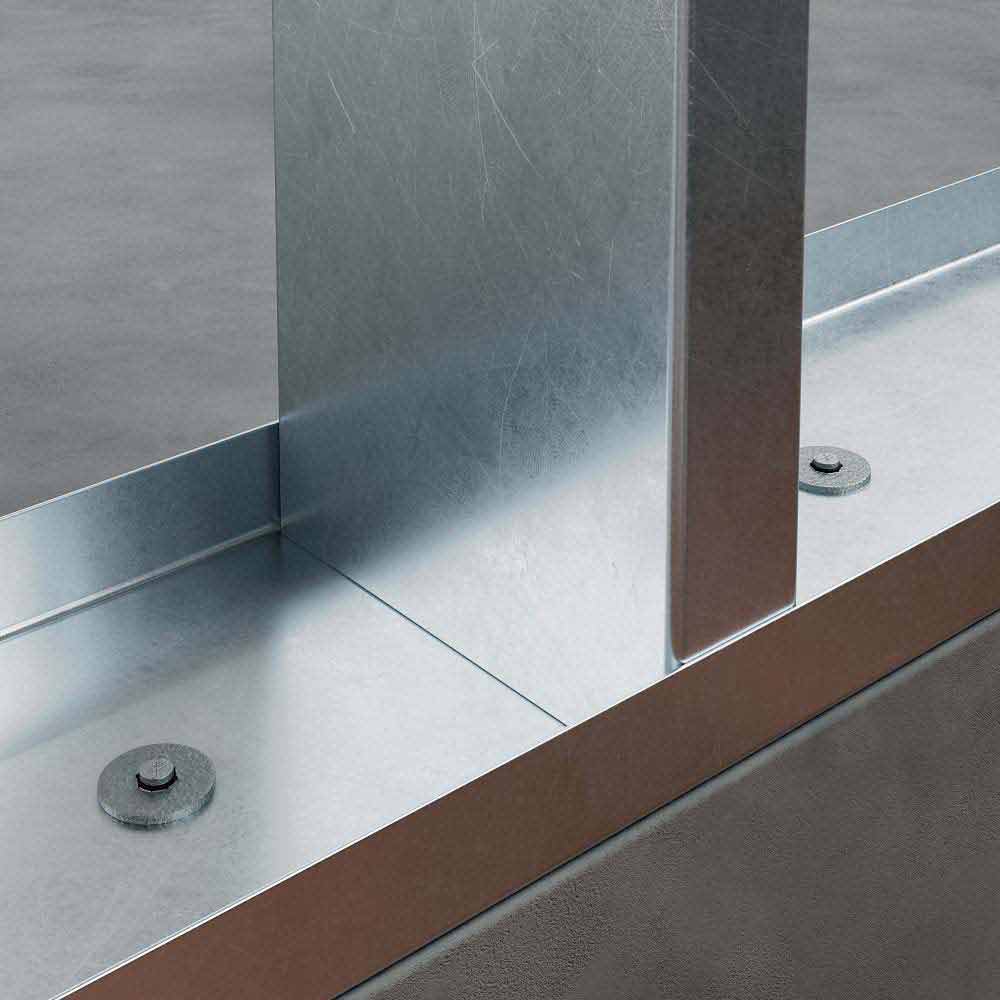

Designed for installation into A36 and A572 Grade 50 structural steel

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	1
Assembled Height (in)	2.5
Assembled Depth (in)	1
Package Quantity	1
Coating	Mechanically Galvanized
Material	Carbon Steel
Color	None
Compatible Simpson Tools	PTP-27L, PT-27, PT-22A, PT-22HA
Other Compatible Tools	721, D-60, U-2000, System 1, System 3 and most other low-velocity tools

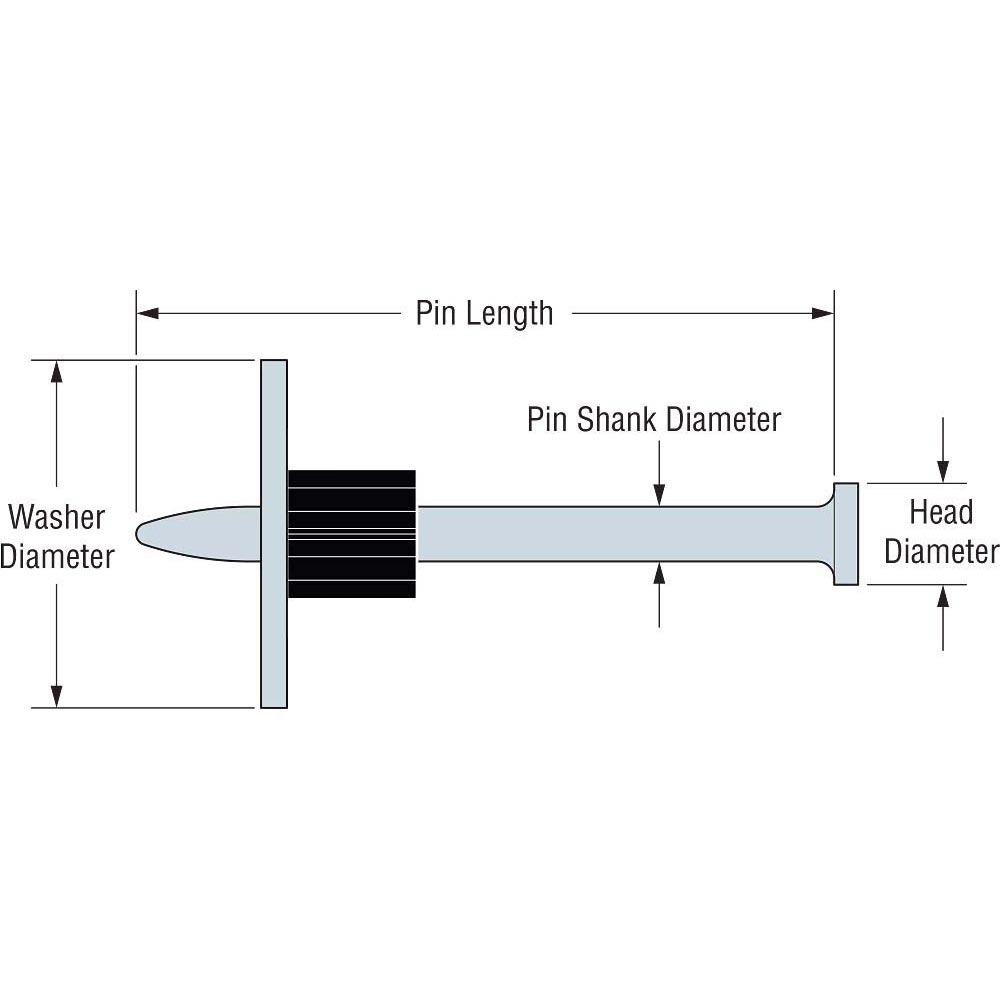

Length (in)	2 1/2
Shank Diameter (in)	0.157
ICC-ES Reports	ESR-2138|ESR-2138 – Spanish
State Of Florida Approvals	FL15730
Hazmat	NO
UPC Per Each	707392739203

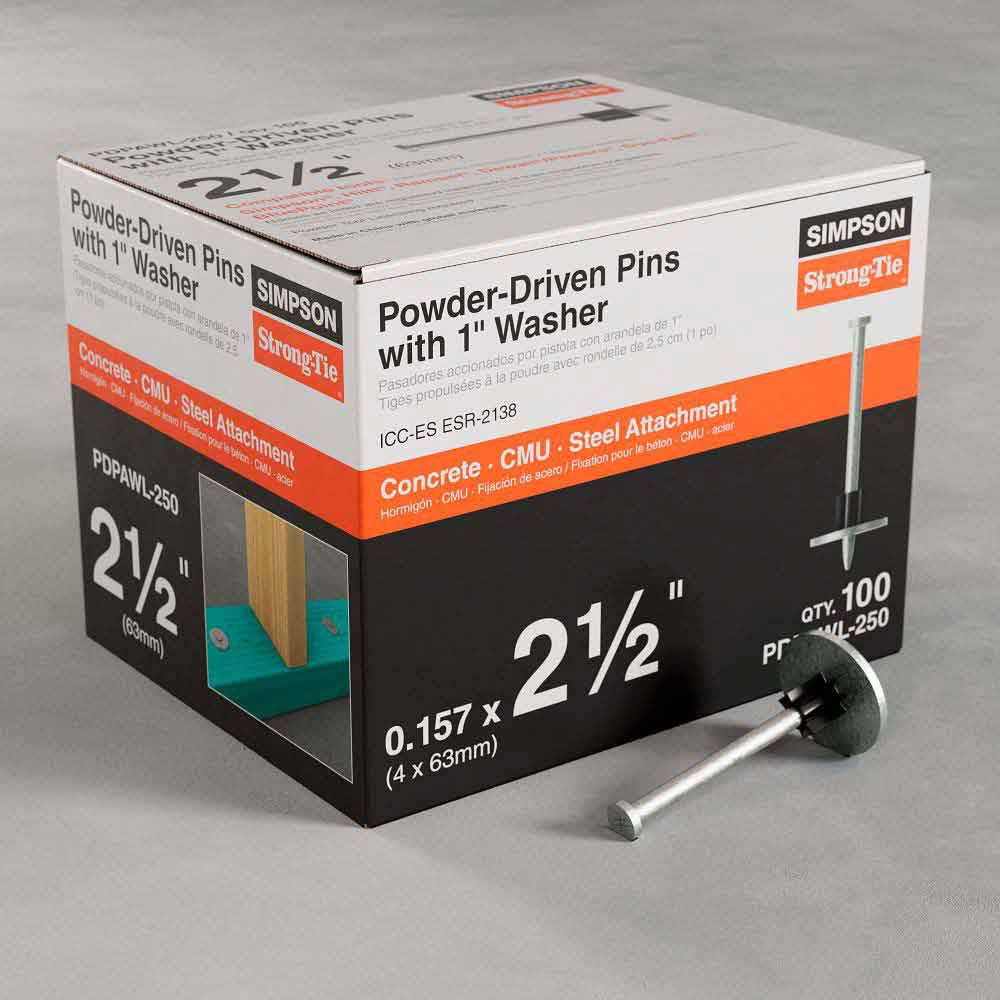

Package Quantity	100
Case Quantity	1000
Carton UPC	10707400000000
