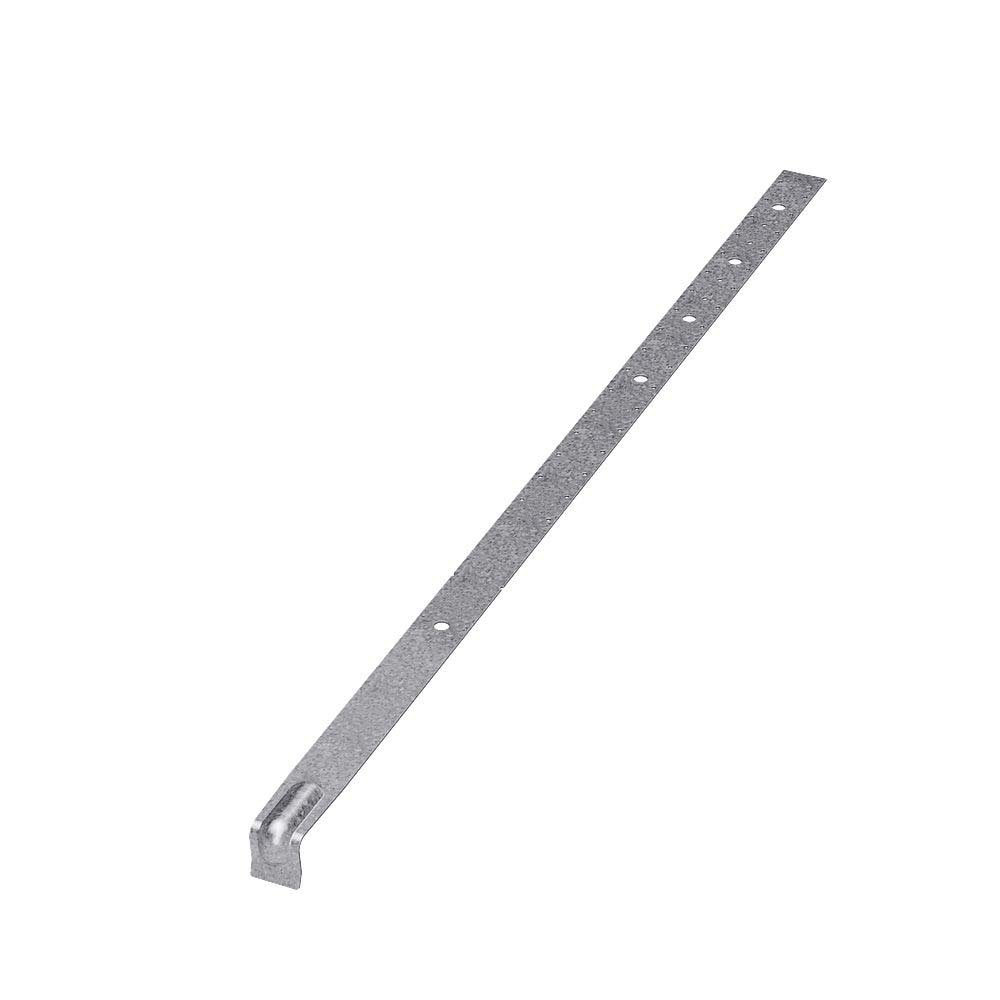

Simpson Strong-Tie PA51 PA 51 in. 12-Gauge Galvanized Purlin Anchor

Simpson Strong-Tie PA51 PA 51 in. 12-Gauge Galvanized Purlin Anchor

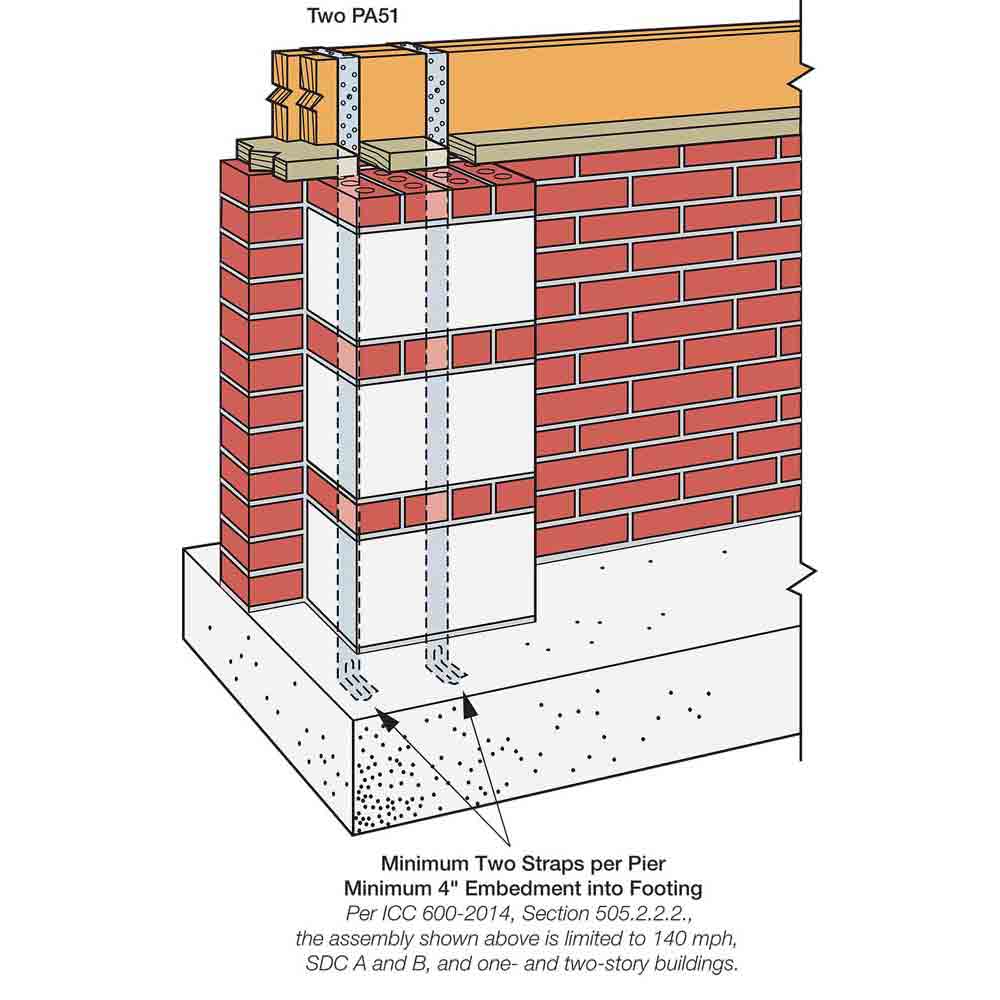

The Simpson Strong-Tie PA51 is a 51-inch, 12-gauge galvanized purlin anchor designed to provide a reliable solution for wood-to-concrete and wood-to-masonry connections. Whether used to secure roof purlins to concrete walls or anchor wall studs to foundations, the PA51 meets structural code requirements and delivers strong, dependable performance in demanding environments. Engineered for versatility, the PA51 features dual embedment line indicators to simplify installation in both concrete and masonry applications. Its optimized nailing pattern accommodates the narrow face of nominal 3x or double 2x wood members, while the low-profile design makes it ideal for projects where minimizing visible hardware is important.

Key Features

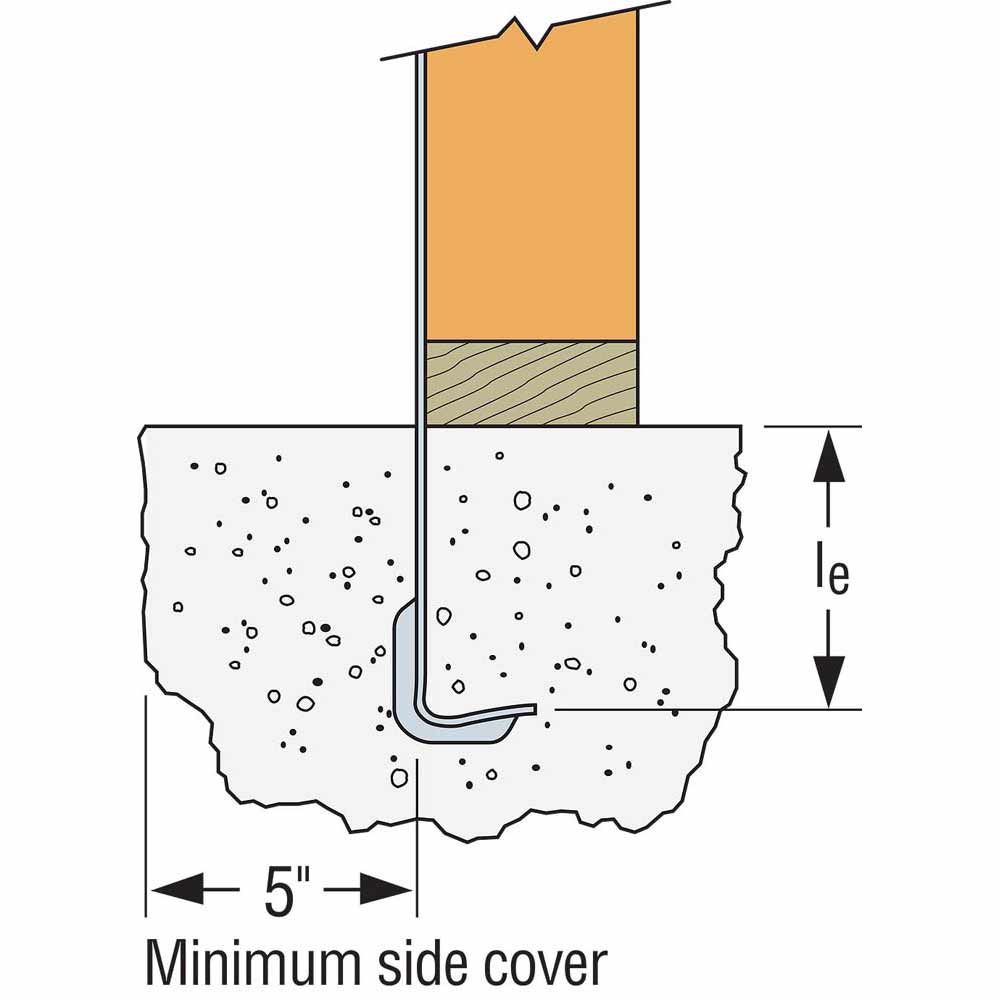

• Dual embedment lines provide visual indicators for proper depth in both concrete and masonry.
• Ideal for use as a purlin anchor or strap-tie holdown.
• Low-profile design offers a clean look with a reduced hardware visibility.
• Optimized nail pattern fits narrow faces of 3x or double 2x wood members.
• Code-compliant for structural wood-to-concrete or masonry connections.
• Galvanized (G90) for extra corrosion resistance.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications

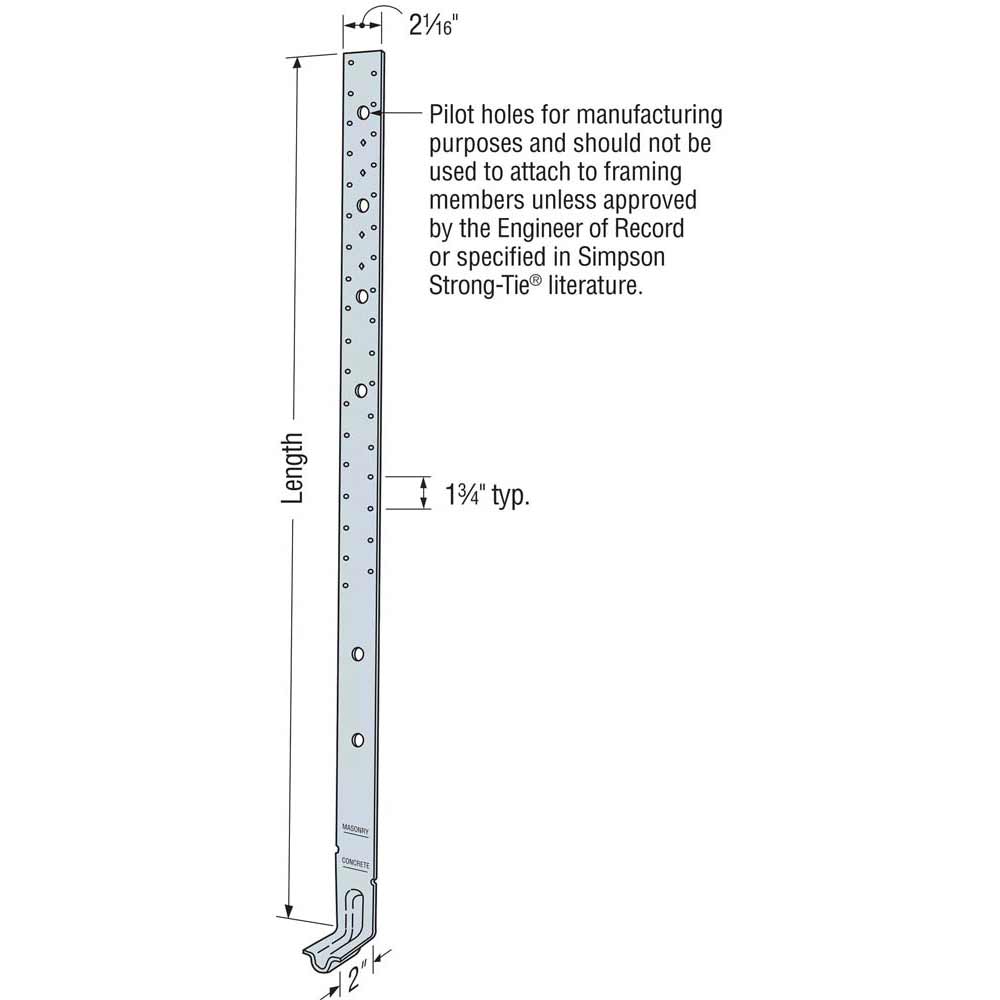

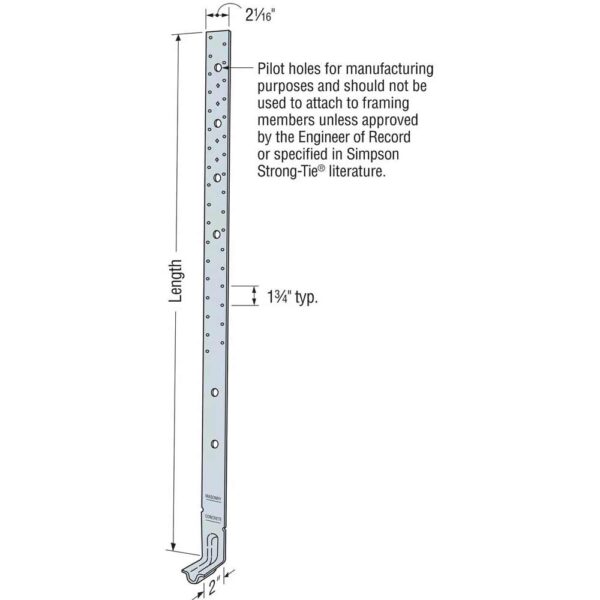

Assembled Width (in)	2.0625
Assembled Height (in)	51.474
Assembled Depth (in)	2.474
Package Quantity	1
Coating	Zinc Galvanized, G90
Color	None
Gauge	12
ICC-ES Reports	ESR-2920|ESR-2523 (Index)
State Of Florida Approvals	FL10441
Hazmat	NO
UPC Per Each	44315860805
Carton Quantity	10
Carton UPC	10044300000000
Pallet Quantity	300
Pallet UPC	50044300000000
