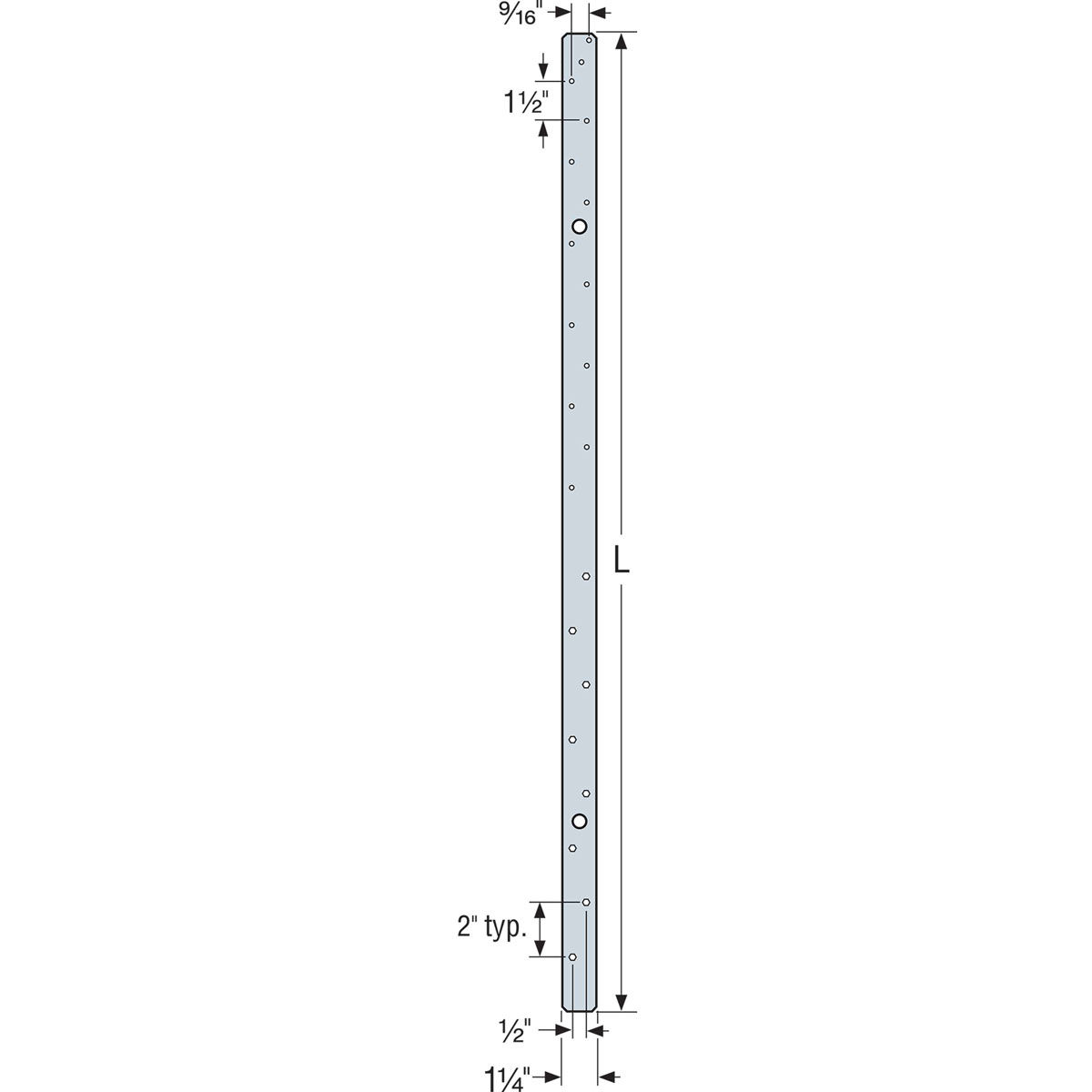

Simpson Strong-Tie MSTAM24 MSTAM 24 in. 18-Gauge Galvanized Medium Strap Tie for Masonry

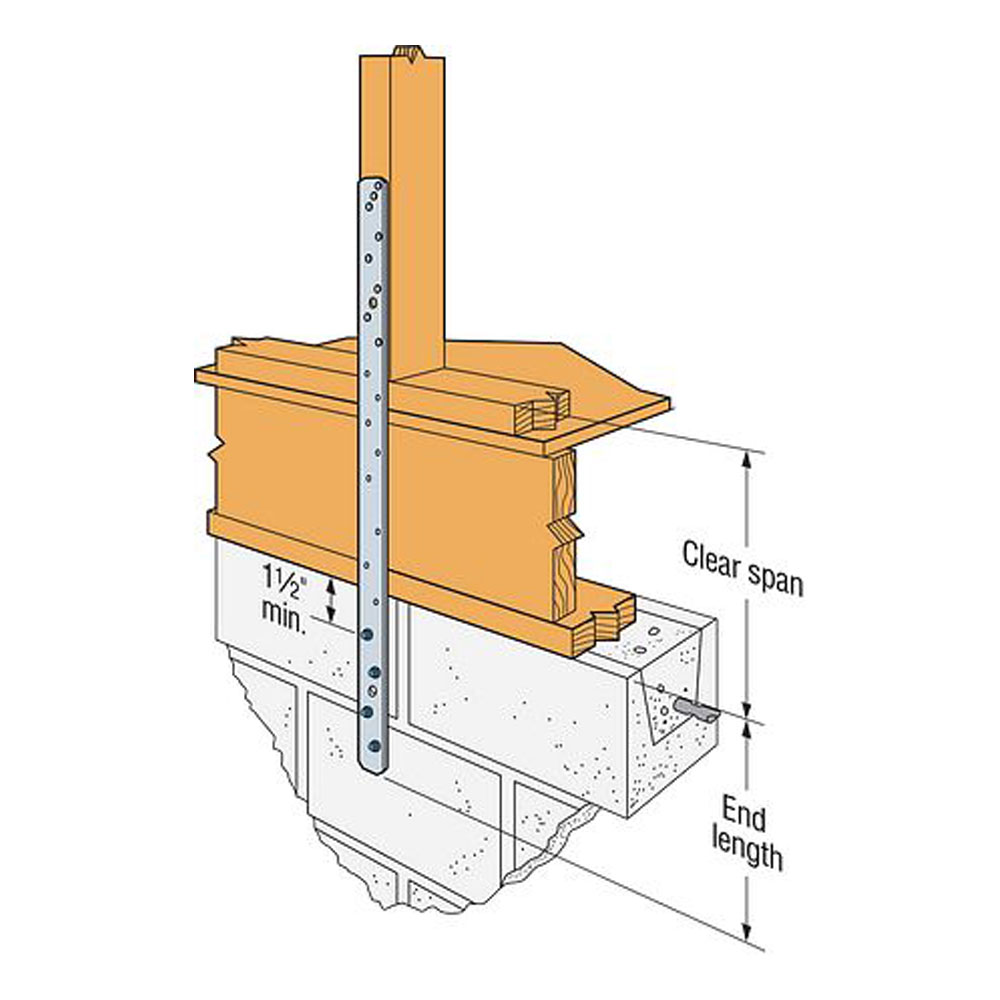

The MSTAM is designed to resist tension loads in wood-to-masonry uplift applications. This medium strap tie is for use with either concrete or grout-filled concrete masonry units (GFCMU). The MSTAM utilizes a staggered nail pattern to help minimize wood splitting.

• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	1.25
Assembled Height (in)	24
Assembled Depth (in)	0.046
Package Quantity	1
Coating	Zinc Galvanized, G90
Color	None
Gauge	18
State Of Florida Approvals	FL11473
Hazmat	NO
UPC Per Each	44315147005
Carton Quantity	50
Carton UPC	10044300000000
Pallet Quantity	5500
Pallet UPC	60044300000000
