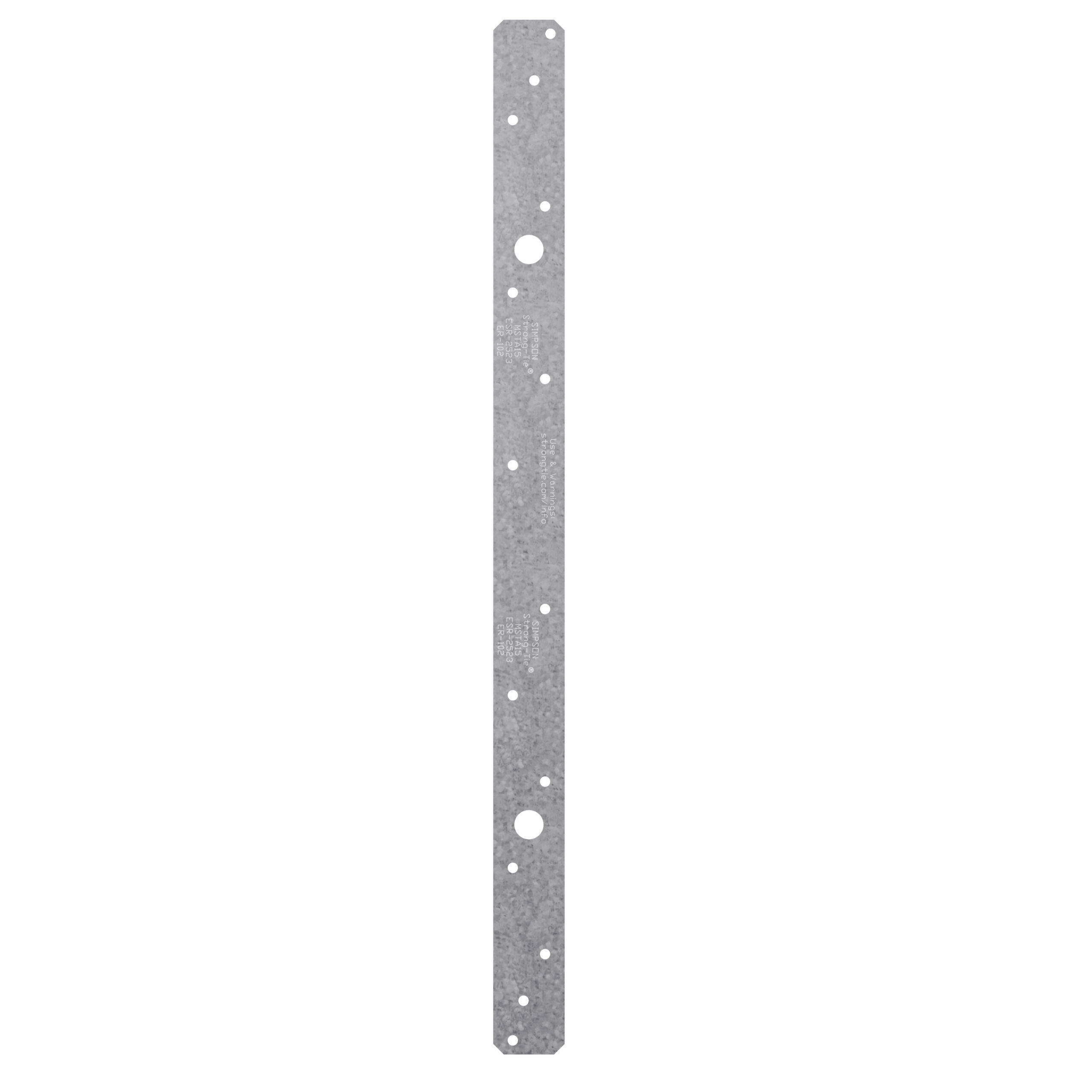

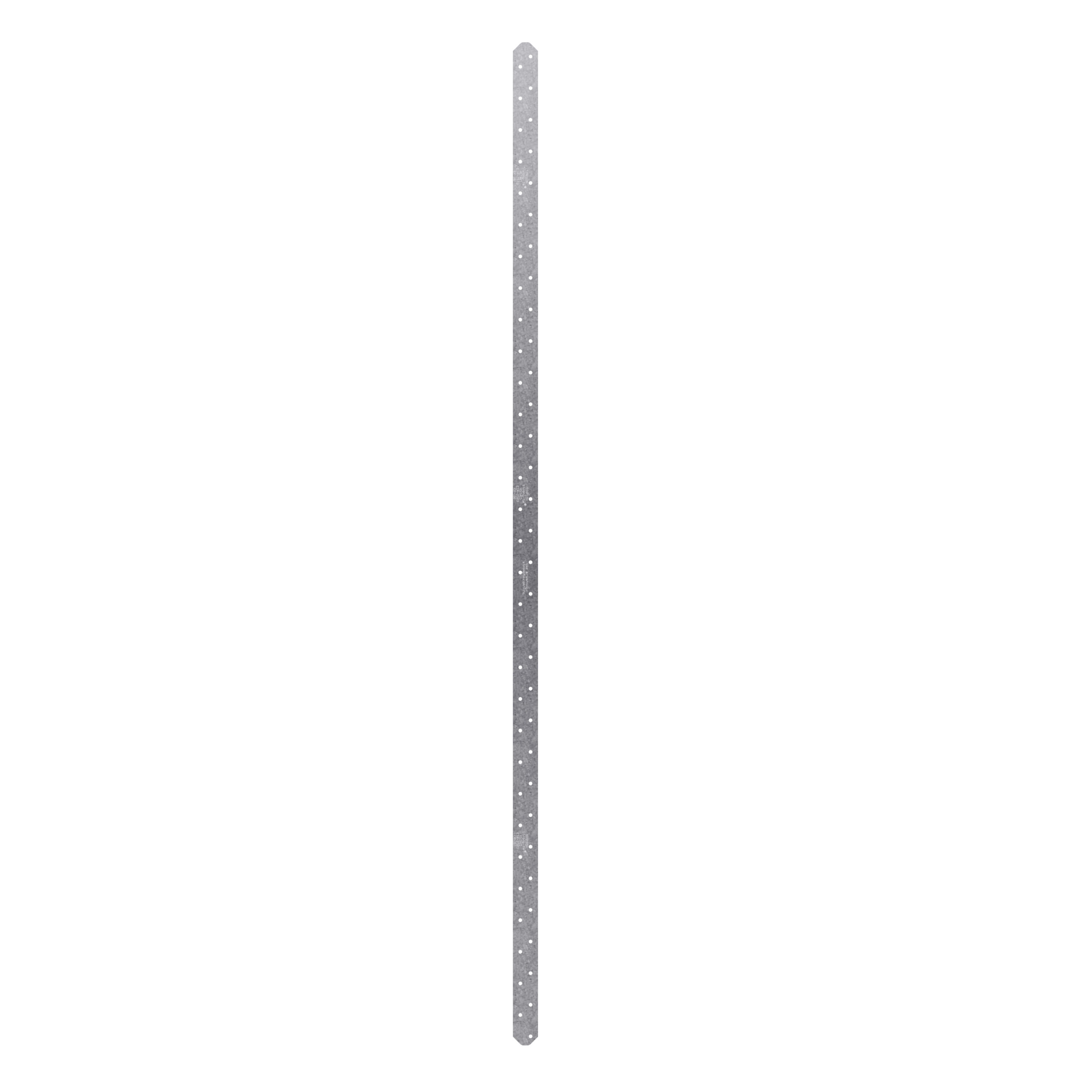

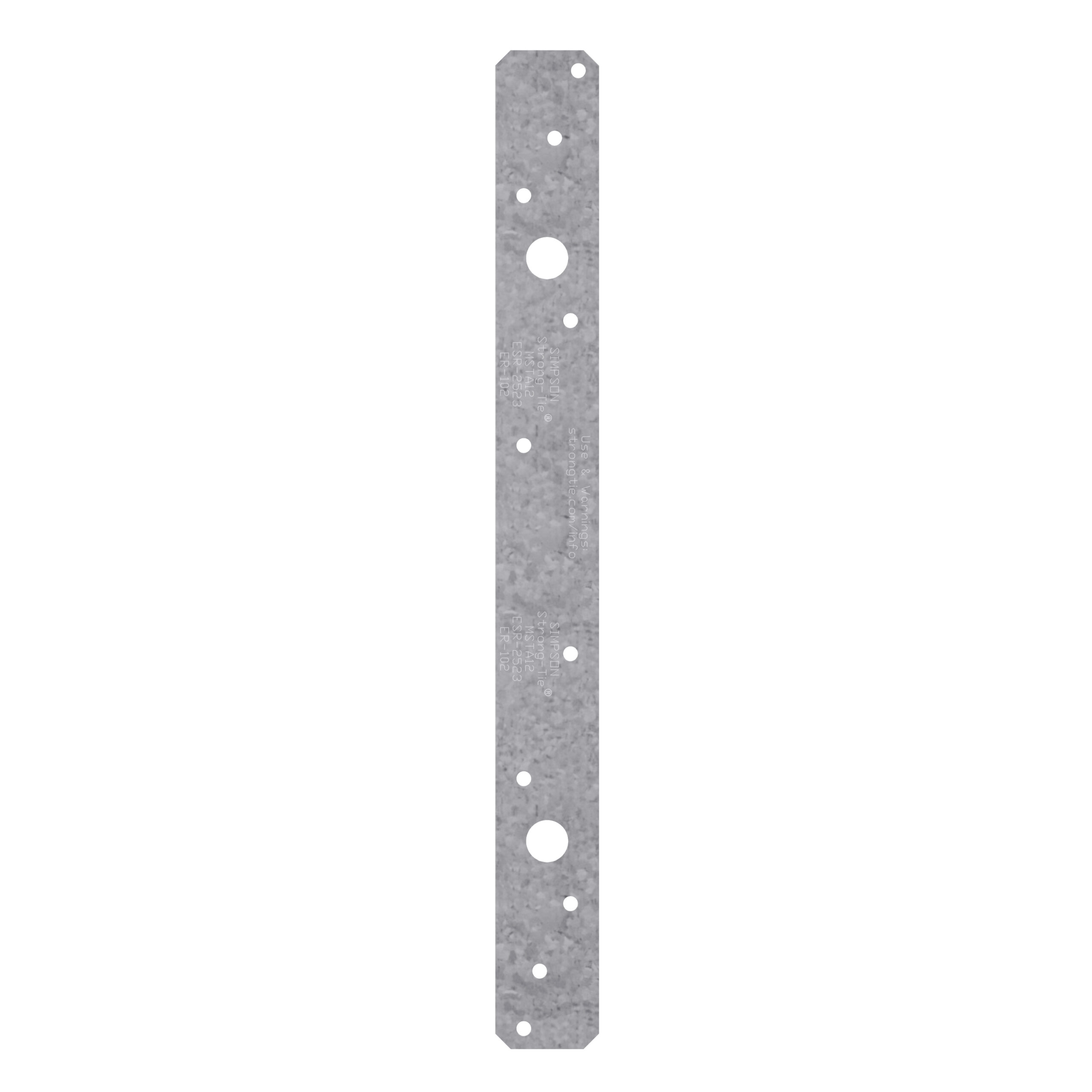

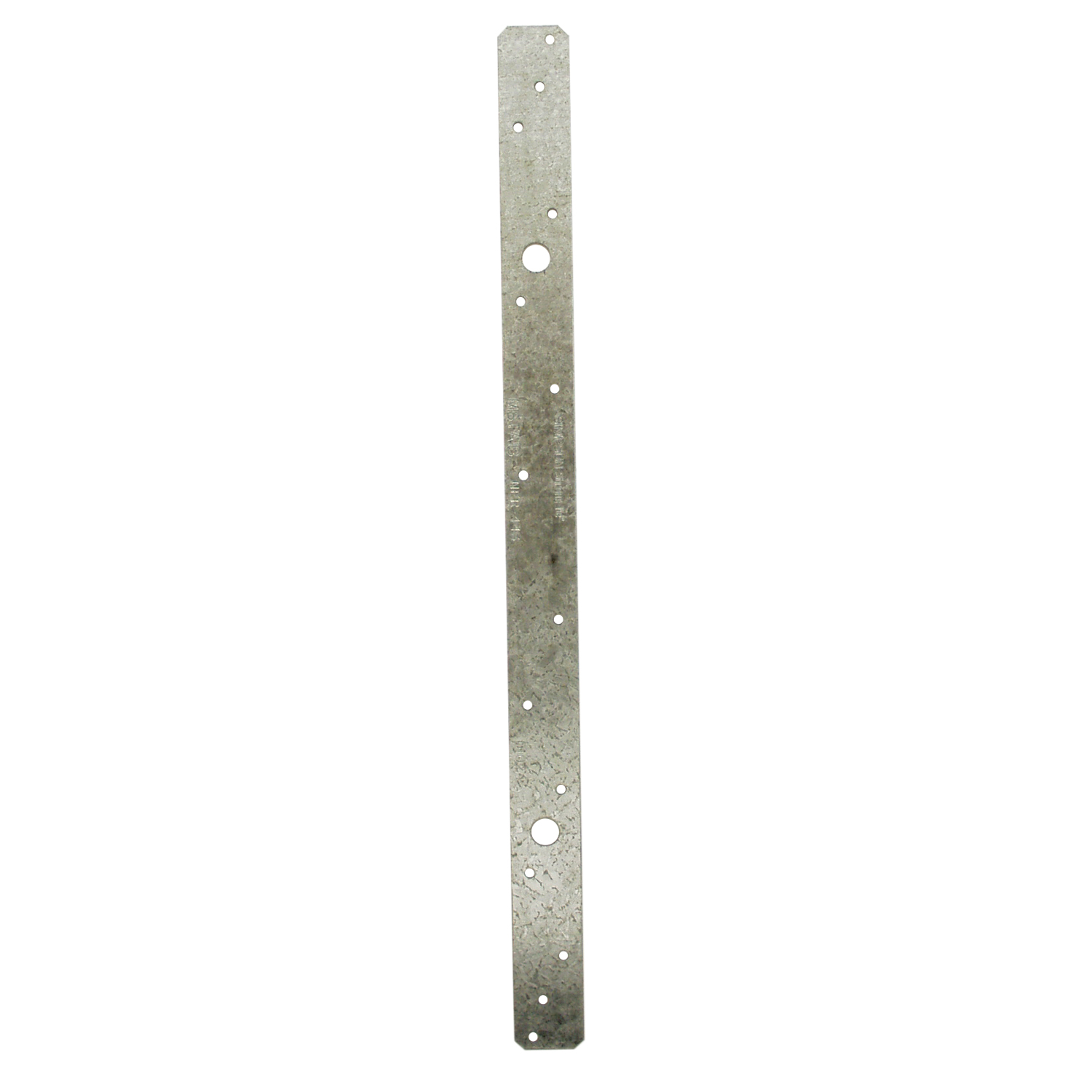

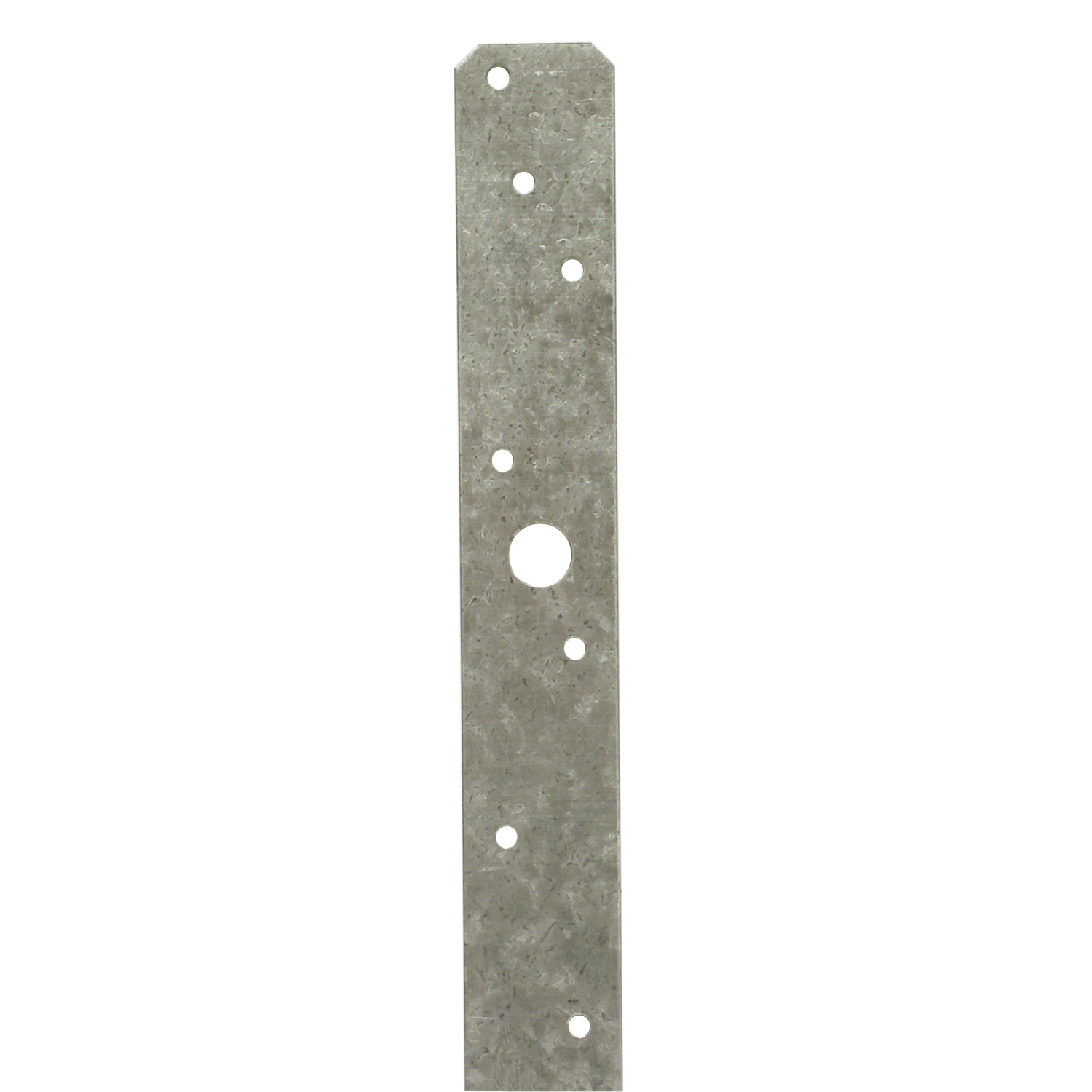

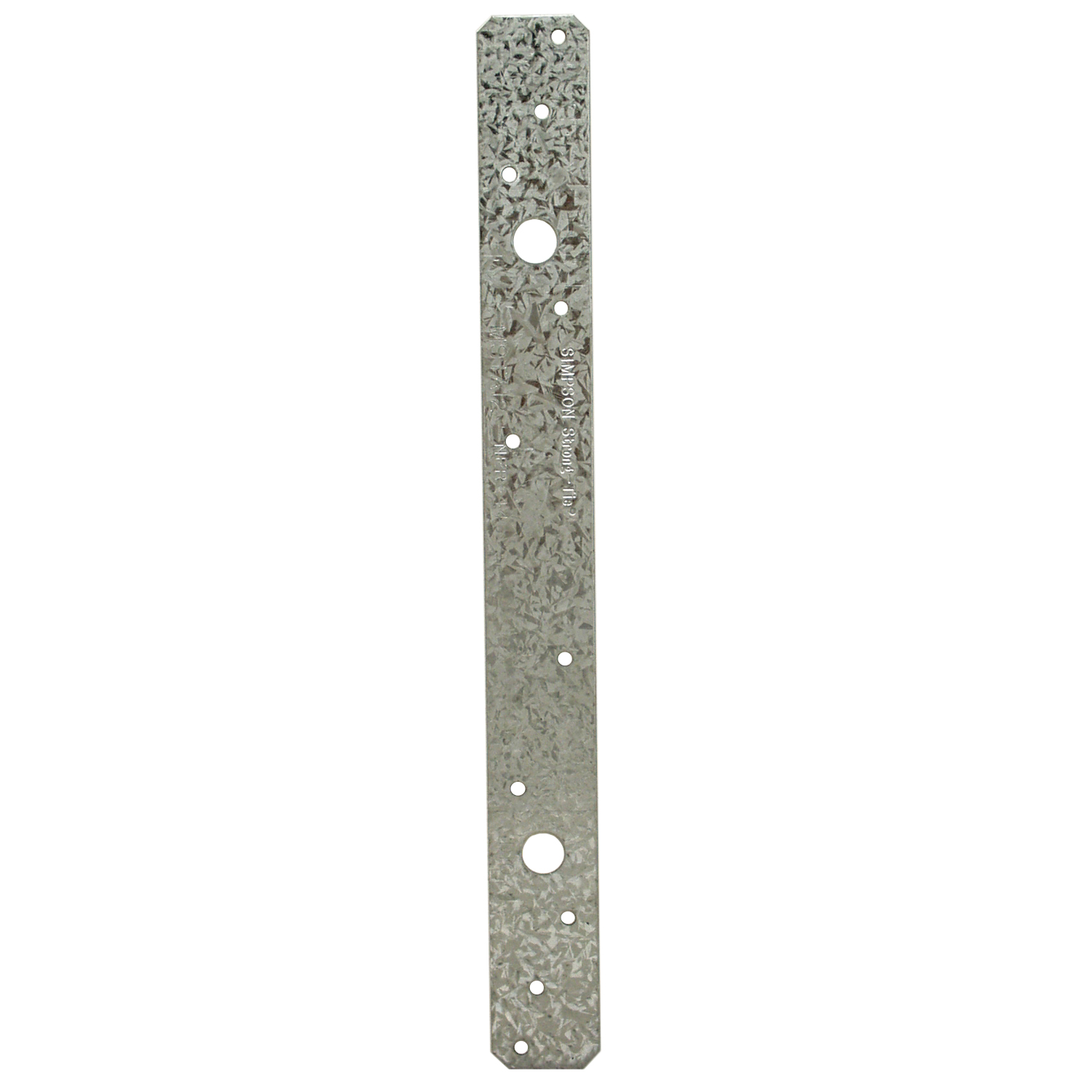

Simpson Strong-Tie MSTA24 MSTA 24-in. 18-Gauge Galvanized Medium Strap Tie

The MSTA is designed to resist tension loads in wood-to-wood uplift applications. This medium strap tie utilizes a staggered nail pattern to help minimize wood splitting. The MSTA is designed for use on the edge of 2x members.

• Width: 1-1/4 in.
• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	1.25
Assembled Height (in)	24
Assembled Depth (in)	0.046
Package Quantity	1
Coating	Zinc Galvanized, G90
Color	None
Gauge	18
Thickness (mm)	43
Member Size	2x
IAPMO UES Reports	ER-124 (CFS)|ER-102 (Index)
ICC-ES Reports	ESR-3096|ESR-2105|ESR-2523 (Index)
State Of Florida Approvals	FL13872|FL10456
Hazmat	NO
UPC Per Each	44315718304
Carton Quantity	50
Carton UPC	10044300000000
Pallet Quantity	5500
Pallet UPC	60044300000000
