Simpson Strong-Tie MASB 16-Gauge Galvanized Masonry Mudsill Anchor
$2.39
Features:

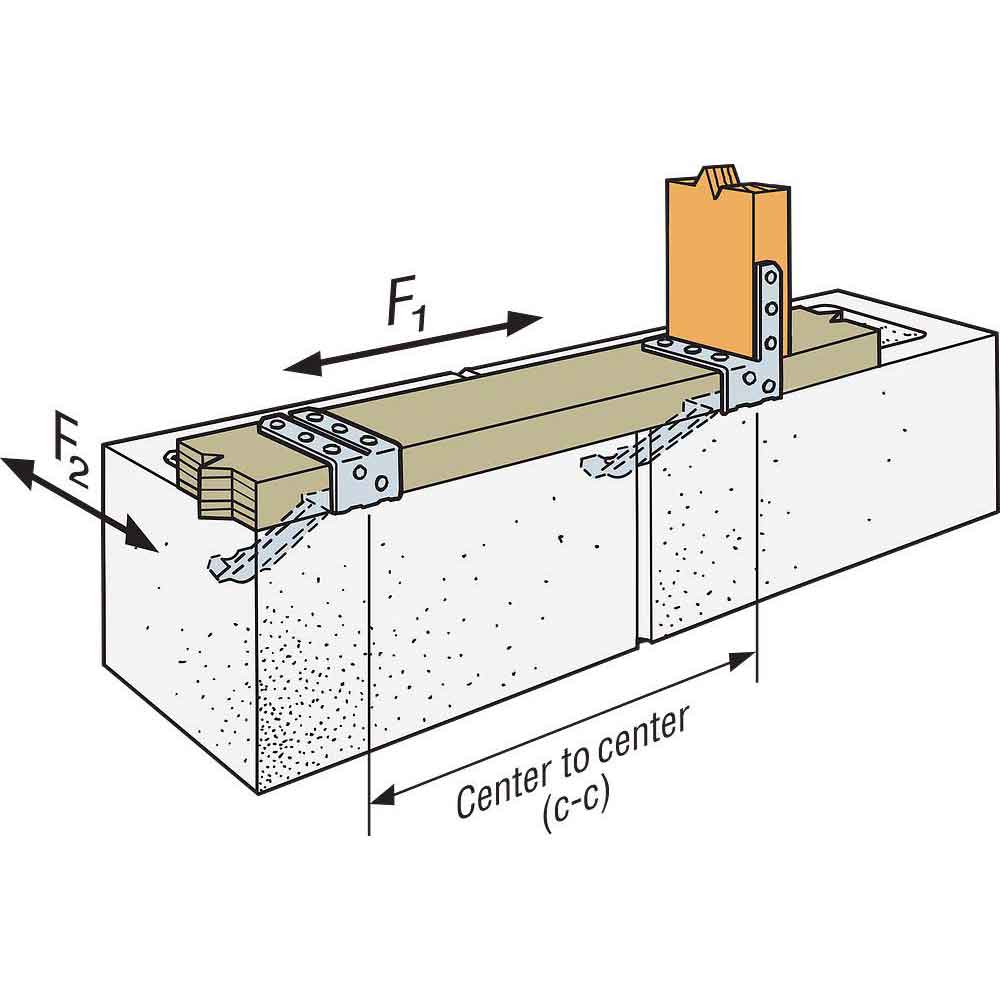

- Anchors mudsill to concrete block, poured walls or slab foundations
- Fill CMU cell with concrete grout first, then place MASB into the grouted cell and adjust into position
- Attach mudsill to anchor only after the concrete grout cures
- Nominal sill size: 2×4, 2×6
- Made from 16-gauge steel
Building Relationships, Delivering Results
- Fast Shipping
- No Hassle Returns
- Secure Payments
- Family Owned and Operated
- Personal Bilingue

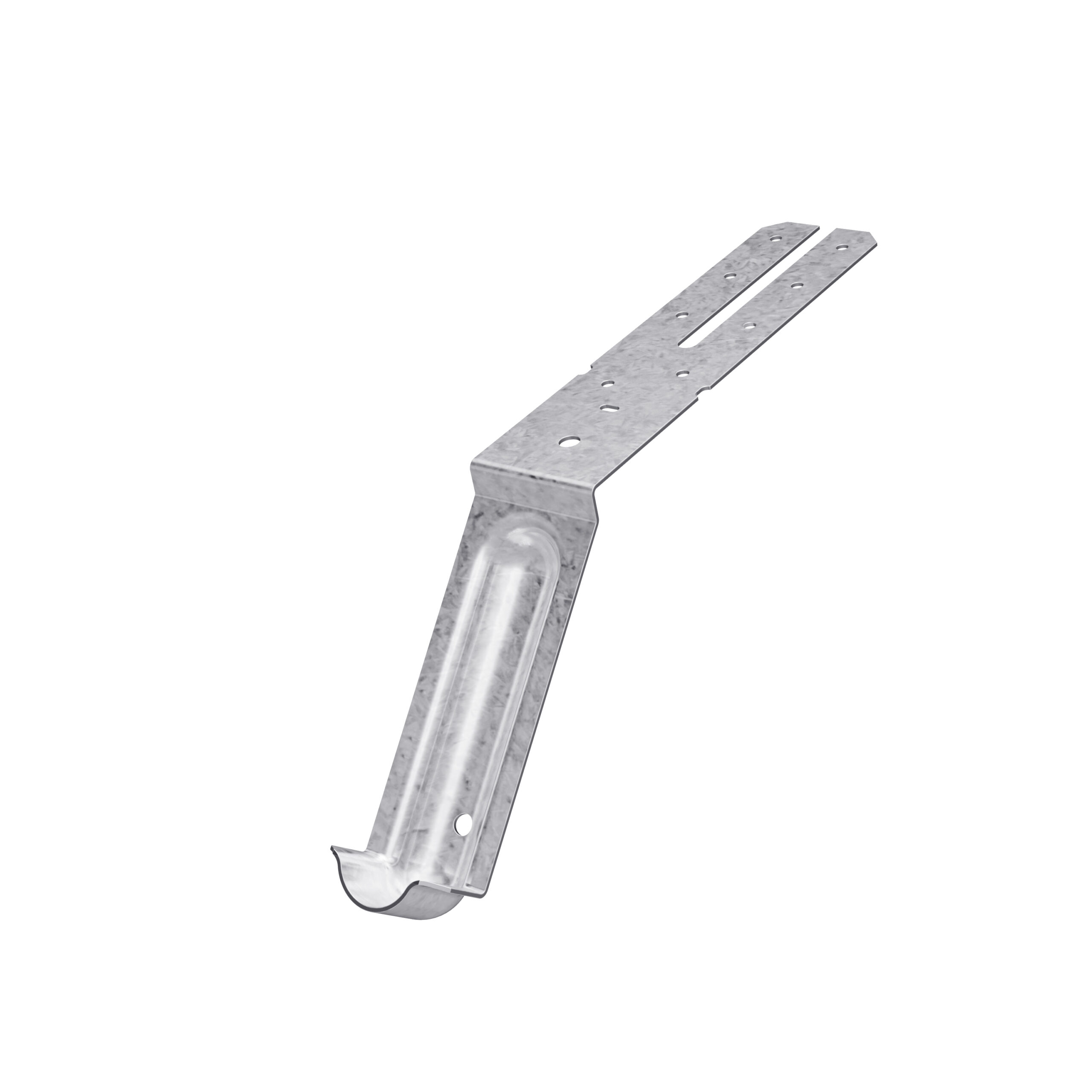

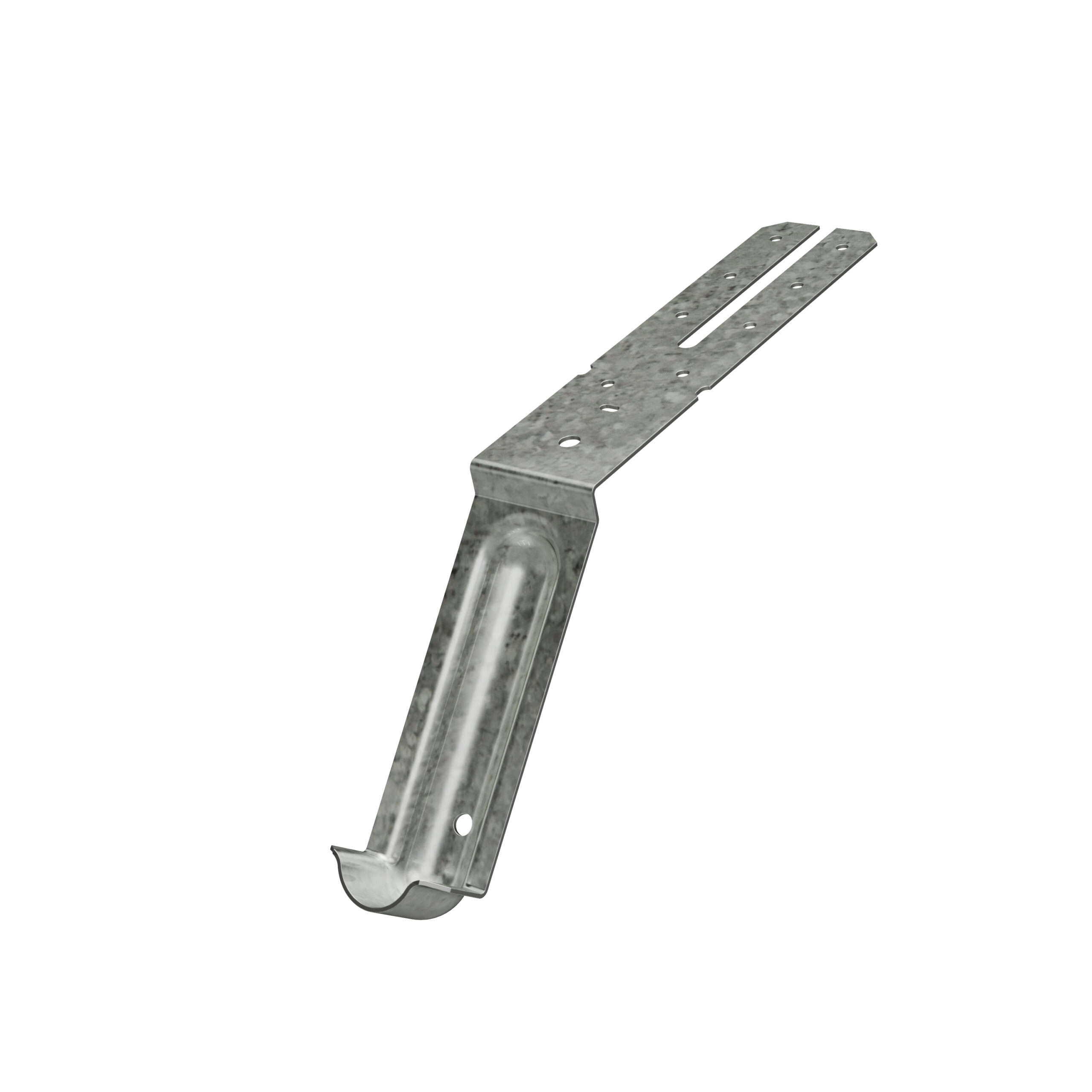

Simpson Strong-Tie MASB 16-Gauge Galvanized Masonry Mudsill Anchor
The Simpson Strong-Tie MASB is a high-performance mudsill anchor specifically designed for securing mudsills to concrete block foundations or walls. Its innovative offset configuration provides a simple and effective solution to common alignment issues caused by misplaced anchor bolts, making it a smart, time-saving alternative for contractors and builders. The MASB installs easily into wet concrete or grouted CMU block, offering solid performance and consistent alignment without the need for nuts, washers, or guesswork. Ideal for new construction and retrofits, this one-piece anchor streamlines foundation work and ensures strong, code-compliant connections.
Key Features
- Tailored for concrete block (CMU) applications.
- No loose parts to track or install.
- Eliminates stud-placement concerns tied to anchor bolt misalignment.
- Easily embedded into wet concrete or grouted block.
- Suitable for residential and light commercial applications.
- Galvanized (G90) for extra corrosion resistance
Warranty
Limited warranty, available at www.strongtie.com/limited-warranties.
| Assembled Width (in) | 1.75 |
|---|---|
| Assembled Height (in) | 3.932 |
| Assembled Depth (in) | 10.682 |
| Package Quantity | 1 |
| Coating | Zinc Galvanized, G90 |
| Color | None |
| Gauge | 16 |
| Member Size | 2×4, 2×6 |
| IAPMO UES Reports | ER-417 |
| Hazmat | NO |
| UPC Per Each | 44315308505 |
| Carton Quantity | 50 |
| Carton UPC | 10044300000000 |
| Pallet Quantity | 2400 |
| Pallet UPC | 50044300000000 |
| Weight | .34 lbs |
|---|---|
| Dimensions | 10.682 × 1.75 × 3.932 in |
| Brand | Simpson Strong-Tie |
