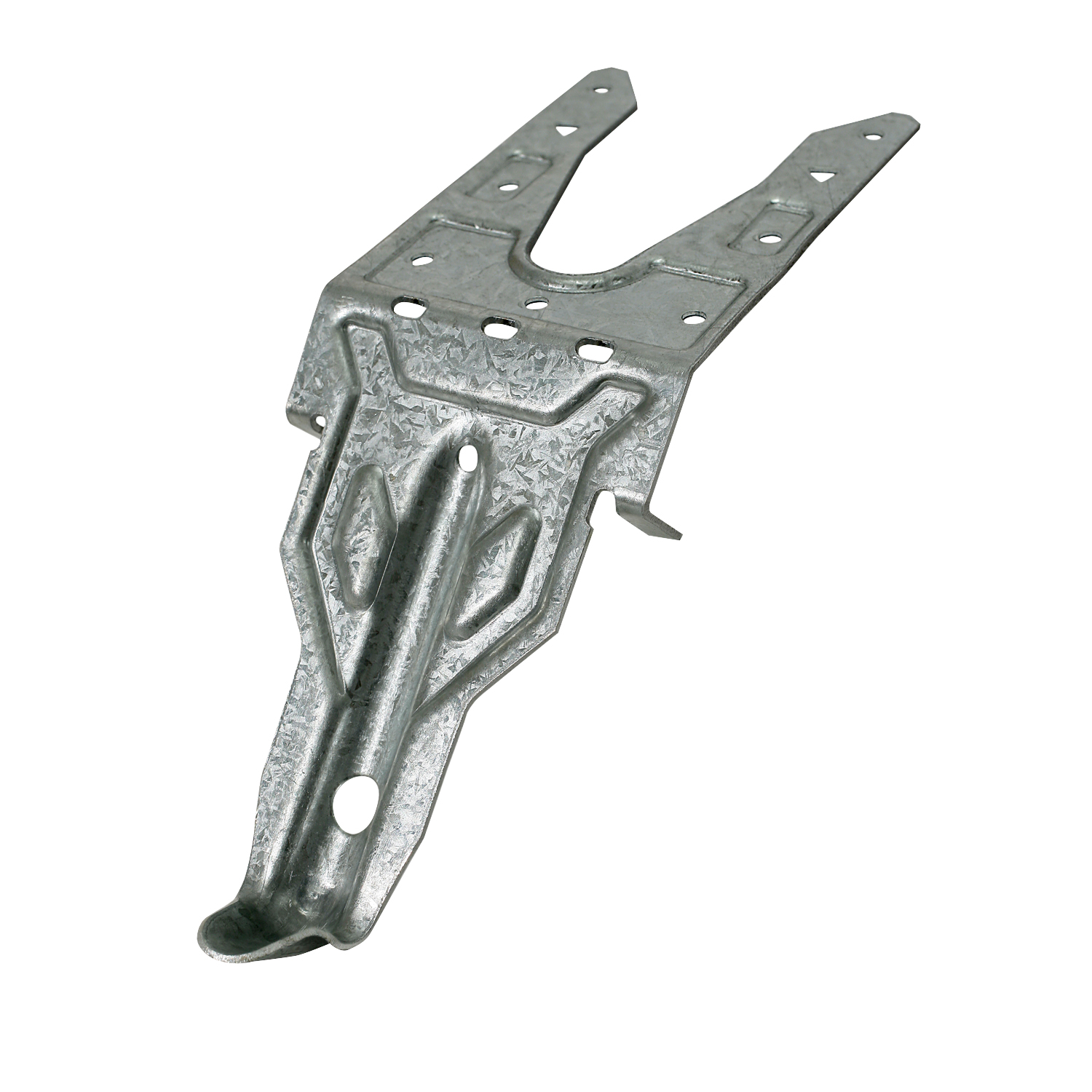

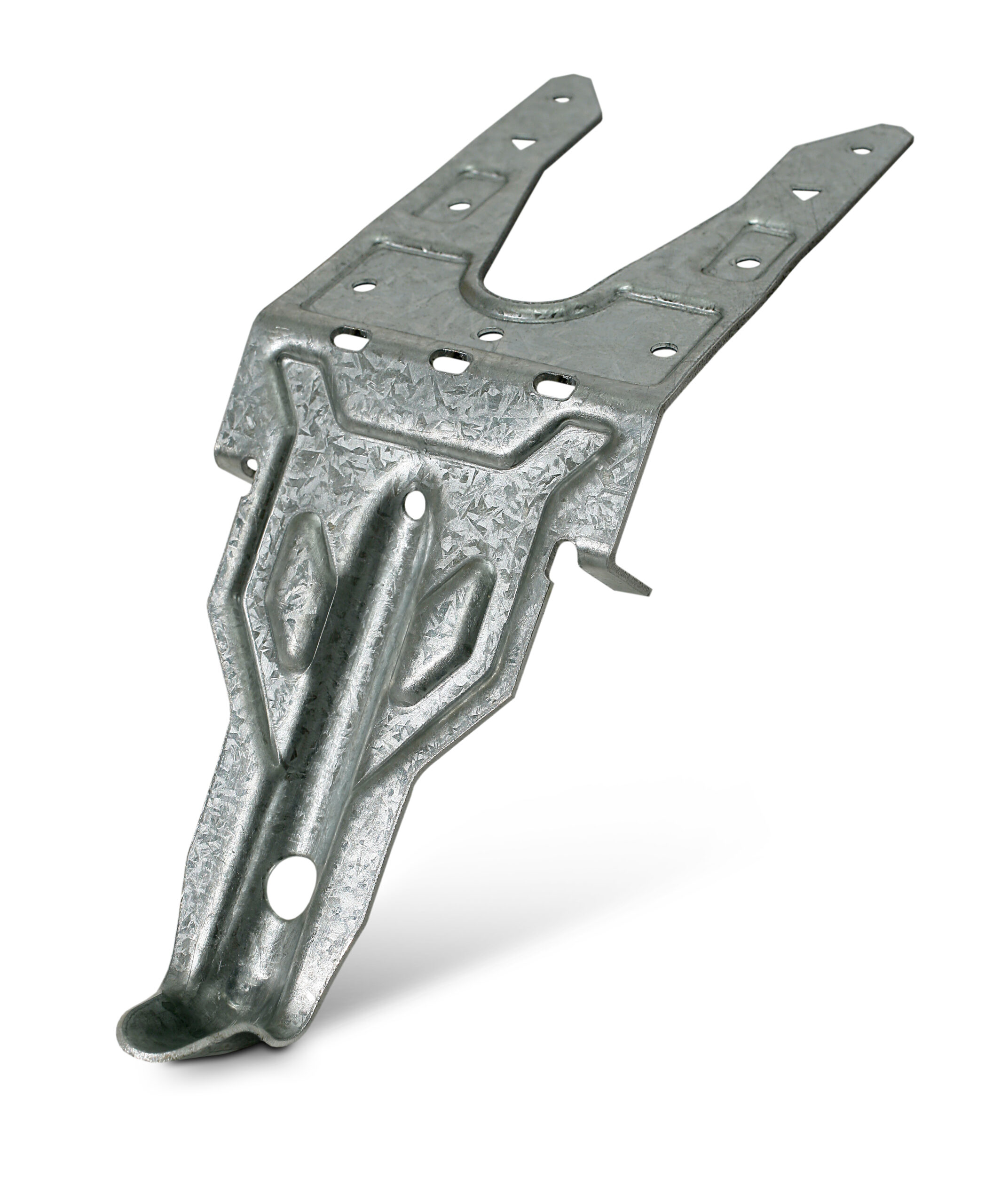

Simpson Strong-Tie MASAZ MASA 16-Gauge ZMAX Galvanized Mudsill Anchor

Mudsill anchors have always been a time-saving alternative to anchor bolts, and the MASA anchor provides even greater load-carrying capacity alternative for 5/8-in. and 1/2-in. mudsill anchor bolts on 2x, double-2x and 3x mudsills. It also eliminates the need for 3-in. square plate washers for seismic design and, in some cases, has load capacities that meet or exceed the parallel and perpendicular to plate shear capacity of other cast-in-place anchors. Two versions of the MASA are available the standard MASA for installation on standard forms and the MASAP for panelized forms.

• Reduces the chance of having to retrofit anchors because of missing or misplaced anchor bolts
• Minimum MASA end distance is 4 in. and minimum center-to-center spacing is 8 in. for full load
• Made from 16-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Related

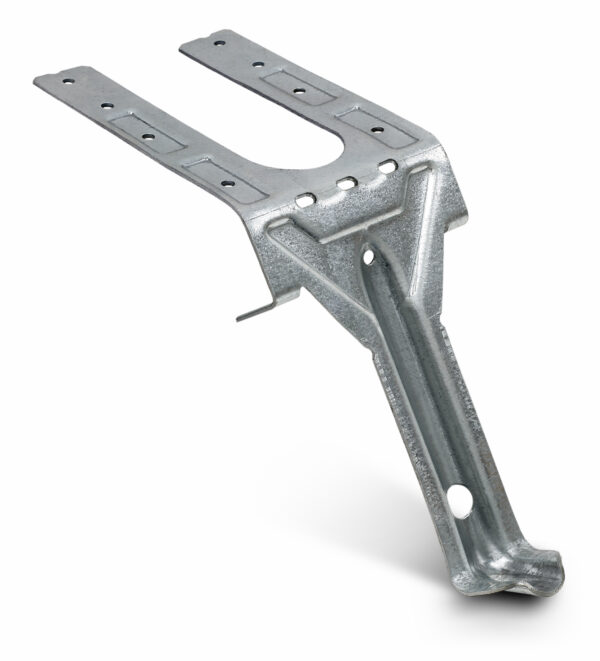

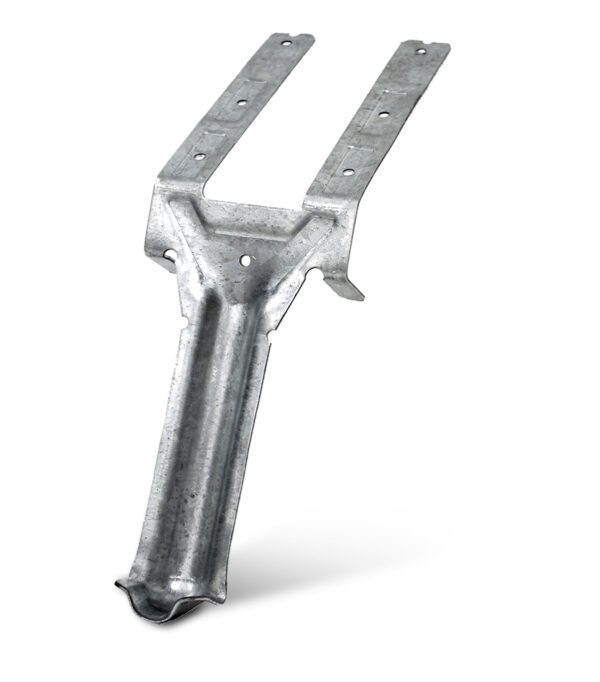

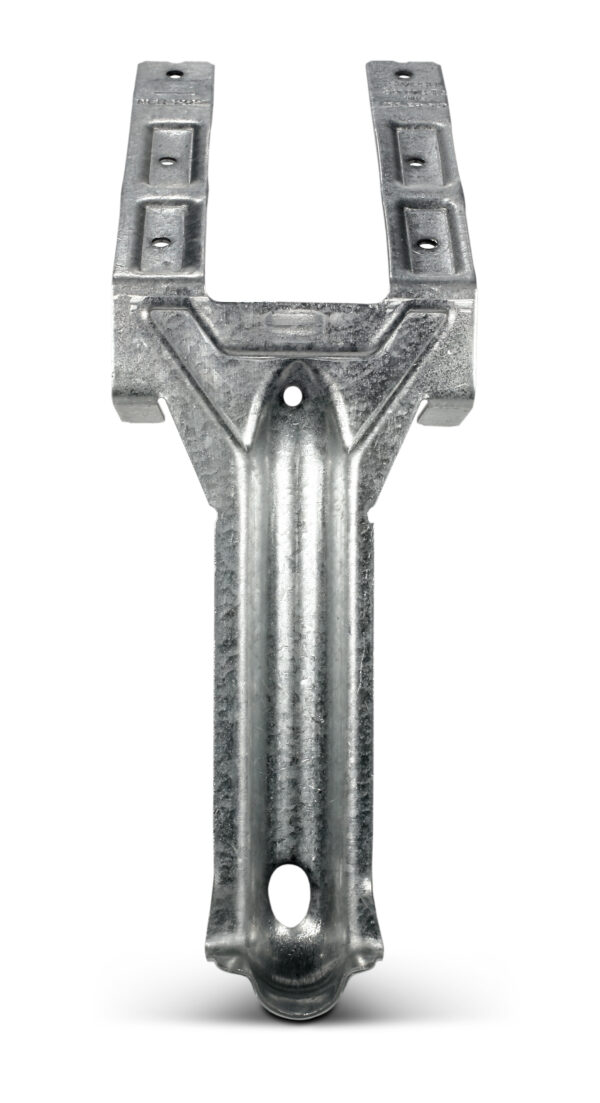

Simpson Strong-Tie MASA MASA 16-Gauge Galvanized Mudsill Anchor
