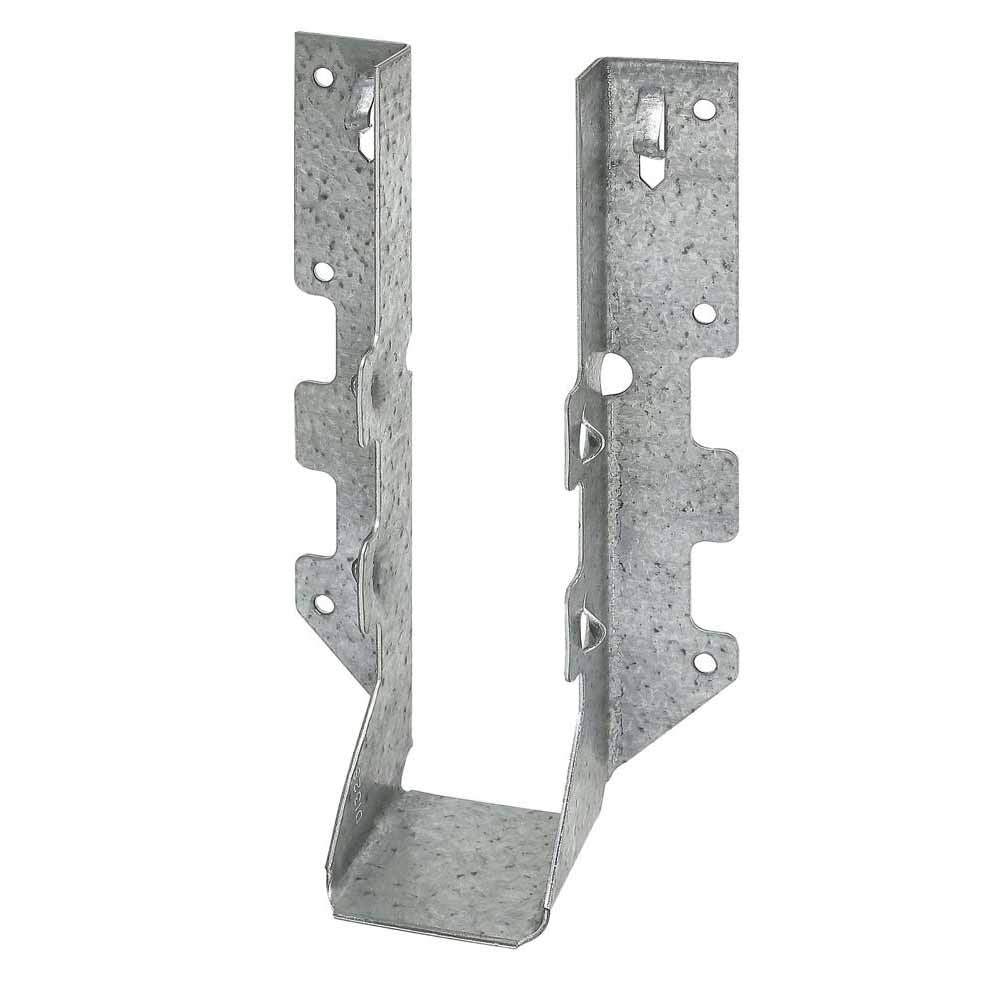

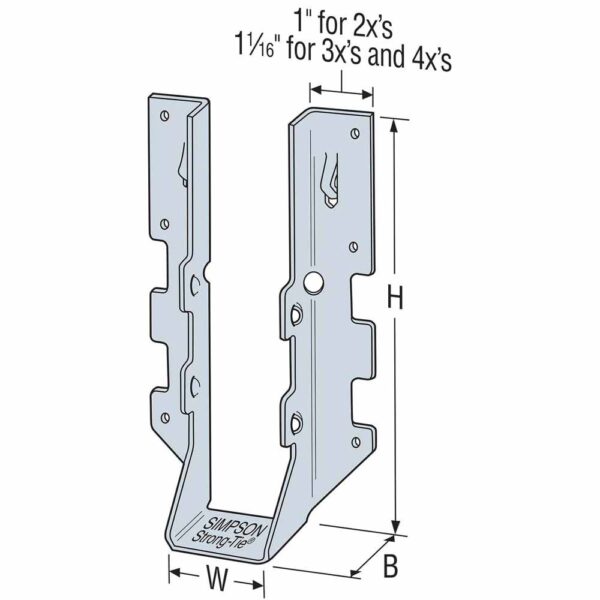

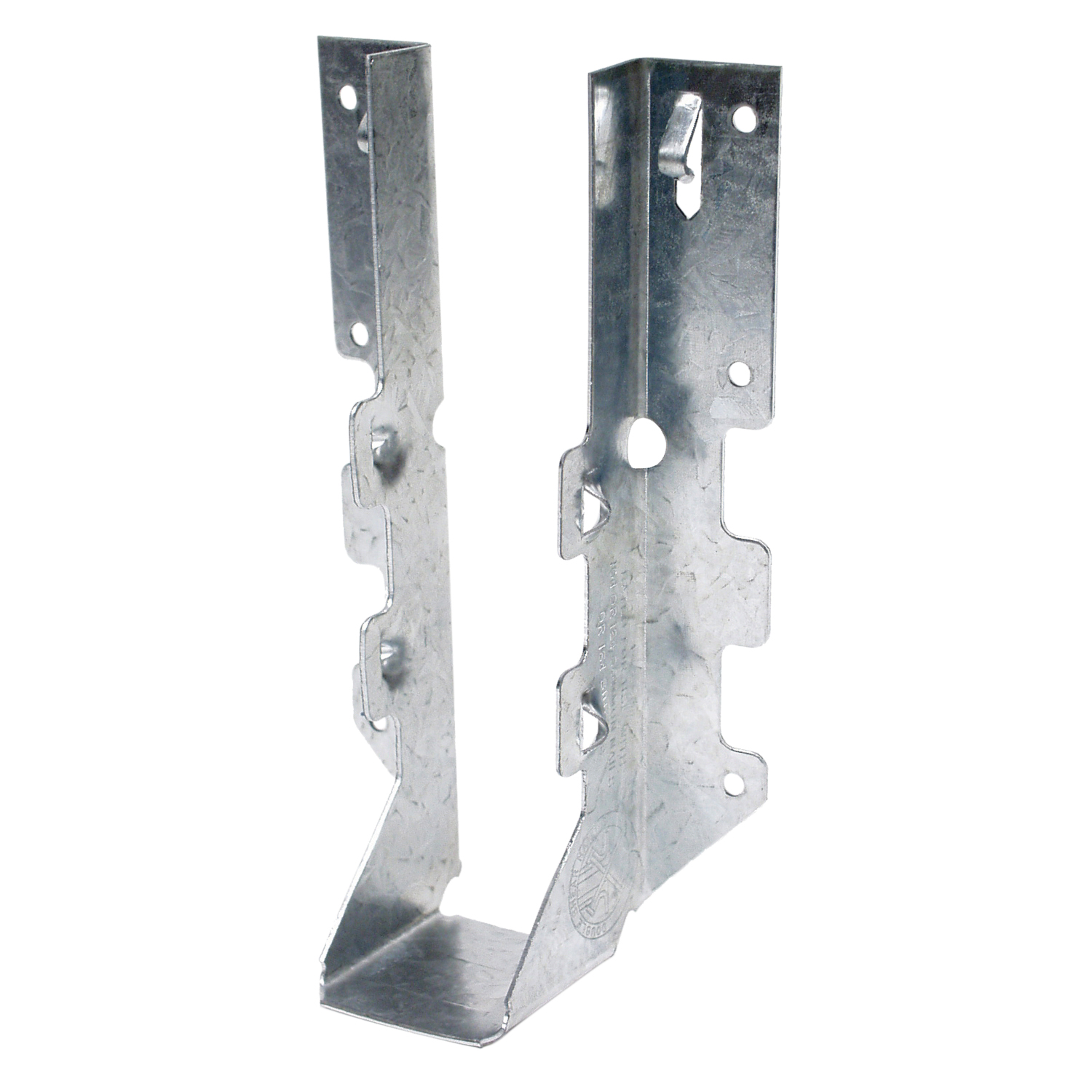

Simpson Strong-Tie LUS28Z LUS ZMAX Galvanized Face-Mount Joist Hanger for 2×8
$1.89
Features:
- LUS28Z offers patented double-shear nailing design provides greater strength with fewer nails
- Speed prongs for fast and easy installation
- Angled joist nailing easier in tight spaces
- Do not bend or remove tabs
- Nominal joist size: 2×8 and 2×10
Building Relationships, Delivering Results
- Fast Shipping
- No Hassle Returns
- Secure Payments
- Family Owned and Operated
- Personal Bilingue

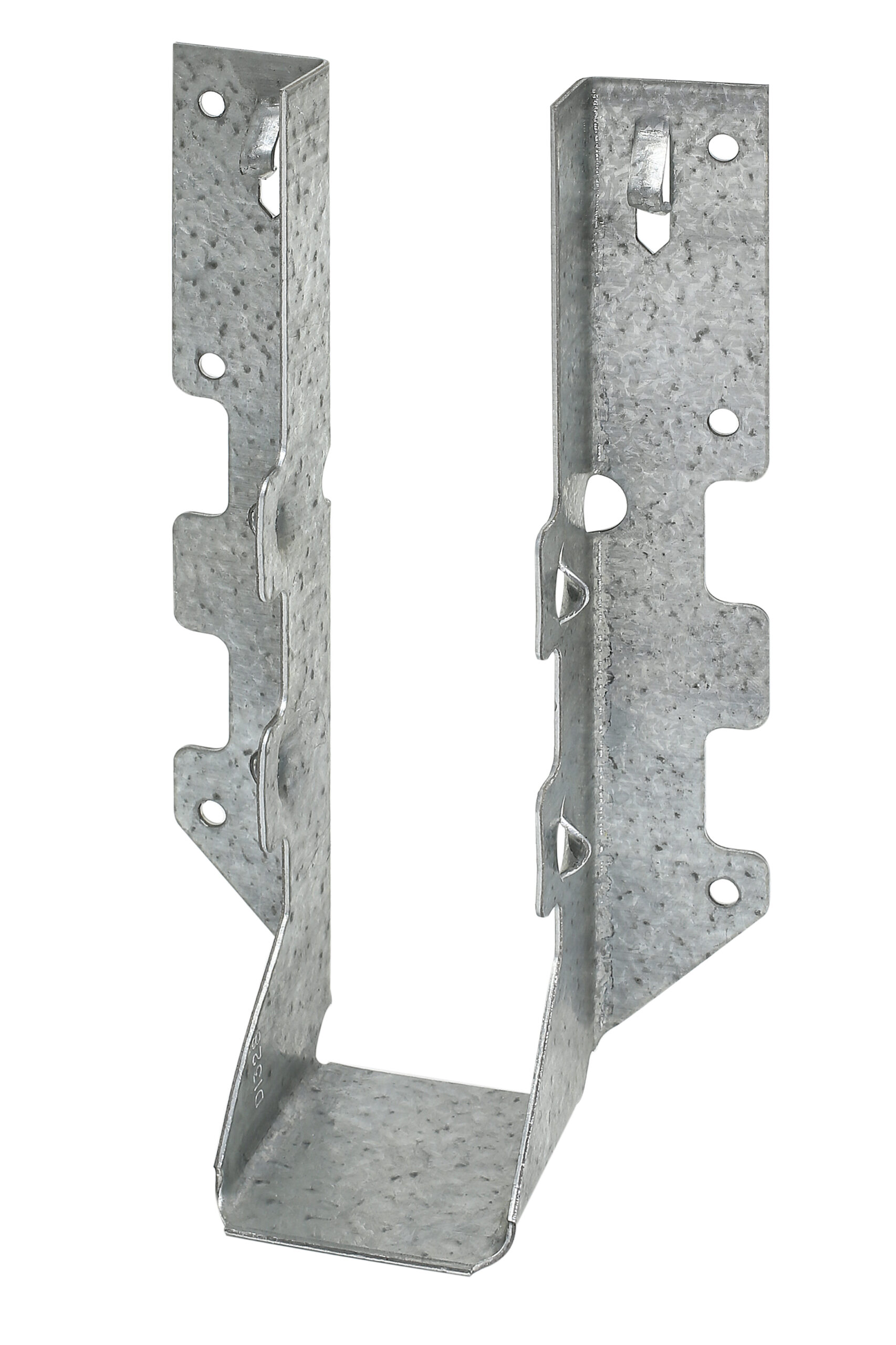

Simpson Strong-Tie LUS28Z LUS ZMAX Galvanized Face-Mount Joist Hanger for 2×8

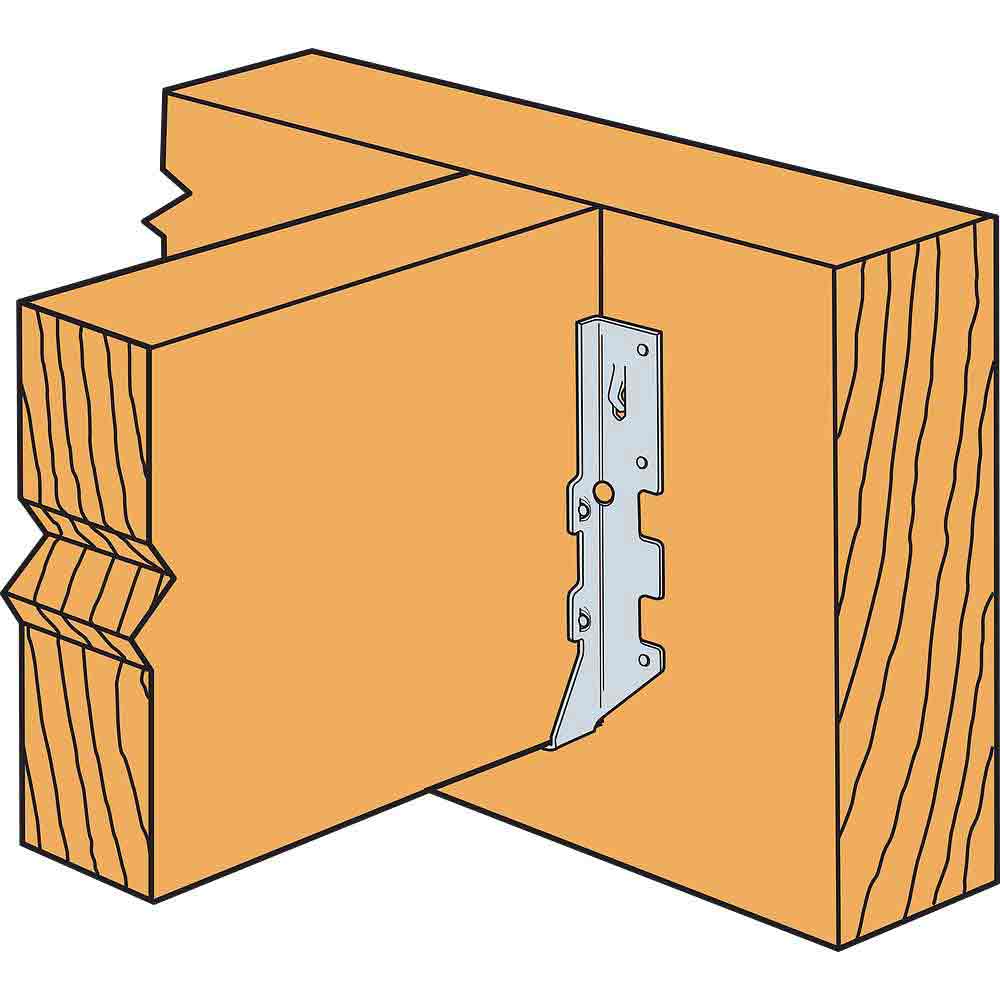

The Simpson Strong-Tie LUS28Z is a highly efficient and economical face-mount joist hanger designed for 2×8 lumber. This versatile, ZMAX galvanized hanger is engineered to provide reliable support for a variety of applications, making it an ideal solution for both residential and light commercial construction. With double-shear nailing, the LUS28Z distributes the load evenly across two points on each nail, significantly enhancing the strength of the connection. This innovative design not only improves performance but also reduces the number of nails needed, enabling faster installation and utilizing standard common nails for the job. The speed prongs built into the LUS28Z make positioning and securing the hanger quick and easy, allowing for a more efficient installation process. The LUS-series hangers are tested, load-rated, and code-compliant, ensuring dependable strength and peace of mind for your construction projects.
Key Features
- Distributes the load for added strength and fewer nails required.
- Speed prongs help secure the hanger quickly for faster setup.
- Reduces the number of nails needed and speeds up the process.
- Load-rated for reliable performance.
- Pre-designed for specific applications without the need for alterations.
- Made from 18-gauge steel.
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications.
Warranty
Limited warranty, available at www.strongtie.com/limited-warranties.

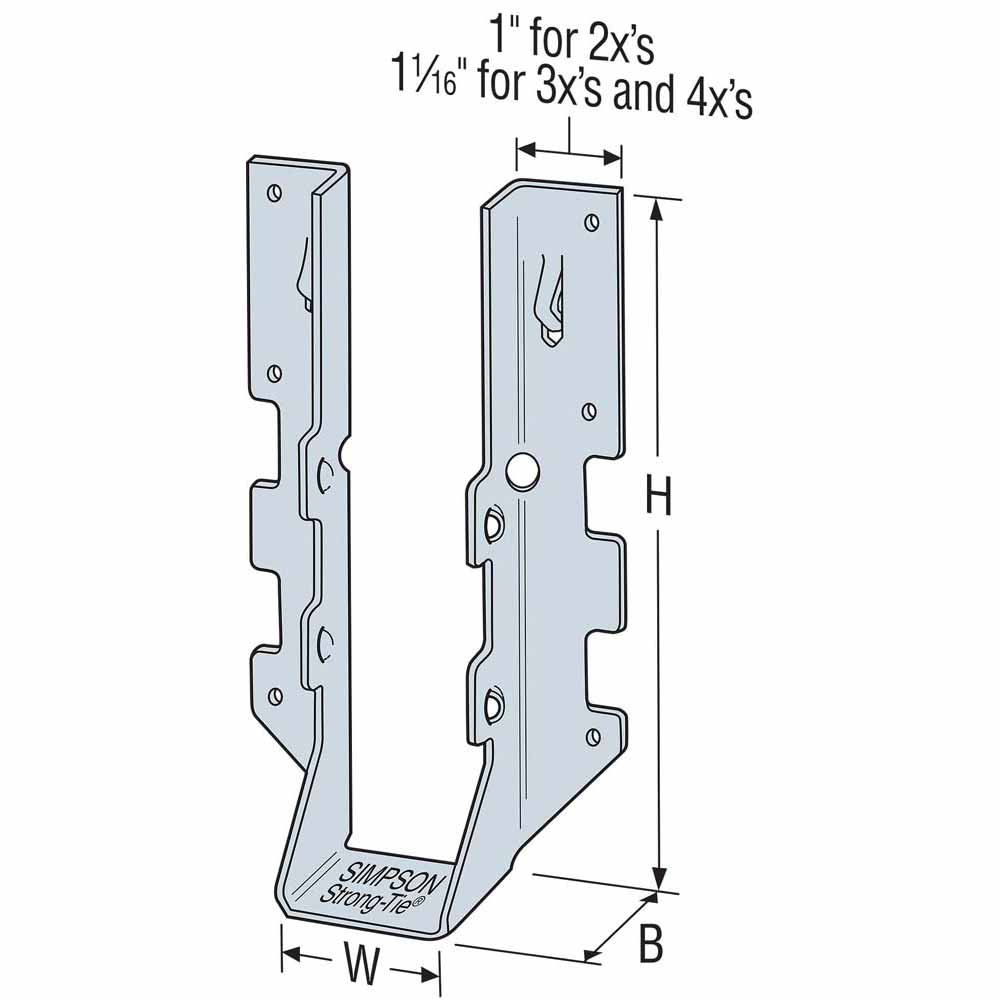

| Specifications | |
|---|---|
| Assembled Width (in) | 3.6585 |
| Assembled Height (in) | 6.673 |
| Assembled Depth (in) | 2.048 |
| Package Quantity | 1 |
| Coating | ZMAX |
| Color | None |
| Gauge | 18 |
| Member Size | 2×8 and 2×10 |
| ICC-ES Reports | ESR-3096|ESR-2552|ESR-2523 (Index) |
| State Of Florida Approvals | FL10531 |
| Hazmat | NO |
| UPC Per Each | 44315268700 |
| Carton Quantity | 50 |
| Carton UPC | 10044300000000 |
| Pallet Quantity | 3600 |
| Pallet UPC | 50044300000000 |
| Weight | .362 lbs |
|---|---|
| Dimensions | 6.673 × 3.6585 × 2.048 in |
| Brand | Simpson Strong-Tie |
