Simpson Strong-Tie LUS28-3Z LUS ZMAX Galvanized Face-Mount Joist Hanger for Triple 2×8

Simpson Strong-Tie LUS28-3Z LUS ZMAX Galvanized Face-Mount Joist Hanger for Triple 2×8

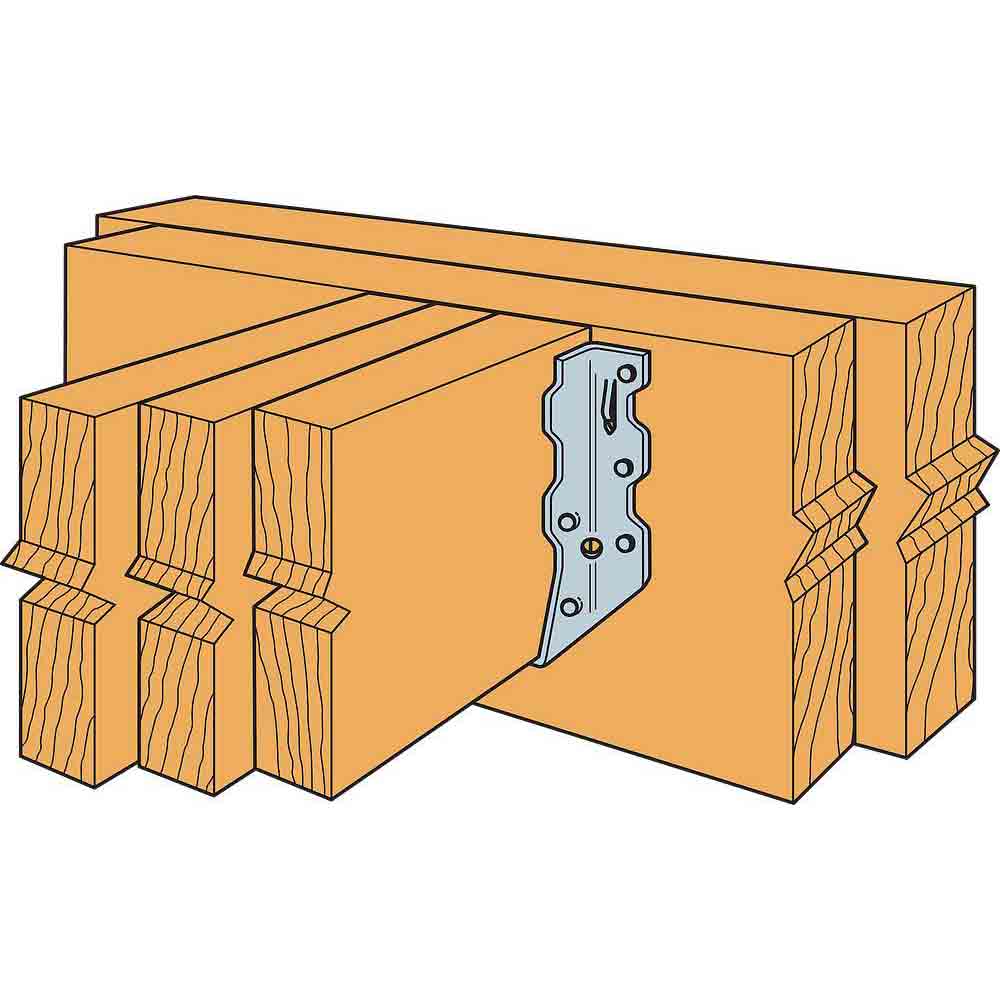

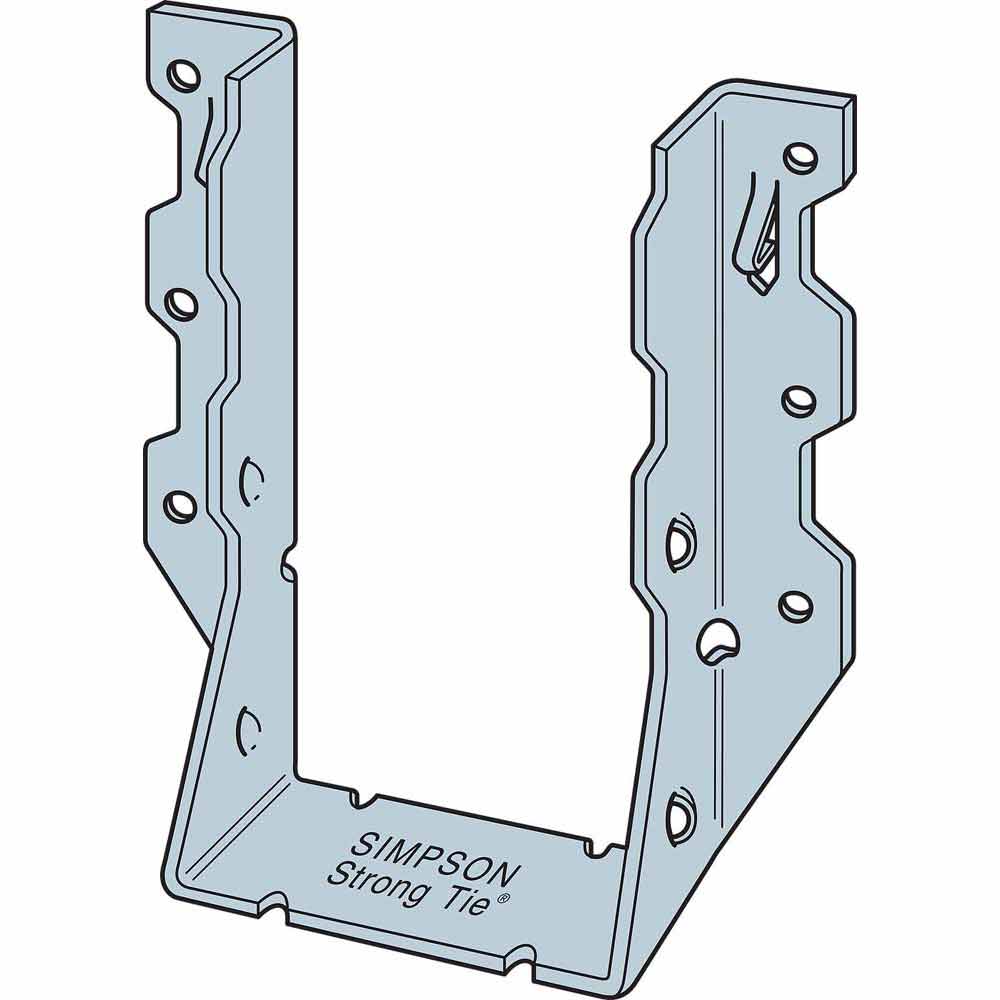

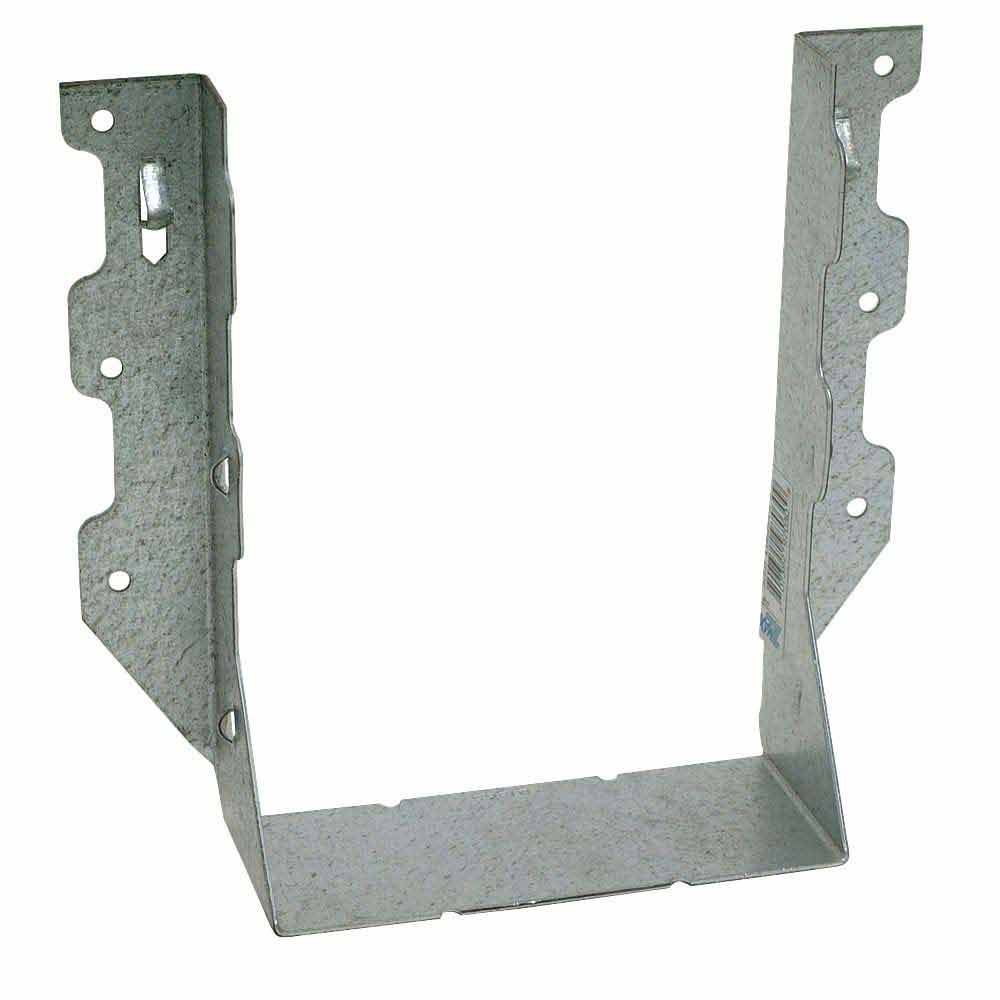

The Simpson Strong-Tie LUS28-3Z is a high-capacity, face-mount joist hanger engineered for triple 2×8 lumber. Designed with double-shear nailing, this hanger efficiently distributes load through two points on each nail for greater strength, enabling faster installation with fewer nails. Its ZMAX galvanized finish enhances corrosion resistance—ideal for use with pressure-treated lumber or in outdoor environments.

Key Features

• Designed for high-load framing applications.
• Increase strength while using fewer nails.
• Hold the connector in place for easier installation.
• Provides superior corrosion protection.
• Tested and load rated to meet building requirements.
• Made from 18-gauge steel.
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	6.846
Assembled Height (in)	6.298
Assembled Depth (in)	2.2355
Package Quantity	1
Coating	ZMAX
Color	None
Gauge	18
Member Size	Triple 2×8 and Triple 2×10
ICC-ES Reports	ESR-2552|ESR-2523 (Index)
State Of Florida Approvals	FL10531
Hazmat	NO
UPC Per Each	707393000000
Carton Quantity	15
Carton UPC	10707400000000
Pallet Quantity	720
Pallet UPC	50707400000000
