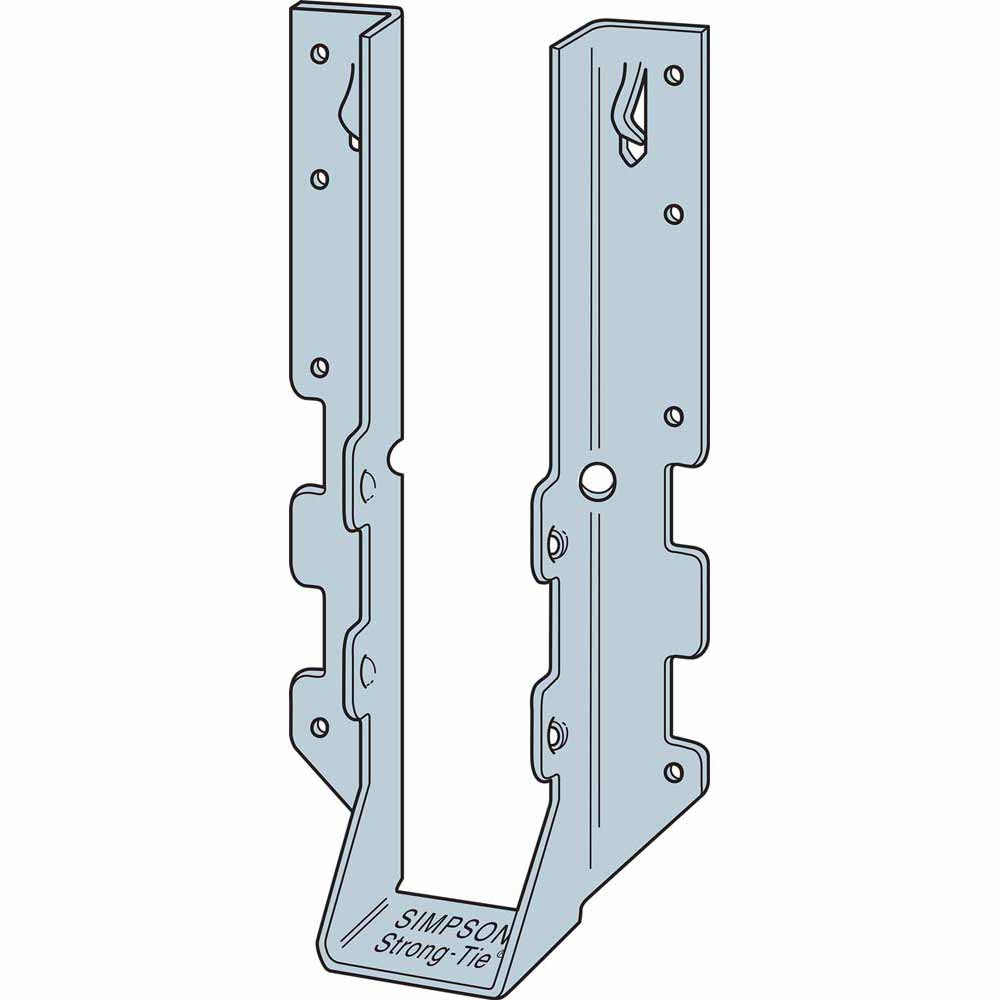

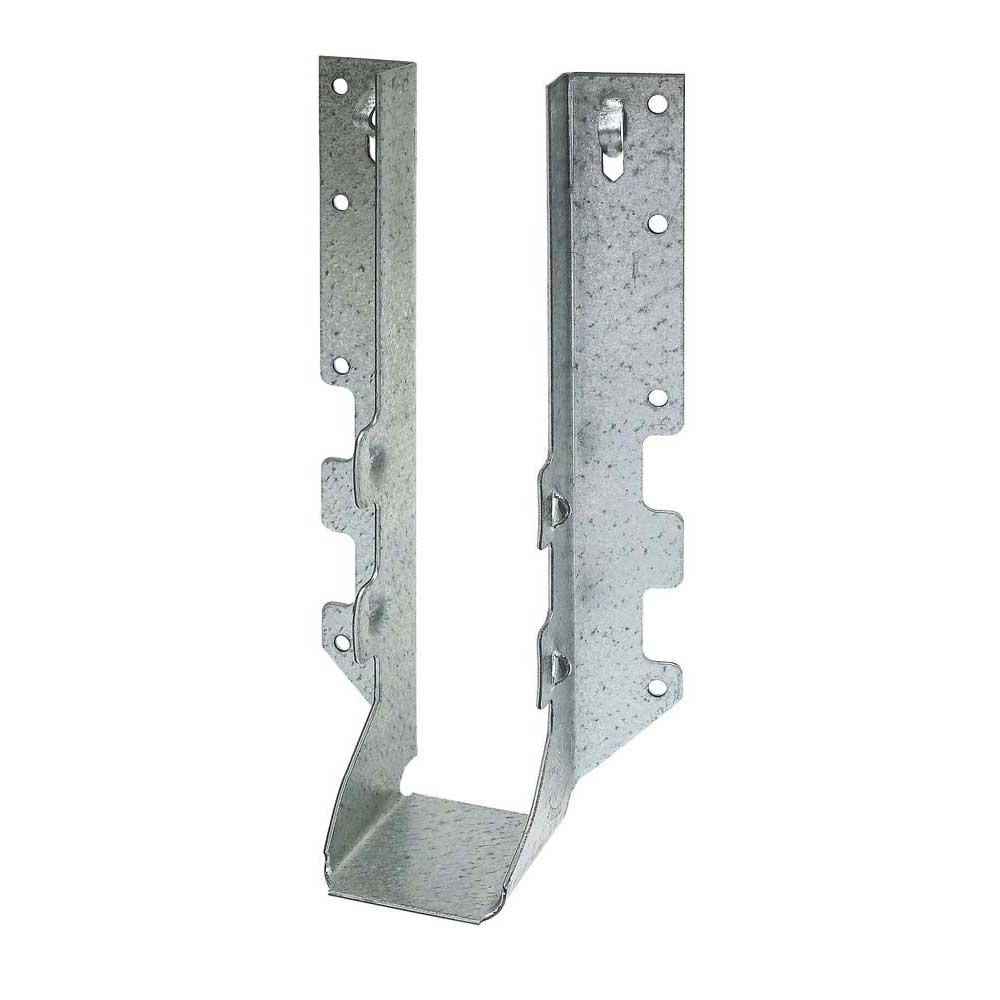

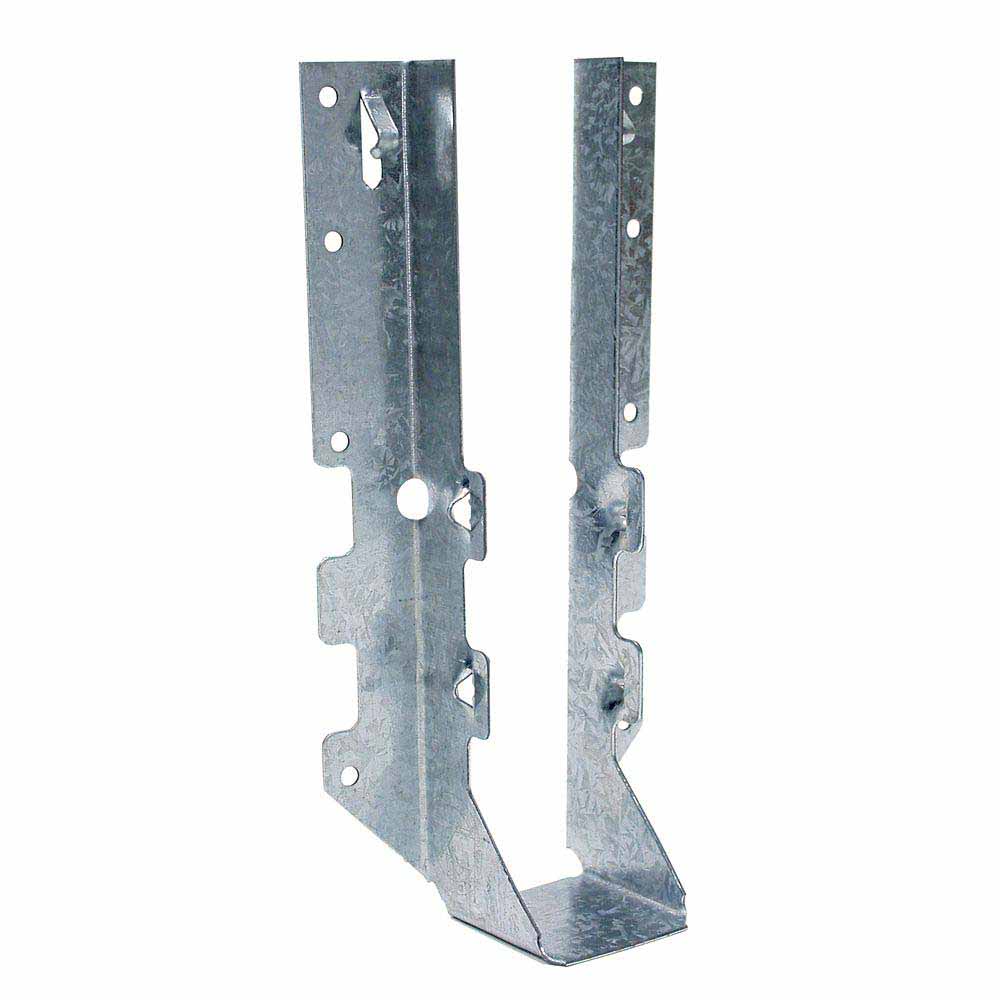

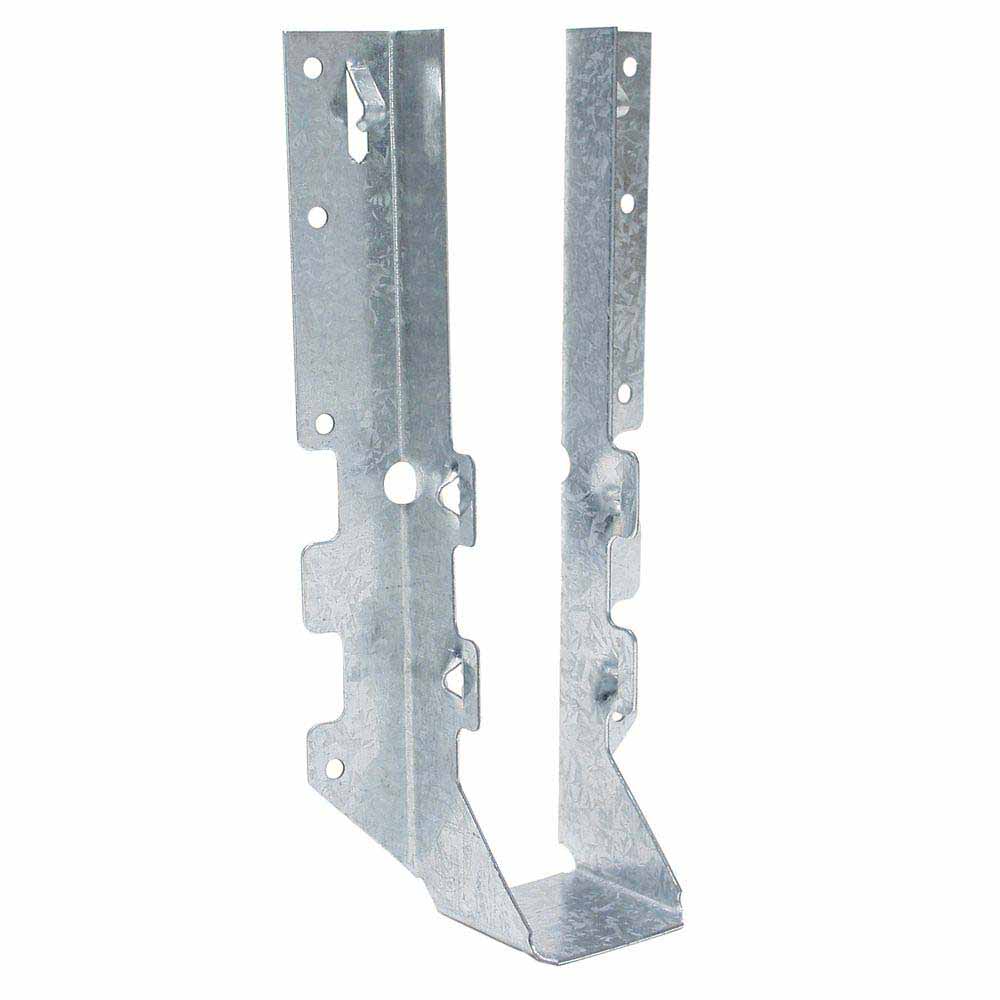

Simpson Strong-Tie LUS210Z LUS ZMAX Galvanized Face-Mount Joist Hanger for 2×10

Simpson Strong-Tie LUS210Z LUS ZMAX Galvanized Face-Mount Joist Hanger for 2×10

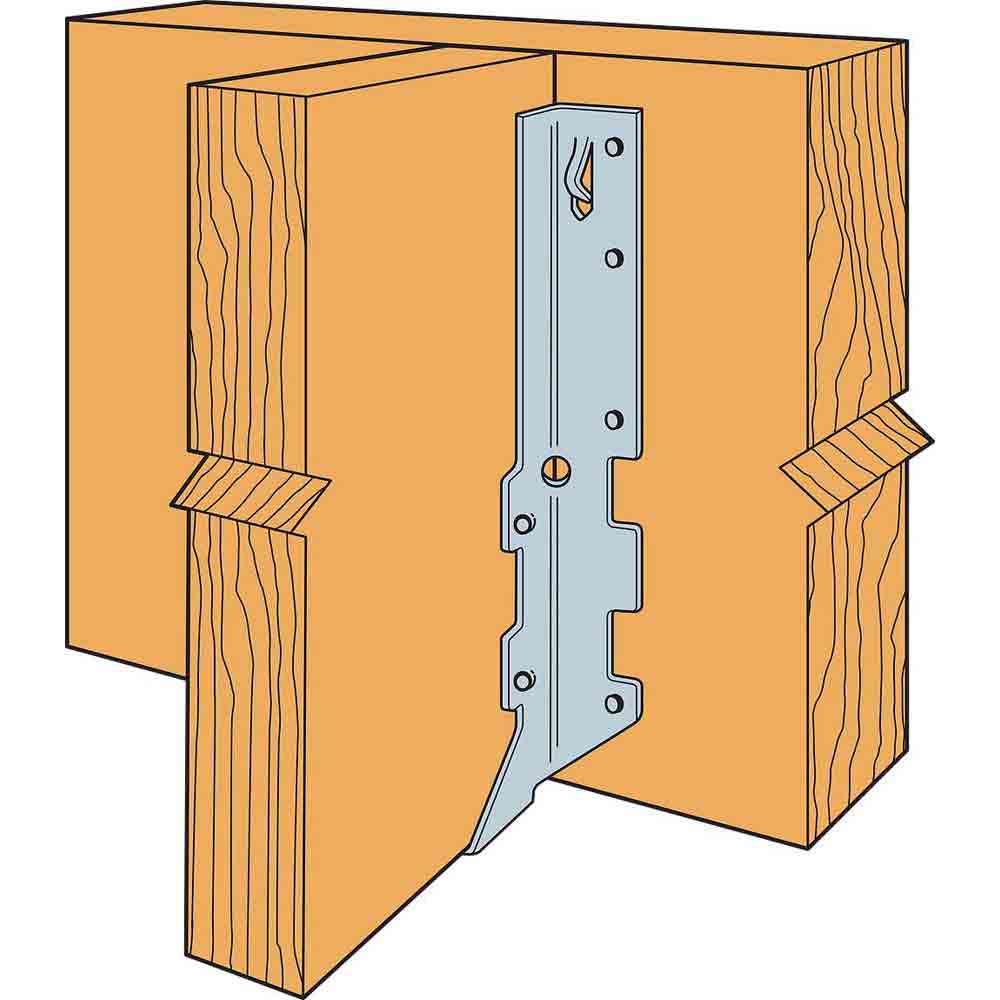

The Simpson Strong-Tie LUS210Z is a cost-effective, code-compliant joist hanger engineered for strength and speed. Designed for 2×10 nominal lumber, this face-mount hanger is ideal for a wide range of wood framing applications. The LUS210Z features double-shear nailing, which distributes the load across two points on each joist nail. This results in greater strength, fewer nails needed, and faster installation—all while using common nails for a consistent, efficient connection. Integrated speed prongs help temporarily hold the hanger in place, making solo installation quicker and easier. Plus, with ZMAX galvanized coating, the LUS210Z offers enhanced corrosion resistance for long-term durability in both interior and exterior environments.

Key Features

• Provides stronger load distribution and requires fewer fasteners.
• Allow temporary placement to speed up installation.

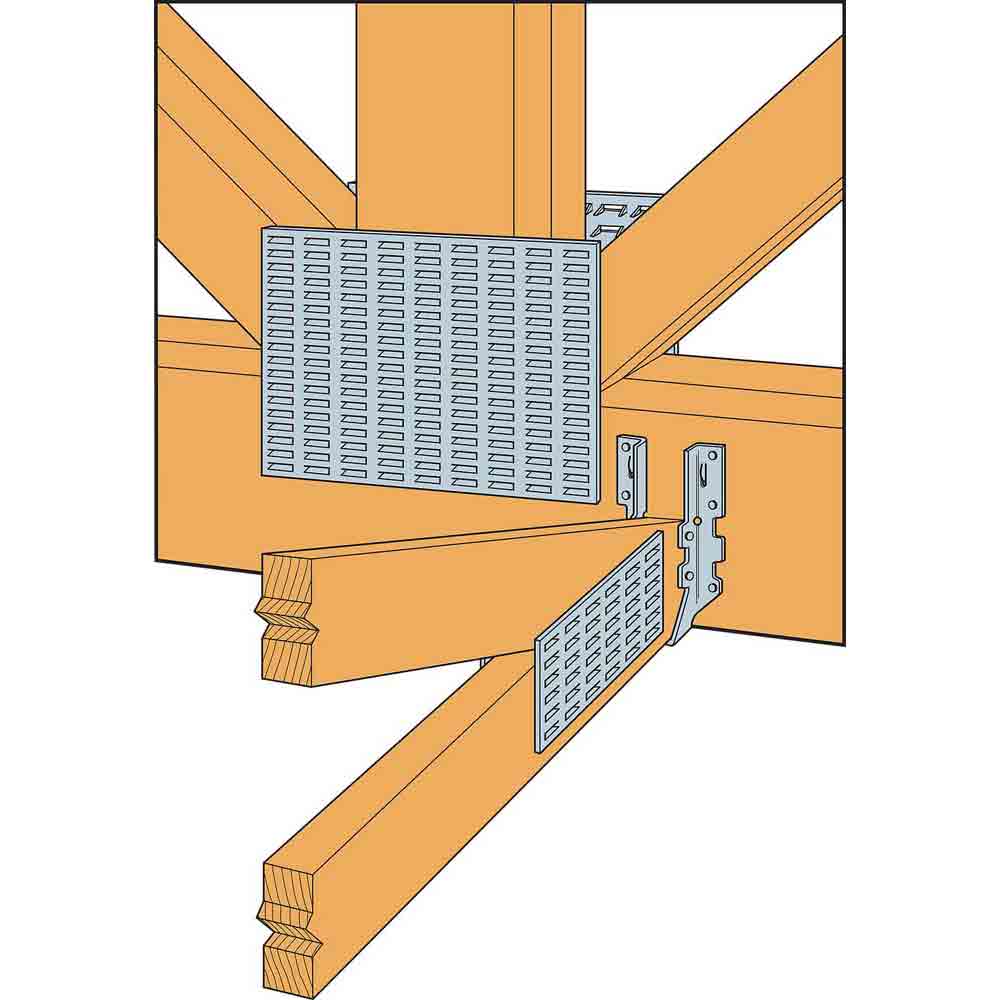

• Compatible with a wide variety of applications.
• Tested and load rated for safety and reliability.
• Offers improved corrosion resistance for outdoor or treated lumber use.
• Made from 18-gauge steel.
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	3.6585
Assembled Height (in)	7.8605
Assembled Depth (in)	2.048
Package Quantity	1
Coating	ZMAX
Color	None
Gauge	18
Member Size	2×10, 2×12, 2×14
ICC-ES Reports	ESR-3096|ESR-2552|ESR-2523 (Index)
State Of Florida Approvals	FL10531
Hazmat	NO
UPC Per Each	44315000607
Carton Quantity	50
Carton UPC	10044315000604
Pallet Quantity	3600
Pallet UPC	50044315000602
