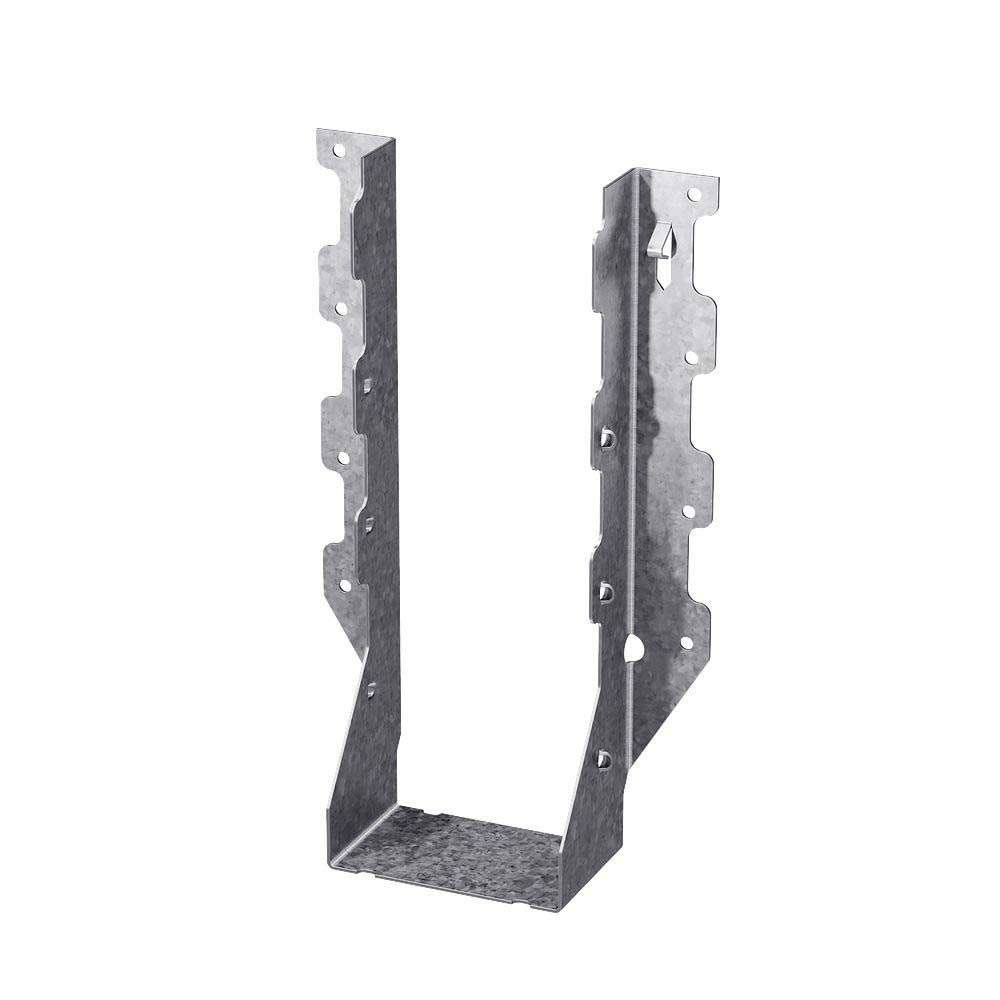

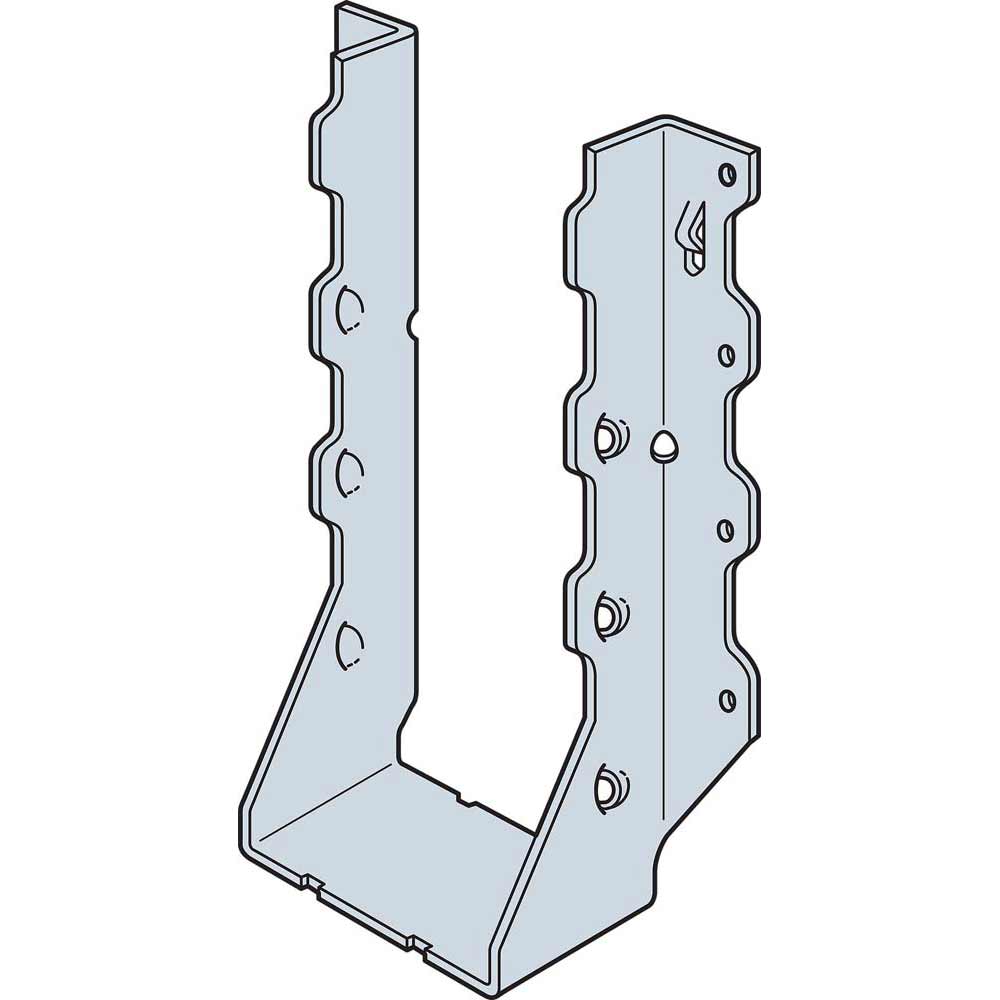

Simpson Strong-Tie LUS210-2Z LUS ZMAX Galvanized Face-Mount Joist Hanger for Double 2×10

Simpson Strong-Tie LUS210-2Z LUS ZMAX Galvanized Face-Mount Joist Hanger for Double 2×10

The Simpson Strong-Tie LUS210-2Z is a heavy-duty, cost-effective face-mount joist hanger engineered for double 2×10 joists. Designed for ease of installation and maximum strength, this hanger features double-shear nailing, which distributes loads through two points on each nail—enhancing strength while reducing the number of fasteners required. Whether you’re working on decks, floors, or other framing projects, the LUS-series is a trusted choice for professionals who need code-compliant and high-performance connectors for common lumber sizes.

Key Features

• Improves load distribution for added strength.
• Fewer nails required and compatible with standard nails.
• Temporarily holds the hanger in place during installation.
• Tested, load rated, and approved for a variety of applications.
• Suitable for a wide range of residential and commercial framing projects.
• Made from 18-gauge steel.
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	5.346
Assembled Height (in)	8.9855
Assembled Depth (in)	2.20425
Package Quantity	1
Coating	ZMAX
Color	None
Gauge	18
Member Size	Double 2×10, 2×12, 2×14
ICC-ES Reports	ESR-3096|ESR-2552|ESR-2523 (Index)
State Of Florida Approvals	FL10531
Hazmat	NO
UPC Per Each	44315250804
Carton Quantity	25
Carton UPC	10044300000000
Pallet Quantity	1500
Pallet UPC	50044300000000
