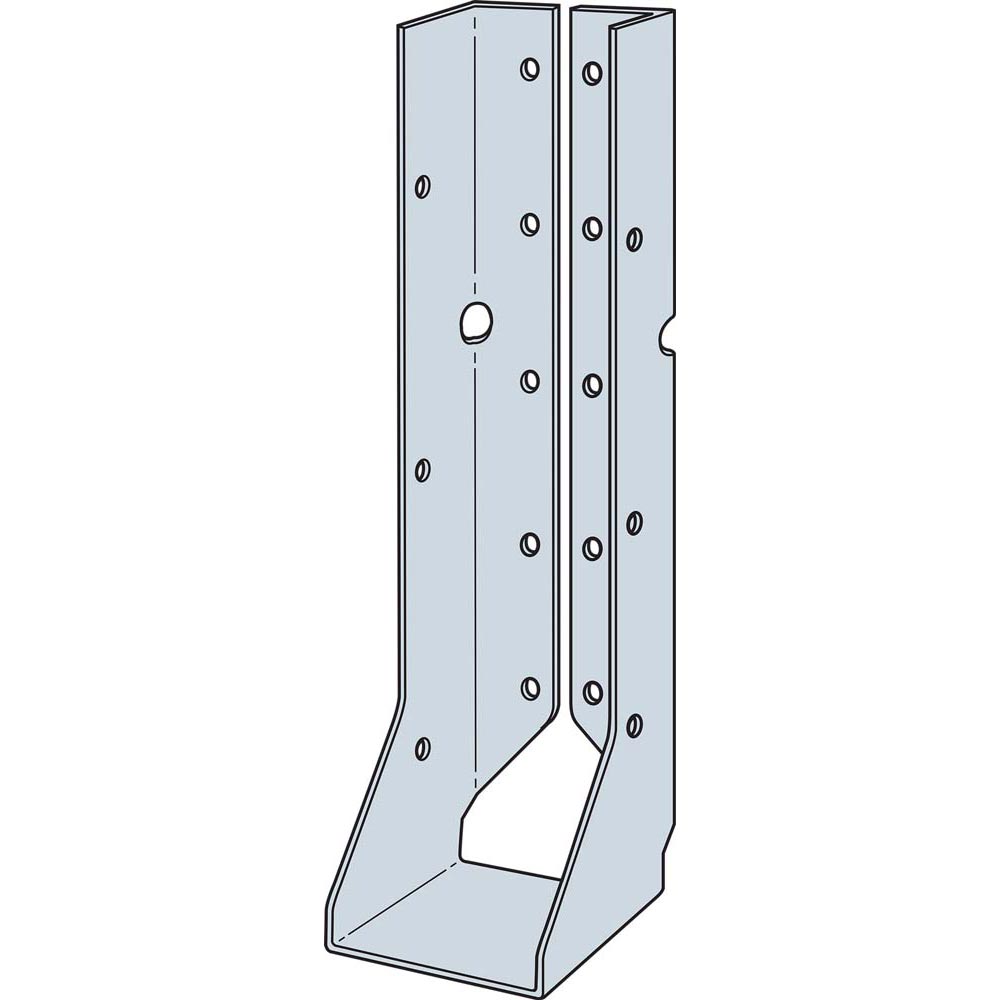

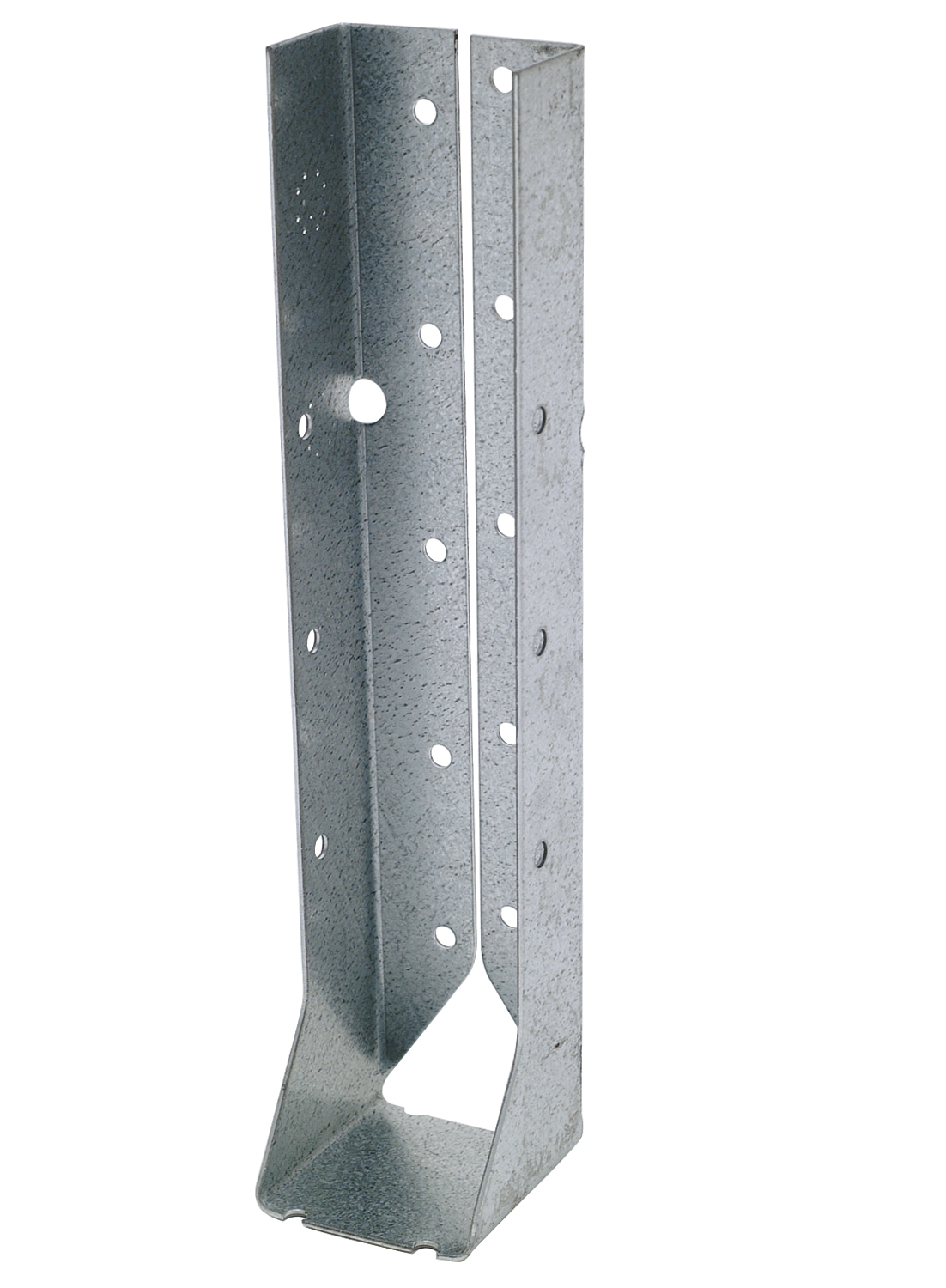

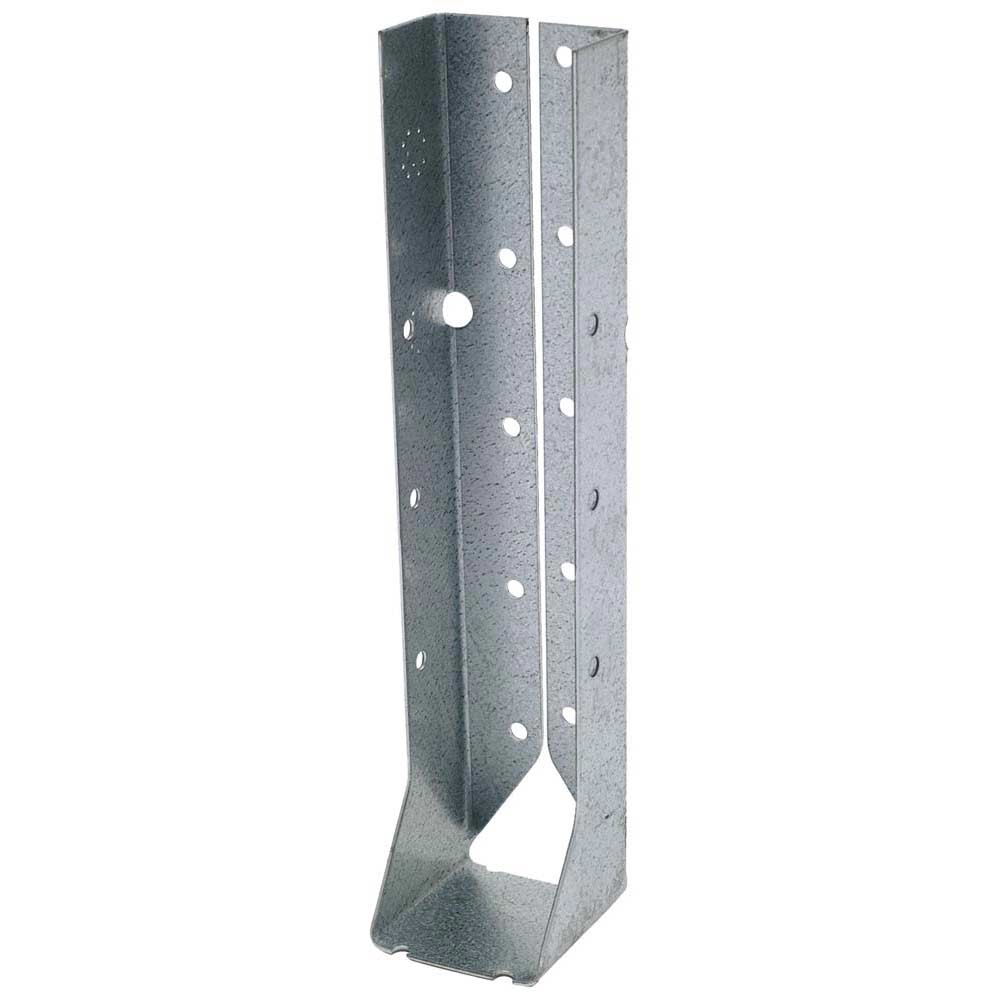

Simpson Strong-Tie LUC210Z LUC ZMAX Galvanized Face-Mount Concealed-Flange Joist Hanger for 2×10

Simpson Strong-Tie LUC210Z LUC ZMAX Galvanized Face-Mount Concealed-Flange Joist Hanger for 2×10

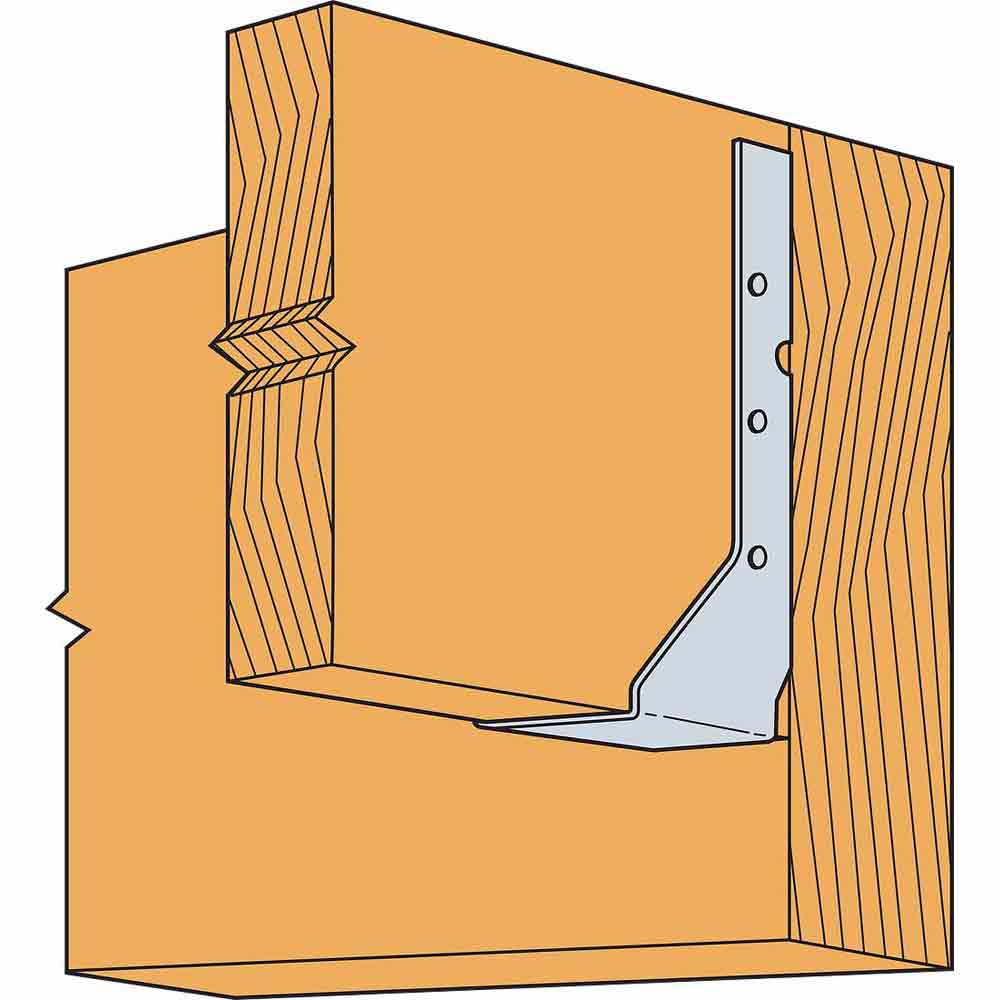

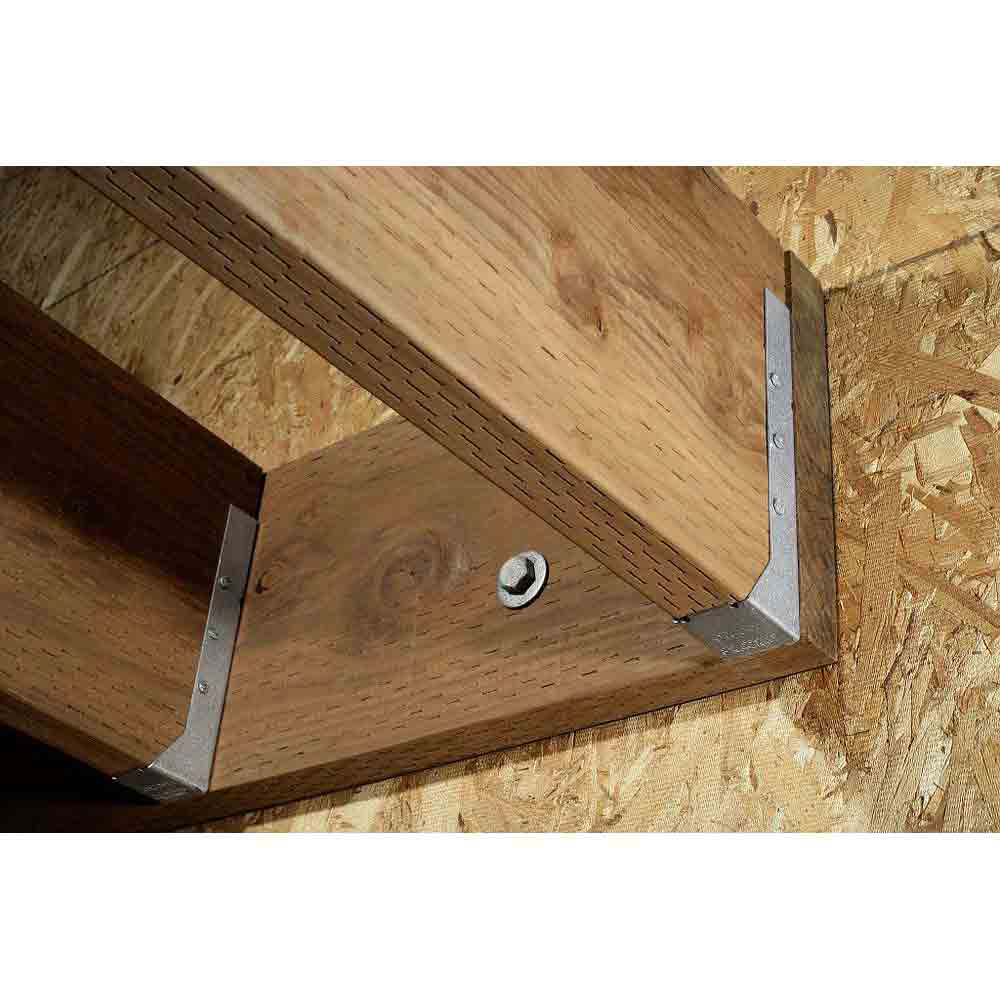

The Simpson Strong-Tie LUC210Z is a durable and aesthetically clean face-mount joist hanger designed specifically for 2×10 joists. Featuring concealed header flanges, this hanger delivers a sleek appearance—ideal for exposed beam or joist applications where visual presentation matters just as much as strength. Engineered for dependable performance, the LUC210Z provides strong, code-compliant connections for joists, rafters, or beams. It installs quickly and easily using common fasteners and offers flexibility in fastener selection while maintaining tested, allowable load capacities. With its ZMAX coating, this hanger offers enhanced corrosion resistance—making it suitable for both interior and select exterior applications.

Key Features

• Concealed flanges deliver smooth, professional lines for exposed conditions.
• Provides secure support underneath joists, rafters, or beams.
• LUC-series hangers are tested, load rated, and meet building code requirements.
• Installs with a variety of fasteners to accommodate different jobsite needs.
• ZMAX galvanization for improved resistance in treated lumber and more corrosive environments.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	1.6585
Assembled Height (in)	7.82925
Assembled Depth (in)	1.90625
Package Quantity	1
Coating	ZMAX
Color	None
Gauge	18
Member Size	2×10, 2×12
ICC-ES Reports	ESR-3096|ESR-2552|ESR-2523 (Index)
State Of Florida Approvals	FL10531
Hazmat	NO
UPC Per Each	707393000000
Carton Quantity	25
Carton UPC	10707400000000
Pallet Quantity	1800
Pallet UPC	50707400000000
