Simpson Strong-Tie LGT2 LGT 2-Ply Girder Tiedown

Simpson Strong-Tie LGT2 LGT 2-Ply Girder Tiedown

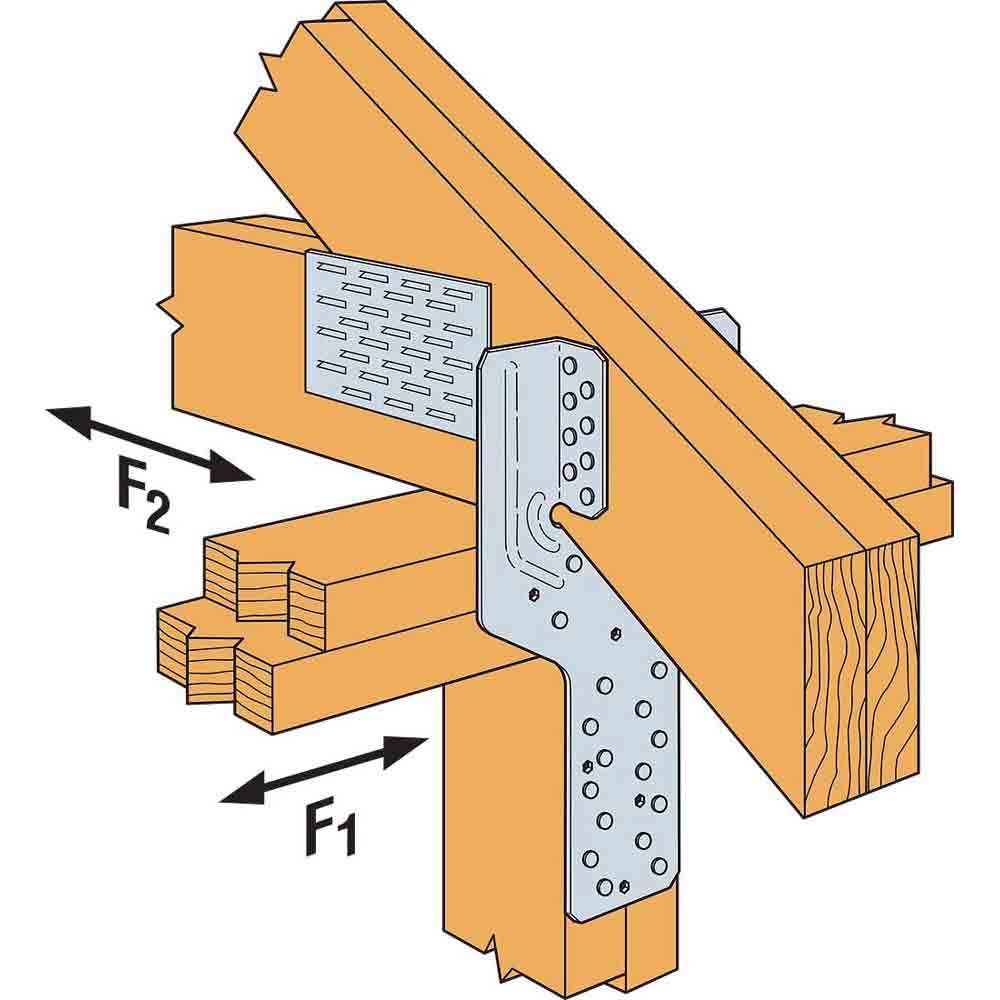

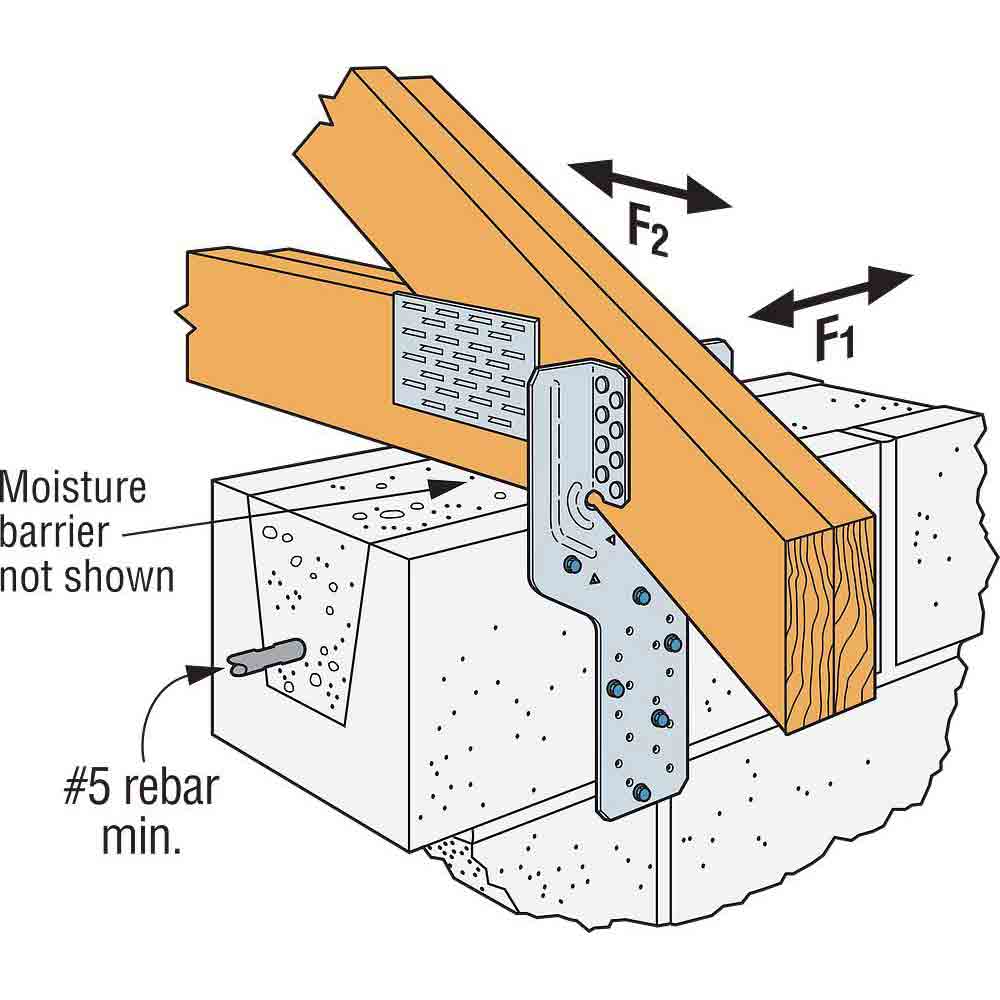

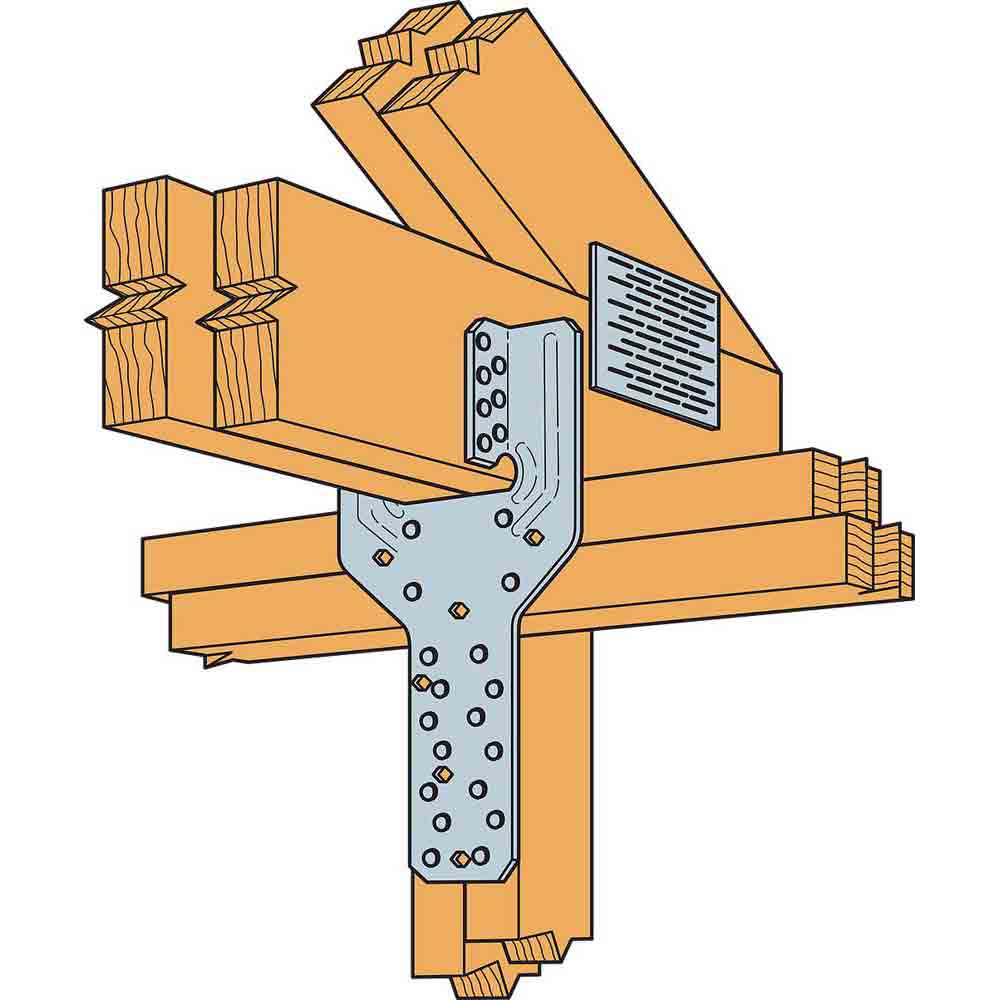

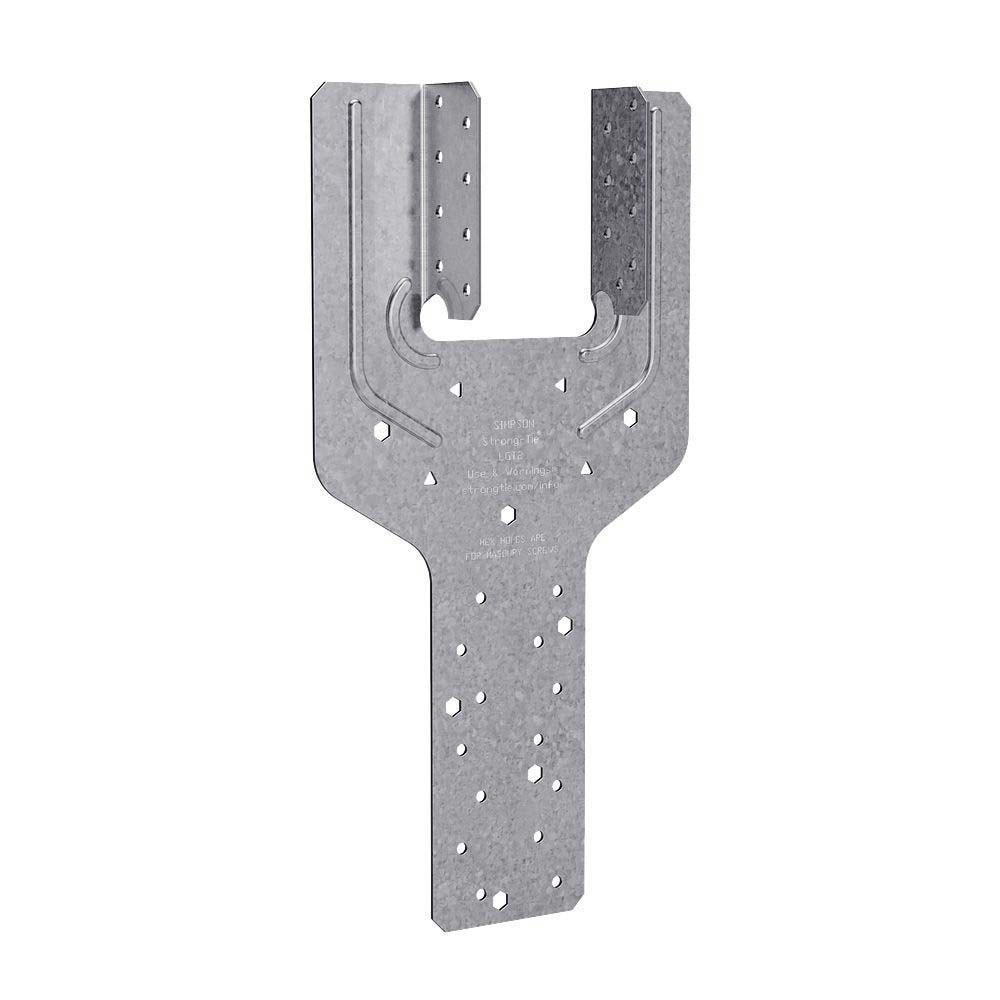

The Simpson Strong-Tie LGT2 is a versatile tiedown solution engineered to resist light to moderate uplift loads in multi-ply truss applications. Designed with simplicity and performance in mind, this low-profile connector attaches easily to wall studs, making it ideal for both new construction and retrofit installations—while allowing easy drywall application without interference. The LGT2 offers excellent bearing support for heavy download forces and includes strategically placed embossments to enhance strength where it’s needed most. Whether installed on the interior or exterior side of the wall, the LGT2 delivers reliable resistance against high-wind uplift forces in light-framing applications.

Key Features

• Allows for unobstructed drywall installation.
• Can be installed on the inside or outside of the wall.
• Reinforced stiffness in critical areas.
• Load-rated for uplift in demanding environments.
• Ideal for upgrades as well as new construction.
• Made from 14-gauge steel.
• Galvanized (G90) for extra corrosion resistance.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications

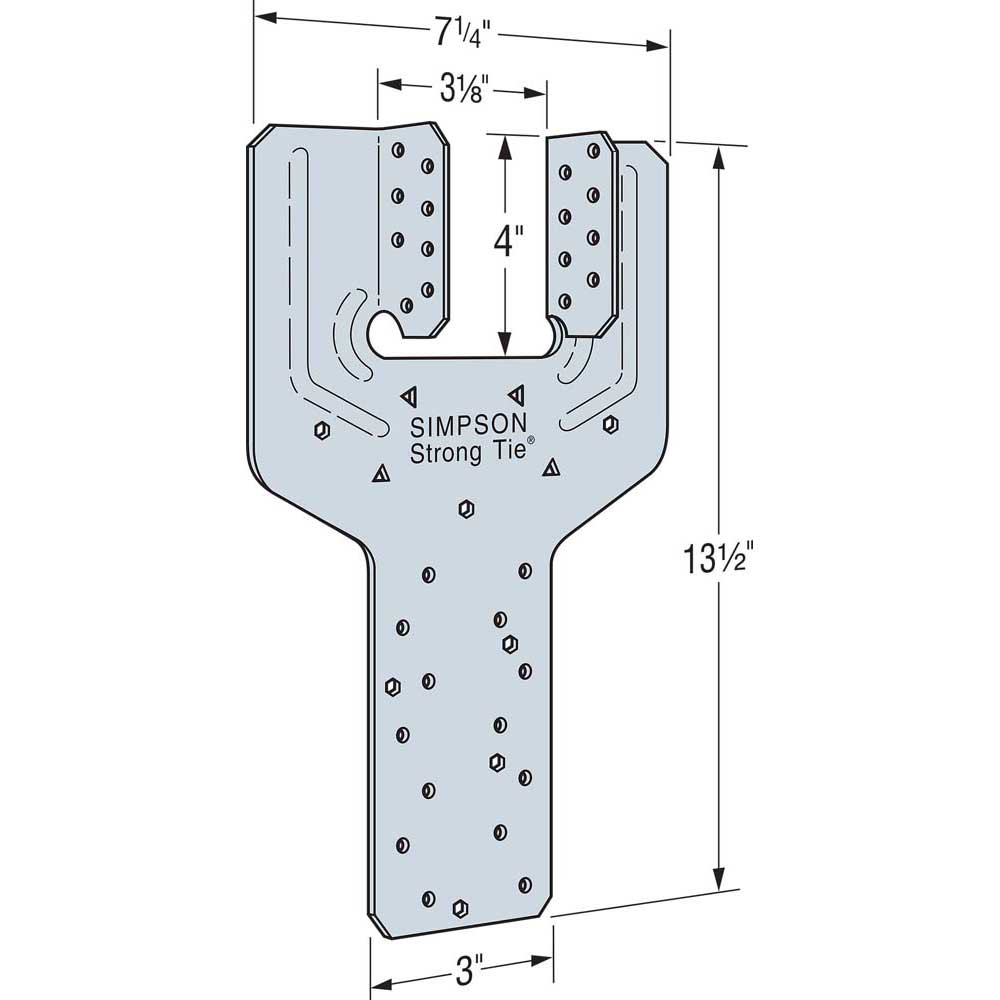

Assembled Width (in)	7.25
Assembled Height (in)	13.5
Assembled Depth (in)	1.60125
Package Quantity	1
Coating	Zinc Galvanized, G90
Color	None
Gauge	14
State Of Florida Approvals	FL11473
Hazmat	NO
UPC Per Each	707393000000
Carton Quantity	10
Carton UPC	10707400000000
Pallet Quantity	900
Pallet UPC	50707400000000
