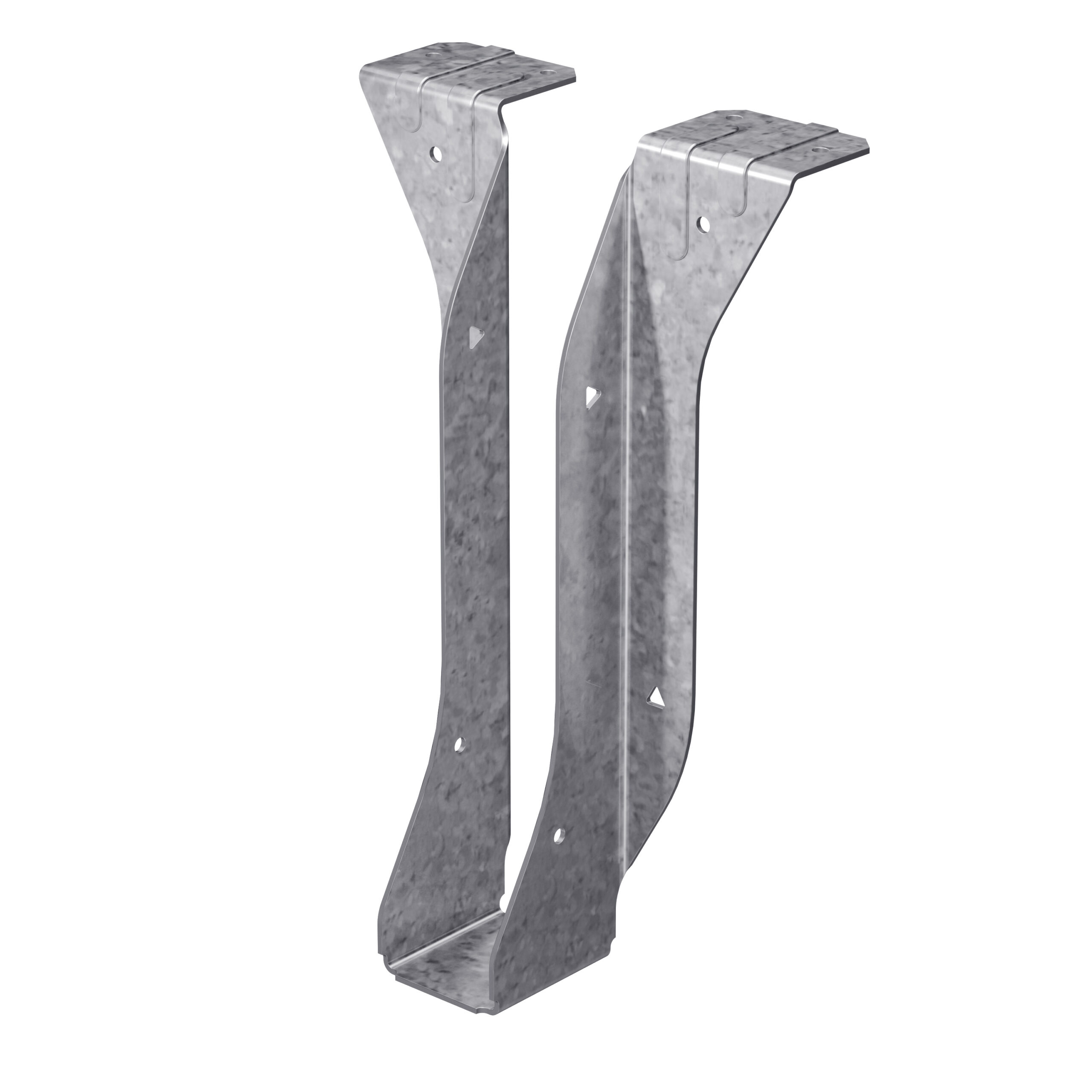

Simpson Strong-Tie LB210AZ LBAZ ZMAX Galvanized Light-Bent Top-Flange Joist Hanger for 2×10
$8.29
Standard Shipping
Features:
- Designed to help resist download forces
- The unique two-level embossment provides added stiffness to the top flange
- Quick installation
- Seat width: 1-9/16 in.
- Height: 9-3/16 in.
Building Relationships, Delivering Results
- Fast Shipping
- No Hassle Returns
- Secure Payments
- Family Owned and Operated
- Personal Bilingue
The LBAZ is a top-flange hanger for solid sawn lumber applications. This cost-effective hanger is designed to support light-to-medium loads while providing uplift. The zinc-coated LBAZ has been load rated for use with a 2x or 3x nailer if required.
- Top flange depth: 1-7/16 in.
- Nominal joist size: 2×10
- Made from 14-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Warranty
Limited warranty, available at www.strongtie.com/limited-warranties.
| Specifications | |
|---|---|
| Assembled Width (in) | 5.9381 |
| Assembled Height (in) | 9.3665 |
| Assembled Depth (in) | 3.6253 |
| Package Quantity | 1 |
| Coating | ZMAX |
| Color | None |
| Gauge | 14 |
| Member Size | 2×10 |
| ICC-ES Reports | ESR-2553|ESR-2523 (Index) |
| State Of Florida Approvals | FL10667 |
| Hazmat | NO |
| UPC Per Each | 707392000000 |
| Carton Quantity | 25 |
| Carton UPC | 10707400000000 |
| Pallet Quantity | 750 |
| Pallet UPC | 50707400000000 |
| Weight | .47 lbs |
|---|---|
| Dimensions | 3.6253 × 5.9381 × 9.3665 in |
| Brand | Simpson Strong-Tie |
| Product Type | |
| MPN | |
| UPC Code | |
| Gauge |
