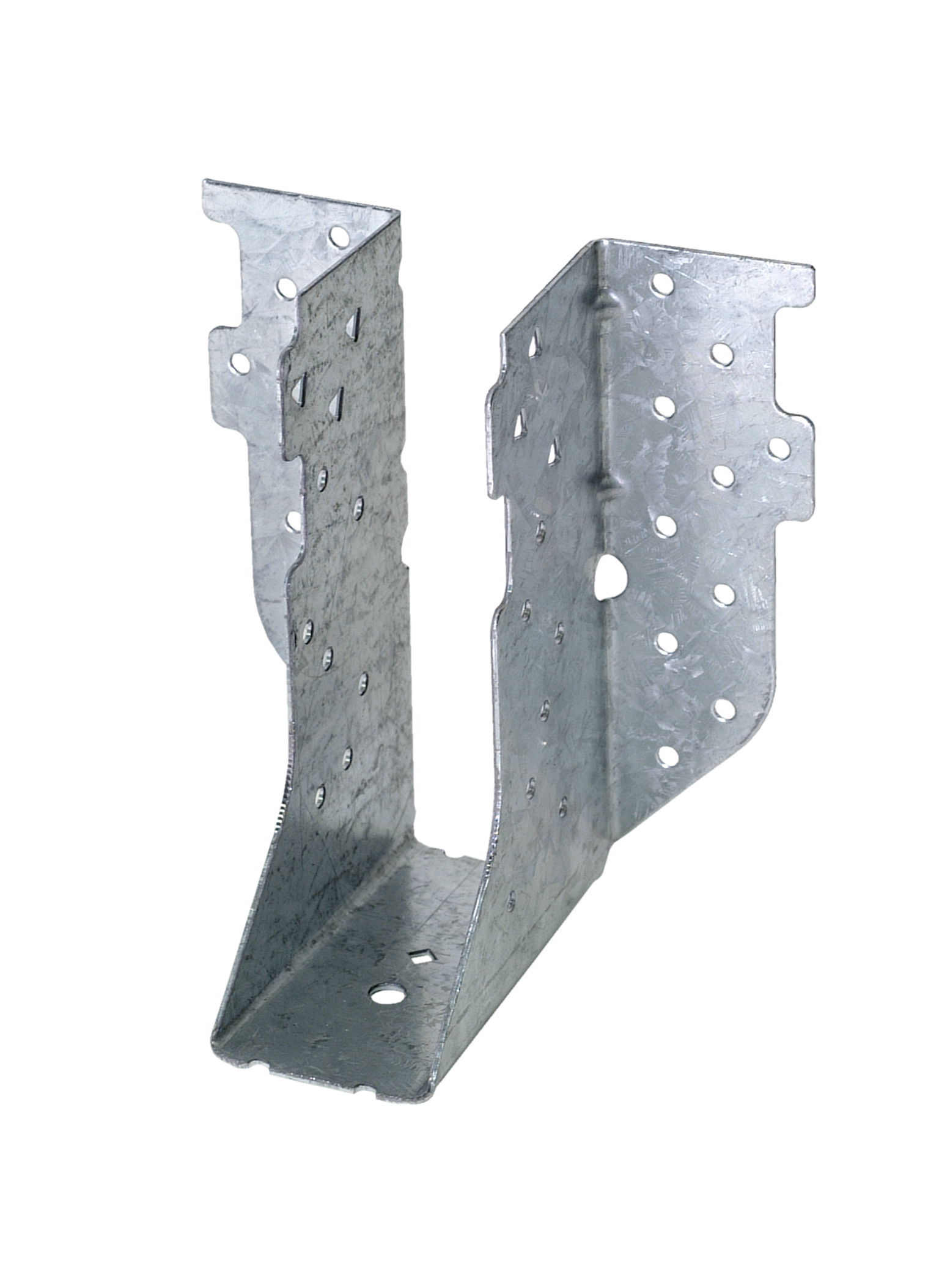

Simpson Strong-Tie HTU26 HTU Galvanized Heavy Face-Mount Truss Hanger for 2×6

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The HTU face-mount truss hangers have nail patterns designed specifically for shallow heel heights. The full allowable loads (with minimum nailing) apply to heel heights as low as 3-7/8 in. Minimum and maximum nailing options provide solutions for varying heel heights and end conditions.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	5.239
Assembled Height (in)	5.432
Assembled Depth (in)	3.84375
Package Quantity	1
Coating	Zinc Galvanized, G90
Color	None
Gauge	16
ICC-ES Reports	ESR-2552|ESR-2523 (Index)
State Of Florida Approvals	FL10531
Hazmat	NO
UPC Per Each	707393000000
Carton Quantity	50
Carton UPC	10707400000000
Pallet Quantity	1200
Pallet UPC	50707400000000
