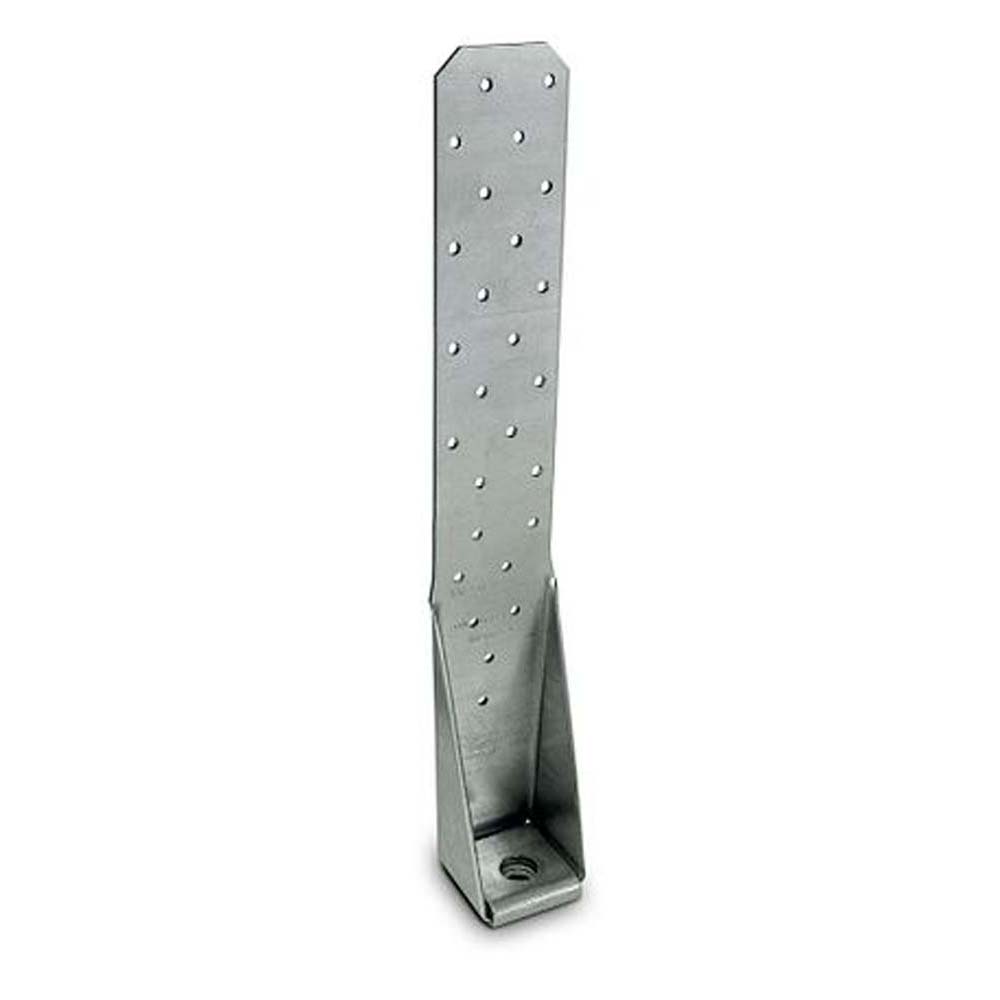

Simpson Strong-Tie HTT5 11-Gauge Galvanized Heavy Tension Tie, 16 in.

Simpson Strong-Tie HTT5 11-Gauge Galvanized Heavy Tension Tie, 16 in.

The Simpson Strong-Tie HTT5 is a high-strength tension tie designed to resist heavy tension loads in wood-to-concrete or wood-to-masonry connections, making it ideal for both new construction and retrofit applications. Crafted from durable 11-gauge galvanized steel, the HTT5 provides a robust post-pour anchoring solution that ensures long-term structural integrity. With a four-ply formed seat and a rivet-free design, this tension tie minimizes deflection and simplifies installation. It is engineered to deliver high performance when fastened with nails or Strong-Drive SD Connector screws. The HTT5 is perfect for use in residential, multifamily, and light commercial wood-frame construction where reliable tension resistance is essential.

Key Features

• Resists heavy tension loads in post-pour connections.
• Minimizes deflection under load.
• Enhances performance and reduces installation variability.
• Great for both retrofit and new construction.
• Includes bearing plate, washer, and SD Connector screws.
• Made from 11-gauge steel.
• Galvanized (G90) for extra corrosion resistance.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications

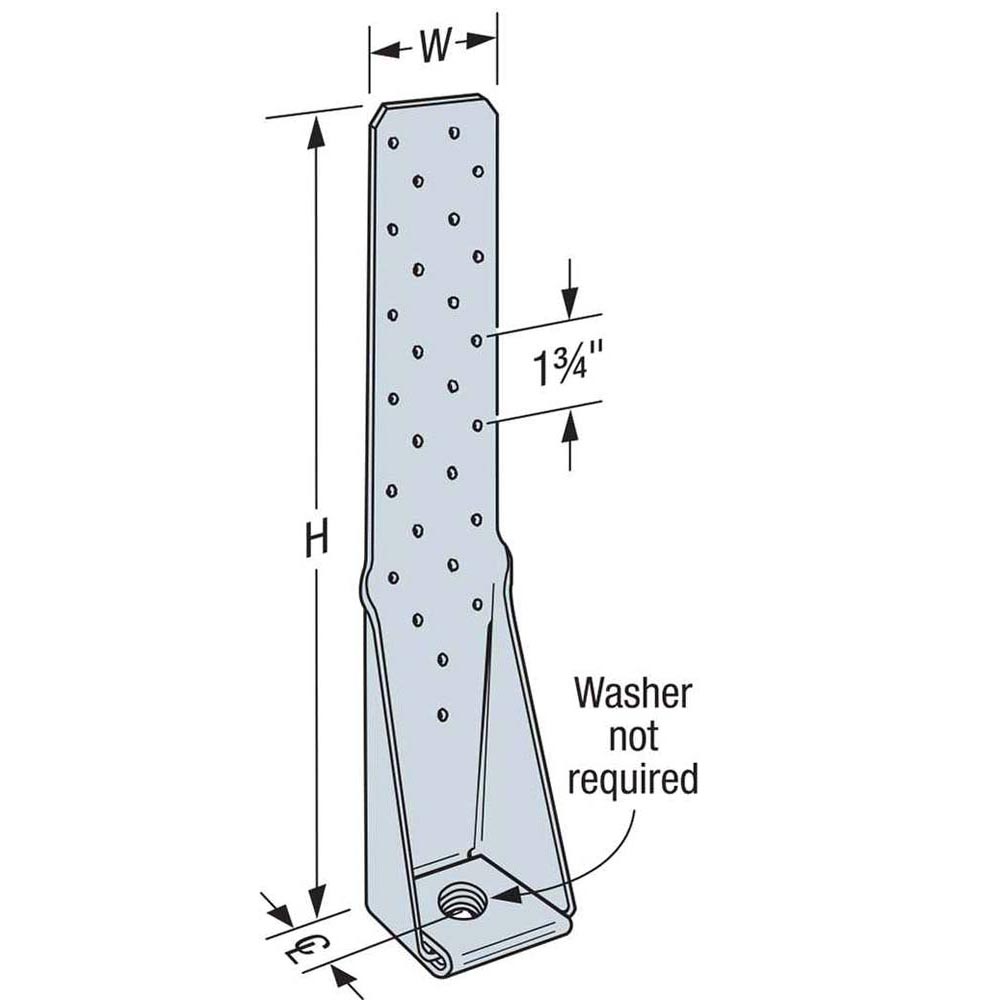

Assembled Width (in)	2.5
Assembled Height (in)	15.875
Assembled Depth (in)	2.45575
Package Quantity	1
Coating	Zinc Galvanized, G90
Color	None
Gauge	11
IAPMO UES Reports	ER-130|ER-124 (CFS)|ER-102 (Index)
State Of Florida Approvals	FL11496|FL13872
Hazmat	NO
UPC Per Each	707393000000
Package Quantity	10
Carton Quantity	10
Carton UPC	10707400000000
Pallet Quantity	400
Pallet UPC	50707400000000
