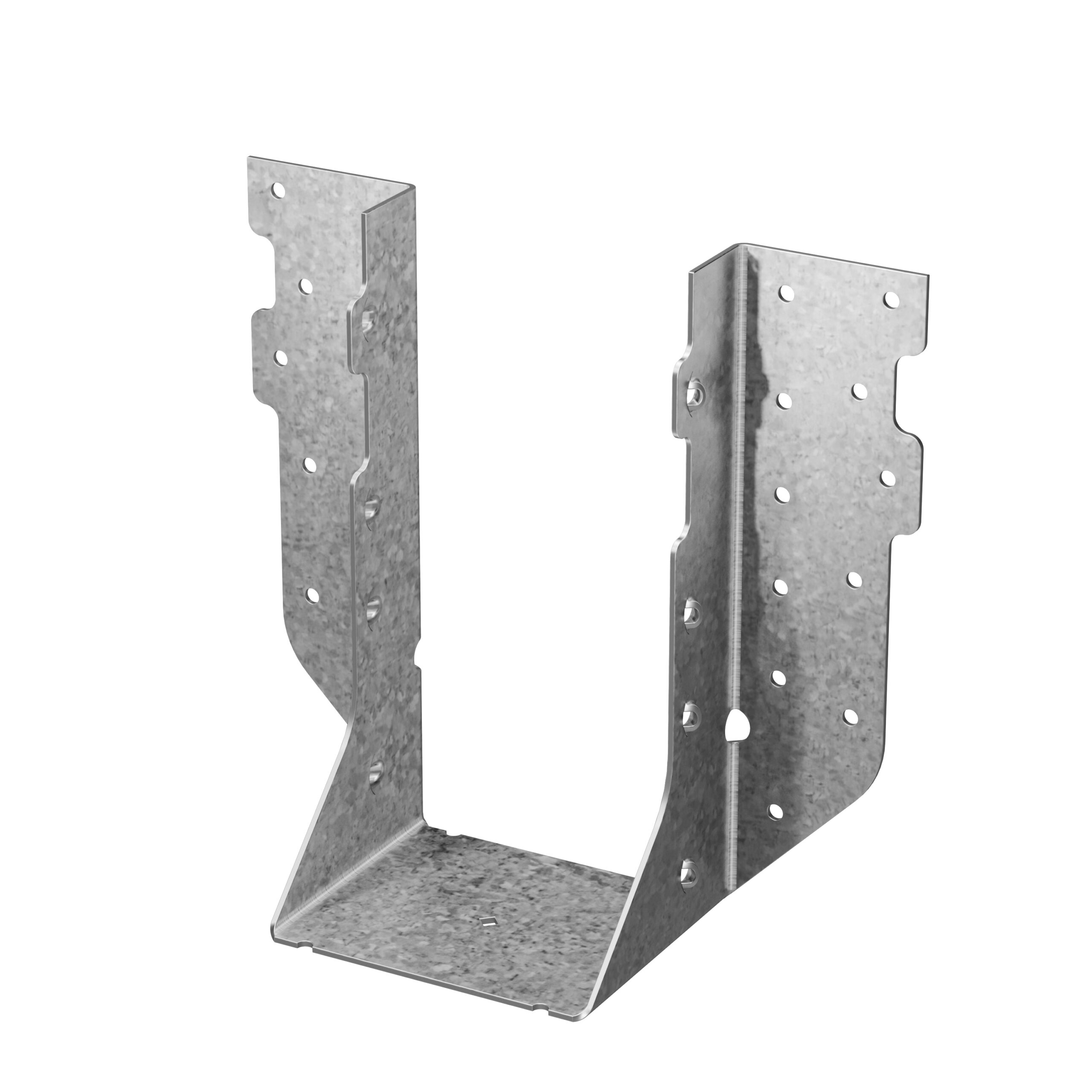

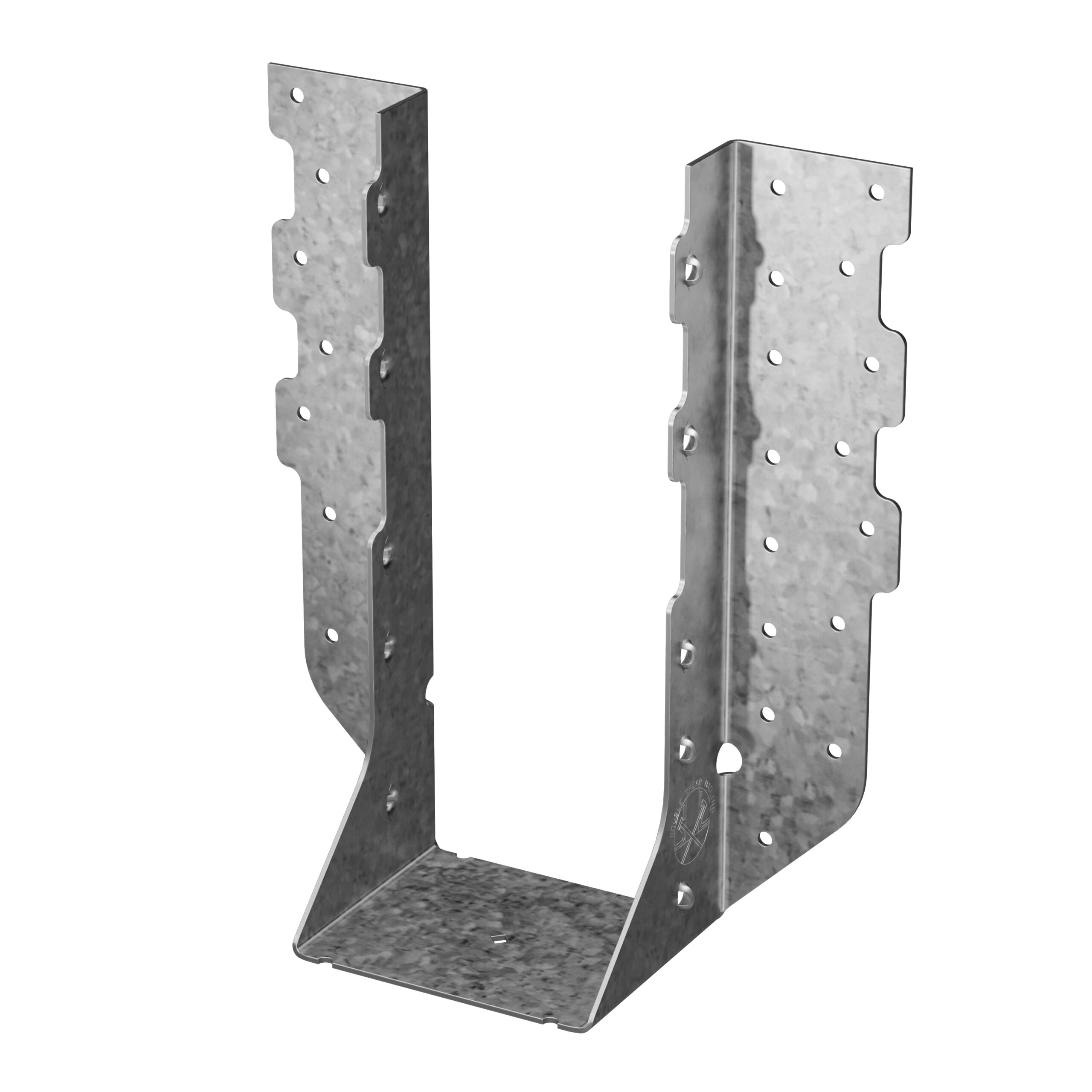

Simpson Strong-Tie HHUS48 HHUS Galvanized Face-Mount Joist Hanger for 4×8

Simpson Strong-Tie HHUS48 HHUS Galvanized Face-Mount Joist Hanger for 4×8

Built for strength and efficiency, the Simpson Strong-Tie HHUS48 is a heavy-duty face-mount joist hanger designed to support 4×8 lumber in applications requiring higher load capacities. Featuring double-shear nailing, this hanger maximizes strength by distributing the load through two points on each nail, allowing for fewer fasteners and faster installation. The HHUS48 can be installed after the beam is in place, making it a convenient choice for retrofits or precise builds. Engineered to meet demanding structural requirements, it is code compliant, load rated, and finished in galvanized steel for corrosion resistance. Optional finishes, including HDG or ZMAX, offer added protection for treated lumber or exterior environments.

Key Features

• Ideal for heavy framing applications.
• Greater strength with fewer nails.
• Can be installed after the beam is set.
• Supports higher structural loads.
• Tested and load rated to meet industry standards.
• Galvanized (G90) for extra corrosion resistance.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	7.765
Assembled Height (in)	7.195
Assembled Depth (in)	3.195
Package Quantity	1
Coating	Zinc Galvanized, G90
Color	None
Gauge	14
Member Size	4×8
ICC-ES Reports	ESR-2552|ESR-2523 (Index)
State Of Florida Approvals	FL10531
Hazmat	NO
UPC Per Each	44315349409
Carton Quantity	25
Carton UPC	10044300000000
Pallet Quantity	750
Pallet UPC	50044300000000
