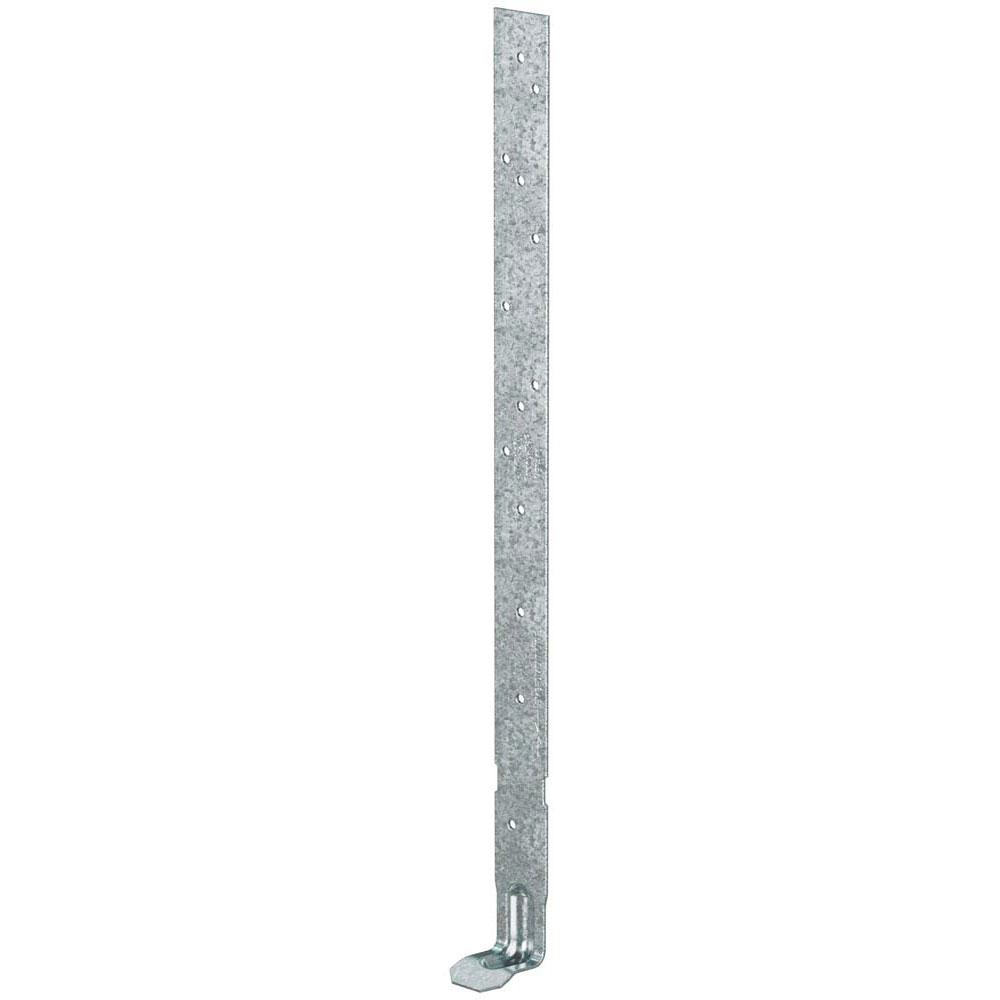

Simpson Strong-Tie HETA16 HETA 16 in. Galvanized Heavy Embedded Truss Anchor

Simpson Strong-Tie HETA16 HETA 16 in. Galvanized Heavy Embedded Truss Anchor

The Simpson Strong-Tie HETA16 is a heavy-duty embedded truss anchor engineered to provide a secure, code-compliant connection between roof trusses and concrete or masonry walls. With its robust 16-inch length and galvanized finish, the HETA16 is built to withstand demanding structural conditions—offering outstanding uplift resistance in high-wind or seismic zones. This anchor features a staggered nail pattern that enhances connection strength while minimizing the potential for wood splitting. Designed for versatility, the HETA16 can be installed straight or field-bent to wrap around truss or rafter members, making it adaptable to a wide range of project needs. For increased load capacity, HETA anchors may also be used in pairs on single- or multi-ply trusses.

Key Features

• Providing a safe and efficient solution for securing roof trusses to concrete or masonry.

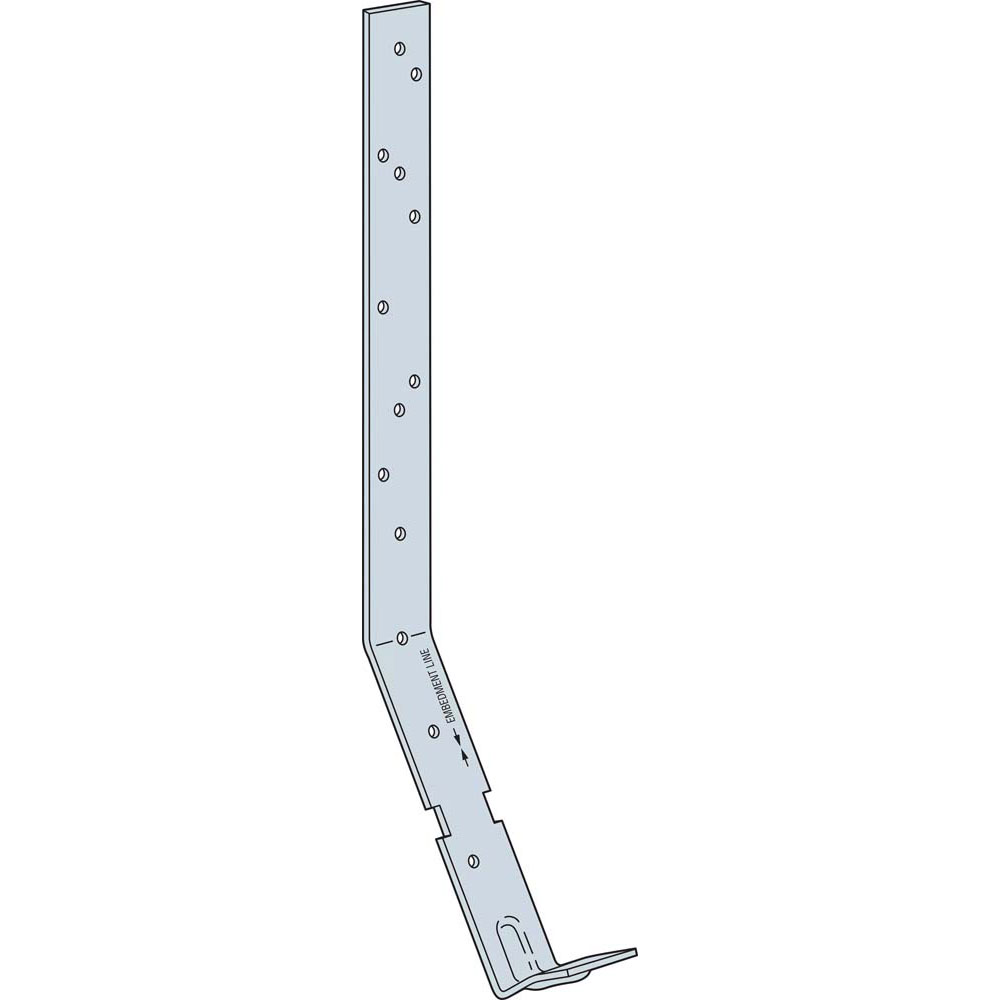

• Can be installed straight or bent to suit various applications.
• Helps boost uplift resistance and reduce the risk of wood splitting.

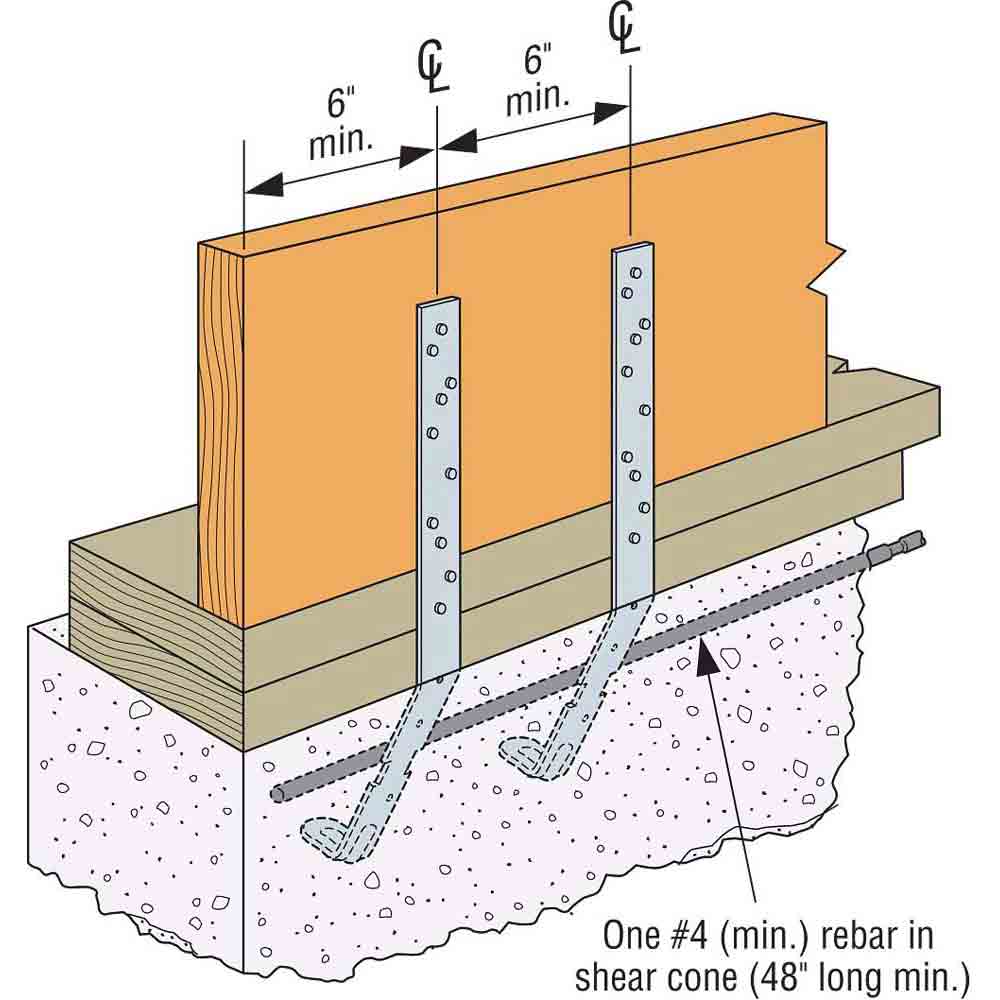

• May be installed in pairs to increase load capacity on single- and multi-ply trusses.
• Built to handle demanding structural loads and harsh environments.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Package Quantity	1
Coating	Zinc Galvanized, G90
Color	None
Gauge	16
State Of Florida Approvals	FL11473
Hazmat	NO
UPC Per Each	44315206603
Carton Quantity	50
Carton UPC	10044300000000
Pallet Quantity	2400
Pallet UPC	50044300000000
