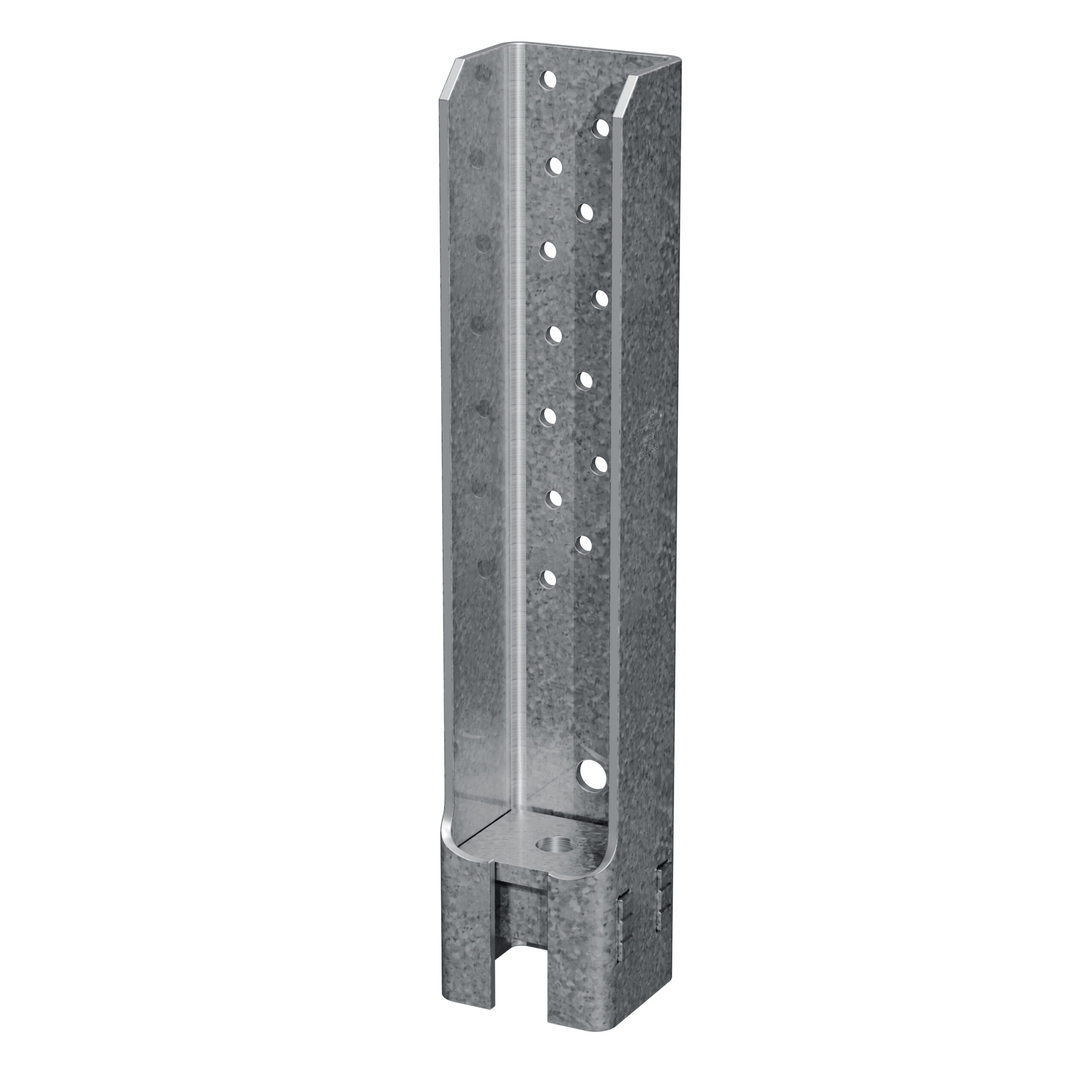

Simpson Strong-Tie HDQ8-SDS3 HDQ 14-in. Galvanized Holdown w/ Strong-Drive SDS Screws

Simpson Strong-Tie HDQ8-SDS3 HDQ 14-in. Galvanized Holdown w/ Strong-Drive SDS Screws

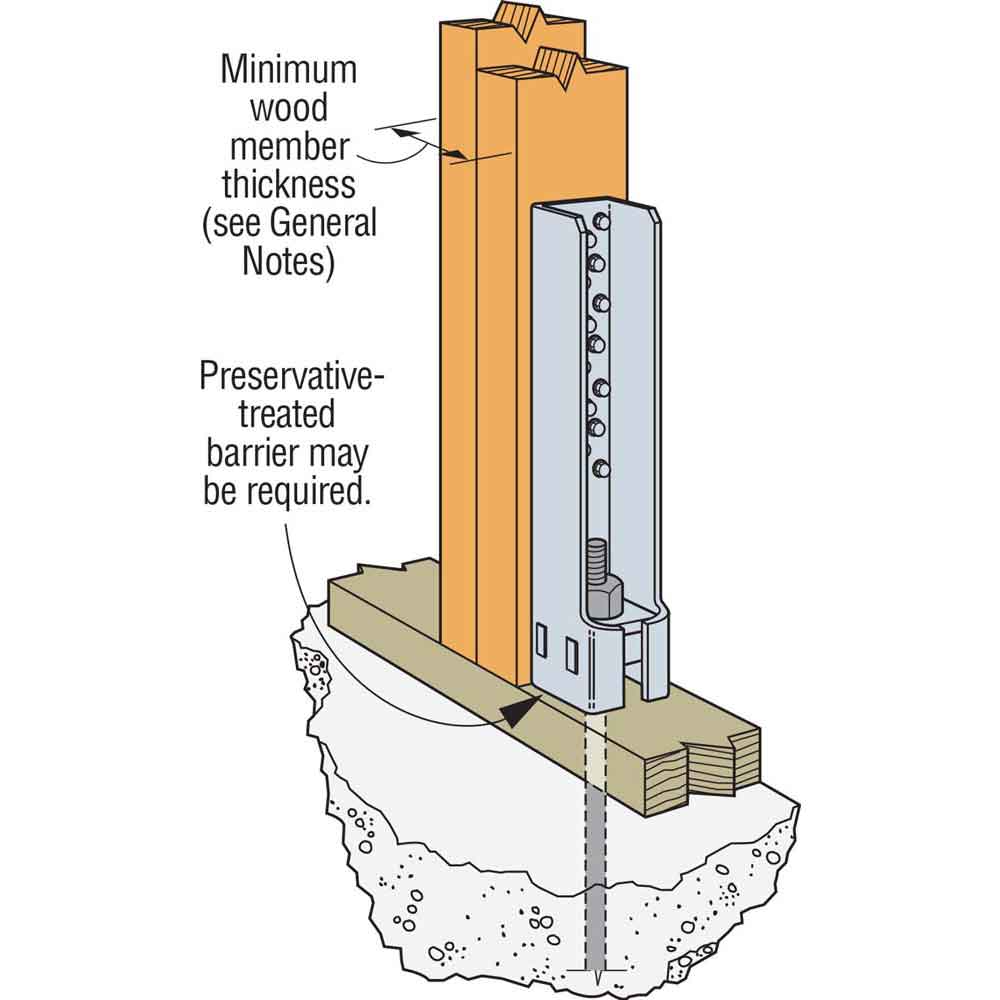

The Simpson Strong-Tie HDQ8-SDS3 is a high-capacity holdown designed for demanding structural applications requiring uplift and shear resistance. Ideal for use in wood framing and anchorage to concrete, the HDQ8 provides enhanced performance, minimal deflection, and easy installation with Strong-Drive SDS Heavy-Duty Connector screws included. Its unique raised seat design minimizes deflection under load and allows for installation above the sill plate without reducing capacity. Engineered with no need for countersinking stud bolts, the HDQ simplifies the framing process around openings and tight areas.

HDQ8-SDS3Includes:

Includes 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws

Key Features

• Ensures correct installation and superior hold.
• Allows installation above the sill plate, reducing deflection.
• Clean, efficient installation near framed openings.
• 7-gauge steel provides excellent durability.
• Screws can be driven flush or raised with no load penalty.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	3
Assembled Height (in)	14
Assembled Depth (in)	2.5
Package Quantity	1
Coating	Zinc Galvanized, G90
Color	None
Gauge	7
ICC-ES Reports	ESR-2330|ESR-2523 (Index)
State Of Florida Approvals	FL10441
Hazmat	NO
UPC Per Each	707393000000
Carton Quantity	6
Carton UPC	10707400000000
Pallet Quantity	324
Pallet UPC	50707400000000
