Simpson Strong-Tie H2.5AZ H2.5A 18-Gauge ZMAX Galvanized Hurricane Tie

Simpson Strong-Tie H2.5AZ H2.5A 18-Gauge ZMAX Galvanized Hurricane Tie

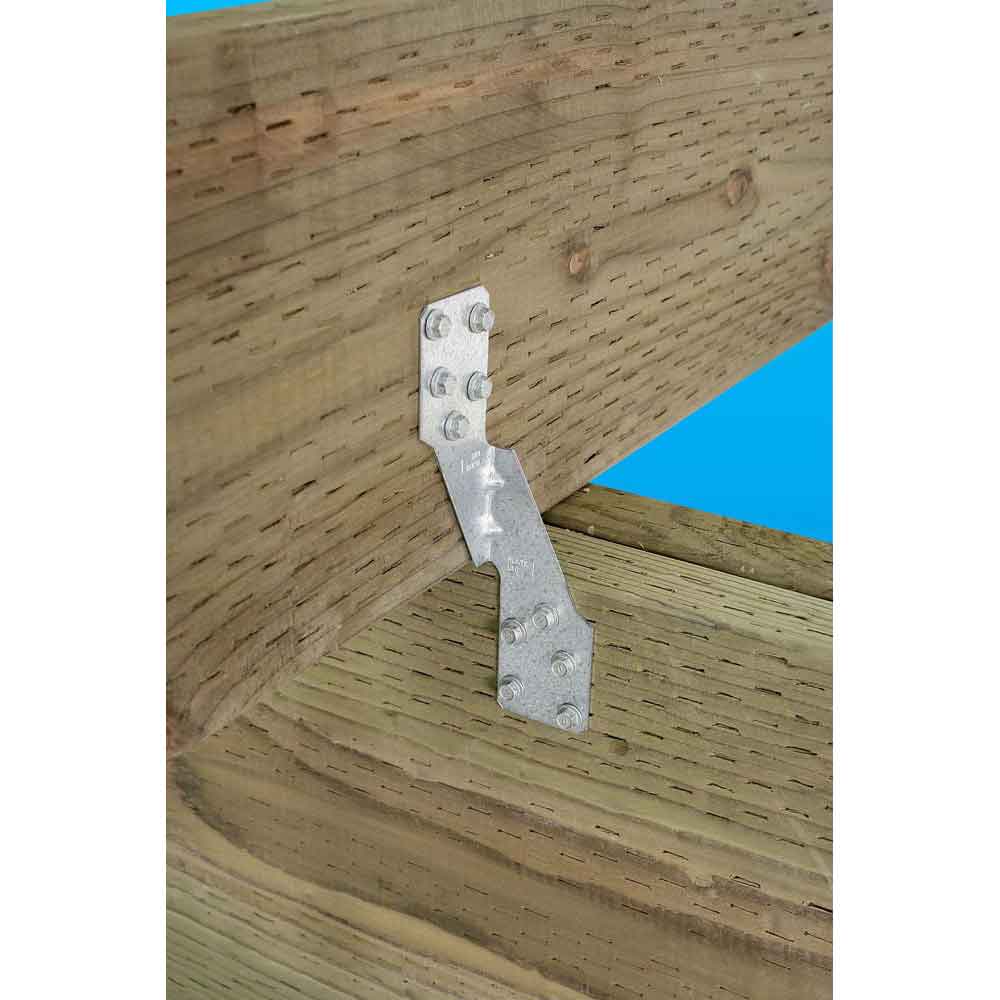

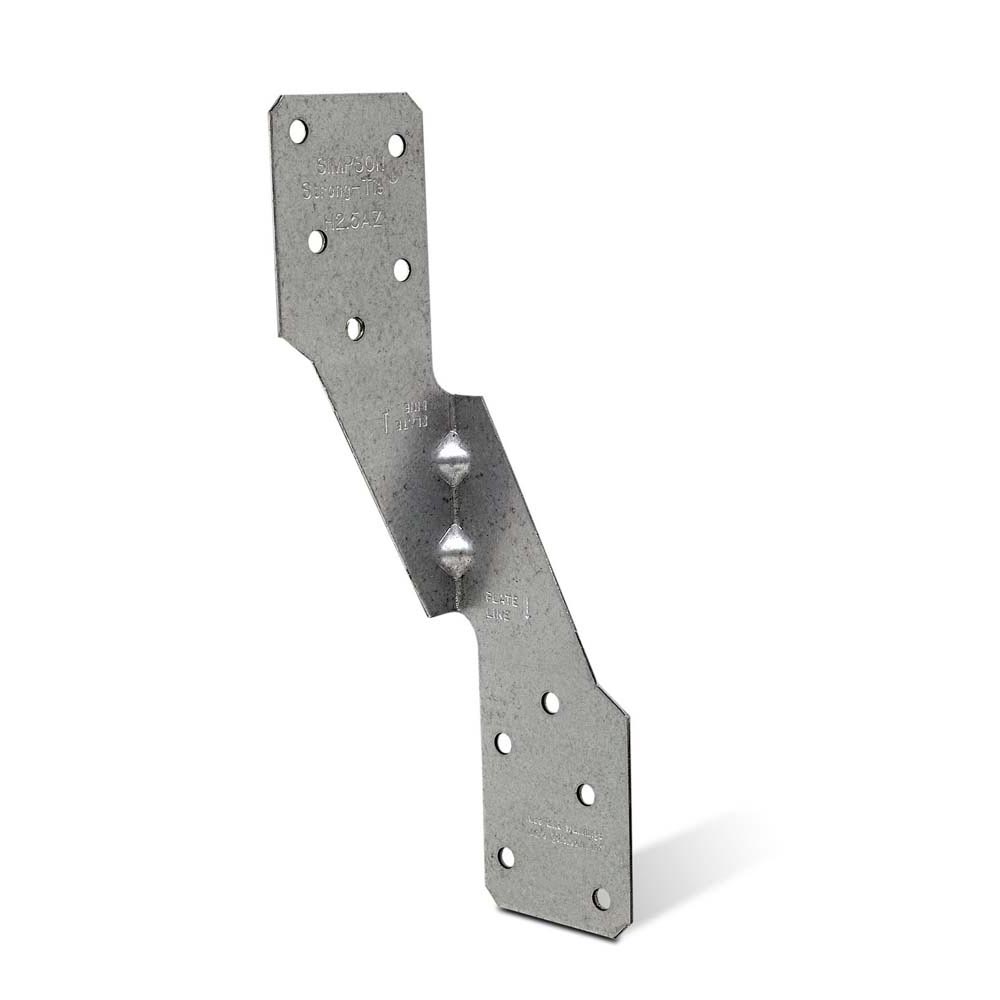

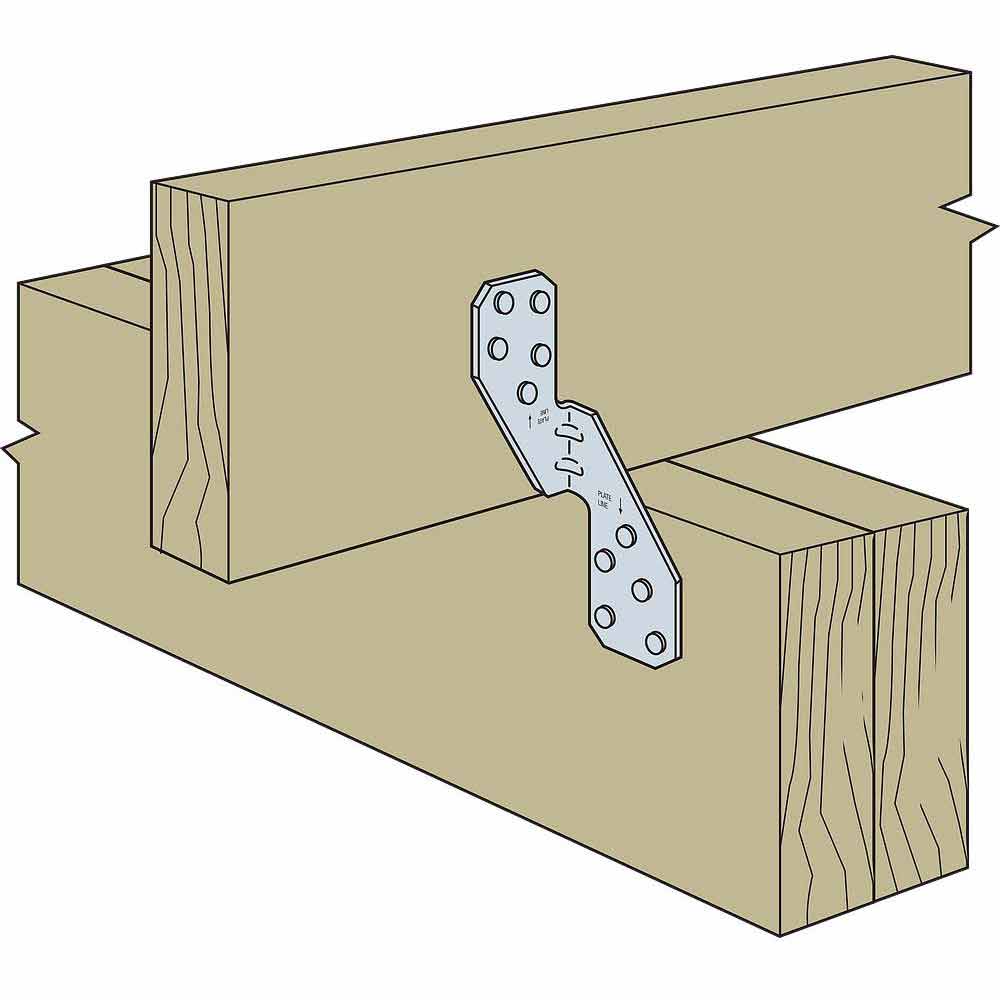

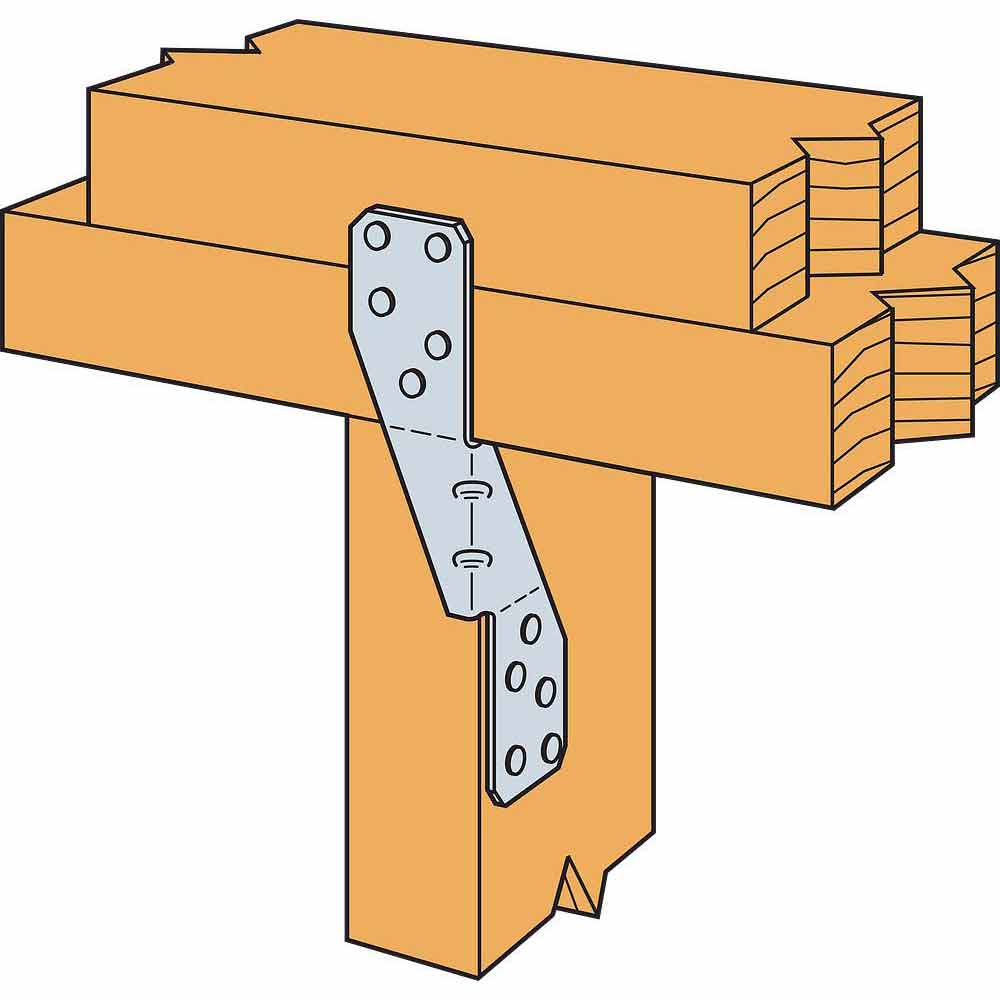

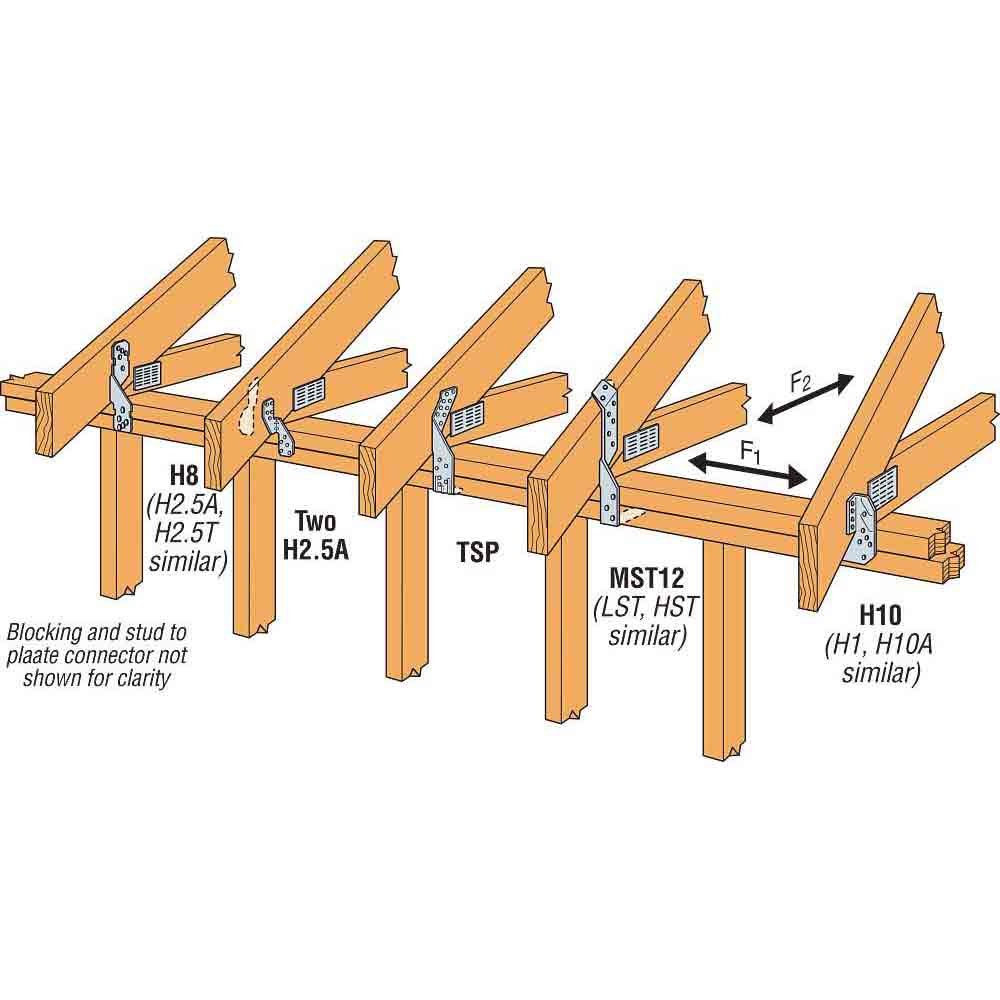

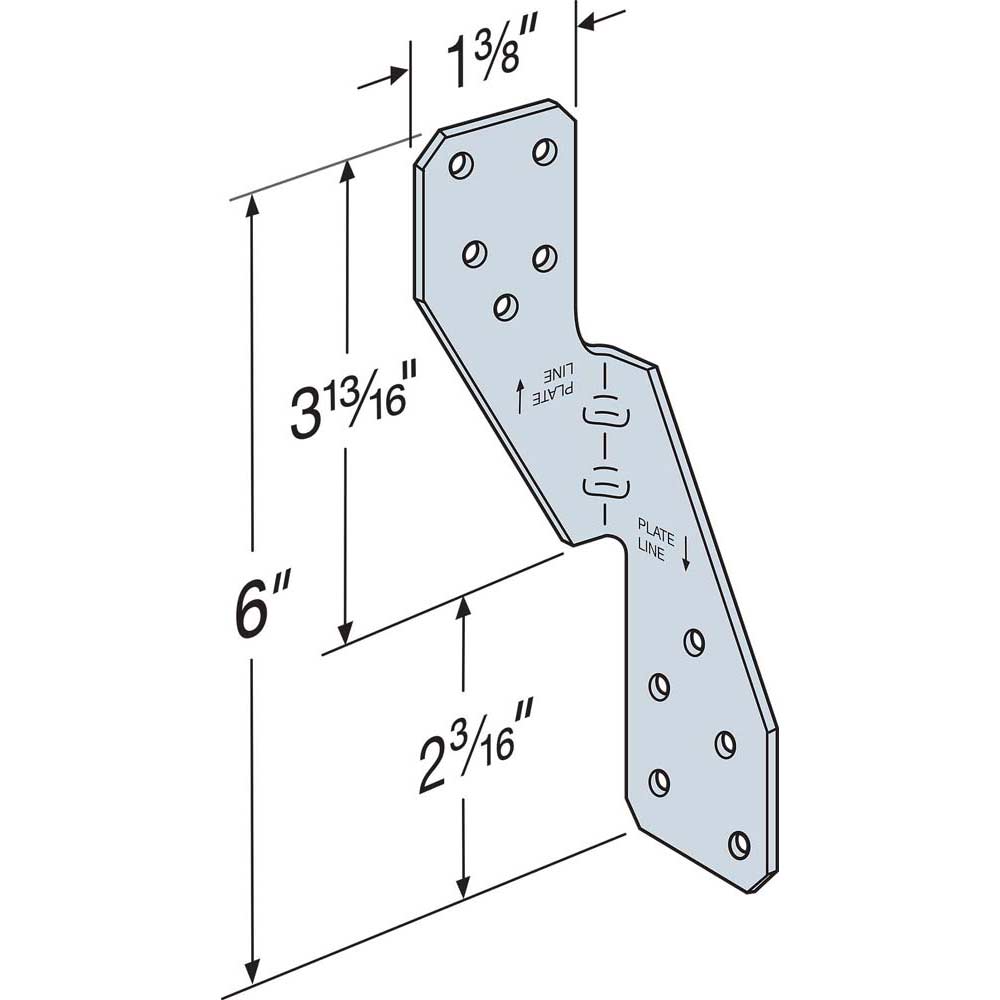

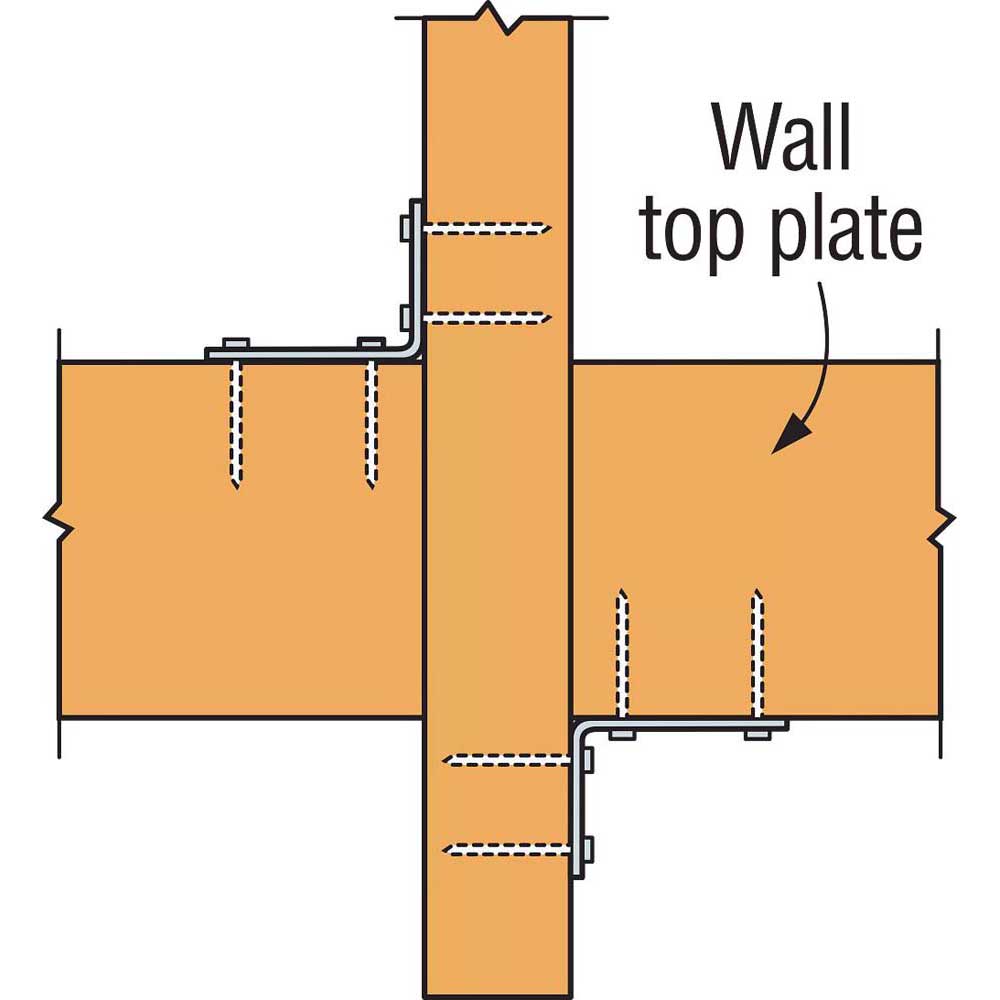

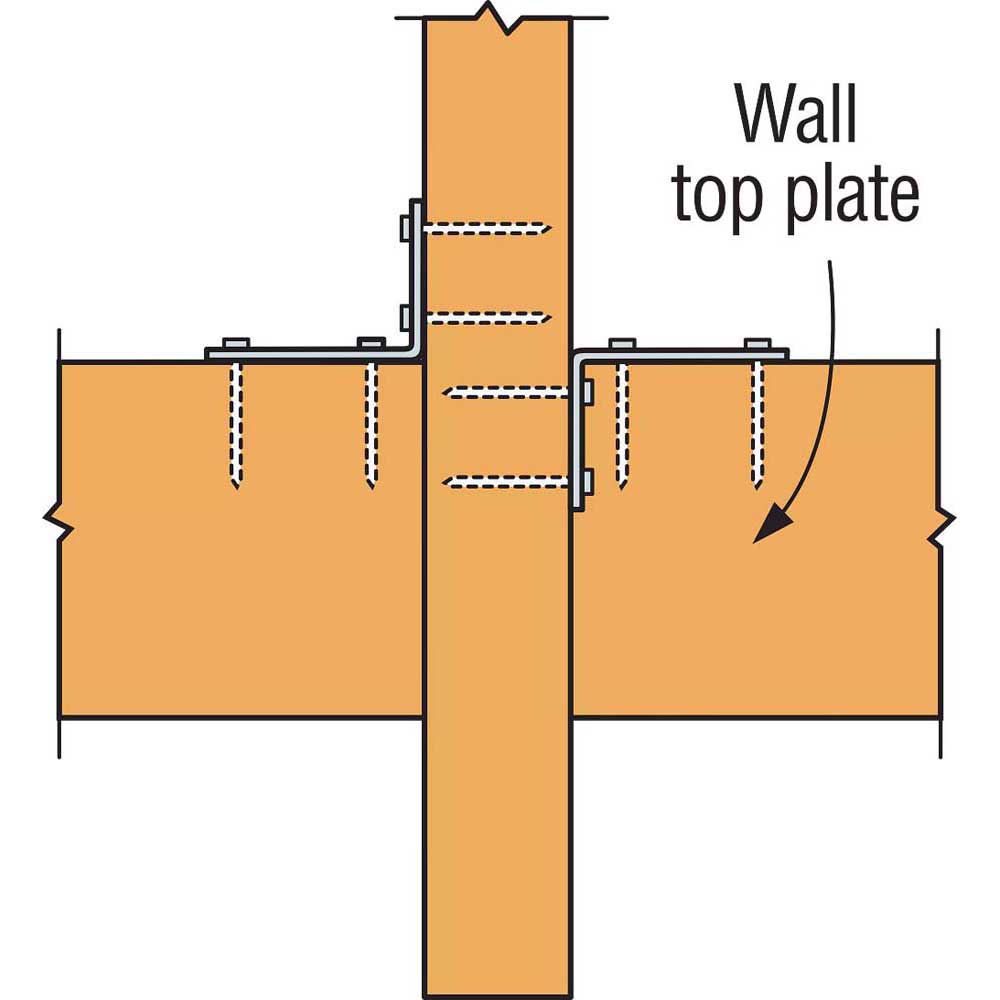

The Simpson Strong-Tie H2.5AZ hurricane tie is a single-sided connector engineered for moderate load resistance at the rafter or truss-to-top plate connection. As a vital component of a continuous load path, it helps secure structures against lateral and uplift forces caused by wind and seismic activity. The symmetrical design allows for easy installation on either side, reducing inventory needs by eliminating right- or left-specific parts. Built from 18-gauge steel with a ZMAX galvanized coating, the H2.5AZ offers enhanced corrosion resistance, making it ideal for both interior and exterior wood construction.

Key Features

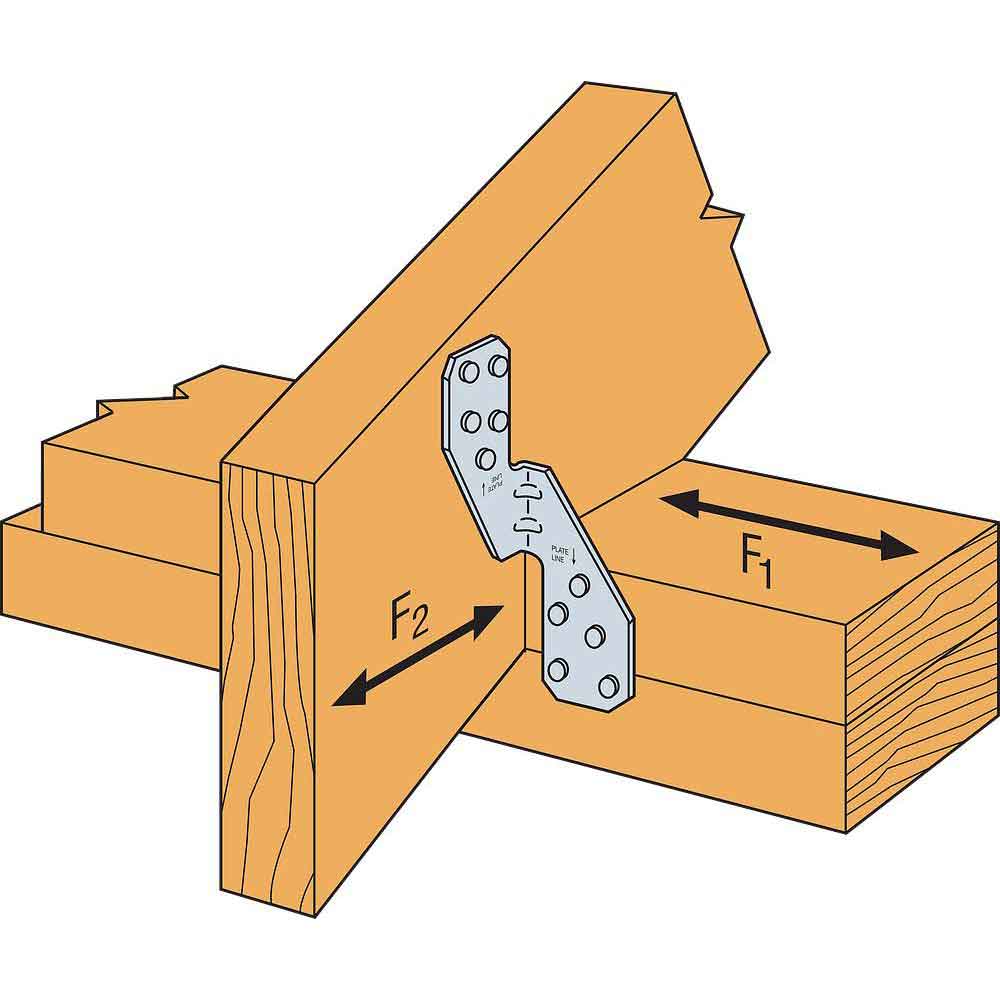

• Resists lateral and uplift loads to support structural integrity.
• No need for left/right versions, simplifying ordering and installation.
• Reinforces the connection point for added strength.
• Top plate flange includes an arrow line to guide correct positioning.
• ZMAX galvanized coating suitable for outdoor or treated wood applications

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	1.6105
Assembled Height (in)	6
Assembled Depth (in)	1.6105
Package Quantity	1
Coating	ZMAX
Color	None
Gauge	18
ICC-ES Reports	ESR-2613|ESR-3096|ESR-2523 (Index)
State Of Florida Approvals	FL10456
Hazmat	NO
UPC Per Each	707392000000
Carton Quantity	100
Carton UPC	10707400000000
Pallet Quantity	7200
Pallet UPC	50707400000000
