Simpson Strong-Tie H1Z H1 18-Gauge ZMAX Galvanized Hurricane Tie

Simpson Strong-Tie H1Z H1 18-Gauge ZMAX Galvanized Hurricane Tie

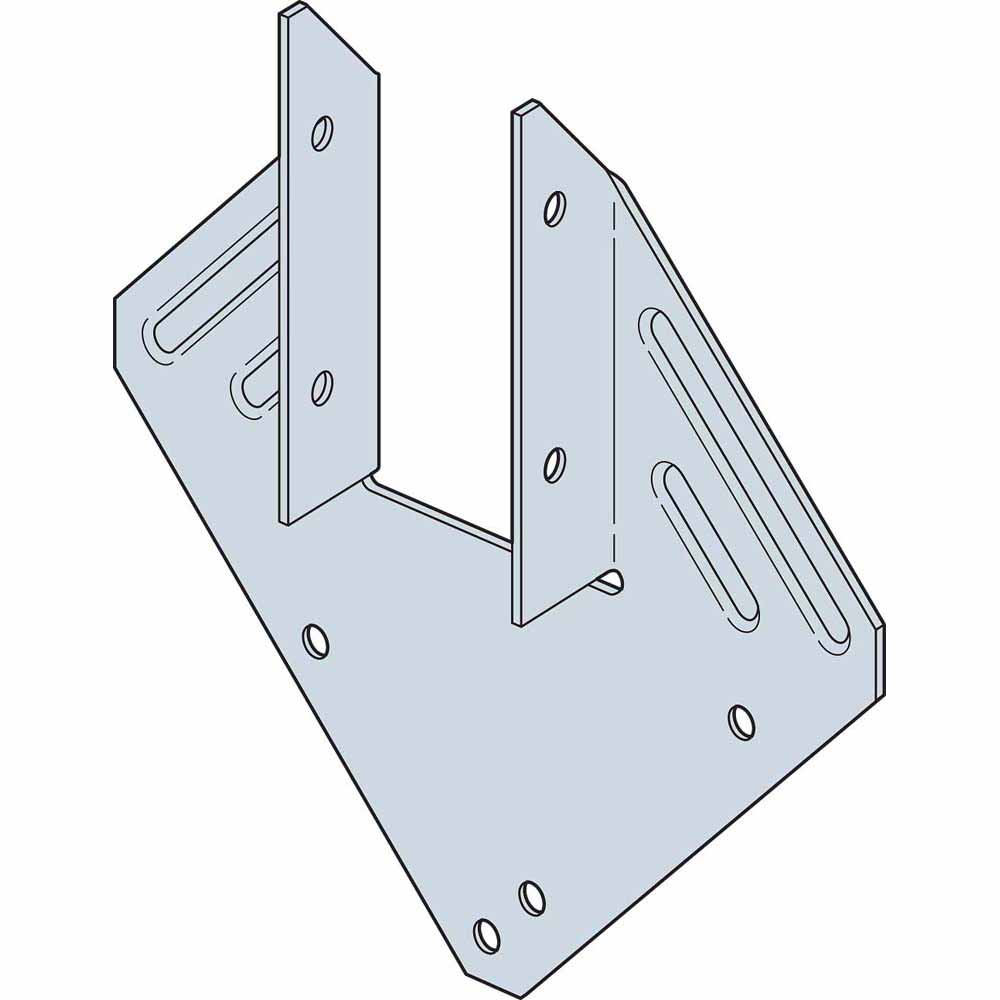

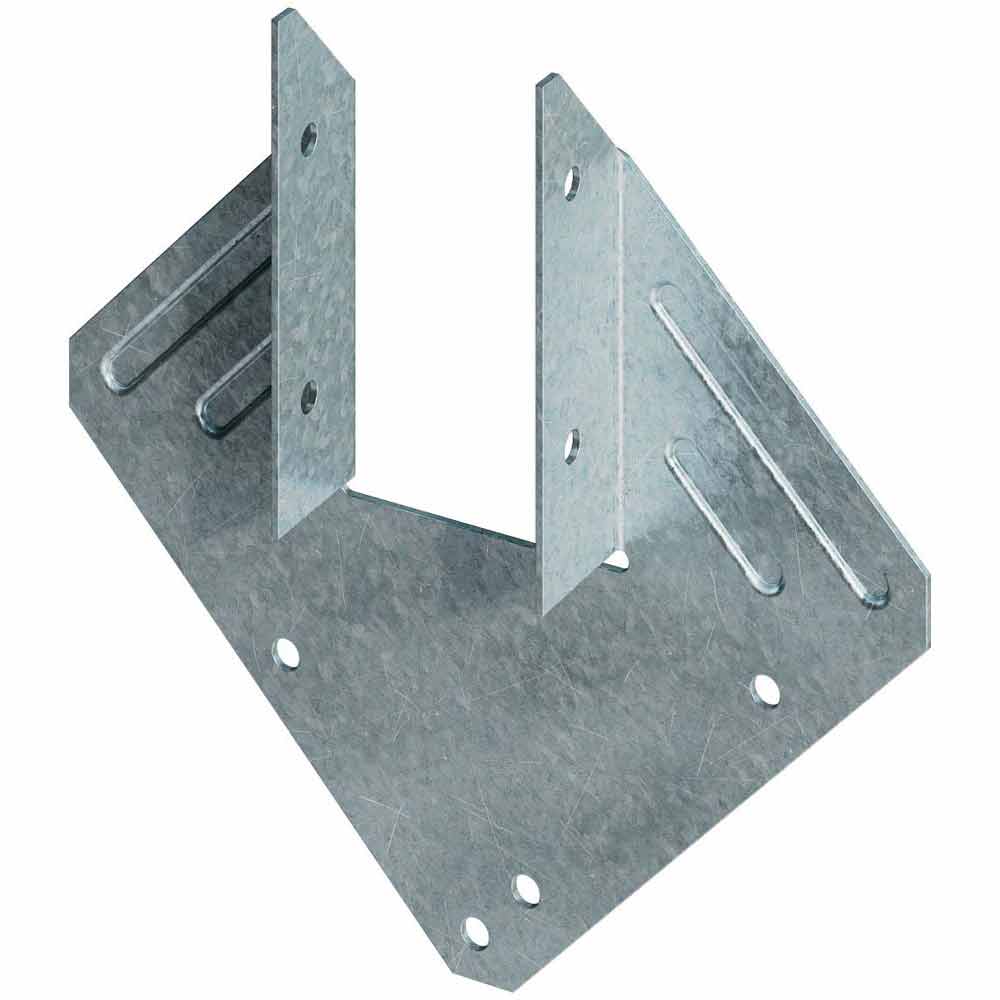

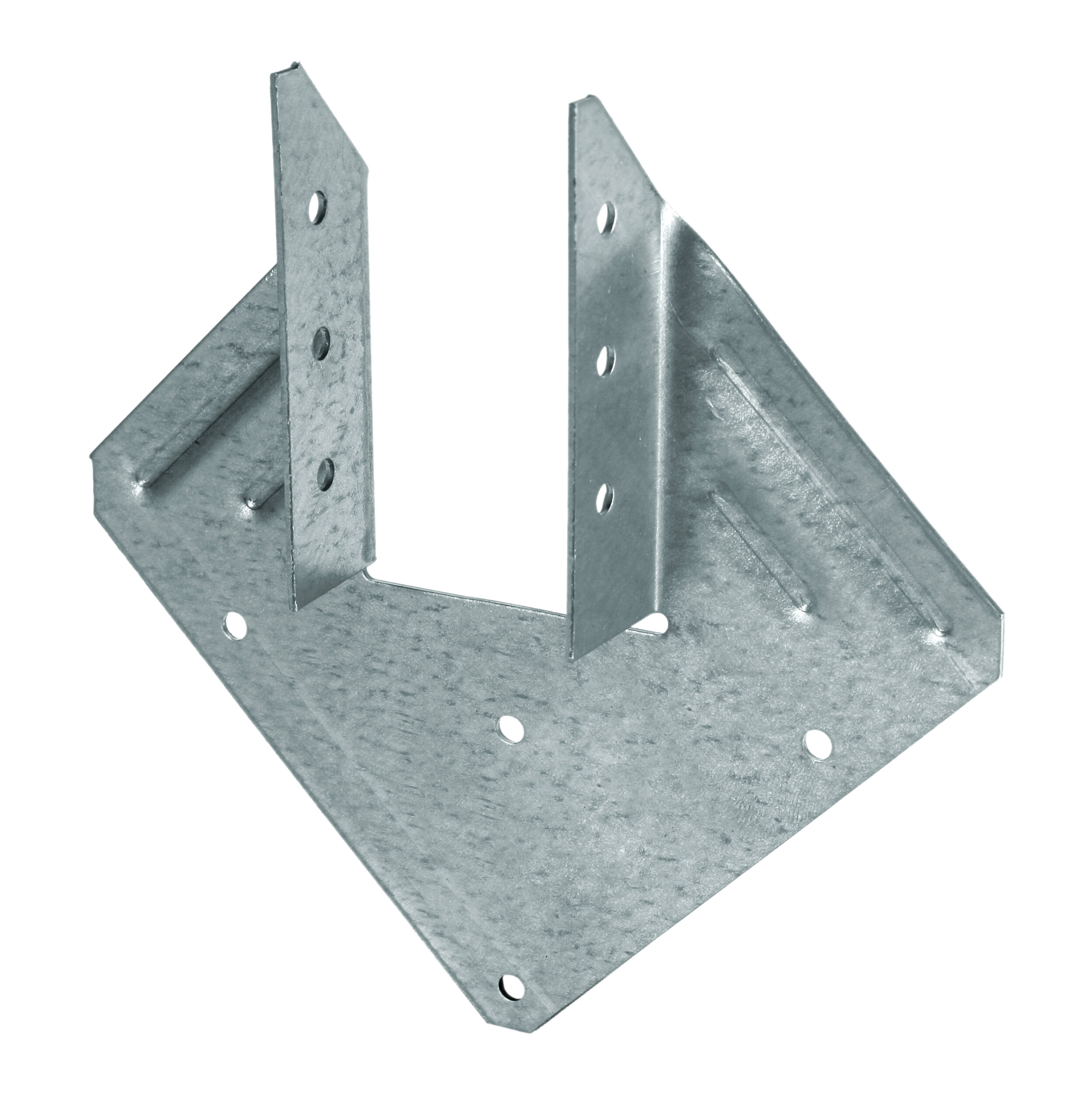

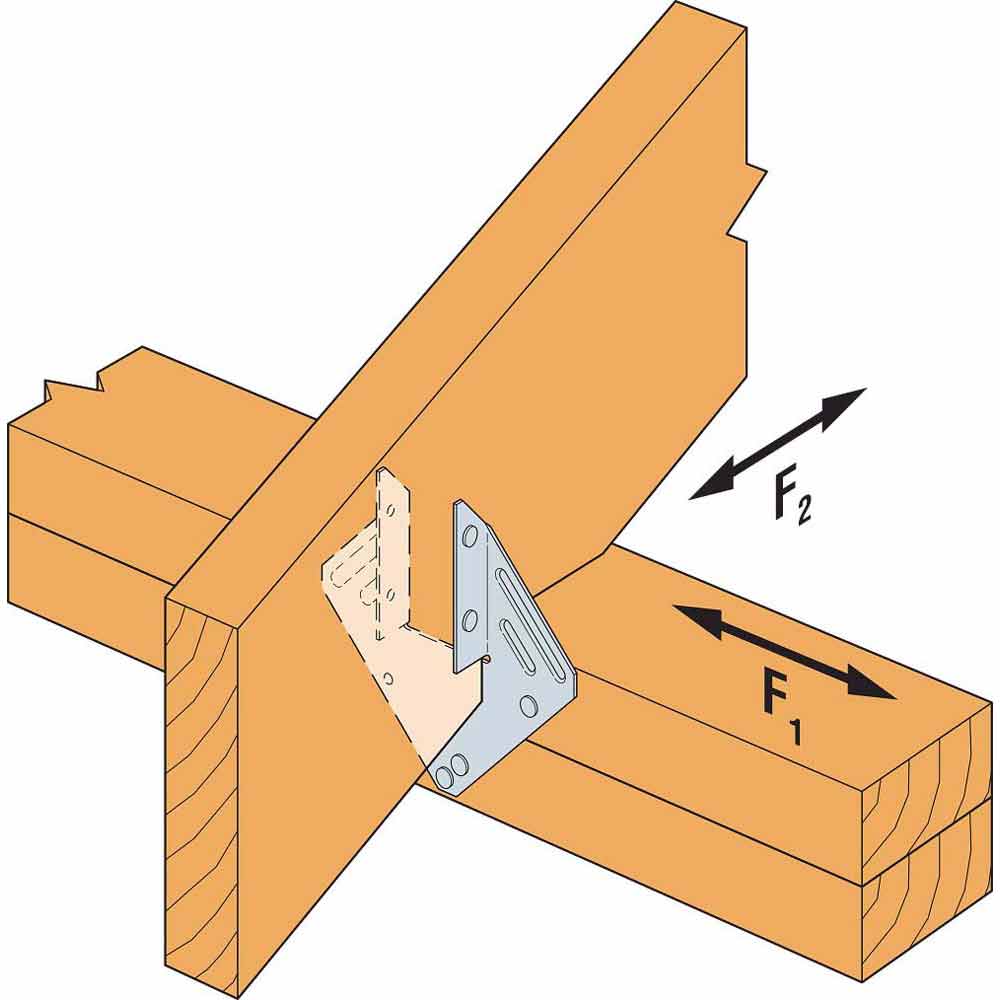

The Simpson Strong-Tie H1Z is a versatile and durable hurricane tie engineered to reinforce the connection between the roof and wall framing, helping resist uplift and lateral forces caused by high winds and seismic activity. Designed for nominal 2x lumber, this U-shaped connector holds the rafter or truss on both sides for high lateral load resistance and faster installation compared to using two single-sided ties. The H1Z features embossments that strengthen critical areas of the tie for enhanced performance and reliability. Its ZMAX® galvanized finish provides additional corrosion protection, making it ideal for both interior and exterior applications.

Key Features

• Connects both sides of the rafter/truss for increased load resistance.

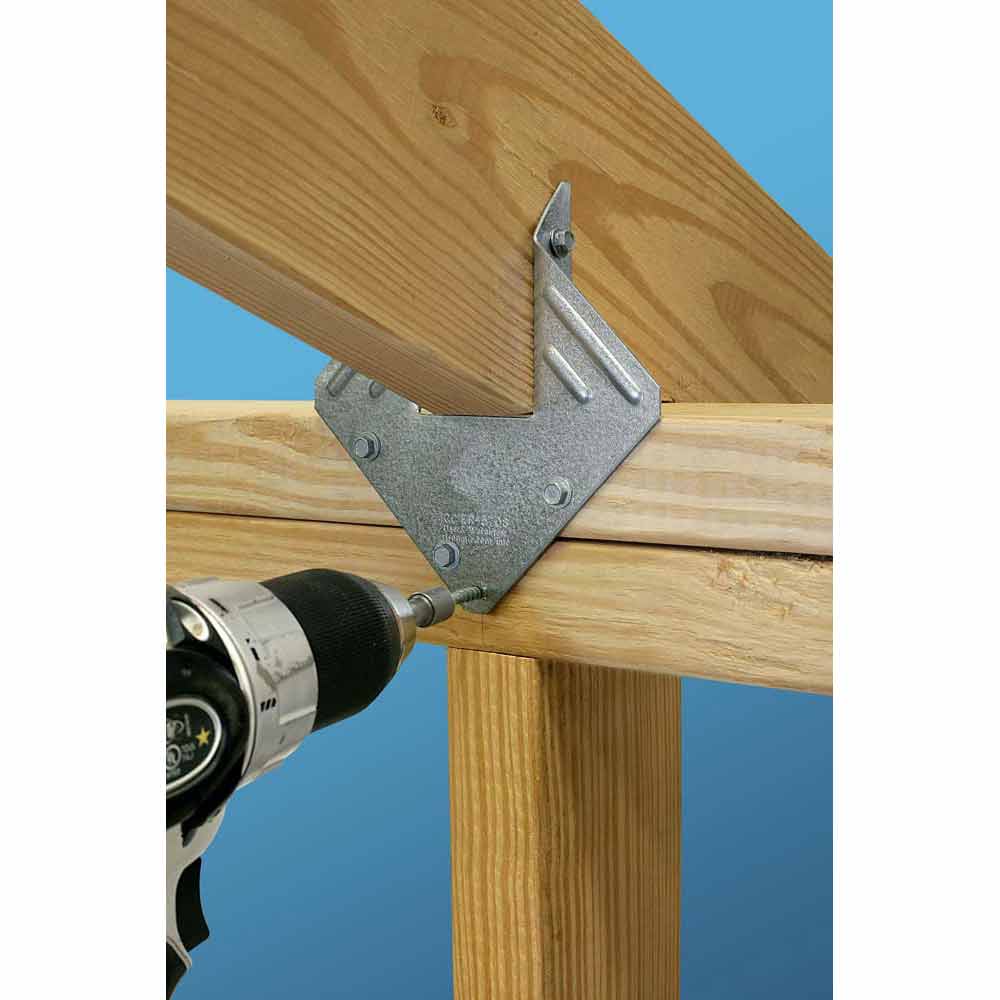

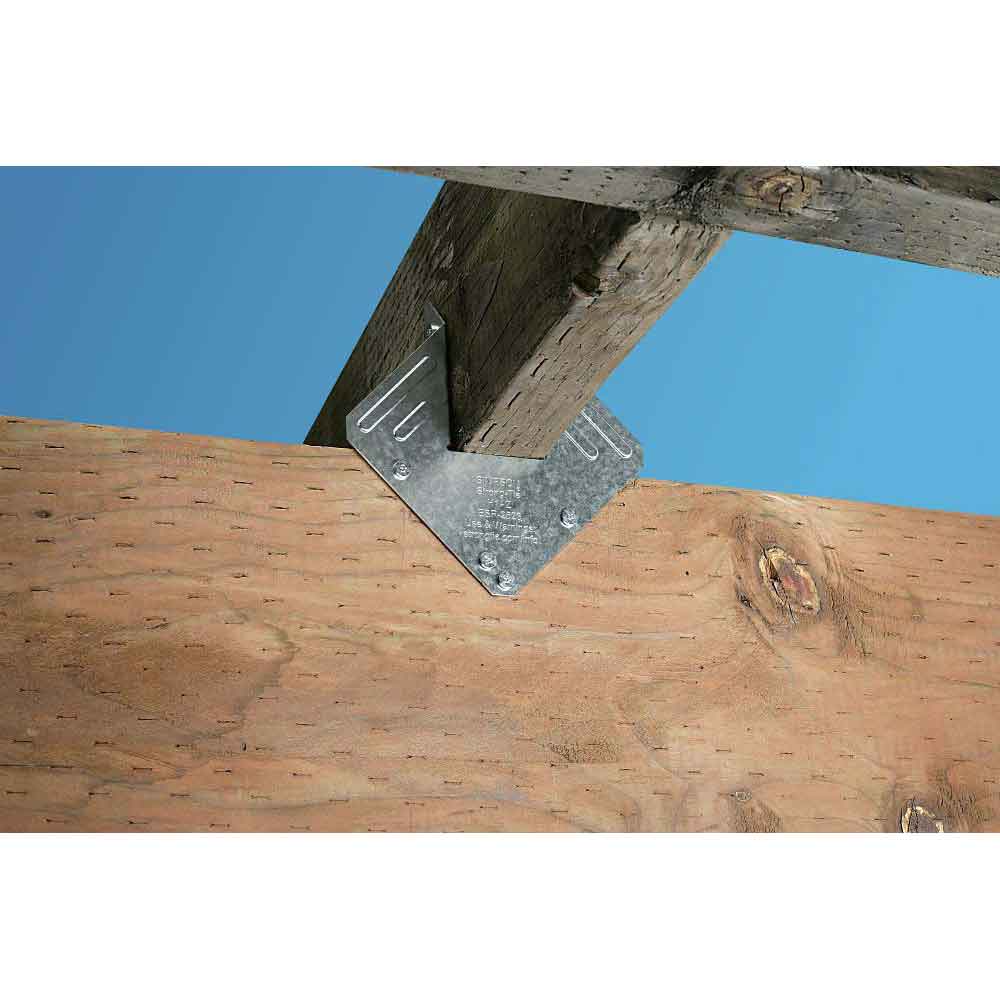

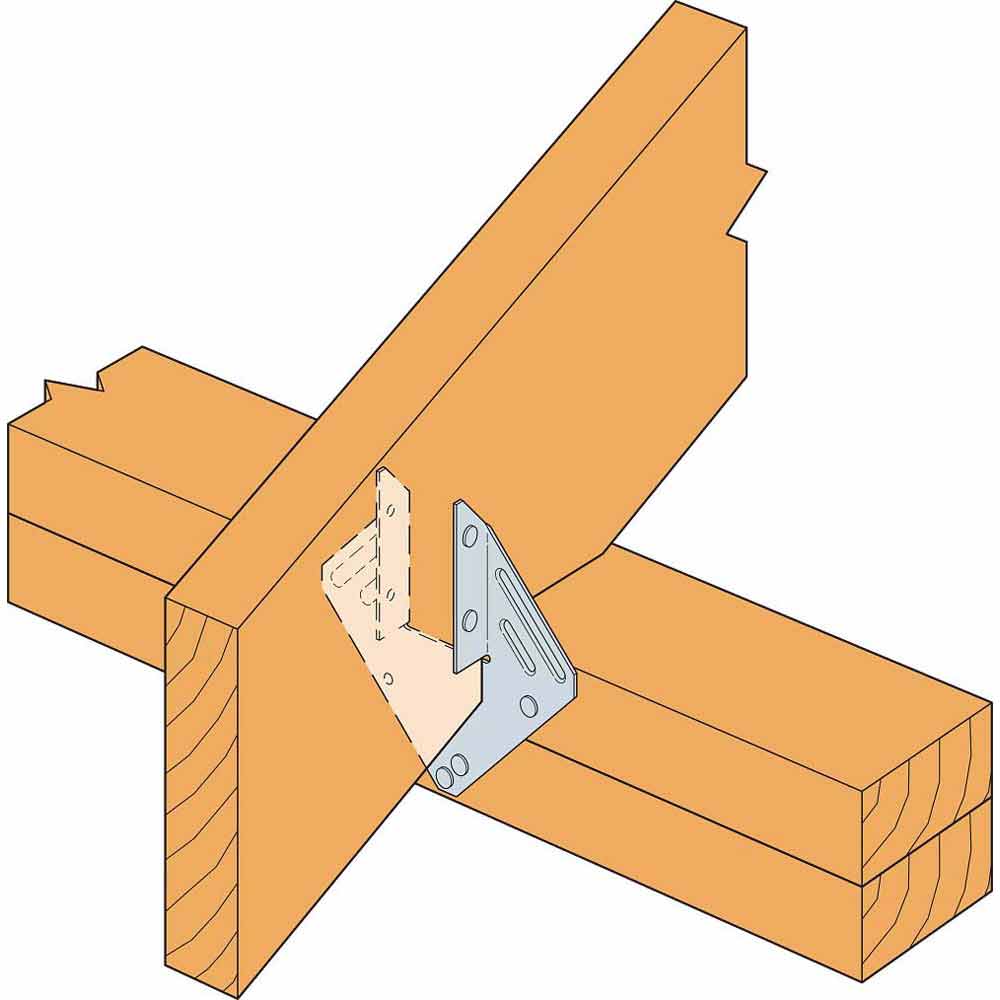

• Mount inside or outside wall, with flanges facing in or out.
• Faster to install than two separate ties.
• Embossments provide added stiffness where it counts.
• Engineered to meet structural and seismic requirements.
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications

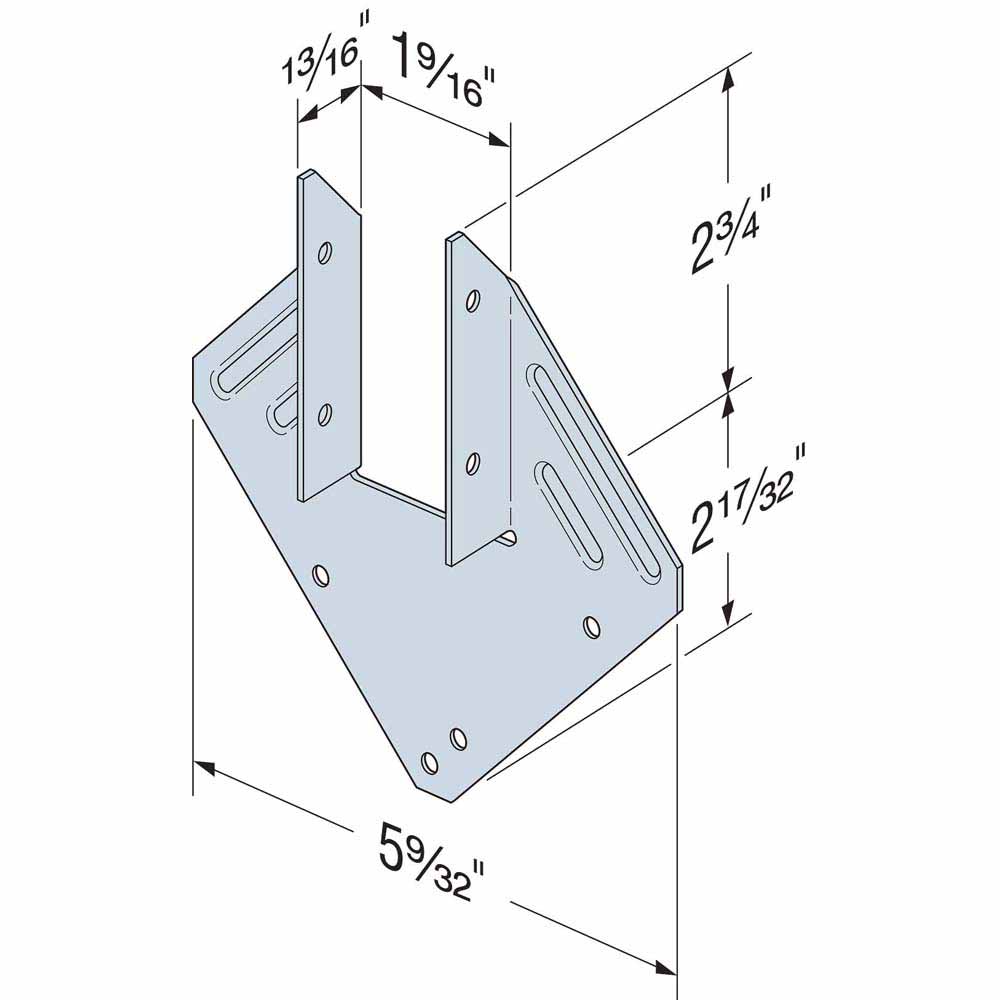

Assembled Width (in)	5.28125
Assembled Height (in)	5.28125
Assembled Depth (in)	0.923
Package Quantity	1
Coating	ZMAX
Color	None
Gauge	18
ICC-ES Reports	ESR-2613|ESR-3096|ESR-2523 (Index)
State Of Florida Approvals	FL10456
Hazmat	NO
UPC Per Each	707392123101
Carton Quantity	100
Carton UPC	10707400000000
Pallet Quantity	4800
Pallet UPC	50707400000000
