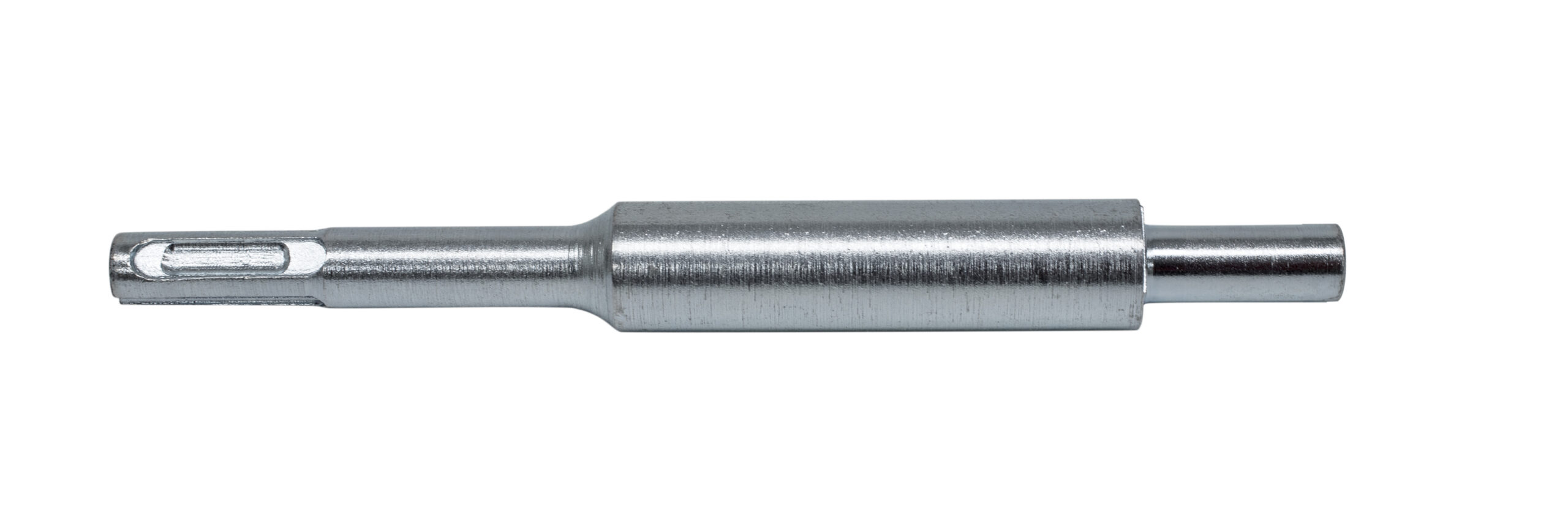

Simpson Strong-Tie DIABST50-SDS SDS-plus Setting Tool for 1/2-in. Rod DIAB Drop-In Anchor

The drop-in anchor setting tool is designed for properly and consistently installing Simpson Strong-Tie Drop-In internally threaded anchors. Using the setting tool, drop-ins are installed by driving the expander plug toward the bottom of the anchor until the shoulder of the setting tool makes contact with the top of the anchor.

• Caution: Oversized holes will make it difficult to set the anchor and will reduce the anchor?s load capacity

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.
