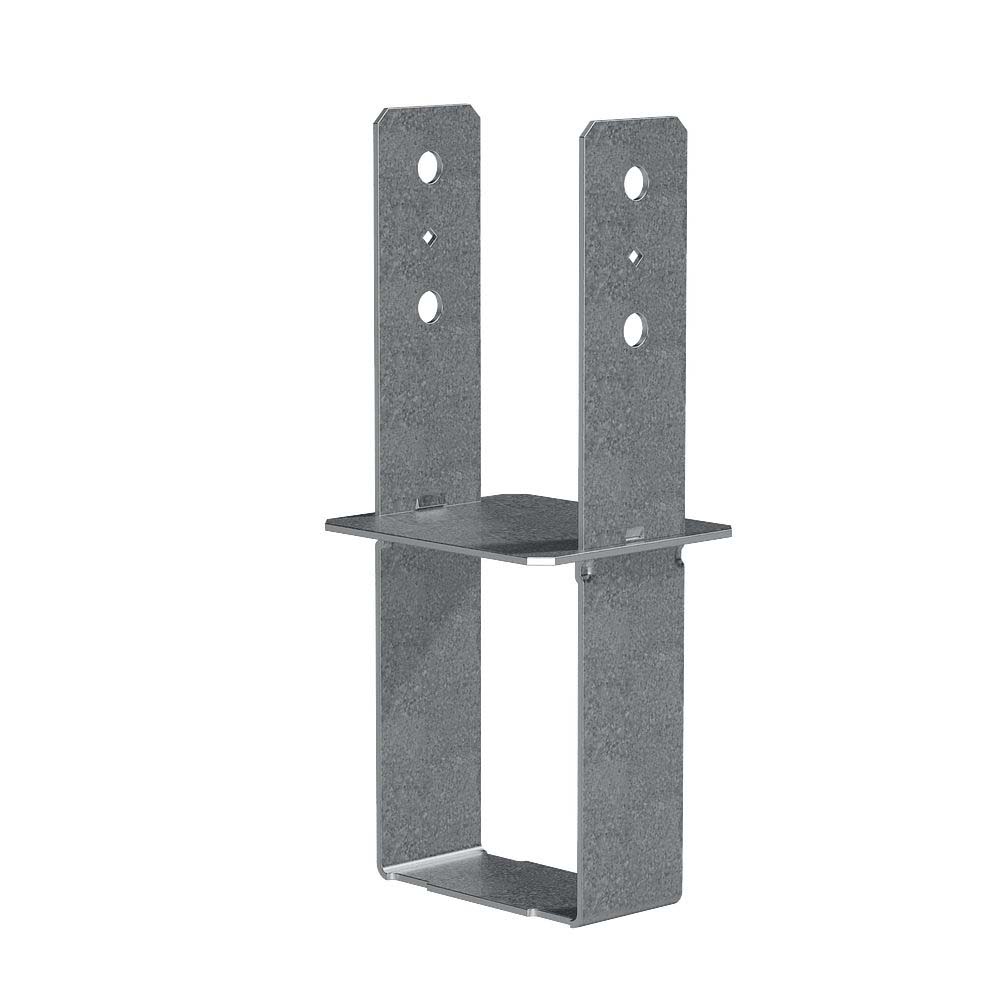

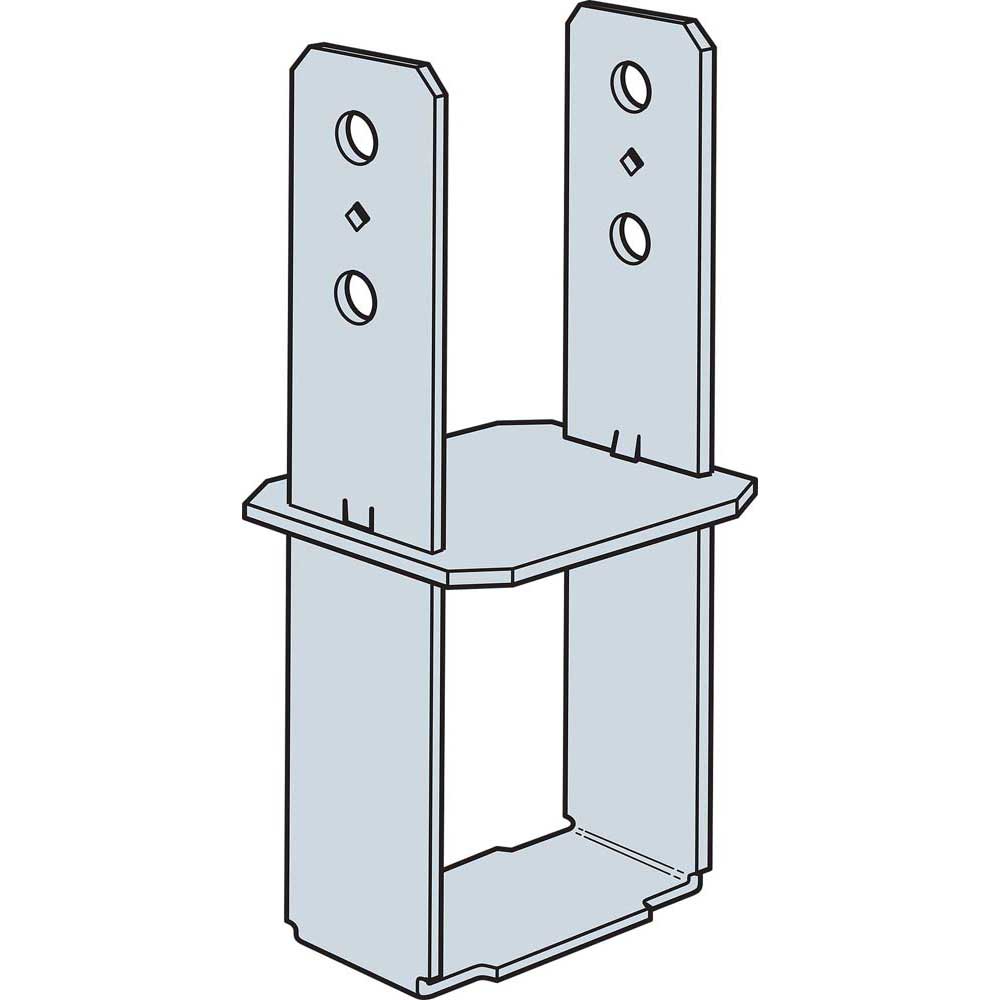

Simpson Strong-Tie CB66 CB Galvanized Column Base for 6×6

Simpson Strong-Tie CB66 CB Galvanized Column Base for 6×6

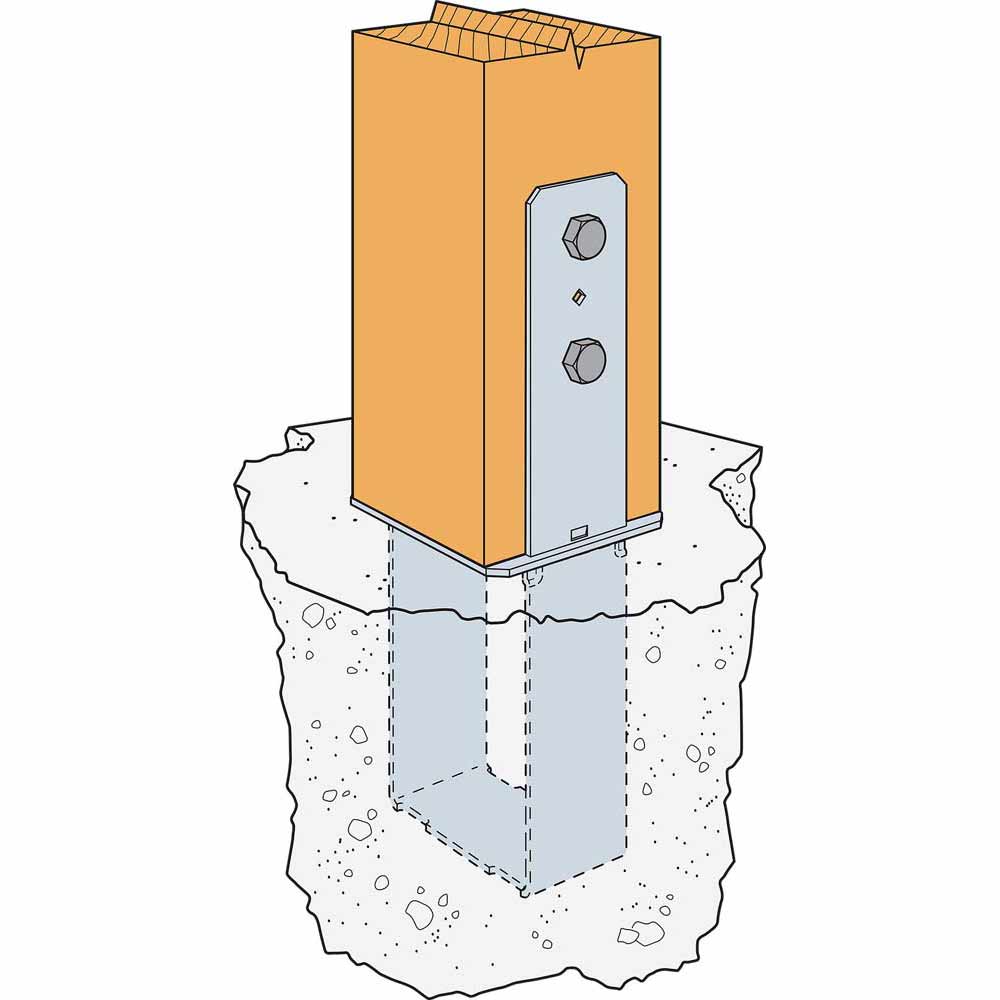

The Simpson Strong-Tie CB66 is a high-strength column base designed to securely connect 6×6 posts to concrete foundations. Engineered for rugged performance, the CB66 offers exceptional uplift resistance, making it ideal for applications where wind or seismic forces are a concern. Whether for lumber, glulam, or engineered wood products, this galvanized column base provides a reliable foundation for a variety of construction projects. The CB66 can be either cast-in-place or wet set into the concrete, allowing the base plate to sit flush for full post bearing. Its design ensures that the connection provides maximum load-bearing capacity while meeting code-required bolt spacing for added strength and safety.

Features

• Designed to resist wind or seismic loads, ideal for tough conditions.
• Base plate sits flush with concrete for solid post support.
• Bolt hole locations meet code-required spacing for optimized capacity.
• Built for long-term strength in both residential and commercial applications.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	6.4375
Assembled Height (in)	16.923
Assembled Depth (in)	5.5
Package Quantity	1
Coating	Zinc Galvanized, G90
Color	None
Gauge	7
Member Size	6×6
ICC-ES Reports	ESR-3050|ESR-2523 (Index)
State Of Florida Approvals	FL10860
Hazmat	NO
UPC Per Each	44315154201
Carton Quantity	6
Carton UPC	10044300000000
Pallet Quantity	144
Pallet UPC	50044300000000
