Simpson Strong-Tie BC6Z BC ZMAX Galvanized Post Cap for 6x

Simpson Strong-Tie BC6Z BC ZMAX Galvanized Post Cap for 6x

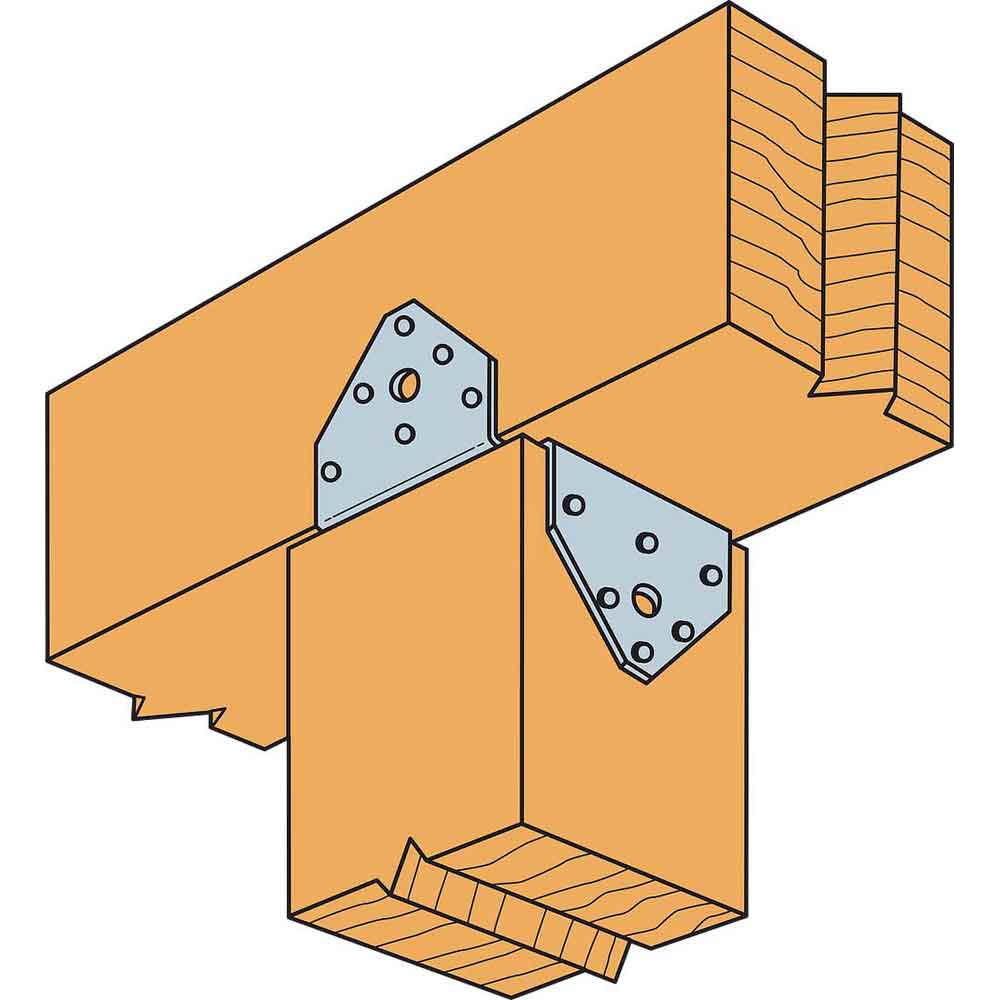

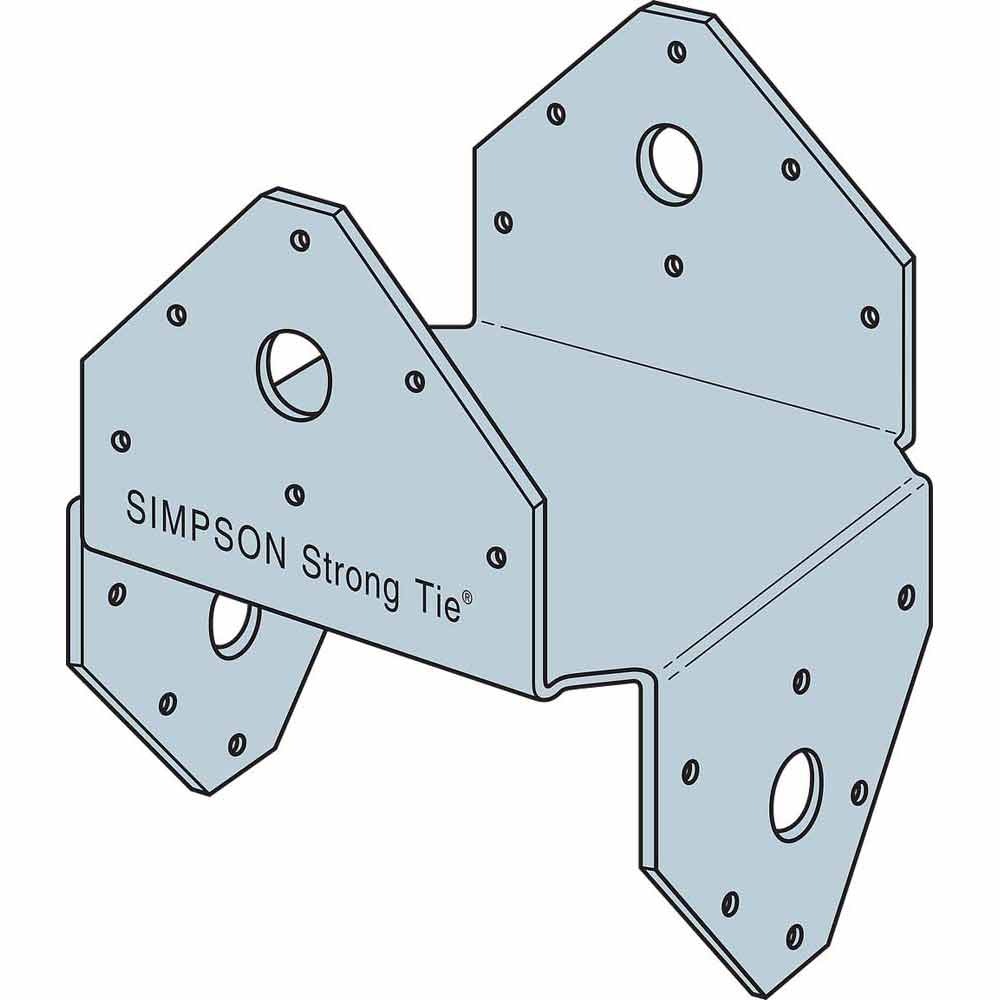

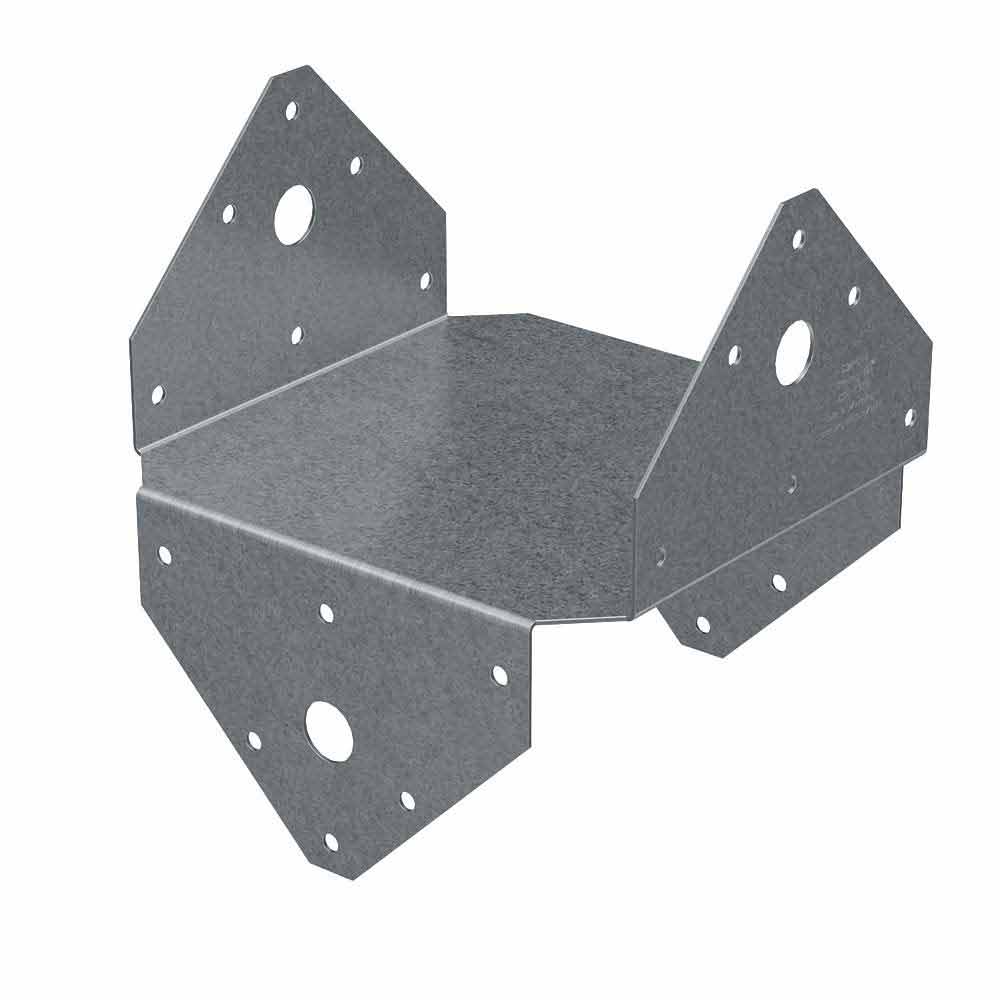

The Simpson Strong-Tie BC6Z post cap is a reliable, light-duty solution for connecting beams to 6x posts in a variety of wood framing applications. Crafted from 18-gauge galvanized steel, this post cap offers both uplift and lateral resistance, helping ensure structural integrity in light framing projects. Designed with opposing flanges, the BC6Z enhances lateral stability, making it a smart and economical choice for decks, patio covers, pergolas, and similar builds. Its ZMAX® galvanized finish provides increased corrosion resistance, especially when used with pressure-treated lumber or in outdoor settings.

Key Features

• Ideal for attaching 6x beams to 6x posts.
• Improves lateral resistance for a more secure connection.
• Achieves full allowable loads with either common or pneumatic nails.
• Manufactured from 18-gauge steel for lighter framing needs.
• Provides enhanced corrosion resistance in exterior or treated lumber applications.
• Made from 18-gauge steel.
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	5.596
Assembled Height (in)	6.798
Assembled Depth (in)	5.596
Package Quantity	1
Coating	ZMAX
Color	None
Gauge	18
Member Size	6x
ICC-ES Reports	ESR-2604|ESR-2523 (Index)
State Of Florida Approvals	FL10860
Hazmat	NO
UPC Per Each	707393000000
Carton Quantity	10
Carton UPC	10707400000000
Pallet Quantity	900
Pallet UPC	50707400000000
