Simpson Strong-Tie BC60Z BC ZMAX Galvanized Post Base for 6x
$18.35
Features:
- BC60Z provides a positive connection for a post to a wood deck
- Stronger than angled nailing or screw fastening
- Reduces the chance of the post splitting and eliminates nailing into end grain
- Not recommended for non top-supported installations (such as fences or unbraced carports)
- Nominal post size: 6x
Building Relationships, Delivering Results
- Fast Shipping
- No Hassle Returns
- Secure Payments
- Family Owned and Operated
- Personal Bilingue
Simpson Strong-Tie BC60Z BC ZMAX Galvanized Post Base for 6x

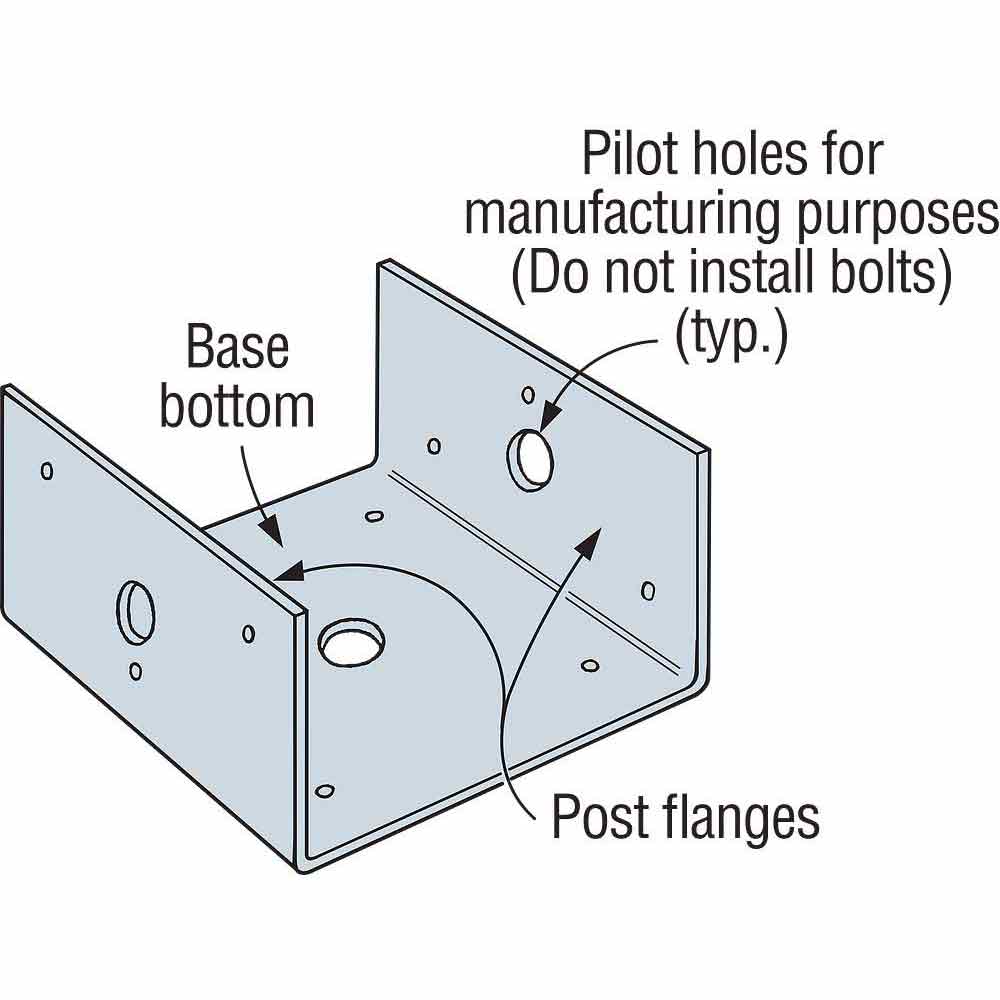

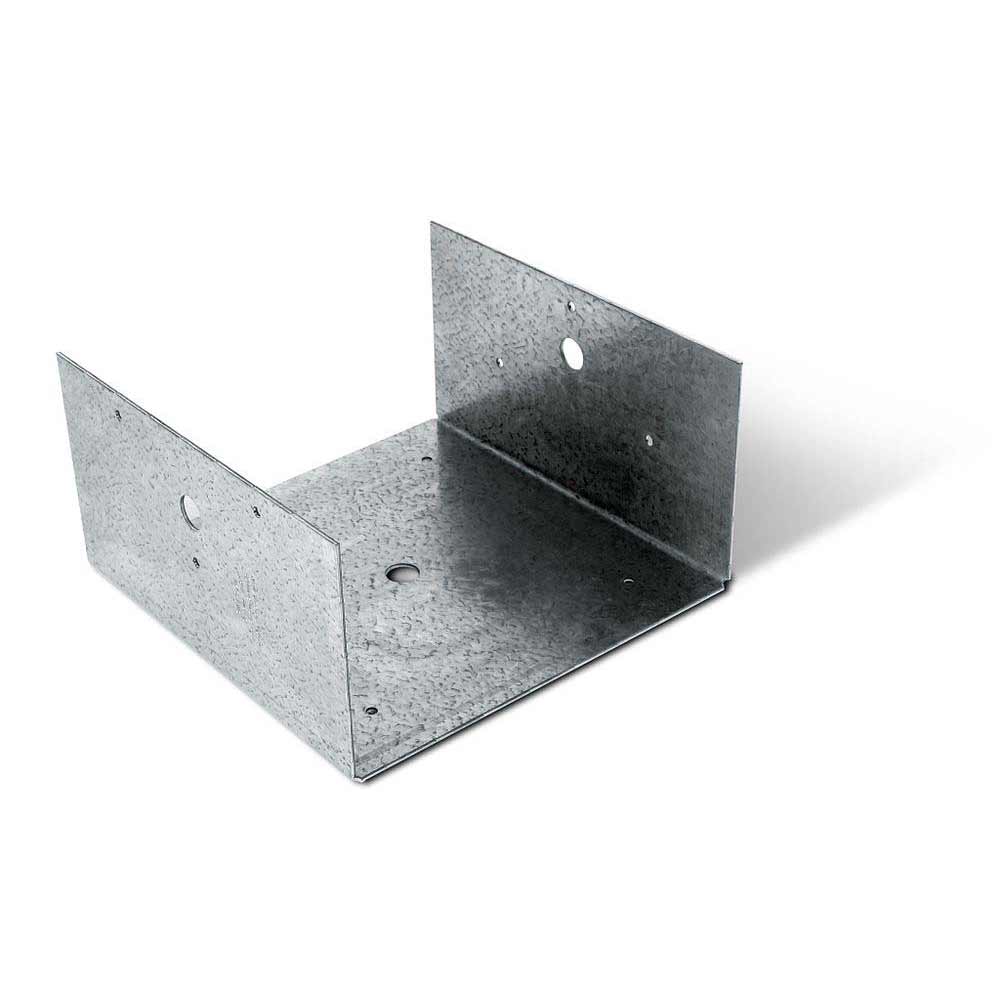

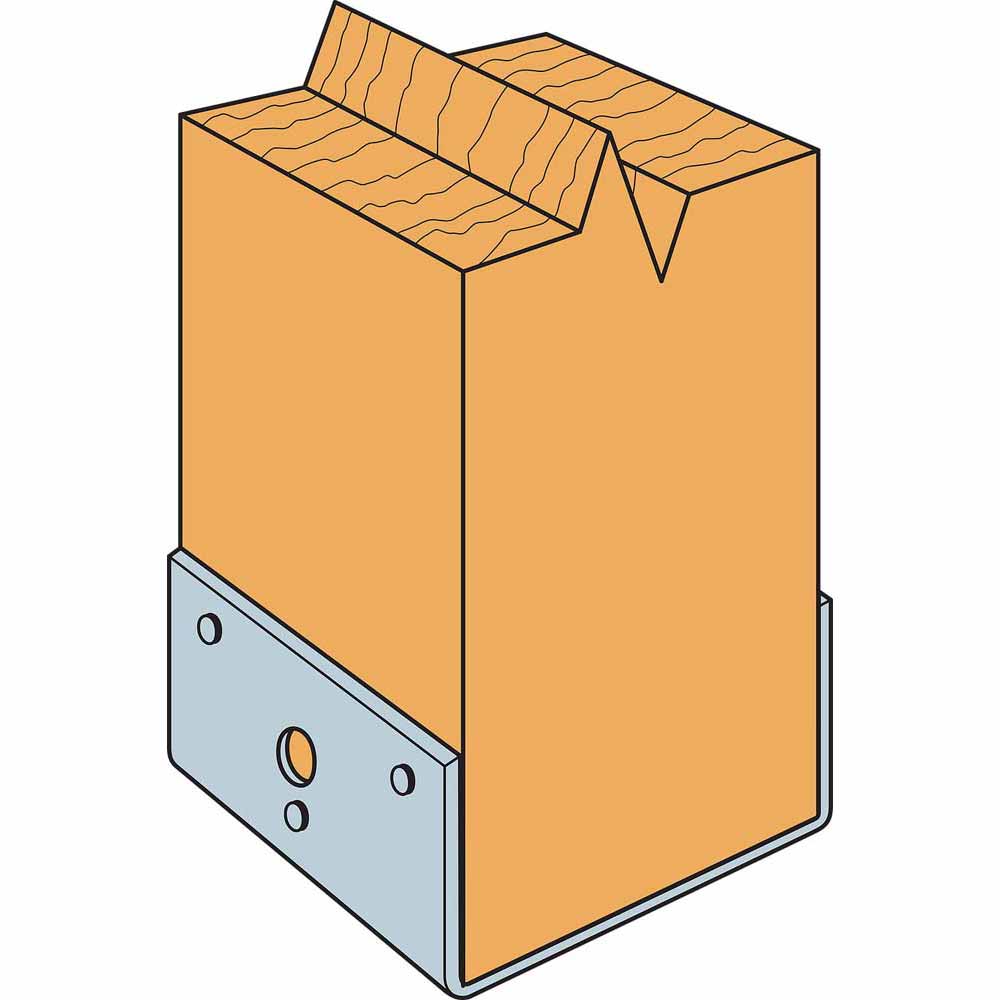

The Simpson Strong-Tie BC60Z is a ZMAX galvanized post base designed to connect a 6x post to a wood supporting member. Made from 18-gauge steel, this post base is ideal for light-duty applications where both uplift and lateral resistance are required. Whether you’re working with nominal or rough lumber, the BC60Z offers a secure and dependable connection. With an opposing nail pattern that minimizes wood splitting and compatibility with both common and pneumatic nail sizes, the BC60Z delivers code-compliant performance and easy installation. Its ZMAX galvanized finish offers enhanced corrosion resistance, making it suitable for indoor and some exterior use.
Key Features
- Designed to connect a 6x post to a wood supporting member.
- Opposing nail pattern helps reduce the risk of splitting wood.
- Achieves full allowable load with common or pneumatic nails.
- Lightweight and durable 18-gauge steel construction.
- Compatible with nominal and rough lumber sizes.
- Made from 18-gauge steel.
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications.
Warranty
Limited warranty, available at www.strongtie.com/limited-warranties.
| Specifications | |
|---|---|
| Assembled Width (in) | 5.596 |
| Assembled Height (in) | 3.048 |
| Assembled Depth (in) | 5.5 |
| Package Quantity | 1 |
| Coating | ZMAX |
| Color | None |
| Gauge | 18 |
| Member Size | 6x |
| ICC-ES Reports | ESR-3096|ESR-2523 (Index) |
| Hazmat | NO |
| UPC Per Each | 707392000000 |
| Carton Quantity | 10 |
| Carton UPC | 10707400000000 |
| Pallet Quantity | 960 |
| Pallet UPC | 50707400000000 |
| Weight | 8.9 lbs |
|---|---|
| Dimensions | 5.5 × 5.596 × 3.048 in |
| Brand | Simpson Strong-Tie |
| Product Type | |
| MPN | |
| Gauge | |
| Post Size | 6×6 |
| UPC Code |
