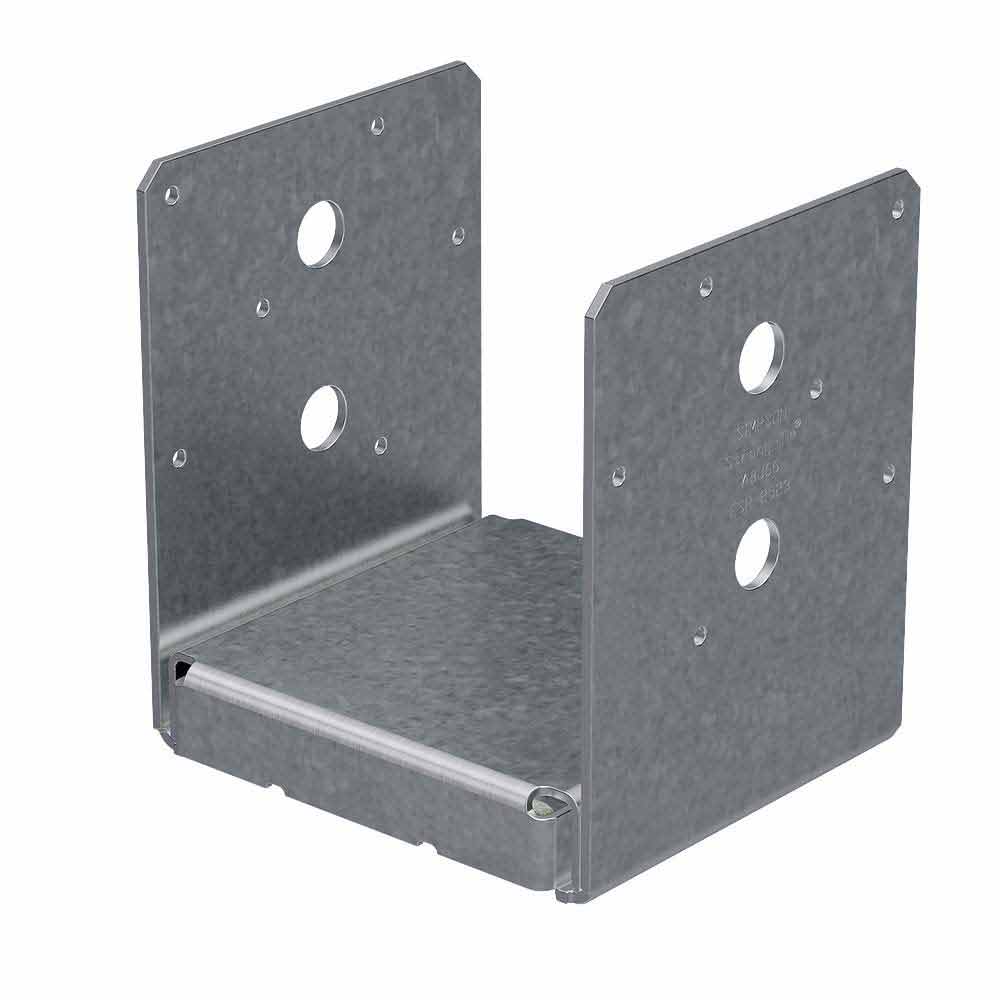

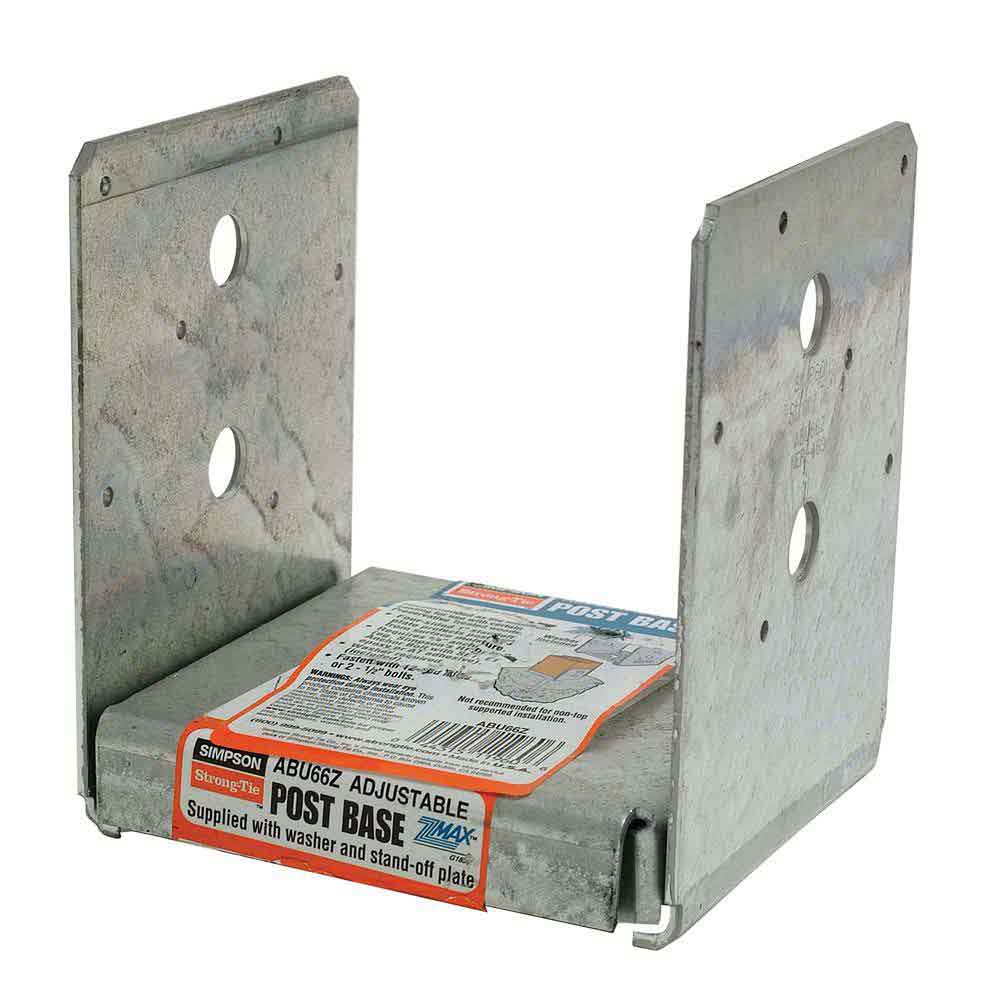

Simpson Strong-Tie ABU66Z ABU ZMAX Galvanized Adjustable Standoff Post Base for 6×6

Simpson Strong-Tie ABU66Z ABU ZMAX Galvanized Adjustable Standoff Post Base for 6×6

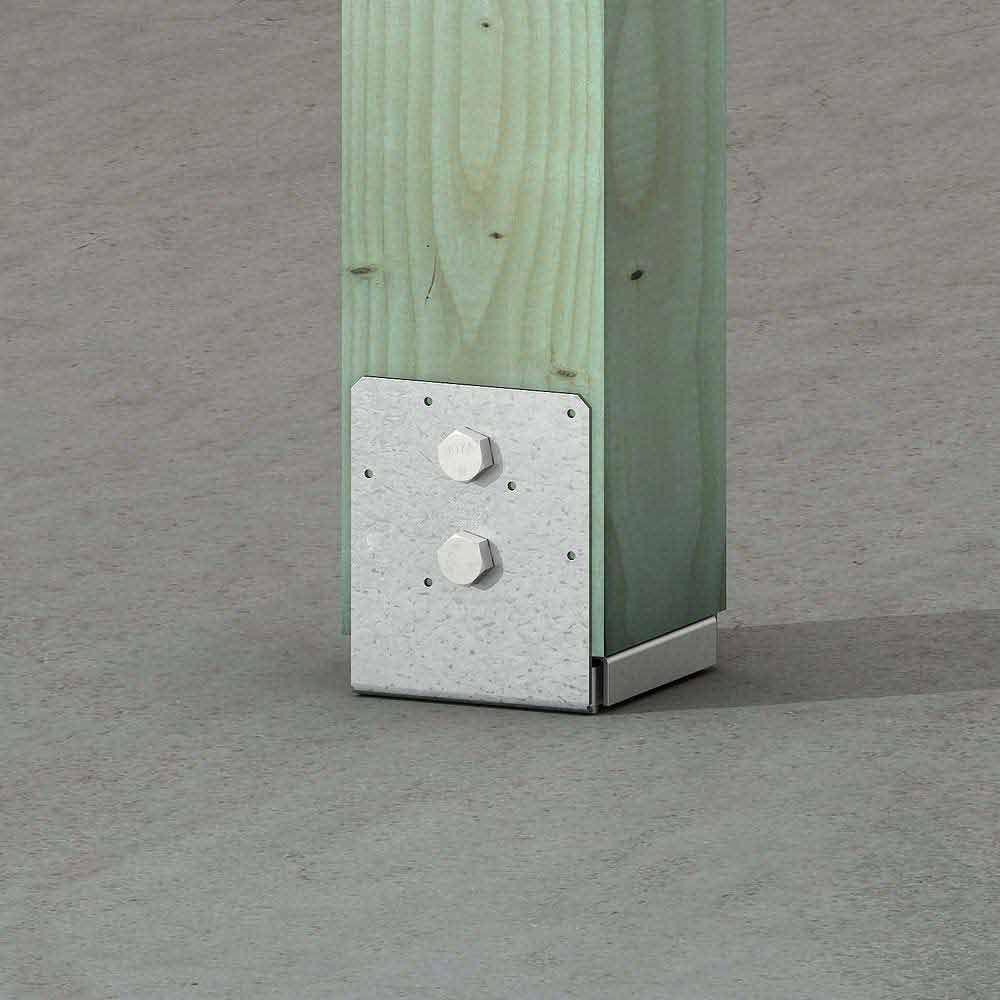

The Simpson Strong-Tie ABU66Z is a durable and high-capacity adjustable post base designed to securely anchor 6×6 wooden posts to existing concrete. Engineered for strength and performance, the ABU66Z features a 1-inch standoff that meets code requirements for structural posts exposed to moisture, helping to prevent post-end rot. Its slotted anchor hole provides flexibility during installation, making it easier to align the post accurately. Whether used with nails, Strong-Drive SD Connector screws, or bolts, this post base is a cost-effective solution for a variety of applications—from decks and patios to heavy-duty framing. With enhanced uplift performance, it’s ideal for areas subject to high winds or seismic activity.

Key Features

• Elevates post base to reduce moisture exposure and comply with building codes.
• Allows for easier post alignment and installation flexibility.
• Ideal for use in high-wind or seismic zones.
• Compatible with nails, SD screws, or bolts.
• Great for retrofits or post-placement fine-tuning.
• Steel gauge: Base 12, strap 10.
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	5.762
Assembled Height (in)	6.1935
Assembled Depth (in)	5.375
Package Quantity	1
Coating	ZMAX
Color	None
Gauge	Base 12; strap 10
Member Size	6×6
ICC-ES Reports	ESR-1622|ESR-2523 (Index)
State Of Florida Approvals	FL10860
Hazmat	NO
UPC Per Each	44315119606
Carton Quantity	10
Carton UPC	10044300000000
Pallet Quantity	240
Pallet UPC	50044300000000
