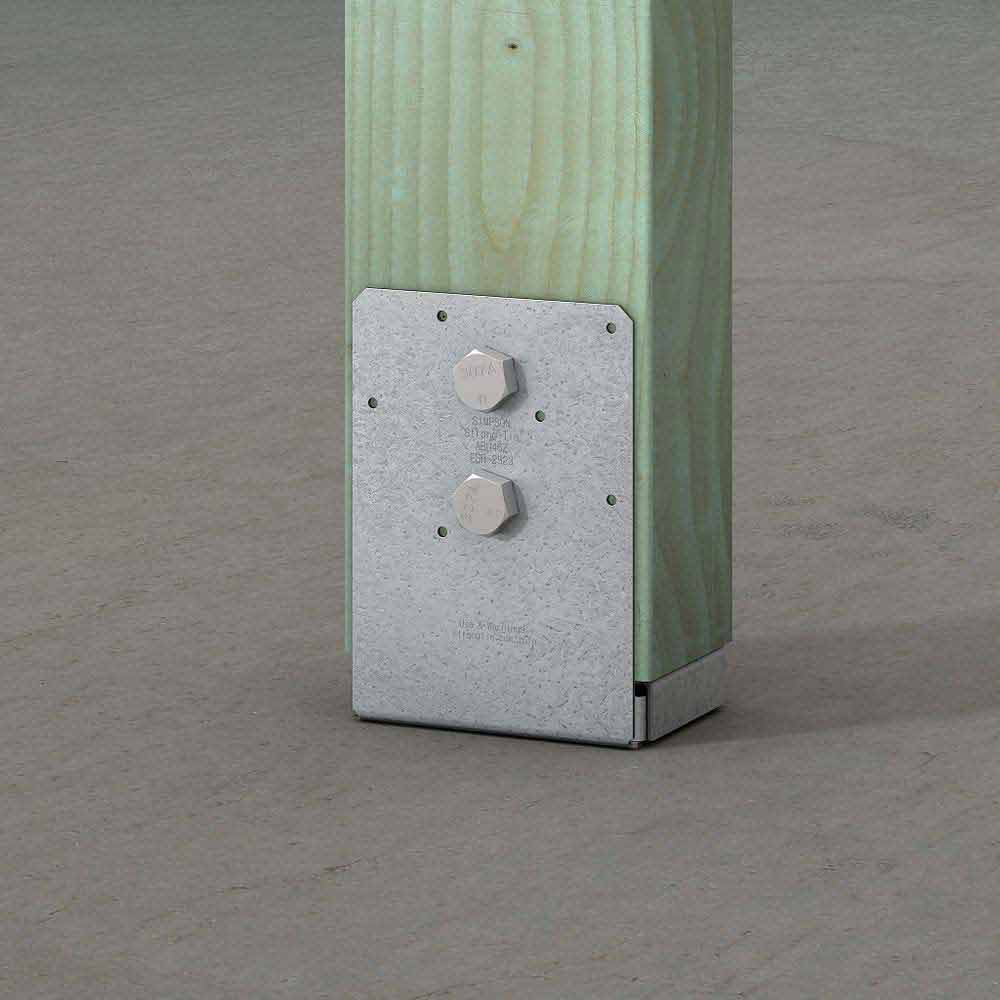

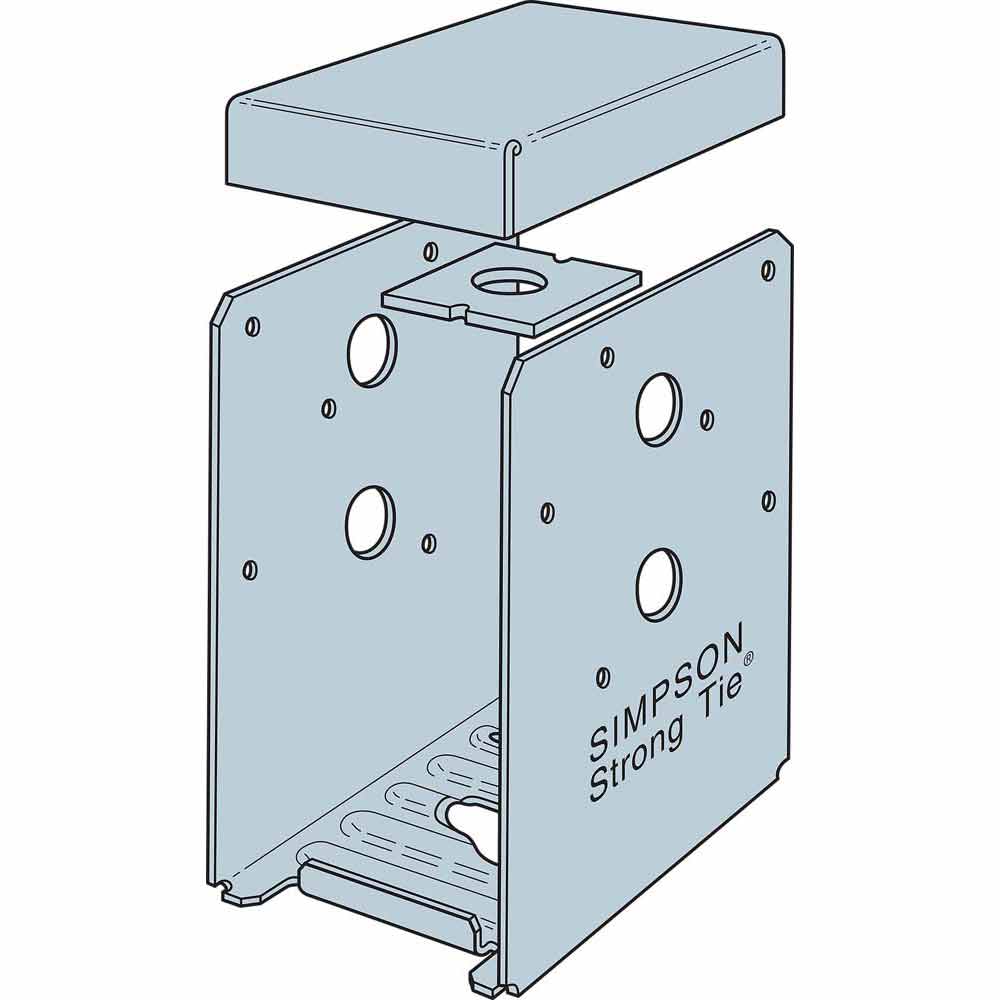

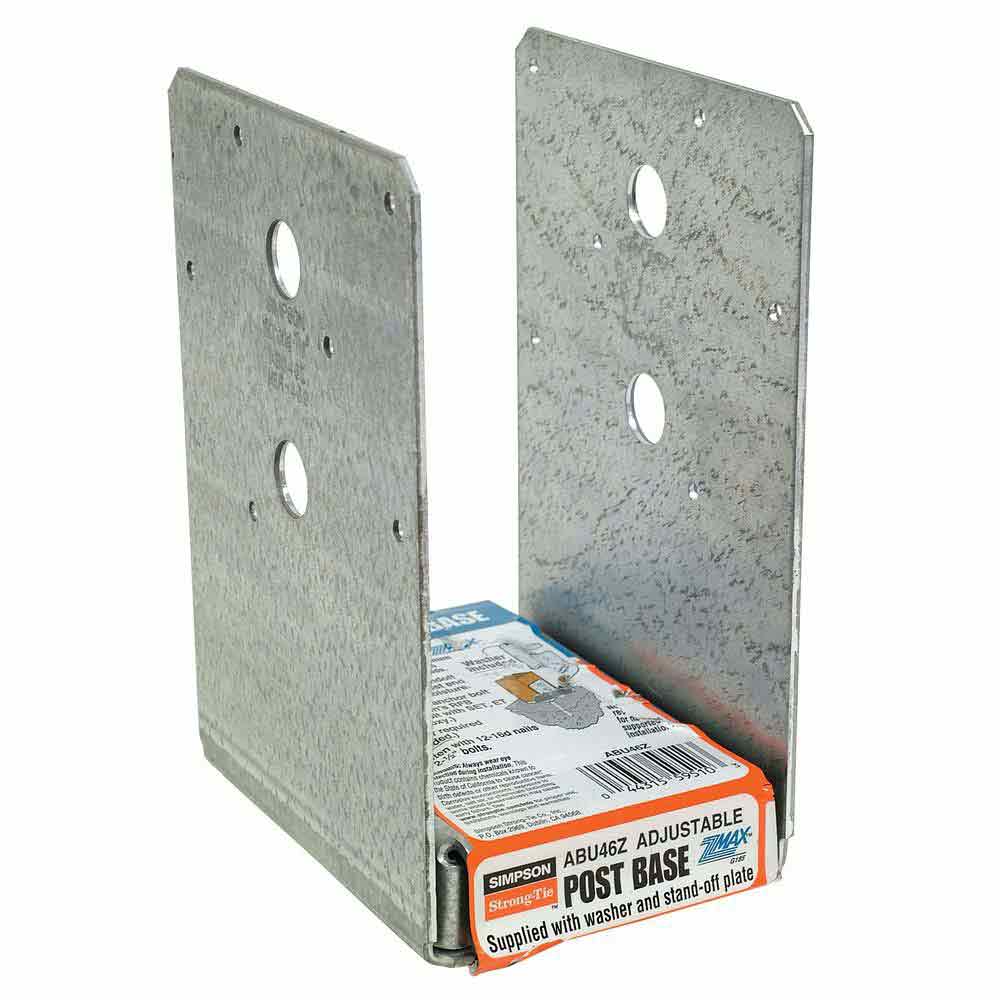

Simpson Strong-Tie ABU46Z ABU ZMAX Galvanized Adjustable Standoff Post Base for 4×6

Simpson Strong-Tie ABU46Z ABU ZMAX Galvanized Adjustable Standoff Post Base for 4×6

The Simpson Strong-Tie ABU46Z is an adjustable post base designed for high-capacity applications, securely attaching wooden posts to existing concrete foundations. Featuring a 1″ standoff, this base effectively helps prevent moisture-related rot at the end of the post, meeting code requirements for structural posts installed in basements or exposed to weather and water splash. The slotted anchor hole in the base offers flexibility, allowing for precise post placement and making installation easier. Designed to support increased uplift loads from wind and seismic forces, the ABU46Z is a reliable and cost-effective solution for securing posts with a versatile design. It can be installed using nails, Strong-Drive SD Connector screws, or bolts, providing multiple fastening options for your project.

Key Features

• Adjustable anchor hole allows for precise post placement and flexibility around anchor bolts.
• 1″ stand-off design helps prevent post rot and meets code requirements for structural posts exposed to weather or moisture.
• Built for increased uplift loads, ideal for applications in high-wind or seismic areas.
• Versatile attachment options; use nails, Strong-Drive SD Connector screws, or bolts.
• ZMAX coating offers corrosion resistance, ensuring durability.
• Made from 12-gauge steel.
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications.

Warranty

Limited warranty, available at www.strongtie.com/limited-warranties.

Specifications
Assembled Width (in)	3.7645
Assembled Height (in)	7.101
Assembled Depth (in)	5.375
Package Quantity	1
Coating	ZMAX
Color	None
Gauge	12
Member Size	4×6
ICC-ES Reports	ESR-1622|ESR-2523 (Index)
State Of Florida Approvals	FL10860
Hazmat	NO
UPC Per Each	44315595103
Carton Quantity	10
Carton UPC	10044300000000
Pallet Quantity	360
Pallet UPC	50044300000000
