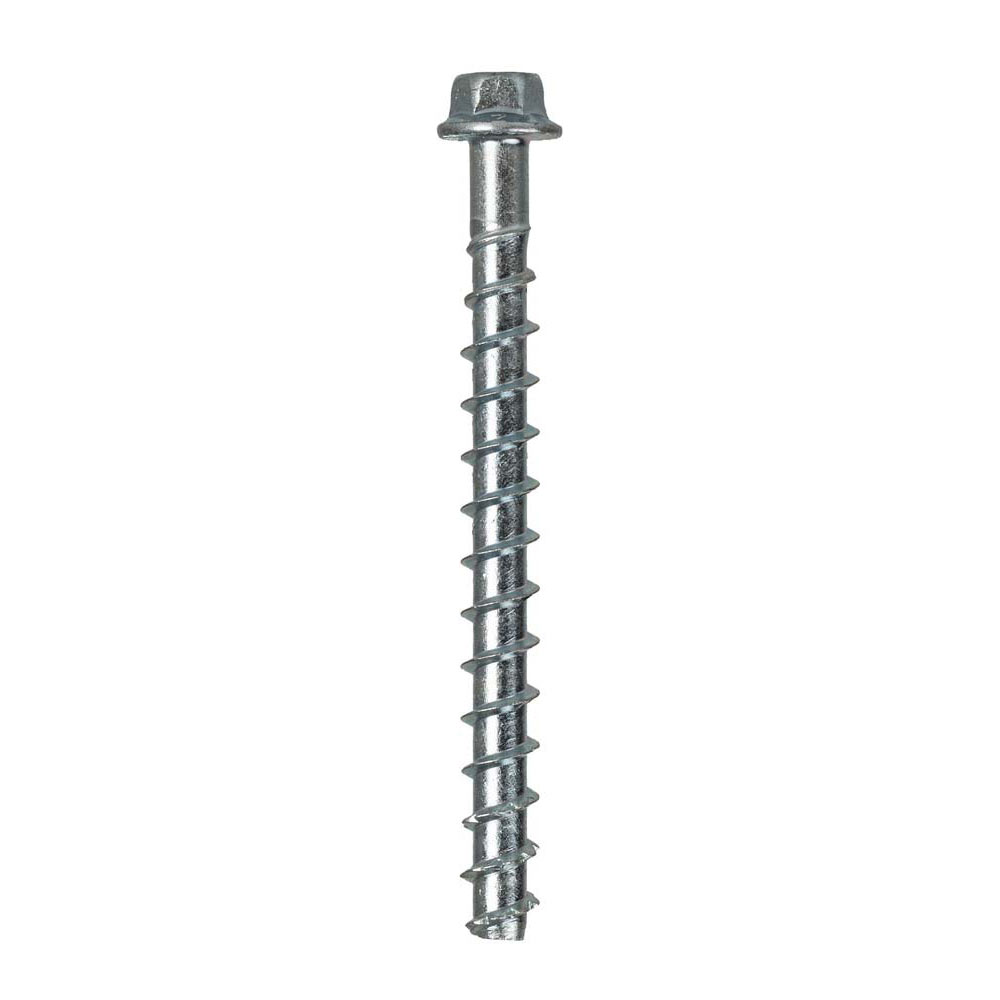

[50 Pack] Simpson Strong-Tie THDB25312H Titen HD 1/4 in. x 3-1/2 in. Heavy-Duty Screw Anchor
$42.54
Features
- THDB25312H is tested in accordance with ACI 355.2, AC193 and AC106
- Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
- Removable — ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved
- Reuse of the anchor will not achieve listed loads and is not recommended
Building Relationships, Delivering Results
- Fast Shipping
- No Hassle Returns
- Secure Payments
- Family Owned and Operated
- Personal Bilingue
[50 Pack] Simpson Strong-Tie THDB25312H Titen HD 1/4 in. x 3-1/2 in. Heavy-Duty Screw Anchor
The Simpson Strong-Tie THDB25312H Titen HD is a high-strength, heavy-duty screw anchor designed for superior performance in cracked and uncracked concrete, as well as uncracked masonry. With its low installation torque and exceptional holding power, this anchor is ideal for a wide range of structural applications, including sill plates, ledgers, post bases, seating, and other holdown applications
Key Features
- Meets ACI 355.2, AC193, and AC106 standards for seismic, wind, and static load conditions.

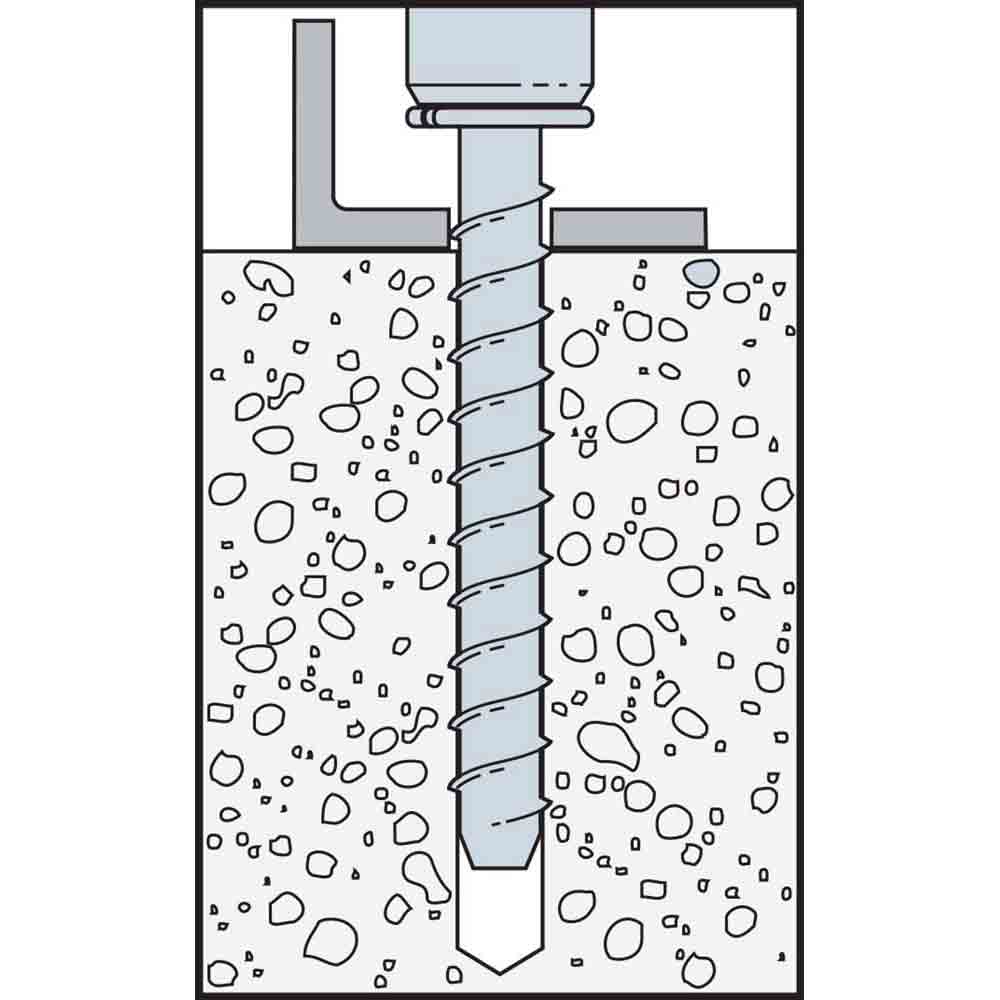

- Undercuts the base material to efficiently transfer loads and provide strong, reliable stable anchoring.
- Reduces the effort and speeds up installation
- Installs using standard ANSI tolerance drill bits.
- Eliminated the need for a separate washer (unless required by code) and provides a clean installed appearance.
| Weight | 3 lbs |
|---|---|
| Dimensions | 8 × 4 × 4 in |
| Brand | Simpson Strong-Tie |
| MPN | |
| Product Type | |
| Coating Material | |
| Wrench Size | 3/8 |
| UPC Code | |
| Package Quantity | |
| Length (in) | |
| Diameter (in) |
