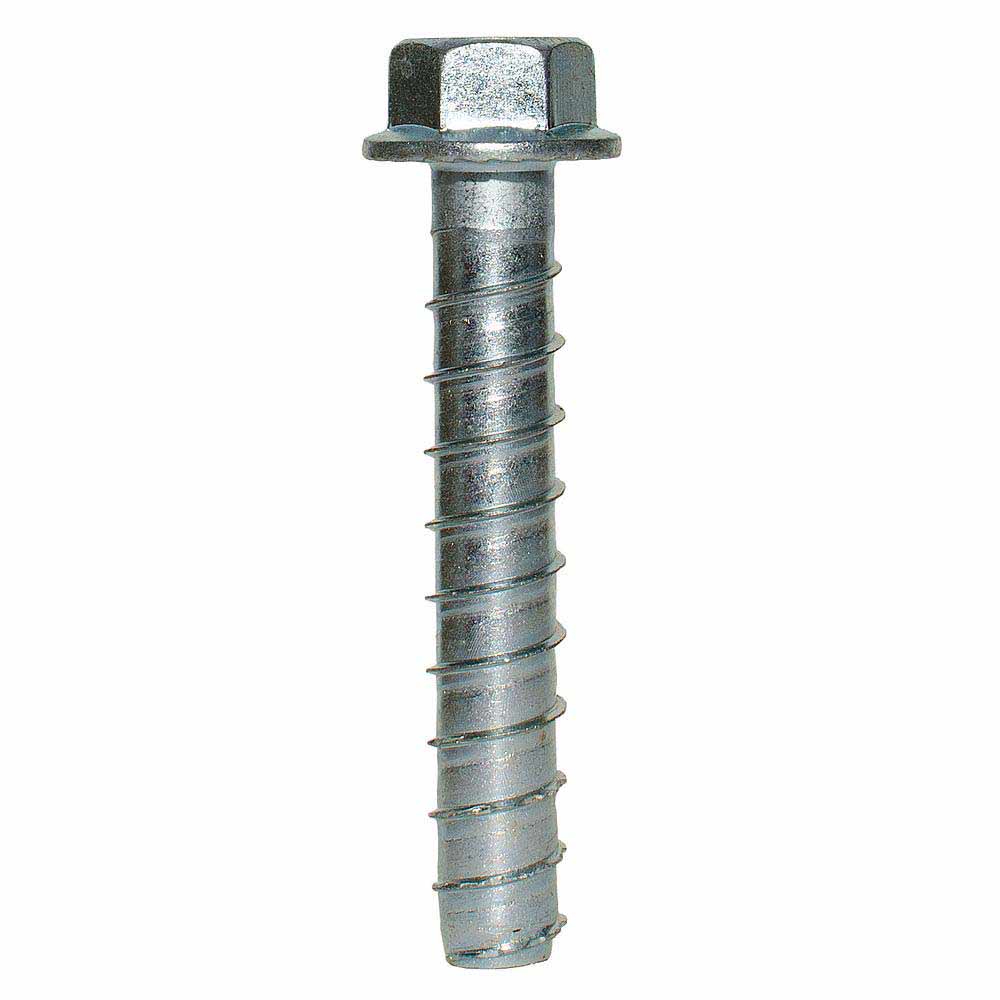

[5 Pack] Simpson Strong-Tie THD75500H Titen HD 3/4 in. x 5 in. Heavy-Duty Screw Anchor
$29.62
Features
- THD75500H is tested in accordance with ACI 355.2, AC193 and AC106
- Qualified for static, wind and seismic loading conditions
- Reuse of the anchor will not achieve listed loads and is not recommended
Building Relationships, Delivering Results
- Fast Shipping
- No Hassle Returns
- Secure Payments
- Family Owned and Operated
- Personal Bilingue
[5 Pack] Simpson Strong-Tie THD75500H Titen HD 3/4 in. x 5 in. Heavy-Duty Screw Anchor
The Simpson Strong-Tie THD75500H Titen HD is a high-strength, heavy-duty screw anchor engineered for superior holding power in cracked and uncracked concrete, as well as uncracked masonry. Designed for low installation torque and exceptional performance, this versatile screw anchor is ideal for a wide range of structural applications, including sill plates, ledgers, post bases, seating, and other holdown applications. For temporary installations, such as bracing and formwork, the Titen HD screw anchor is easily removable, allowing for quick adjustments or fixture relocations. Its robust carbon steel construction ensures long-lasting durability, while the zinc-plated finish provides protection in dry, interior environments.
Key Features

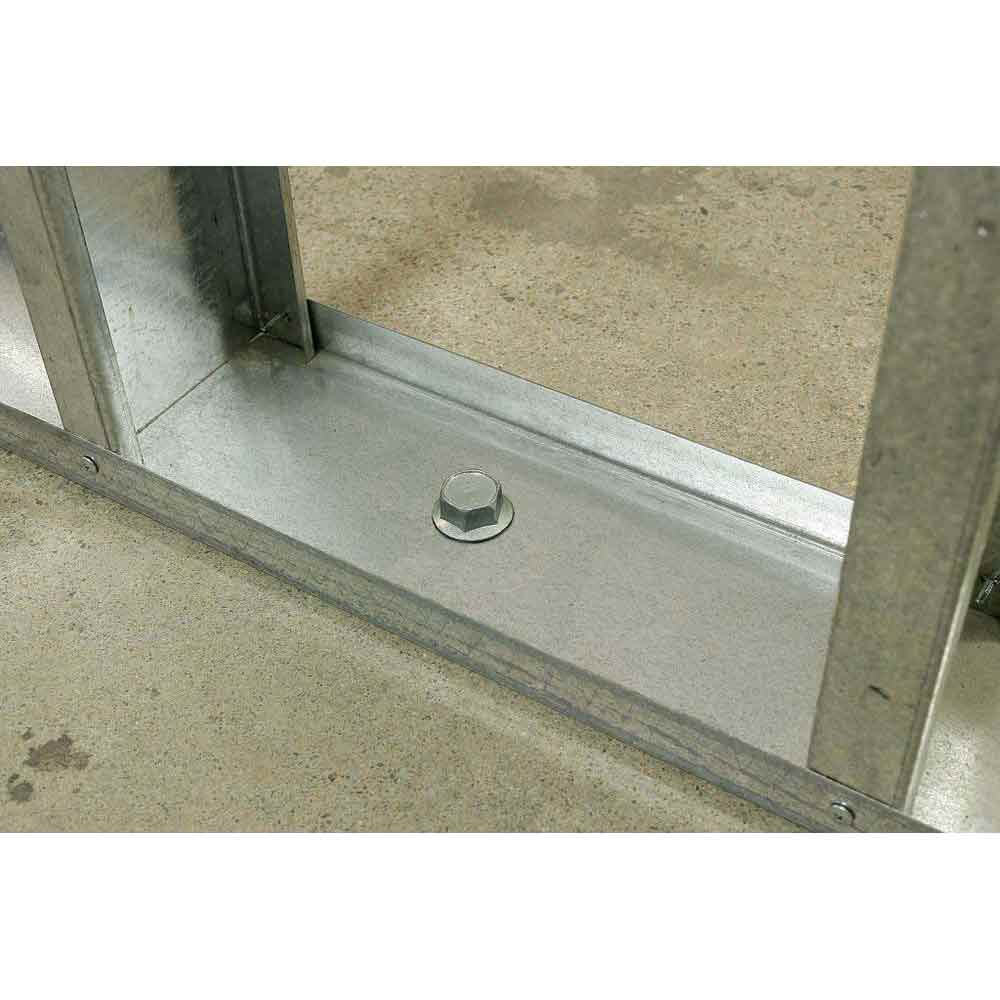

- Designed for structural anchoring in concrete and masonry.

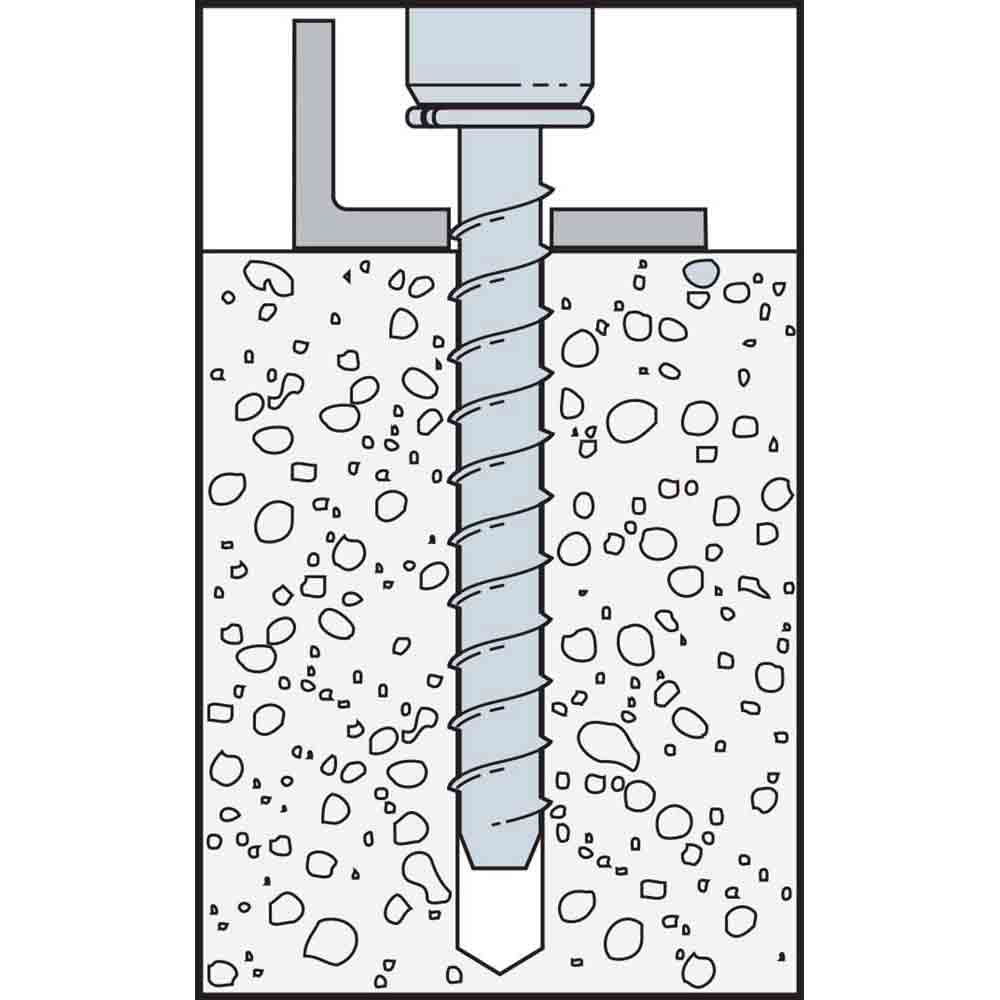

- Undercuts concrete to efficiently transfer loas and maximize holding power.
- Ensures smooth and efficient installation.
- No special drill bit required; designed for use with ANSI-standard drill bits.
- Provides a clean, professional installed appearance, no separate washer needed (Unless required by code)
| Weight | 5 lbs |
|---|---|
| Dimensions | 8 × 4 × 4 in |
| Brand | Simpson Strong-Tie |
| MPN | |
| Product Type | |
| Coating Material | |
| Wrench Size | 1 1/8 |
| UPC Code | |
| Package Quantity | |
| Length (in) | |
| Diameter (in) |
