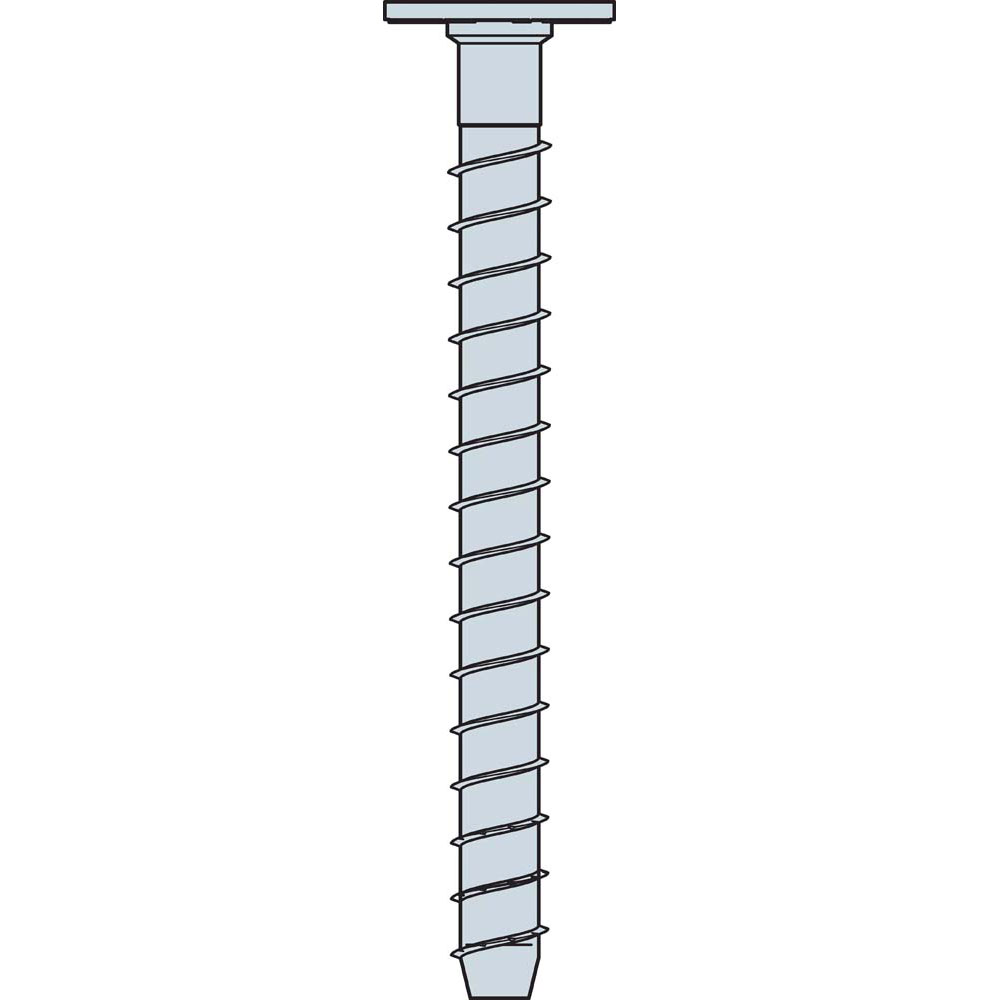

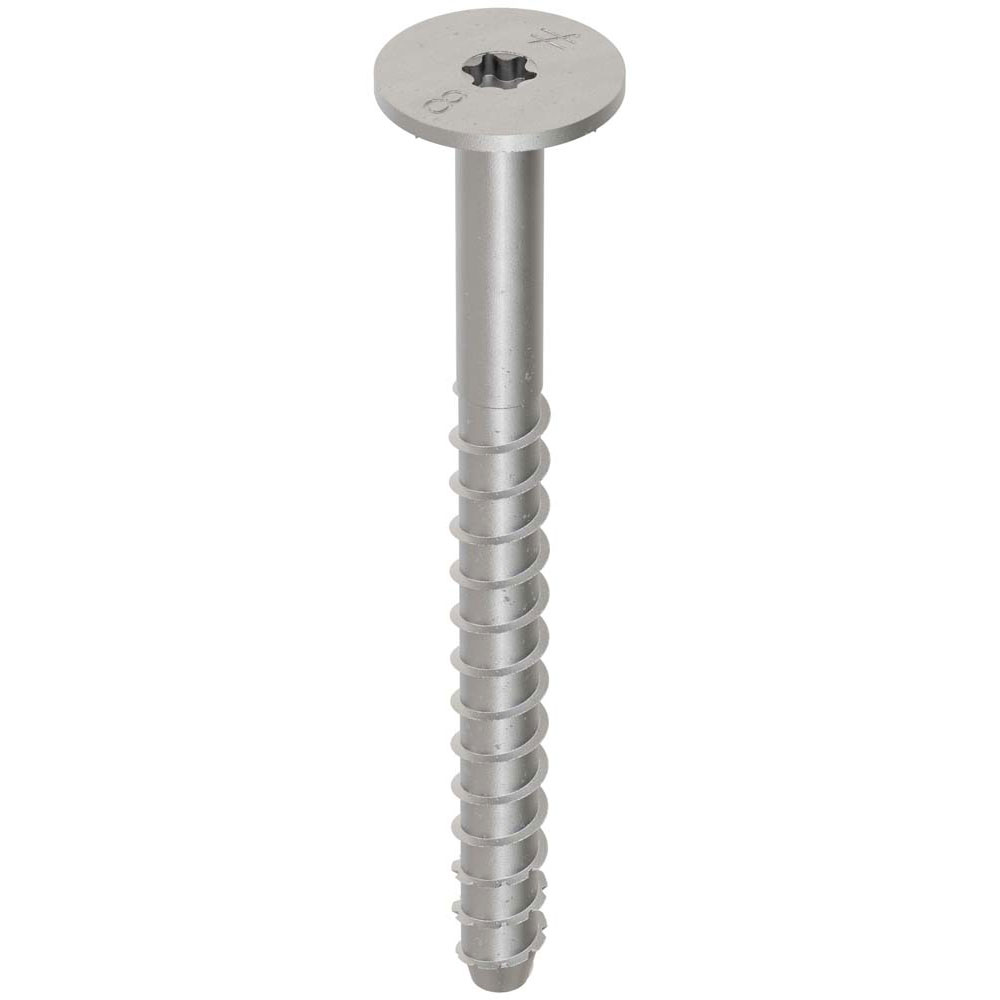

[10 Pack] Simpson Strong-Tie THDB62800WH Titen HD 5/8 in. x 8 in. Washer-Head Heavy-Duty Screw Anchor
$83.08
Standard Shipping
Features
- Tested in accordance with ACI 355.2, AC193 and AC106
- Qualified for static, wind and seismic loading conditions
- Standard fractional sizes, hole size same as anchor size
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
- 6-lobe drive reduces driver-bit cam-outs, resulting in easier installation
- Countersunk head allows screw anchor applications incompatible with a hex head
- Available in 1/4″ and 3/8″ diameters
Building Relationships, Delivering Results
- Fast Shipping
- No Hassle Returns
- Secure Payments
- Family Owned and Operated
- Personal Bilingue

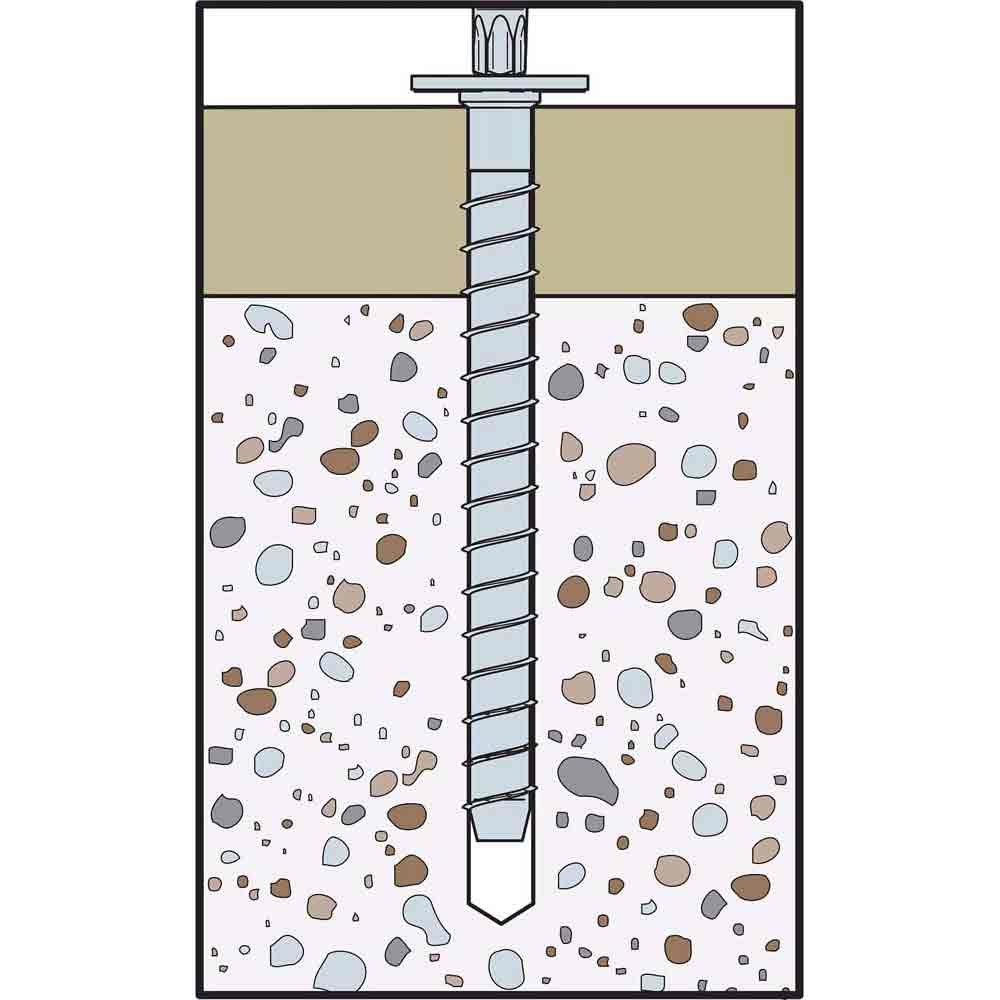

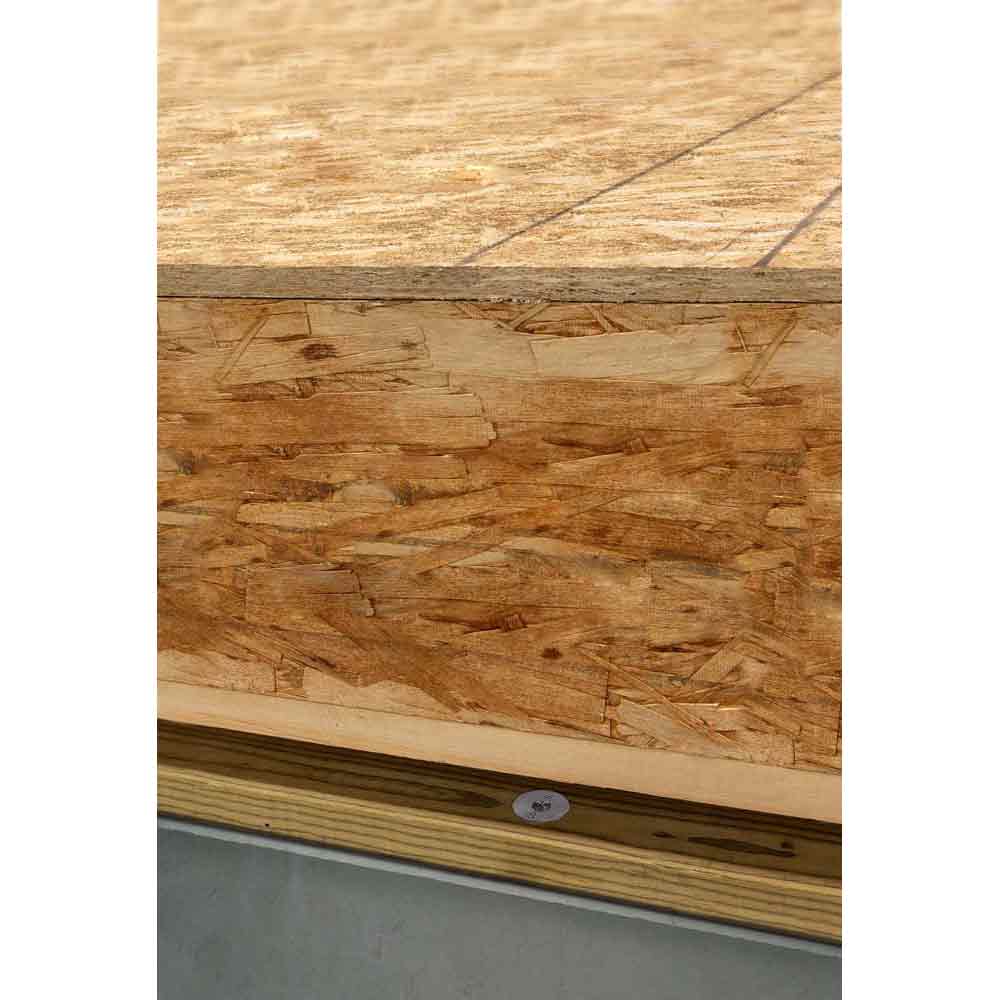

The Titen HD with washer head is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry. The washer-head design is commonly used where a minimal head profile is necessary. The model is offered in sizes suitable for use in sill plate applications, and the washer head’s low installed profile means modular wall and floor systems can be installed on top with no need for notching the wall framing to accommodate the anchor. The anchor’s 6-lobe drive eases driving and is less prone to stripping.
| Weight | 9 lbs |
|---|---|
| Dimensions | 13 × 4 × 4 in |
| Brand | Simpson Strong-Tie |
| MPN | |
| Product Type | |
| Coating Material | |
| UPC Code | |
| Package Quantity | |
| Wrench Size | 5/8 |
| Length (in) | |
| Diameter (in) |
