[10 Pack] Simpson Strong-Tie THDB62100WH Titen HD 5/8 in. x 10 in. Washer-Head Heavy-Duty Screw Anchor
$87.26
Standard Shipping
Features
- Tested in accordance with ACI 355.2 and AC193
- Qualified for static, wind and seismic loading conditions
- Available in 1/2″ and 5/8″ diameters
- Standard fractional sizes — the hole size matches the anchor size
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- For added convenience, a 1/2″ socket adapter and (2) T-drive bits are included in each box
- Removable — ideal for temporary anchoring or applications where fixtures may need to be moved

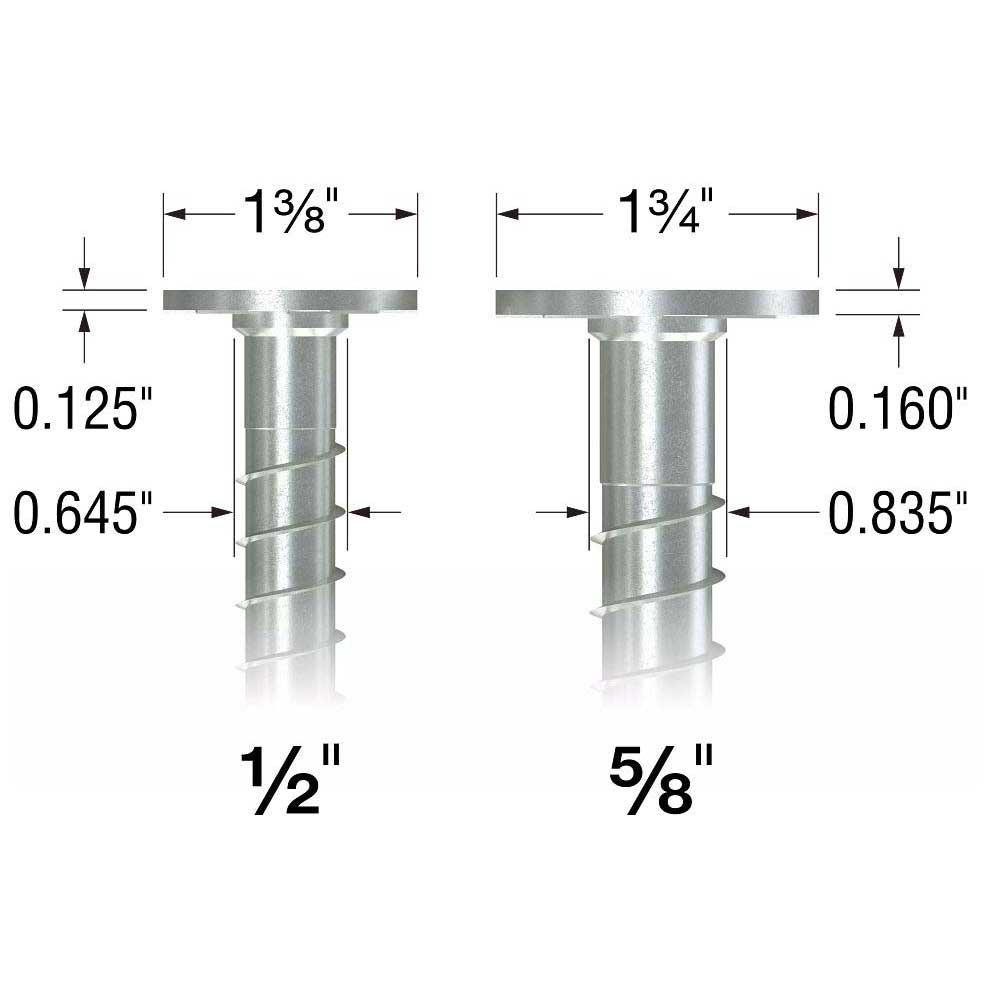

- Washer head allows screw anchor applications incompatible with a hex head
Building Relationships, Delivering Results
- Fast Shipping
- No Hassle Returns
- Secure Payments
- Family Owned and Operated
- Personal Bilingue

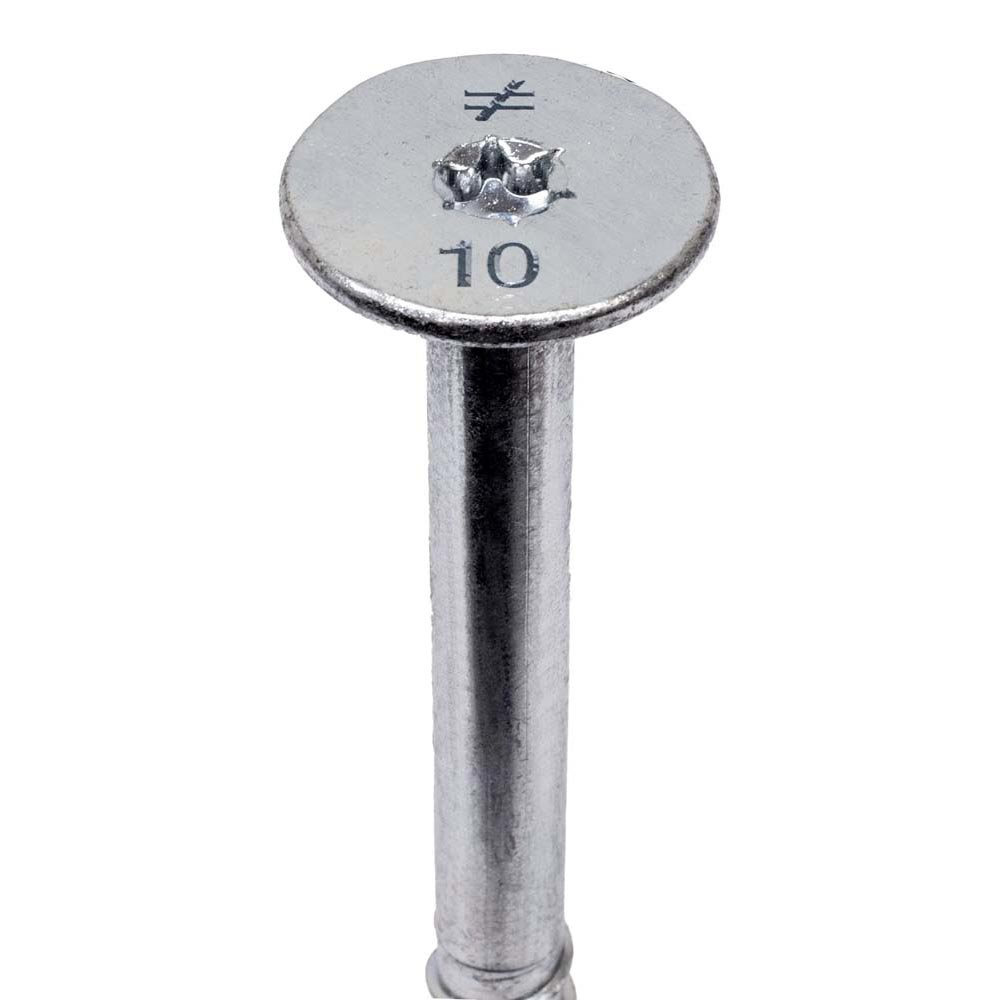

The Titen HD with washer head is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry. The washer-head design is commonly used where a minimal head profile is necessary. The model is offered in sizes suitable for use in sill plate applications, and the washer head’s low installed profile means modular wall and floor systems can be installed on top with no need for notching the wall framing to accommodate the anchor. The anchor’s 6-lobe drive eases driving and is less prone to stripping.
| Weight | 10 lbs |
|---|---|
| Dimensions | 13 × 4 × 4 in |
| Brand | Simpson Strong-Tie |
| MPN | |
| Product Type | |
| Coating Material | |
| UPC Code | |
| Package Quantity | |
| Wrench Size | 5/8 |
| Length (in) | |
| Diameter (in) |
